Deck 34: Ray Optics

Question 1

Light in air is initially traveling parallel to the face AC of an equilateral triangular prism,as shown in the figure.The prism is made of glass with an index of refraction of 1.52.If the light does not strike the face AC,what is the angle between the ray as it leaves the prism at face BC and the normal in air at that face?

A)83°
B)19°
C)59°
D)27°
E)55°

Answer 1

83°

Question 2

Suppose you place your face in front of a concave mirror.Which one of the following statements is correct?

A)If you position yourself between the center of curvature and the focal point of the mirror,you will not be able to see a sharp image of your face.
B)No matter where you place yourself,a real image will be formed.
C)Your image will always be inverted.
D)Your image will be diminished in size.
E)None of these statements is true.

Answer 2

If you position yourself between the center of curvature and the focal point of the mirror,you will not be able to see a sharp image of your face.

Question 3

Which statements are true about a VIRTUAL image? (There may be more than one correct choice.)

A)Its location can be calculated,but it cannot be viewed directly by your eye without using auxiliary lenses.
B)It cannot be photographed.
C)It cannot be viewed on a screen.
D)A plane mirror always forms a virtual image.
E)A concave lens always forms a virtual image.

Answer 3

It cannot be viewed on a screen.
A plane mirror always forms a virtual image.
A concave lens always forms a virtual image.

Question 4

What is the critical angle for light traveling from crown glass (n = 1.52)into water (n = 1.33)?

A)42°
B)48°
C)53°
D)57°
E)61°

Question 5

An oil layer that is 5.0 cm thick is spread smoothly and evenly over the surface of water on a windless day.What is the angle of refraction in the water for a ray of light that has an angle of incidence of 45° as it enters the oil from the air above? (The index of refraction for the oil is 1.15,and for water it is 1.33.)

A)27°
B)32°
C)36°
D)39°
E)52°

Question 6

A ray of light goes from one transparent material into another,as shown in the figure.What can you conclude about the indices of refraction of these two materials?

A)n₁ ≥ n₂
B)n₁ > n₂
C)n₁ = n₂
D)n₂ ≥ n₁
E)n₂ > n₁

Question 7

A convex lens has focal length f.If an object is located extremely far from the lens (at infinity),the image formed is located what distance from the lens?

A)infinity
B)2f
C)between f and 2f
D)f
E)between the lens and f

Question 8

Light strikes a 5.0-cm thick sheet of glass at an angle of incidence in air of 50°.The sheet has parallel faces and the glass has an index of refraction 1.50.
(a)What is the angle of refraction in the glass?
(b)After traveling through the glass the light re-emerges into the air.What is the final angle of refraction in air?
(c)As it leaves the glass,by what distance is the path of the ray is displaced from what it was before entering the glass?

Question 9

As you walk away from a vertical plane mirror,your image in the mirror

A)is always the same height.
B)may or may not decrease in height,depending on where the observer is positioned.
C)is always a real image,no matter how far you are from the mirror.
D)changes from being a virtual image to a real image as you pass the focal point.
E)decreases in height.

Question 10

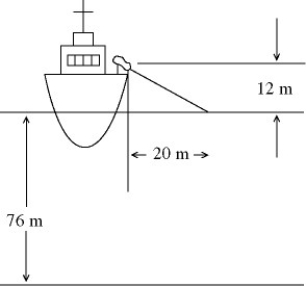

In the figure,a laser positioned on a ship is used to communicate with a small two-man research submarine resting on the bottom of a lake.The laser is positioned 12 m above the surface of the water,and it strikes the water 20 m from the side of the ship.The water is 76 m deep and has an index of refraction of 1.33.How far horizontally is the submarine from the side of the ship?

A)84.1 m
B)64.1 m
C)104 m
D)74.1 m
E)94.1 m

Question 11

The critical angle in air for a particular type of glass is 39.0°.What is the speed of light in this class glass? (c = 3.00 × 10⁸ m/s)

A)1.97 × 10⁸ m/s
B)1.94 × 10⁸ m/s
C)1.91 × 10⁸ m/s
D)1.89 × 10⁸ m/s
E)2.00 × 10⁸ m/s

Question 12

A ray of light strikes a boundary between two transparent materials,and there is no transmitted ray,as shown in the figure.What can you conclude about the indices of refraction of these two materials?

A)n₁ ≥ n₂
B)n₁ > n₂
C)n₁ = n₂
D)n₂ ≥ n₁
E)n₂ > n₁

Question 13

A convex lens has a focal length f.An object is placed between infinity and 2f from the lens along a line perpendicular to the center of the lens.The image is located at what distance from the lens?

A)farther than 2f
B)2f
C)between f and 2f
D)f
E)between the lens and f

Question 14

A ray of light passes from glass into a liquid,as shown in the figure.What is the speed of the light in the liquid? (c = 3.00 × 10⁸ m/s)

Question 15

A tank holds a 1.44-m thick layer of oil that floats on a 0.96-m thick layer of brine.Both liquids are clear and do not intermix.Point O is at the bottom of the tank,on a vertical axis.The indices of refraction of the oil and the brine are 1.40 and 1.52,respectively.A ray originating at O crosses the brine-oil interface at a point 0.60 m from the axis.The ray continues and emerges into the air above the oil.What is the angle that the ray in the air makes with the vertical?

A)48°
B)51°
C)54°
D)57°
E)60°

Question 16

An optic fiber is made of clear plastic with index of refraction of 1.50,surrounded by air.For what angles of incidence θ will light remain within the plastic fiber?

A)θ ≥ 21.1°
B)θ < 38.3°
C)θ > 38.3°
D)θ < 41.8°
E)θ > 41.8°

Question 17

The speed of light in a material is What is the critical angle of a light ray at the interface between the material and a vacuum?

A)30°
B)21°
C)24°
D)27°

Question 18

A convex lens has a focal length f.An object is placed at a distance between f and 2f on a line perpendicular to the center of the lens.The image formed is located at what distance from the lens?

A)2f
B)between f and 2f
C)f
D)between the lens and f
E)farther than 2f

Question 19

An object is placed in front of a lens which forms an image of the object.

A)If the lens is convex,the image cannot be virtual.
B)If the image is real,then it is also inverted.
C)If the image is real,then it is also upright.
D)If the image is virtual,then it is also inverted.
E)If the image is virtual,the lens must be a diverging lens.

Question 20

When light goes from one material into another material having a HIGHER index of refraction,

A)its speed,wavelength,and frequency all decrease.
B)its speed and wavelength decrease,but its frequency stays the same.
C)its speed decreases but its wavelength and frequency both increase.
D)its speed decreases but its frequency and wavelength stay the same.
E)its speed increases,its wavelength decreases,and its frequency stays the same.

Question 21

A glass plate whose index of refraction is 1.56 is immersed in a liquid.The surface of the glass is inclined at an angle of 42.0° with the vertical.A horizontal ray in the glass is incident on the interface.When the liquid is a certain alcohol,the incident ray arrives at the interface at the critical angle.What is the index of refraction of the alcohol?

A)1.04
B)1.02
C)1.00
D)0.984
E)1.06

Question 22

A tank holds a 1.44-m thick layer of oil that floats on a 0.96-m thick layer of brine.Both liquids are clear and do not intermix.Point O is at the bottom of the tank,on a vertical axis.The indices of refraction of the oil and the brine are 1.40 and 1.52,respectively.A ray originating at O reaches the brine-oil interface at the critical angle.What is the distance of this point from the axis?

A)1.5 m
B)1.7 m
C)1.9 m
D)2.1 m
E)2.3 m

Question 23

In the figure,the thin lens forms a real image of the object 94.0 cm from the object.What is the focal length of the lens?

A)22.0 cm
B)25.5 cm
C)27.5 cm
D)55.8 cm
E)86.0 cm

Question 24

A fisherman in a stream 39 cm deep looks downward into the water and sees a rock on the stream bed.How deep does the stream appear to the fisherman? The index of refraction of the water is 1.33.

A)29 cm
B)52 cm
C)33 cm
D)45 cm

Question 25

An object 4.0 cm in height is placed 8.0 cm in front of a concave spherical mirror with a focal length of 10.0 cm.What is the position of its image in relation to the mirror,and what are the characteristics of the image?

A)40.0 cm on the other side of mirror,real,6.0 times bigger
B)10.0 cm on the other side of mirror,virtual,10.0 times bigger
C)18.0 cm on the same side of mirror,virtual,2.25 times bigger
D)10.0 cm on the same side of mirror,real,6.0 times bigger
E)40.0 cm on the other side of mirror,virtual,5.0 times bigger

Question 26

A ray of light traveling in air strikes the surface of a certain plastic slab at 63.0° with respect to the normal in air.It travels in the plastic slab at a 30.6° angle with respect to the normal.Find the critical angle for the plastic in air.

Question 27

A concave spherical mirror with a radius of 20 cm creates a real image 30 cm from the mirror.How far is the object from the mirror?

A)50 cm
B)20 cm
C)15 cm
D)7.5 cm
E)5.0 cm

Question 28

A goldfish bowl is spherical,8.0 cm in radius.A goldfish is swimming 3.0 cm from the wall of the bowl.Where does the fish appear to be to an observer outside? The index of refraction of water is 1.33.Neglect the effect of the glass wall of the bowl.

A)3.3 cm inside the bowl
B)3.9 cm inside the bowl
C)2.5 cm inside the bowl
D)3.0 cm inside the bowl
E)1.7 cm inside the bowl

Question 29

A man's face is 30 cm in front of a concave spherical shaving mirror.If the image is erect and 1.5 times as large as his face,what is the radius of curvature of the mirror?

A)40 cm
B)60 cm
C)100 cm
D)140 cm
E)180 cm

Question 30

How far are you from your image when you stand 0.750 m in front of a vertical plane mirror?

A)0.375 m
B)0.750 m
C)1.50 m
D)3.00 m

Question 31

The left-hand end of a glass rod is ground to a spherical surface.The glass has index of refraction 1.50.A small object 4.00 mm tall is placed on the axis of the rod,37.0 cm to the left of the vertex of the spherical surface.The image is formed in the rod,50.0 cm to the right of the vertex.
(a)What is the magnitude of the radius of curvature of the spherical surface at the end of the rod?
(b)What is the height of the image?

Question 32

An optical fiber made of glass with an index of refraction 1.50 is coated with a plastic with index of refraction 1.30.What is the critical angle of this fiber at the glass-plastic interface?

A)90.0°
B)41.8°
C)60.1°
D)50.2°
E)61.1°

Question 33

An object 3.4 mm tall is placed 25 cm from the vertex of a convex spherical mirror.The radius of curvature of the mirror has a magnitude of 52 cm.
(a)How far is the image from the vertex of the mirror?
(b)What is the height of the image?

Question 34

A convex spherical mirror with a focal length of magnitude 25 cm has a 4.0-cm tall flower placed 100 cm in front of it.What is the height of the image of the flower?

A)0.80 cm
B)20 cm
C)4.0 cm
D)1.6 cm
E)8.0 cm

Question 35

A fish appears to be 2.00 m below the surface of a pond when viewed almost directly above by a fisherman.What is the actual depth of the fish? (n_water = 1.33)

A)2.66 m
B)0.67 m
C)1.5 m
D)0.38 m

Question 36

The image of a plant is 4.0 cm from a concave spherical mirror having a radius of curvature of 10 cm.Where is the plant relative to the mirror?

A)2.2 cm in front of the mirror
B)4.4 cm in front of the mirror
C)9.0 cm in front of the mirror
D)1.0 cm in front of the mirror
E)20 cm in front of the mirror

Question 37

An object is 12 cm in front of a concave spherical mirror,and the image is 3.0 cm in front of the mirror.What is the focal length of the mirror?

A)0.25 cm
B)15 cm
C)4.0 cm
D)2.4 cm
E)1.3 cm

Question 38

A convex spherical mirror with a radius of 50 cm has a 4.0 cm tall object placed 100 cm in front of it.What is the position of the image relative to the mirror?

A)20 cm behind the mirror
B)25 cm behind the mirror
C)100 cm in front of the mirror
D)25 cm in front of the mirror
E)20 cm in front of the mirror

Question 39

The spherical side mirror on a car is convex and has a radius of curvature of 25 cm.Another car is following,20 m behind the mirror.If the height of the car is 1.6 m,how tall is its image?

A)5.0 cm
B)2.0 cm
C)4.0 cm
D)3.0 cm
E)0.99 cm

Question 40

A swimming pool is filled to a depth of 2.0 m.How deep does the pool appear to be from above the water,which has an index of refraction of 1.33?

A)1.5 m
B)1.33 m
C)2.5 m
D)3.0 m
E)4.0 cm

Question 41

An object is placed 100 cm in front of a lens of focal length 20 cm.A second lens is placed 35 cm beyond the first,this second lens having a focal length of 8.0 cm.If the height of the object is 6.0 cm,what is the height of the final image?

A)1.5 cm
B)12 cm
C)9.0 cm
D)3.0 cm
E)6.0 cm

Question 42

It is desired to project the image of an object four times its actual size using a lens of focal length 20 cm.How far from the lens should the object be placed?

A)100 cm
B)80 cm
C)4.0 cm
D)25 cm
E)5.0 cm

Question 43

A thin double convex lens is to focus the image of an object onto a screen so that the image is life-sized.The lens surfaces have equal radii of curvature of 112 cm,and the refractive index of the lens material is 1.500.
(a)How far from the lens should the screen be placed?
(b)How far is the screen from the object?

Question 44

A 4.0-cm tall object is placed 60 cm away from a converging lens of focal length 30 cm.What are the nature and location of the image? The image is

A)real,2.5 cm tall,and 30 cm from the lens on the same side as the object.
B)virtual,2.5 cm tall,and 30 cm from the lens on the side opposite the object.
C)virtual,2.0 cm tall,and 15 cm from the lens on the side opposite the object.
D)virtual,4.0 cm tall,and 60 cm from the lens on the same side as the object.
E)real,4.0 cm tall,and 60 cm from the lens on the side opposite the object.

Question 45

An object 1.80 cm tall is placed 100 cm in front of a diverging lens having a focal length of magnitude 25 cm.A converging lens with a focal length of magnitude 33.33 cm is placed 30 cm past the first lens.What is the lateral magnification of this system of lenses?

A)2.5
B)-2.5
C)-0.40
D)1.0
E)0.40

Question 46

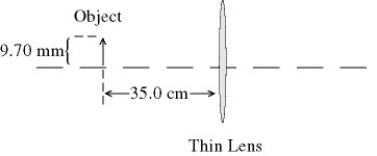

In the figure,the image is viewed on a screen and is 13.5 mm tall.What is the focal length of the lens?

A)+14.6 cm
B)-14.6 cm
C)+20.4 cm
D)-89.3 cm
E)+124 cm

Question 47

In the figure,the radius of curvature of the curved part of the lens is 24.0 cm,and the refractive index of the lens material is 1.750.What is the focal length of the lens?

A)+32.0 cm
B)-32.0 cm
C)-16.0 cm
D)+13.8 cm
E)-13.8 cm

Question 48

An object is placed 100 cm in front of a diverging lens with a focal length of magnitude 25 cm.A converging lens having a focal length of magnitude 33.33 cm is placed 30 cm past the first lens.Where is the final image formed?

A)30 cm after the second lens
B)20 cm in front of the first lens
C)3.0 meters before the second lens
D)100 cm after the second lens
E)3.0 cm before the second lens

Question 49

When an object 1.15 cm tall is placed 12 cm from a lens,the lens produces an upright image of the object that is 5.75 cm tall.What is the focal length of the lens?

A)24 cm
B)18 cm
C)60 cm
D)15 cm
E)9.0 cm

Question 50

In the figure,the radius of curvature of the curved part of the lens is 35.0 cm,and the refractive index of the lens material is 1.620.What is the focal length of the lens?

A)+56.5 cm
B)-56.5 cm
C)+28.2 cm
D)+21.6 cm
E)-21.6 cm

Question 51

A convex-concave thin lens is made with the radius of curvature of the convex surface being 25.0 cm and the concave surface 45.0 cm.If the glass used has index of refraction 1.500,what is the focal length of this lens?

A)-32.0 cm
B)32.0 cm
C)113 cm
D)67.5 cm
E)-113 cm

Question 52

A thin converging lens is found to form an image of a distant building 24 cm from the lens.If an insect is now placed 16 cm from this lens,how far FROM THE INSECT will its image be formed?

A)64 cm
B)72 cm
C)32 cm
D)96 cm
E)48 cm

Question 53

A 4.0-cm tall object is placed 50.0 cm from a diverging lens having a focal length of magnitude 25.0 cm.What are the nature and location of the image? The image is

A)real,4.0 cm tall,and 20 cm from the lens on the side opposite the object.
B)virtual,4.0 cm tall,and 20 cm from the lens on the side opposite the object.
C)virtual,2.0 cm tall,and 10 cm from the lens on the side opposite the object.
D)virtual,1.3 cm tall,and 16.7 cm from the lens on the same side of the object.
E)real,1.3 cm tall,and 16.7 cm from the lens on the same side of the object.

Question 54

A lens is made with a focal length of -40 cm using a material with index of refraction 1.50.A second lens is made with the SAME GEOMETRY as the first lens,but using a material having refractive index of 2.00.What is the focal length of the second lens?

A)-40 cm
B)-80 cm
C)-53 cm
D)-20 cm
E)-30 cm

Question 55

A double-convex thin lens is made of glass with an index of refraction of 1.52.The radii of curvature of the faces of the lens are 60 cm and 72 cm.What is the focal length of the lens?

A)70 cm
B)63 cm
C)75 cm
D)66 cm
E)58 cm

Question 56

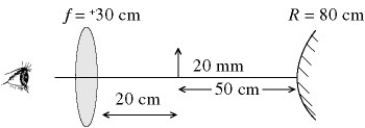

An optical system comprises in turn,from left to right: an observer,a lens of focal length +30 cm,an erect object 20 mm high,and a convex mirror of radius 80 cm.The object is between the lens and the mirror,20 cm from the lens and 50 cm from the mirror.The observer views the image that is formed first by reflection and then by refraction.What is the position of the final image,measured from the mirror?

A)90 cm
B)102 cm
C)114 cm
D)126 cm
E)138 cm

Question 57

A double-concave lens has equal radii of curvature of An object placed from the lens forms a virtual image from the lens.What is the index of refraction of the lens material?

A)1.90
B)1.98
C)1.82
D)1.77

Question 58

A compound lens is made by joining the plane surfaces of two thin plano-convex lenses of different glasses.The radius of curvature of each convex surface is 80 cm.The indices of refraction of the two glasses are 1.50 and 1.60.What is the focal length of the compound lens?

A)67
B)69
C)71
D)73
E)75

Question 59

An object 1.25 cm tall is placed 100 cm in front of a convex lens with a focal length of magnitude 50 cm.A concave lens with a focal length of magnitude 20 cm is placed 90 cm beyond the first lens.Where is the final image located?

A)10 cm in front of the second lens
B)20 cm past the second lens
C)17 cm past the second lens
D)10 cm past the second lens
E)20 cm in front of the second lens

Question 60

An object is placed 10 cm from a convex lens of focal length 20 cm.What is the lateral magnification of the object?

A)0.50
B)1.0
C)1.5
D)2.0
E)2.5
