Deck 18: Welding Processes and Representations

Question 1

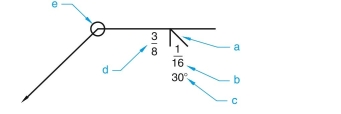

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.

Answer 1

Question 2

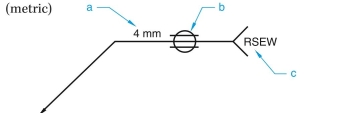

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.
(in.)

Answer 2

Question 3

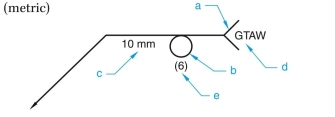

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.
(in.)

Answer 3

Question 4

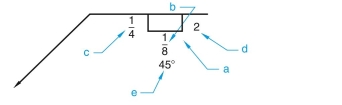

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.
(in.)

Question 5

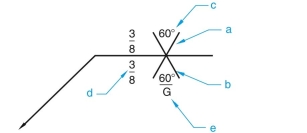

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.
(in.)

Question 6

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.

Question 7

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.
(in.)

Question 8

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.

Question 9

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.

Question 10

given the following welding symbols with letters (a, b, c, etc.) pointing to various components,
identify the components related to each letter.
(in.)
