Deck 39: Bends and Stretchouts of Circular and Semicircular Shapes

Question 1

Find, in inches, the size of 1/4" plate needed to form a circular pipe that has an O/S diameter of 14" and a length of 5'.

Answer 1

2,590.5

Question 2

In inches, what is the average diameter of 1/4" pipe with a 12" I/S diameter?

Answer 2

12.25

Question 3

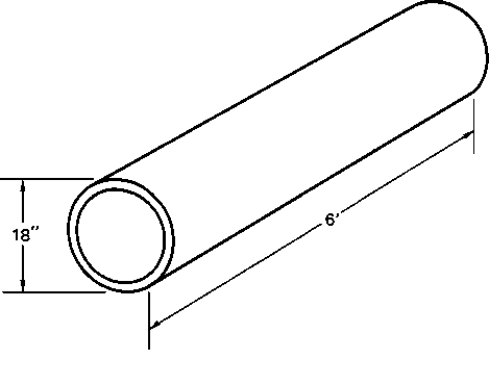

Find, in inches, the length of 1/4" plate needed to form this circular drain pipe.

Answer 3

1278

Question 4

Find, in inches, the length of 1/2" plate needed to form this circular drain pipe.

Question 5

In inches, what is the average diameter of 1/5" pipe with a 16" O/S diameter?

Question 6

Find, in inches, the length of 3/4" plate needed to form this circular drain pipe.

Question 7

In inches, what is the average diameter of 1/8" pipe with an 8" O/S diameter? Round to the nearest hundredth.

Question 8

Find, in inches, the length of 1/4" plate needed to form this semicircular ventilation section. The inside radius is 9 1/2".

Question 9

Find, in inches, the length of 1/2" plate needed to form this semicircular ventilation section. The inside radius is 10 1/2".

Question 10

What, in inches, is the circumference of 1/4" pipe that has an I/S diameter of 15"? Give the answer to the nearest hundredth.
