Deck 9: Geometry

Question 1

Classify the angle as acute, right, obtuse, or straight.

Answer 1

Right

Question 2

Name the angle in four different ways.

Answer 2

Question 3

Which of the following is not a way to name the angle shown?

A)
B)
C)
D)

Answer 3

B

Question 4

Identify angles 6 and 7 as alternate interior, alternate exterior, corresponding, or vertical.

A)Corresponding
B)Vertical
C)Alternate interior
D)Alternate exterior

Question 5

Find the measure of the complement of 60°.

Question 6

Classify the angle as acute, right, obtuse, or straight.

Question 7

Name the angle in four different ways.

Question 8

Find the measure of the supplement of 56°.

A)124°
B)34°
C)304°
D)146°

Question 9

Identify and name the figure.

Question 10

Identify angles 2 and 7 as alternate interior, alternate exterior, corresponding, or vertical.

A)Alternate exterior
B)Alternate interior
C)Corresponding
D)Vertical

Question 11

Identify and name the figure.

Question 12

Classify the angle as acute, right, obtuse, or straight.

A)Acute
B)Obtuse
C)Straight
D)Right

Question 13

Which of the following is not a way to name the angle shown?

A)
B)
C)
D)

Question 14

Identify angles 3 and 7 as alternate interior, alternate exterior, corresponding, or vertical.

A)Vertical
B)Alternate interior
C)Alternate exterior
D)Corresponding

Question 15

Find the measures of angles 1, 2, and 3.

Question 16

Identify angles 4 and 5 as alternate interior, alternate exterior, corresponding, or vertical.

A)Alternate exterior
B)Alternate interior
C)Corresponding
D)Vertical

Question 17

Find the measures of the complement and supplement of 35°.

Question 18

Identify the figure.

A)Line
B)Segment
C)Half line
D)Open segment

Question 19

Identify the figure.

A)Line
B)Ray
C)Half line
D)Open segment

Question 20

Classify the angle as acute, right, obtuse, or straight.

A)Right
B)Straight
C)Acute
D)Obtuse

Question 21

Find the measure of .

Question 22

In triangle ABC below, the measure of angle B is 37°. Find the measure of angle C. The figure is not
Drawn to scale.

A)143°
B)53°
C)118°
D)48°

Question 23

Classify the triangle according to sides and angles.

Question 24

In the triangle shown, side y measures 36 meters and side z measures 39 meters. Use the
Pythagorean theorem to find the measure of side .

A)10 meters
B)14 meters
C)17 meters
D)15 meters

Question 25

In triangle ABC, the measure of angle A is 9°, and the measure of angle B is 68°. Find the measure
of angle C.

Question 26

Classify the triangle according to sides.

A)Equilateral
B)Scalene
C)Isosceles

Question 27

Use the Pythagorean theorem to find the measure of side .

Question 28

Classify the triangle.

A)Right
B)Equilateral
C)Obtuse
D)Acute

Question 29

The triangles in the figure below are similar. Use the proportional property of similar triangles to
Find the measure of x.

A)34.2 km
B)29.2 km
C)19.2 km
D)25.2 km

Question 30

The triangles shown below are similar. Use the proportional property of similar triangles to find the
measure of

Question 31

Classify the triangle according to sides and angles.

A)Isosceles and acute
B)Isosceles and obtuse
C)Scalene and acute
D)Scalene and obtuse

Question 32

Find the value of .

A)42
B)21.75
C)19.5
D)44.25

Question 33

Classify the triangle according to angles.

A)Obtuse
B)Right
C)Acute

Question 34

Classify the triangle according to sides and angles.

Question 35

Use the Pythagorean theorem to find the measure of side .

A)24 ft
B)10 ft
C)68 ft
D)18 ft

Question 36

Which triangle is obtuse?

A)
B)
C)
D)

Question 37

Find the measure of angle C.

Question 38

Classify the triangle according to sides and angles.

A)Scalene and acute
B)Equilateral and acute
C)Scalene and obtuse
D)Isosceles and obtuse

Question 39

Find the measure of angle C.

A)30°
B)25°
C)40°
D)35°

Question 40

The screen of a computer monitor is measured by the length of the diagonal. If a screen is 16 inches
long and 14 inches high, what is the measure of the diagonal? (Round your answer to the nearest
hundredth.)

Question 41

Which quadrilateral is a trapezoid?

A)
B)
C)
D)

Question 42

Find the perimeter.

A)45 inches
B)25 inches
C)40 inches
D)35 inches

Question 43

Find the area.

A)
B)
C)
D)

Question 44

How many inches of molding will it take to frame a picture with dimensions 8 × 17 inches if there is
to be a 5-inch mat around the picture?

Question 45

What is the sum of the measures of the angles of a heptagon?

A)1,080°
B)1,260°
C)1,620°
D)900°

Question 46

Find the perimeter.

Question 47

Identify the quadrilateral.

A)Rectangle
B)Rhombus
C)Parallelogram
D)Trapezoid

Question 48

Find the height of the tree, x, if the measure of y is 10 feet.

Question 49

Find the measure of each angle of a regular octagon.

A)45°
B)144°
C)135°
D)120°

Question 50

Identify the polygon and find the sum of the measures of the angles.

A)Hexagon; 720°
B)Heptagon; 900°
C)Heptagon; 720°
D)Hexagon; 900°

Question 51

Find the area.

Question 52

Identify the quadrilateral.

Question 53

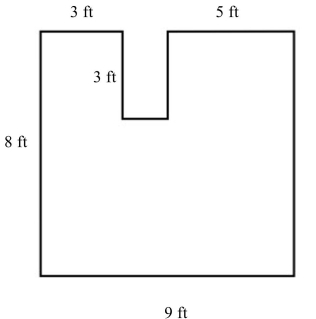

Find the perimeter. Assume all angles are right angles and note that the figure is not drawn to scale.

A)48 ft
B)28 ft
C)35 ft
D)40 ft

Question 54

Which quadrilateral is a rhombus?

A)
B)
C)
D)

Question 55

Use the proportional property of similar triangles to find the measure of )if the
Measure of is 48.

A)72 meters
B)60 meters
C)84 meters
D)66 meters

Question 56

Find the area. Figure is not drawn to scale.

Question 57

Identify the quadrilateral.

Question 58

How many feet of fence will it take to enclose a rectangular plot 15 feet by 44 feet if an opening of 5
Feet is to be left for a gate?

A)59 feet
B)113 feet
C)118 feet
D)54 feet

Question 59

Identify the following polygon and find the sum of the measures of the angles.

Question 60

Identify the quadrilateral.

A)Rectangle
B)Parallelogram
C)Rhombus
D)Trapezoid

Question 61

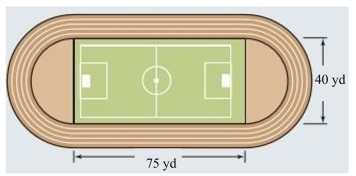

Find the distance around the inside lane of a track that has the dimensions shown below.

A)200.66 yd
B)275.66 yd
C)355.66 yd
D)212.83 yd

Question 62

Find the surface area and volume.

Question 63

A motor oil manufacturer is designing a new cylindrical can for its economy size. They want it to be
23 cm tall so it fits store shelves, and they want it to hold 2 liters of oil. What should the radius be?
(Recall that 1 cubic centimeter = 1 milliliter.)

A)
B)
C)
D)

Question 64

A student estimates the diameter of the moon 3,474 kilometers. If the moon were made of green
Cheese, how many cubic kilometers of cheese would there be?

A)
B)
C)
D)

Question 65

Find the circumference and area of the circle if r = 16 inches.

Question 66

Use the Pythagorean theorem to find the length of the missing side. Then find the exact values of
The sin A, cos A, and tan A.

A)
B)
C)
D)

Question 67

Find the area.

A)
B)
C)
D)

Question 68

Find the circumference and area of the circle if

A)
B)
C)
D)

Question 69

Suppose the pyramid below has a square base with side of length 10 meters and has height from the
Base to the apex of 15 meters. Find the volume of the pyramid.

A)
B)
C)
D)

Question 70

Find the circumference and area of the circle if

Question 71

Find the area of the circle. Use

Question 72

Find the surface area and volume.

A)SA = 226.08 square inches, V = 1356.48 cubic inches
B)SA = 339.12 square inches, V = 678.24 cubic inches
C)SA = 282.6 square inches, V = 339.12 cubic inches
D)SA = 678.24 square inches, V = 1356.48 cubic inches

Question 73

Find the area of the walkway (48 inches wide)that will be installed around a circular jacuzzi with a
Diameter of 6 feet.

A)
B)
C)
D)

Question 74

Find the surface area and volume of a sphere with radius 17 yards.

Question 75

Suppose the cone below has a radius of 5 inches and a height of 10 inches. Find the volume of the
Cone. Round to two decimal places.

A)
B)
C)
D)

Question 76

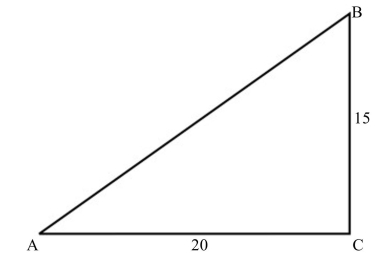

Use the given right triangle to find sin A.

A)
B)
C)
D)

Question 77

Find the volume of the rectangular solid.

A)
B)
C)
D)

Question 78

Find the circumference of the circle.

A)18.84 cm
B)56.52 cm
C)113.04 cm
D)37.68 cm

Question 79

A tent is shaped like a pyramid. It has a square base measuring 8 feet on a side and a height of 6
Feet. What is the volume of the tent?

A)
B)
C)
D)

Question 80

Suppose you wish to place artificial turf on the floor of an indoor exercise facility that is in the
Shape of a trapezoid with bases measuring 20 feet and 40 feet and a vertical height from one base to
The other of 17 feet. Find the cost of covering the floor if the artificial turf costs $15 per square foot.

A)$15,300.00
B)$7,650.00
C)$1,410.00
D)$30,600.00
