Deck 6: Firewalls and Border Security

Question 1

Routers that use a single protocol (such as TCP/IP) maintain multiple address databases.

Answer 1

False

Question 2

Network redundancy translation is used when there is a limited number of decoy addresses available, or when there are more computers on the internal network than decoy addresses.

Answer 2

False

Question 3

A route map is used to determine the best route through a network.

Answer 3

False

Question 4

With CIDR, the number after the slash is the number of bits in the address that are allocated for the host identifier.

Question 5

There are six IP address classes, Class A through Class F, each used with a different type of network.

Question 6

Some proxies are able to provide caching services as a way to reduce the load on servers within the internal network.

Question 7

IP is a connection-oriented protocol because its primary mission is to provide network-to-network addressing and routing information, and to change the size of packets when the size varies from network to network.

Question 8

One element in border security is to configure security policies on each firewall so that access is automatically allowed, except for those who are manually configured to have access blocked through the firewall.

Question 9

In Windows Server 2003, Radius is a set of services that enable or manage remote access to Windows Server 2003, for instance, through dial-up or telecommunications lines.

Question 10

A router performs packet filtering and is often used as a firewall on a network, in addition to the other functions it performs.

Question 11

UDP does not provide the same level of reliability and error checking as TCP, because it relies only on the checksum to ensure reliability.

Question 12

The border router is a firewall that is configured with security policies to control the traffic that is permitted to cross a border in either direction.

Question 13

The payload data within the IP packet is actually the TCP header and the application data when connection-oriented services are used.

Question 14

Packet filtering is accomplished using one of two techniques: stateless filtering and stateful filtering.

Question 15

Routers can isolate portions of a network to prevent areas of heavy traffic from reaching the broader network system.

Question 16

IPTables is a powerful tool that can be used to implement network security in many ways; it is configured through a terminal window using the iptables command.

Question 17

Class D addresses do not reflect the network size, but only tell you that the communication is a multicast.

Question 18

The simplest way to configure a firewall in Red Hat Linux 9.x is by using the Security Level Configuration tool.

Question 19

TCP/IP consists of nearly 200 nonproprietary protocols that interconnect computer systems efficiently and reliably.

Question 20

Stateless filtering does not filter on the basis of the context of the communication, and so it has limited value in a firewall.

Question 21

Which TCP ports are considered to be "well-known" ports?

A) 0-511
B) 0-1023
C) 1-512
D) 1-1024

Question 22

Which TCP field is used when there is too little or no optional data to complete the required header length, which must be divisible by 32?

A) Checksum
B) Options
C) Padding
D) Window

Question 23

Which of the following applications use UDP for network communications?

A) DNS
B) NetBIOS naming functions
C) Streaming audio applications
D) All of the above

Question 24

When using classful addressing, the IP address 122.16.232.4 belongs to which network class?

A) A
B) B
C) C
D) D

Question 25

Which field in an IP packet contains the network address and the address of the receiving device?

A) Source address
B) Identification
C) Version
D) Destination address

Question 26

What is the length of the MAC address on a host system?

A) 32 bits
B) 48 bits
C) 64 bits
D) 128 bits

Question 27

How many station addresses are available in a Class B network?

A) 254
B) 65,232
C) 65,534
D) 63,535

Question 28

Which of the following protocols both sequences and acknowledges frames?

A) IP
B) UDP
C) TCP
D) ICMP

Question 29

Which of the following is performed by UDP to provide communication reliability?

A) Flow control
B) Sequencing
C) Checksum
D) Both a and b
E) Both a and c

Question 30

Which of the following TCP/UDP ports is used for NetBIOS applications?

A) 23
B) 53
C) 119
D) 139

Question 31

Which of the following can port-scanning software be used for?

A) To collect information about a target computer
B) To crash a system
C) To intercept and decrypt data sent from a target computer
D) Both a and b
E) Both b and c

Question 32

Which of the following is the proper range for a Class D network?

A) 1.0.0.0 - 126.255.255.255
B) 128.0.0.0 - 191.255.255.255
C) 192.0.0.0 - 223.255.255.255
D) 224.0.0.0 to 239.255.255.255

Question 33

Which of the following TCP/UDP ports is used for DNS server applications?

A) 53
B) 80
C) 139
D) 443

Question 34

What is the default subnet mask for a Class D network?

A) 255.0.0.0
B) 255.255.0.0
C) 255.255.255.0
D) 255.255.255.224
E) None of the above

Question 35

IPv6 has a(n) _____ address capability and a 40-byte header.

A) 32 bit
B) 64 bit
C) 128 bit
D) 256 bit

Question 36

What is the minimum length of a TCP header?

A) 8 bytes
B) 16 bytes
C) 20 bytes
D) 32 bytes

Question 37

When using Class B addressing, which portion of the IP address 140.26.23.48 is the network address?

A) 140
B) 140.26
C) 140.26.23
D) 26.23

Question 38

What is the length of the sequence number that TCP uses to ensure that all frames are received?

A) 16 bits
B) 32 bits
C) 32 bytes
D) 64 bytes

Question 39

In the OSI model, what layer is the network layer?

A) 1
B) 2
C) 3
D) 4

Question 40

Which port does SMTP use for communication?

A) 23
B) 25
C) 110
D) 443

Question 41

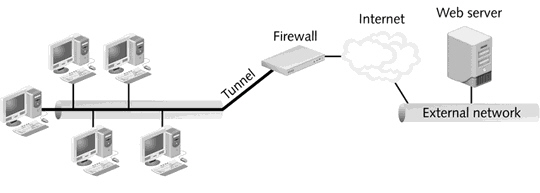

What is displayed in the figure above?

A) Proxy firewall as an application-level gateway
B) Firewall proxy as a circuit-level gateway
C) OSPF border areas
D) Implementing border security

Question 42

Does NetBEUI use the type of addressing that would enable it to be forwarded or routed to networks other than the one on which it is used?

Question 43

When two devices communicate using connection-oriented methods, do they establish sequence numbers for each frame that is transmitted and place the sequence number in the frame header?

Question 44

Which of the following can be used to calculate a metric?

A) Number of hops
B) Size of the packet
C) Bandwidth
D) Both a and b
E) a, b, and c

Question 45

Which of the following is the loopback address?

A) 127.0.0.0
B) 172.0.0.1
C) 172.0.0.0
D) 127.0.0.1

Question 46

You have configured a firewall to block Telnet and SSH communications by blocking the TCP and UDP ports 22 and 80. Will this accomplish the job?

A) Yes
B) No, because it is also necessary to block port 443 for FTP
C) No, because SSH is still not blocked
D) No, because Telnet is still not blocked

Question 47

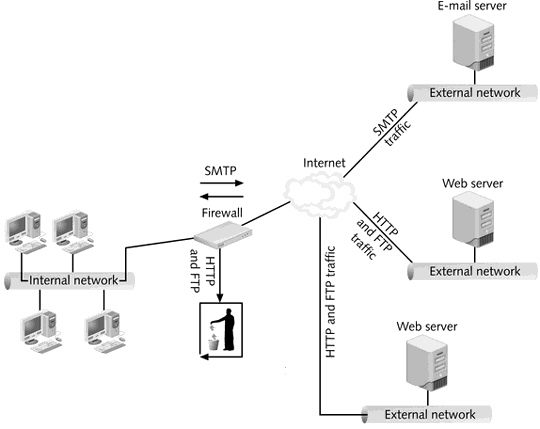

What is displayed in the figure above?

A) OSPF border areas
B) Using NAT on a small office network
C) Proxy firewall as an application-level gateway
D) Firewall proxy as a circuit-level gateway

Question 48

If you had configured a firewall in Windows XP and were concerned that you had been the victim of an attack, where would you look to be able to find out this information?

A) In the Registry of your workstation
B) In the \Windows\pfirewall.log file
C) In the ICS properties under the View log tab
D) In the System event log

Question 49

Which type of NAT is used when the firewall is connected to multiple public networks or Internet service providers, and thus there is a range of different decoy addresses used for each external network?

A) Network redundancy translation
B) Dynamic translation
C) Static translation
D) Load balancing

Question 50

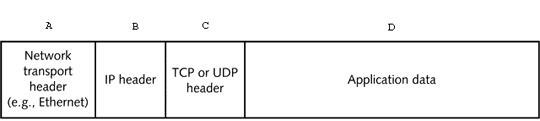

In the figure above, which letter indicates the portion of the TCP/IP packet that is the TCP segment?

A) A
B) A and B
C) B and C
D) C and D

Question 51

Which type of packet filtering tracks information about a communication session, such as which ports are in use, drawing from the contents of multiple packets?

A) Ingress
B) Stateful
C) Stateless
D) Source route

Question 52

Does dynamic NAT translate a range of addresses on the internal network to a range of specific decoy addresses?

Question 53

IPTables is used to configure firewall and NAT activities in which of the following operating systems?

A) Windows 2000 Server
B) Windows Server 2003
C) Mac OS X
D) Red Hat Linux

Question 54

Which type of proxy stores recently made service requests, allowing them to fulfill an individual client's request without needing to contact the server on the internal network?

A) Application-level gateway
B) Circuit-level gateway
C) Caching
D) Firewall

Question 55

Are network classes A through C intended for unicast addressing methods?

Question 56

What protocol was used extensively for versions of NetWare prior to version 5?

A) UDP
B) IPX
C) TCP/IP
D) NetBEUI

Question 57

Does UDP provide the same level of reliability and error checking as TCP?

Question 58

If you required 1000 IP host identities for your network, which of the following CIDR addresses would be valid if you want to make the best use of IP addressing?

A) 161.15.37.16/12
B) 161.15.37.16/20
C) 161.15.37.16/22
D) 161.15.37.16/25

Question 59

When using the Red Hat Linux 9.x Security Level Configuration tool, which security level only allows connections for using DNS and DHCP services?

A) High
B) Medium
C) Low
D) No Firewall

Question 60

What is the only metric used by the RIP routing protocol?

A) Bandwidth
B) Size of the packet
C) Number of incoming packets waiting to be processed
D) Number of hops

Question 61

Does RIP have the ability to send only routing updates to other routers instead of the entire routing table?

Question 62

What are the three component protocols within the TCP/IP protocol suite?

Question 63

In TCP communications, the number of data bytes transmitted in a frame is called the ____________________ because the number can be increased or decreased from one moment to the next by mutual agreement of the two communicating stations.

Question 64

When a TCP segment is formatted with the additional IP header information, the entire unit is called a(n) ____________________ or packet.

Question 65

In a TCP header, the ____________________ is a 16-bit CRC that is computed by adding the length of all header fields plus the length of the data payload field. 6

Question 66

Firewalls provide border security by using three different approaches. What are they?

Question 67

Can routers filter packets on the basis of information associated with each port (inbound and outbound connections) to control network traffic?

Question 68

What five border points should be protected by a strong border security design?

Question 69

UDP does not provide the same level of reliability and error checking as TCP, because it relies only on the ____________________ to ensure reliability.

Question 70

When a server is set up for ______________________________, it performs address translation between the local network clients (including the server as an Internet user) and the Internet.

Question 71

When an application on a network station uses a(n) ____________________ packet (which is the most typical packet used by an application), one copy of each packet in a transmission is sent to each destination intended to receive the packet.

Question 72

What four fields does a UDP header contain?

Question 73

What are the four ways to perform network address translation?

Question 74

Red Hat Linux 9.x offers the ____________________ interface for configuring NAT and complex firewall security from the command line in a terminal window.

Question 75

Connection-oriented services occur between the ____________________ sublayer of the data-link layer (layer 2) and the network layer (layer 3) in the OSI model.

Question 76

A newer way to ignore address class designation is by using ______________________________ addressing, which puts a slash (/) after the dotted decimal notation.

Question 77

Is Internet Connection Firewall available in Windows Server 2003, Enterprise Edition?

Question 78

Is one function of a proxy to screen application requests that go across a firewall placed between an internal network and an external or public network?

Question 79

Do routers maintain information about network station addresses and network status in databases?

Question 80

TCP (and UDP) ____________________ software may be used to simply collect information about a target, without the target's knowledge; it may be used to gain access to a system, or it may be used to crash a system.
