Deck 21: 45 Degree Offsets With a Wye Fitting

Question 1

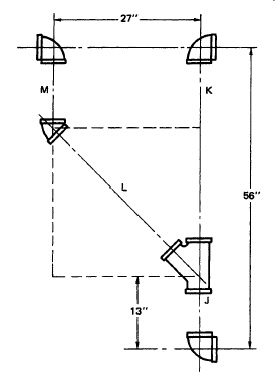

Use Data Sheet 5 Refer to Figure. Assume 2 threaded pipe. Find e-e of pipe.

Answer 1

33-1/8"

Question 2

Use Data Sheet 5 Refer to the figure. Assume 2 threaded pipe. Find e-e of pipe.

Answer 2

37-3/8"

Question 3

Use Data Sheet 5 Refer to the figure. Assume 2 PVC. Find e-e of pipe.

Answer 3

37-1/16"

Question 4

Use Data Sheet 5 Refer to the figure. Assume 2 threaded pipe. Find c-c of pipe.

Question 5

Use Data Sheet 5 Refer to Figure. Assume 2 threaded pipe. Find c-c of pipe.

Question 6

Use Data Sheet 5 Refer to the figure. Assume 2 threaded pipe. Find e-e of pipe.

Question 7

Use Data Sheet 5 Refer to the figure. Assume 2 PVC. Find e-e of pipe.

Question 8

Use Data Sheet 5 Refer to the figure. Assume 2 threaded pipe. Find e-e of pipe.
