Deck 35: Special Case of 45 Degree Offsets in Parallel

Question 1

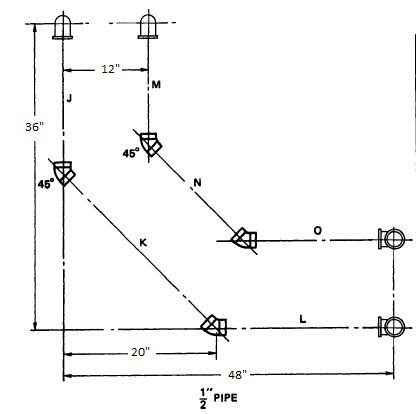

Refer to the figure. Determine c-c of.

Answer 1

16"

Question 2

Refer to the figure. Determine c-c length of.

Answer 2

28-5/16"

Question 3

Refer to the figure. Determine c-c length of.

Answer 3

23-1/16"

Question 4

Refer to the figure. Determine c-c length of.

Question 5

Refer to Figure. Determine c-c length of.

Question 6

Refer to Figure. Determine c-c length of.

Question 7

Refer to the figure. Determine rise, or offset.

Question 8

Refer to the figure. Determine difference in length.
