Deck 36: Rolling Offsets

Question 1

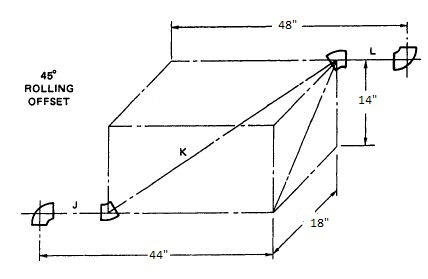

Refer to the figure. Determine True offset.

Answer 1

22-13/16"

Question 2

Of the square root and layout solutions, which is more accurate? Which is more commonly used?

Answer 2

square root; layout

Question 3

Refer to Figure. Determine c-c length of.

Answer 3

32-1/4"

Question 4

Refer to the figure. Determine c-c length of.

Question 5

Refer to the figure. Determine the diagonal.

Question 6

Refer to the figure. Determine c-c length of.

Question 7

Combining rise and offset into one dimension refers to

Question 8

Refer to the figure. Determine setback.
