Deck 34: 45 Degree Offsets in Parallel

Question 1

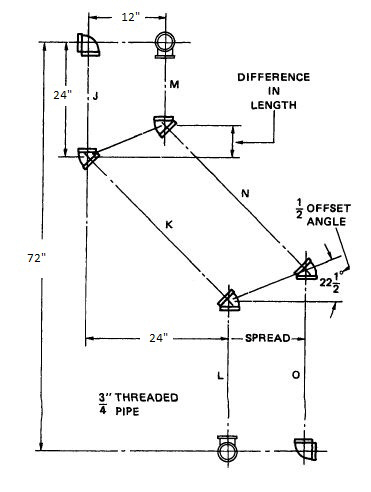

Refer to the figure. Determine the c-c length of pipe.

Answer 1

19-1/16"

Question 2

Refer to the figure. Determine the rise of pipe.

Answer 2

24"

Question 3

Refer to the figure. Determine the c-c length of pipe.

Answer 3

28-15/16"

Question 4

Refer to the figure. Determine the length of pipe J (c-c).

Question 5

Refer to the figure. Determine the length of pipe.

Question 6

Refer to the figure. Determine the c-c length of pipe.

Question 7

Refer to the figure. Determine the difference in length between pipes J and.

Question 8

Refer to the figure. Determine the c-c of pipe.
