Deck 37: Combination Offsets

Question 1

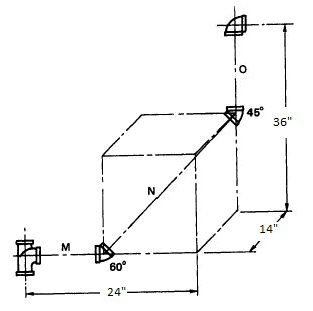

Refer to the figure. Determine c-c of.

Answer 1

22"

Question 2

Refer to the figure. Determine c-c of.

Answer 2

22"

Question 3

Refer to the figure. Determine c-c of.

Answer 3

24"

Question 4

Refer to the figure. Determine c-c of.

Question 5

Refer to the figure. Determine c-c of.

Question 6

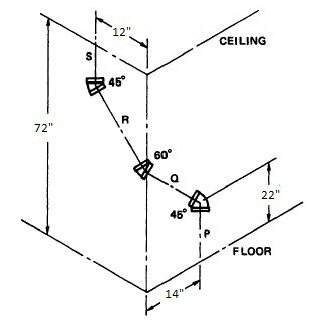

Refer to Figure. Determine the rise.

Question 7

Refer to the figure. Determine c-c of.

Question 8

Refer to the figure. Determine c-c of.
