Deck 32: Automating Cisco Collaboration Solutions (CLAUTO)

Question 1

To which two places should an administrator go to view an upcoming meeting scheduled on Cisco Meeting Server? (Choose two.)

A) Cisco Meeting Server MMP interface
B) Cisco Meeting Management meetings interface
C) Cisco Meeting Server web user interface
D) Cisco Meeting Server API
E) Cisco TMS interface

Answer 1

Cisco Meeting Management meetings interface
Cisco Meeting Server web user interface

Question 2

How should an administrator configure Cisco Meeting Server to limit the number of participants of all conferences to 10?

A) Set participantLimit to 10 in callProfile and apply the callProfile to the system.
B) Set participantLimit to 10 in callProfile and apply the callLegProfile to the coSpace.
C) Set participantLimit to 10 in callLegProfile and apply the callLegProfile to the system.
D) Set participantLimit to 10 in callProfile and apply the callProfile to the coSpace.

Answer 2

Set participantLimit to 10 in callProfile and apply the callProfile to the system.

Question 3

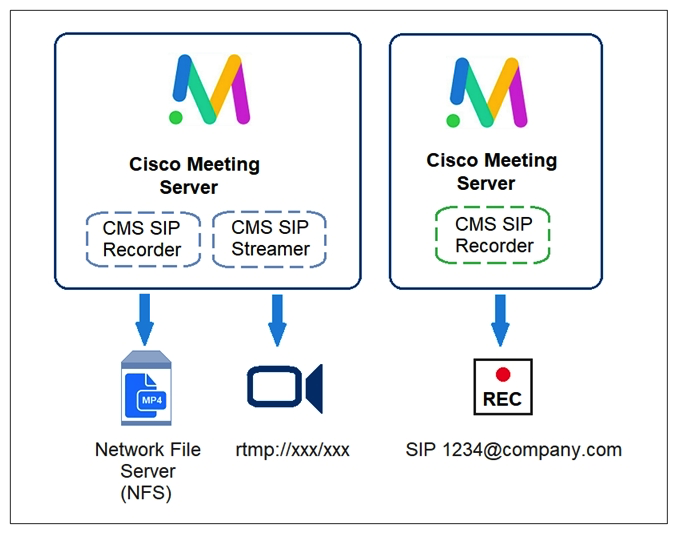

Refer to the exhibit. Which two features are supported in the Cisco Meeting Server recording and streaming solution? (Choose two.)

A) editing recordings
B) portal to access recordings
C) 1080p resolution for streaming
D) changing layouts
E) closed captioning in streaming

Answer 3

changing layouts
closed captioning in streaming

Question 4

How should an administrator configure Skype for Business to work with a Cisco Meeting Server cluster?

A) with the CsTrustedApplicationPool on the Lync/Skype server to specify the Cisco Meeting Server Web Admin FQDN
B) with the CsTrustedApplication Pool on the Lync/Skype server to specify port 5060
C) with CsStaticRoute on the Lync/Skype server to the first Call Bridge in the cluster
D) with the CsTrustedApplication Pool ComputerFqdn to the first Call Bridge in the cluster

Question 5

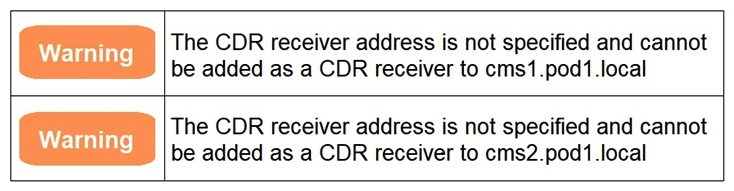

Refer to the exhibit. Which action resolves the Cisco Meeting Server warnings?

A) Add Cisco Meeting Server by both IPv6 and IPv4 addresses to have Cisco Meeting Management set itself as a receiver.
B) Configure the CDR receiver address in the Cisco Meeting Management settings.
C) Set the CDR receiver as an IP address and not as an FQDN.
D) Change the Cisco Meeting Server permissions in Cisco Meeting Management to allow Cisco Meeting Management to set itself as a receiver.

Question 6

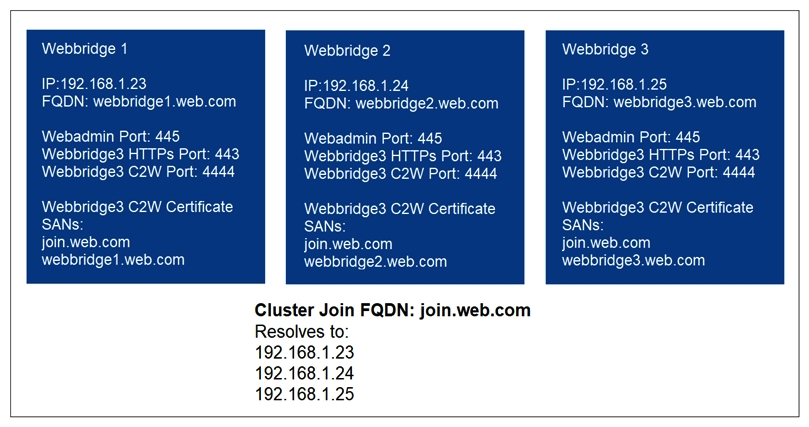

Refer to the exhibit. An administrator wants to set up three Web Bridges in a Cisco Meeting Server cluster. After the Web Bridge API object for Web Bridge 1 is configured, this error occurs in the Cisco Meeting Server logs: "C2W connection to 'c2w://join.web.com:443' failed (connect failure)". What should the administrator change to fix this issue?

A) c2w://192.168.1.23:4444
B) c2w://192/168/1/23:443
C) c2w://webbridge1.web.com:4444
D) c2w://webbridge1.web.com:443

Question 7

An engineer plans a Cisco Meeting Server deployment for a small company that has 60 percent of its employees working on site and 40 percent working remotely. The company security policy limits core server access to internal clients. Which deployment model should be used?

A) Single Combined
B) Single Split
C) Cluster
D) Scalable and Resilient

Question 8

Which two protocols should be used to back up Cisco Meeting Server? (Choose two.)

A) SIP
B) SFTP
C) HTTPS
D) HTTP
E) SSH

Question 9

What is the purpose of the Call Bridge service within Cisco Meeting Server?

A) It connects users from their web browsers into meetings that are hosted on Cisco Meeting Server.
B) It replicates database information between all nodes in the cluster.
C) It converts RTP media into MP4 files that can be distributed for replay.
D) It is the core conferencing service and manages media and signaling.

Question 10

Cisco Meeting Manager is deployed with an LDAP server that is configured with domain lab.local and search attribute sAMAaccountName. Which format should be used to log in to an account with the username "cmsadmin" in this deployment?

A) cmsadmin
B) lab.local\cmsadmin
C) [e-mail]
D) lab\cmsadmin

Question 11

A company that uses Cisco Meeting Management wants to be able to look up contracts when it adds participants to a meeting and to view scheduled meetings before they start. Which two pieces of information are necessary for the integration that accomplishes this goal? (Choose two.)

A) Cisco Meeting Server MAC address
B) extra Cisco TMS license
C) Cisco TMS login credentials
D) primary Call Bridge certificate
E) Cisco TMS FQDN or IP address

Question 12

User A is attempting to call User B. Both phones are registered to Cisco UCM. User A tries to add a third caller to the conversation but cannot complete the conference. Calls from User A into a Cisco Meeting Server space are working. Upon troubleshooting, it is discovered that the issue is caused by Cisco UCM not trusting a certificate. What certificate must be trusted by Cisco UCM to resolve this issue?

A) Database
B) Web Admin
C) Call Bridge
D) Web Bridge

Question 13

Which two data points must be included in the subject alternate names for a Cisco Meeting Server certificate? (Choose two.)

A) URI of spaces that are hosted on the Call Bridge
B) FQDN that is used to communicate with the service
C) Common Name of the certificate
D) administrator code and contract information
E) subject of the certificate

Question 14

cms1> webadmin Enabled                                            : true TLS listening interface                      : a Key listening port                              : 445 Key file                                              : webadmin.key Certificate file                                    : webadmin.crt HTTP redirect                                    : Disabled STATUS                                             : webadmin running cms1> pki inspect webadmin.crt Checking ssh public keys . . . not found Checking user configured certificates and keys . . . found File contains a PEM encoded certificate Certificate:   Data:        Version: 3 (0x2)        Serial Number: 638104639 (0x2608b43f)        Signature Algorithm: sha256WithRSAEncryption        Issuer: 0=Cisco Systems, Inc.        Validity             Not Before: Dec 4 11:58:31 2020 GMT             Not After   : Dec 3 11:58:31 2025 GMT        Subject : 0=Cisco Systems, Inc        Subject Public Key Info:             Public Key Algorithm: rsaEncryption                  RSA Public-Key: (2048 bit)                  Modulus:                     00 : 9e : c9 : 0e :ba : 1d : 5b : 10 : f7 : 6c : 0d : 9a : 9e : 37 : 8d :                     91 : b1 : d8 : 91 : 63 : 1e : 9b : e3 : 19 : 6e : 9e : f7 : d1 : c9 : fe :                     91 : 9d : c4 : 55 : 32 : 77 : 98 : f1 : 81 : fd : c3 : 55 : b5 : 04 : 1a :                     3c : fb : b9 : 67 : 6c : eb : 66 : 23 : 91 : 5a : 8f : 25 : 4e : 59 : 8f : Refer to the exhibit. An engineer tries to configure Cisco Meeting Server as a Conference Bridge on the Cisco UCM, but the Conference Bridge does not register. Which configuration step should be completed?

A) HTTP redirection must be enabled for Web Admin.
B) A CA signed certificate must be issued and installed for Web Admin.
C) Web Admin must be configured to run on TCP port 443.
D) SSH public keys must be installed.

Question 15

What is the default maximum resolution for the internal streamer?

A) 720p
B) 1440p
C) 1080p
D) 480p

Question 16

An administrator has video devices and an Expressway infrastructure with the SIP domain of cisco.com. A cluster of Cisco Meeting Servers is added to the network for conferencing purposes to utilize a SIP domain of spaces.cisco.com, and calls must be routed from the endpoints to meetings on the server. What should be configured to accomplish this goal?

A) outbound call rule on Cisco Meeting Server that matches @spaces.cisco.com and targets spaces
B) incoming call rule in Cisco Meeting Server that matches @cisco.com and targets the SIP trunk to Expressway-C
C) search rule on Expressway-C that sends calls for @spaces.cisco.com to the Cisco Meeting Server neighbor zone
D) search rule on Expressway-E that sends calls for @cisco.com to the DNS zone

Question 17

Which component does the Cisco Meeting Server web app use for firewall traversal?

A) XMPP server
B) MMP interface
C) TURN server
D) Call Bridge

Question 18

Refer to the exhibit. An administrator receives this log entry from a web user. In which two ways should the administrator gather diagnostic information? (Choose two.)

A) Generate a call diagnostics file from logbundle.tar.gz using SFTP.
B) Download the diagnostics file from the computer of the web app user.
C) Generate a call diagnostics file from the MMP.
D) Use an API to download the diagnostics file.
E) Download the diagnostics file from the Web Admin.

Question 19

What is one of the ways Cisco TMS redundancy is configured?

A) Set up three Cisco TMS servers by using F5 BIG-IP for load balancing IP traffic.
B) Set up one Cisco TMS server with an SQL database for automatic failover.
C) Set up one Cisco TMS server by using a Hot Standby model.
D) Set up two Cisco TMS servers with a network load balancer in front.

Question 20

An administrator must create conference resources for phones that are registered to Cisco UCM. The administrator adds Cisco Meeting Server as a Conference Bridge to Cisco UCM to accomplish this task. Where should the administrator add the Conference Bridge to allow phones to use Cisco Meeting Server for conferences?

A) to a device pool
B) to a media resource group
C) to a SIP trunk
D) to a security profile

Question 21

Which rule is required for Skype for Business users to use spaces on a cluster of Cisco Meeting Servers?

A) an outbound call rule that maps the local contract domain as the cluster FQDN
B) an outbound call rule that sets each domain to use pass through as the caller ID
C) an inbound call rule that sets each domain to use pass through as the caller ID
D) an inbound call rule that matches the domain that users are calling

Question 22

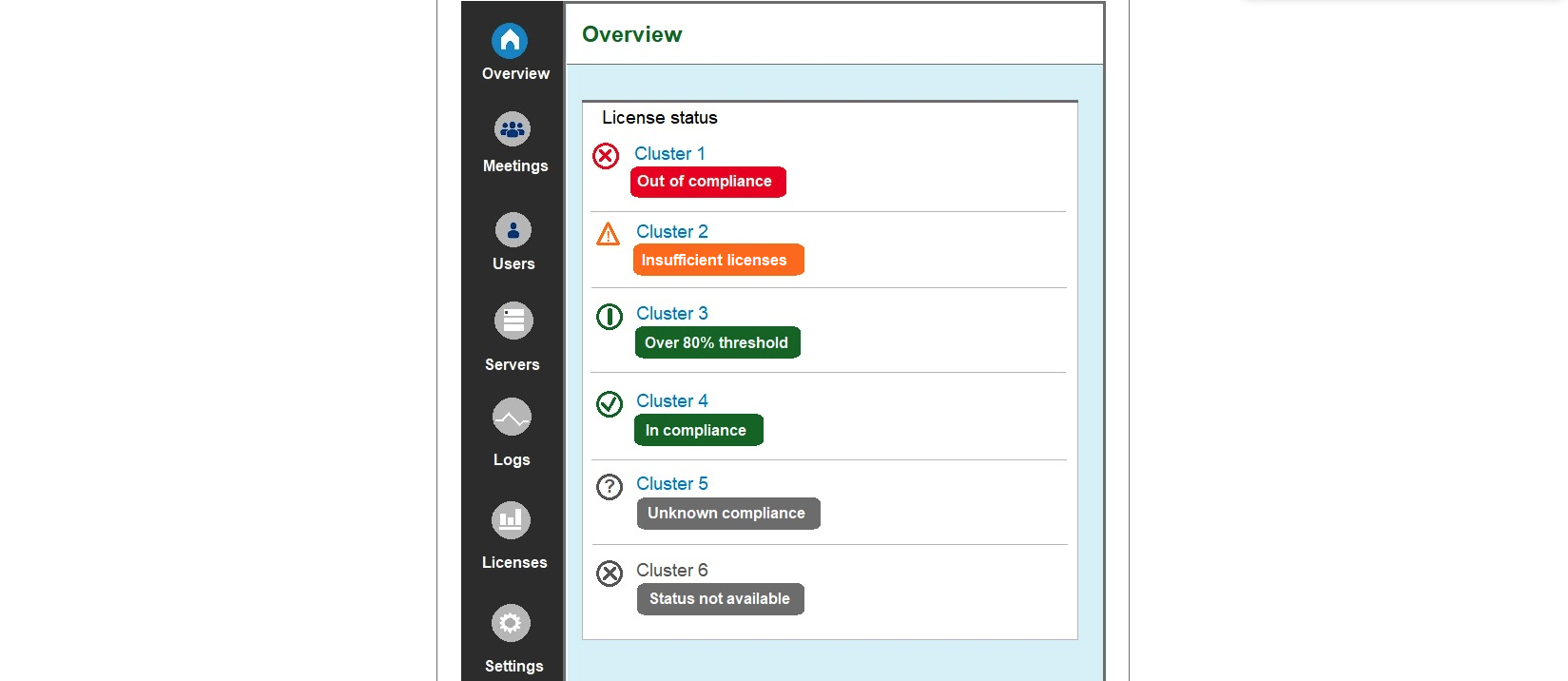

Refer to the exhibit. What does this notification indicate about activity over the last 90 days?

A) In cluster 2, more licenses have been used than are installed for less than 15 days.
B) In cluster 3, the license agreement will remain in compliance for 20 more days.
C) In cluster 4, at least 5 percent of the installed licenses have not been used.
D) In cluster 6, the license agreement has been out of compliance for more 30 days.

Question 23

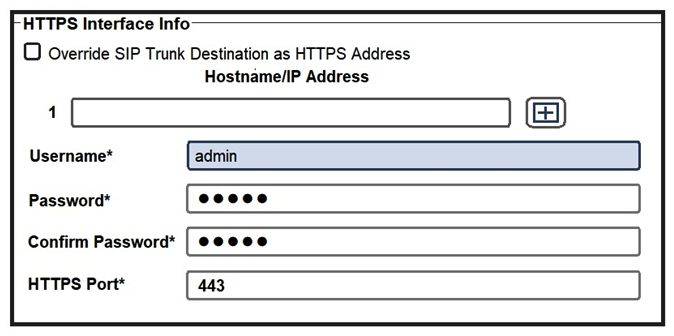

Refer to the exhibit. An administrator adds Cisco Meeting Server as a Conference Bridge in Cisco UCM. Which Cisco Meeting Server value must be 443?

A) XMPP Server port
B) Web Bridge port
C) Call Bridge port
D) Web Admin port

Question 24

An organization wants to ensure that off-premises users can use a browser to join the Cisco Meeting Server web app without needing additional software. What must be included in the Expressway-E certificate to accomplish this goal?

A) the Call Bridge name as a SAN
B) the Web Admin interface FQDN as a SAN
C) the name of each Cisco Meeting Server that is part of the cluster
D) the Guest account client URI as a SAN

Question 25

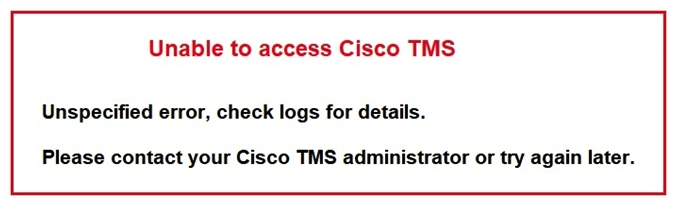

Refer to the exhibit. An administrator tries to access Cisco TMS GUI and sees this error message. Which step resolves this issue?

A) Restart the Windows server that hosts Cisco TMS.
B) Connect to the Windows server that hosts Cisco TMS and manually review the service logs.
C) Navigate directly to the Cisco TMS server maintenance page and download diagnostic files.
D) Restart World Wide Web Publishing Service on the Windows server that hosts Cisco TMS.

Question 26

Which source does Cisco Meeting Management integrate with to get a directory provisioned?

A) UDS in Cisco UCM
B) phonebook service in Cisco TMS
C) external LDAP
D) user directory on Expressway-C

Question 27

A Cisco Meeting Server cluster is deployed across three data centers. One is headquarters, and two are branch offices. Which database deployment is ideal for geo-redundancy in multiple locations?

A) three database nodes in the headquarters data center
B) two database nodes in the headquarters data center and one database node in each branch data center
C) two database nodes in each branch data center
D) one database node in each data center
