Deck 9: Implementing Cisco SD-WAN Solutions (ENSDWI)

Question 1

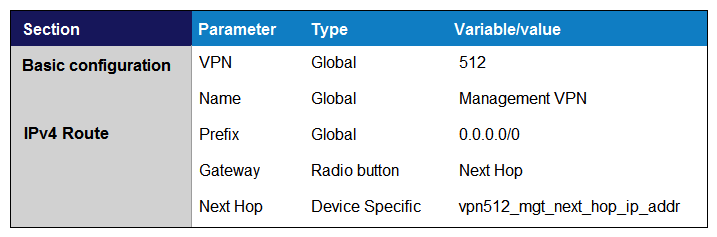

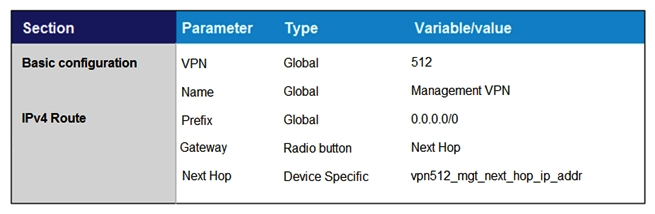

What is the purpose of "vpn 0" in the configuration template when onboarding a WAN edge node?

A) It carries control traffic over secure IPsec connections between vSmart controllers and vEdge routers, and between vEdge and vManager.
B) It carries control traffic over secure IPsec connections between vSmart controllers and vEdge routers, and between vSmart and vBond.
C) It carries control traffic over secure DTLS or TLS connections between vSmart controllers and vEdge routers, and between vSmart and vBond.
D) It carries out-of-band network management traffic among the Viptela devices in the overlay network.

Answer 1

It carries control traffic over secure DTLS or TLS connections between vSmart controllers and vEdge routers, and between vSmart and vBond.

Question 2

Which two hardware platforms support Cisco IOS XE SD-WAN images? (Choose two.)

A) ISR4000 series
B) ISR9300 series
C) vEdge-1000 series
D) ASR9000 series
E) ASR1000 series

Answer 2

ISR4000 series
ASR1000 series

Question 3

A vEdge platform is sending VRRP advertisement messages every 10 seconds. Which value configures the router back to the default timer?

A) 2 seconds
B) 5 seconds
C) 1 second
D) 3 seconds

Answer 3

1 second

Question 4

When a WAN Edge device joins the Cisco SD-WAN overlay, which Cisco SD-WAN component orchestrates the connection between the WAN Edge device and a vSmart controller?

A) vManage
B) vBond
C) OMP
D) APIC-EM

Question 5

A policy is created to influence routing path in the network using a group of prefixes. Which policy application will achieve this goal when applied to a site list?

A) control-policy
B) vpn-membership policy
C) app-route policy
D) cflowd-template

Question 6

Which two image formats are supported for controller codes? (Choose two.)

A) .nxos
B) .qcow2
C) .iso
D) .ova
E) .bin

Question 7

Which component of the Cisco SD-WAN control plane architecture facilitates the storage of certificates and configurations for network components?

A) vSmart
B) WAN Edge
C) vManage
D) vBond

Question 8

Which port is used for vBond under controller certificates if no alternate port is configured?

A) 12344
B) 12345
C) 12347
D) 12346

Question 9

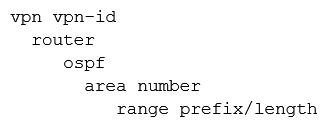

Which OSPF command makes the WAN Edge router a less preferred exit from a site with a dual WAN Edge design?

A)
B)
C)
D)

Question 10

Which component of the Cisco SD-WAN architecture oversees the control plane of overlay network to establish, adjust, and maintain the connections between the WAN Edge devices that form the Cisco SD-WAN fabric?

A) APIC-EM
B) vSmart
C) vManage
D) vBond

Question 11

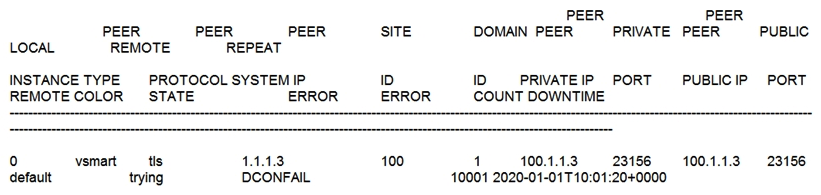

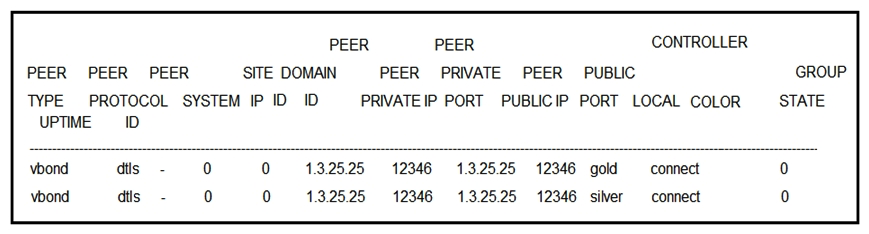

An engineer is troubleshooting a vEdge router and identifies a " DCONFAIL - DTLS connection failure " message. What is the problem?

A) memory issue
B) certificate mismatch
C) organization mismatch
D) connectivity issue

Question 12

How is the scalability of the Manage increased in Cisco SD-WAN Fabric?

A) Increase the bandwidth of the WAN link connected to the vManage
B) Increase licensing on the vManage
C) Deploy more than one vManage controllers on different physical server
D) Deploy multiple vManage controllers in a cluster

Question 13

A network administrator is bringing up one WAN Edge router for branch connectivity. Which types of tunnels form when the WAN edge router connects to the Cisco SD-WAN fabric?

A) DTLS or TLS tunnel with vSmart controller and IPsec tunnel with vBond controller
B) DTLS or TLS tunnel with vBond controller and IPsec tunnel with vManage controller
C) DTLS or TLS tunnel with vBond controller and IPsec tunnel with other WAN Edge routers
D) DTLS or TLS tunnel with vSmart controller and IPsec tunnel with other WAN Edge routers

Question 14

Which Cisco SD-WAN WAN Edge platform supports LTE and Wi-Fi?

A) ISR 1101
B) ASR 1001
C) CSR 1000v
D) vEdge 2000

Question 15

In the Cisco SD-WAN solution, vSmart controller is responsible for which two actions? (Choose two.)

A) Authenticate and authorize vEdge routers.
B) Configure and monitor vEdge routers.
C) Distribute route and policy information via OMP.
D) Distribute the IP address from DHCP server to vEdge routers.
E) Distribute crypto key information among vEdge routers.

Question 16

An engineer is troubleshooting a certificate issue on vEdge. Which command is used to verify the validity of the certificates?

A) show control local-properties
B) show control summary
C) show certificate installed
D) show certificate status

Question 17

Which component of the Cisco SD-WAN control plane architecture should be located in a public Internet address space and facilitates NAT-traversal?

A) WAN Edge
B) vSmart
C) vBond
D) vManage

Question 18

What are the two advantages of deploying cloud-based Cisco SD-WAN controllers? (Choose two.)

A) centralized control and data plane
B) infrastructure as a service
C) management of SLA
D) centralized raid storage of data
E) distributed authentication policies

Question 19

Which two services are critical for zero touch provisioning on-boarding? (Choose two.)

A) EMAIL
B) SNMP
C) AAA
D) DHCP
E) DNS

Question 20

What is a default protocol for control plane connection?

A) HTTPS
B) TLS
C) IPsec
D) DTLS

Question 21

Which command verifies a policy that has been pushed to the vEdge router?

A) vSmart# show running-config policy vSmart# show running-config policy
B) vEdge# show running-config data policy vEdge# show running-config data policy
C) vSmart# show running-config apply policy show running-config apply policy
D) vEdge# show policy from-vsmart show policy from-vsmart

Question 22

Which type of route advertisement of OMP can be verified?

A) Origin, TLOC, and VPN
B) Origin, TLOC, and service
C) OMP, VPN, and origin
D) OMP, TLOC, and service

Question 23

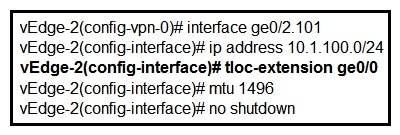

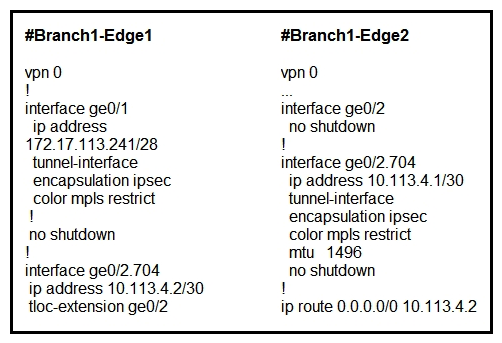

Refer to the exhibit. Which binding is created using the tloc-extension command?

A) between ge 0/2.101 of port-type transport and ge 0/0 of port-type service
B) between ge 0/2.101 of port-type service and ge 0/0 of port-type service
C) between ge 0/2.101 of port-type service and ge 0/0 of port-type transport
D) between ge 0/2.101 of port-type transport and ge 0/0 of port-type transport

Question 24

Which command displays BFD session summary information per TLOC on vEdge routers?

A) show bfd tloc-summary-list
B) show bfd history
C) show bfd summary
D) show bfd sessions

Question 25

Which on-the-box security feature is supported by the Cisco ISR 4451 SD-WAN device and not on vEdge?

A) IPsec/GRE cloud proxy
B) reverse proxy
C) Enterprise Firewall with Application Awareness
D) Cloud Express service

Question 26

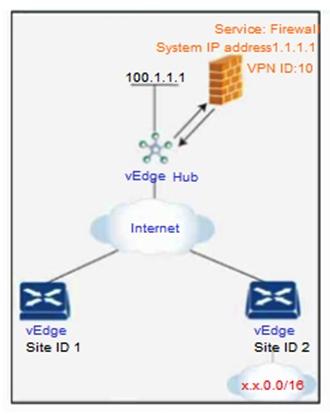

On which device is a service FW address configured to insert firewall service at the hub?

A) vSmart at the branch
B) vEdge at the branch
C) vEdge at the hub
D) vSmart at the hub

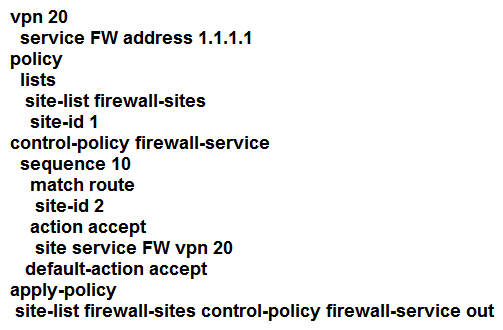

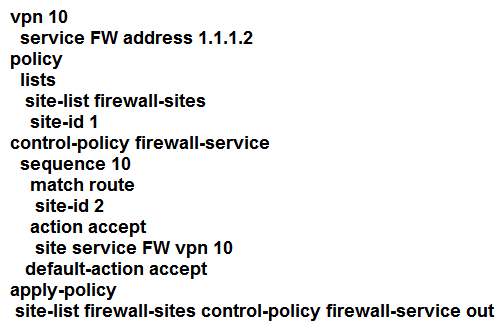

Question 27

An engineer is configuring a centralized policy to influence network route advertisement. Which controller delivers this policy to the fabric?

A) vSmart
B) vBond
C) vManage
D) WAN Edge

Question 28

What is a benefit of the application-aware firewall?

A) It blocks traffic by MTU of the packet
B) It blocks encrypted traffic
C) It blocks traffic by application
D) It blocks traffic by MAC address

Question 29

Which configuration changes the packet loss priority from low to high?

A)
B)
C)
D)

Question 30

A voice packet requires a latency of 50 msec. Which policy is configured to ensure that a voice packet is always sent on the link with less than a 50 msec delay?

A) localized data
B) centralized control
C) localized control
D) centralized data

Question 31

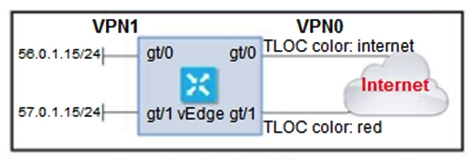

Refer to the exhibit. Which configuration change is needed to configure the tloc-extention on Branch1-Edge1?

A)
B)
C)
D)

Question 32

Which two WAN Edge devices should be deployed in a cloud? (Choose two.)

A) ASR1000v
B) vEdge 100wm
C) CSR1000v
D) vEdge cloud
E) vEdge 5000v

Question 33

Which device information is required on PNP/ZTP to support the zero touch onboarding process?

A) serial and chassis numbers
B) interface IP address
C) public DNS entry
D) system IP address

Question 34

Which configuration step is taken on vManage after WAN Edge list is uploaded to support the on-boarding process before the device comes online?

A) Verify the device certificate
B) Enable the ZTP process
C) Set the device as valid
D) Send the list to controllers

Question 35

Which feature builds transport redundancy by using the cross link between two redundant WAN Edge routers?

A) TLOC extension
B) quality of service
C) zero-touch provisioning
D) OMP

Question 36

Two sites have one WAN Edge each. Each WAN Edge has two public TLOCs with no restrict configured. There is full reachability between the TLOCs. How many data tunnels are formed on each Edge router?

A) 6
B) 2
C) 4
D) 8

Question 37

Refer to the exhibit. Which QoS treatment results from this configuration after the access list acl-guest is applied inbound on the vpn1 interface?

A) A TCP packet sourcing from 172.16.10.1 and destined to 172.16.20.1 is dropped
B) A UDP packet sourcing from 172.16.20.1 and destined to 172.16.10.1 is accepted
C) A UDP packet sourcing from 172.16.10.1 and destined to 172.16.20.1 is dropped
D) A TCP packet sourcing from 172.16.20.1 and destined to 172.16.10.1 is accepted

Question 38

An engineer wants to track tunnel characteristics within a SLA-based policy for convergence. Which policy configuration will achieve this goal?

A) app-route policy
B) VPN membership policy
C) control policy
D) data policy

Question 39

Which command on a WAN Edge device displays the information about the colors present in the fabric that are learned from vSmart via OMP?

A) show omp peers
B) show omp route
C) show omp sessions
D) show omp tlocs

Question 40

Which value is verified in the certificates to confirm the identity of the physical WAN Edge device?

A) Serial Number
B) OTP
C) System-IP
D) Chassis-ID

Question 41

Which secure connection should be used to access the REST APIs through the Cisco vManage web server?

A) authenticated DTLS
B) authenticated HTTPS
C) JSON Inspector interface
D) HTTP inspector interface

Question 42

Which device in the Cisco SD-WAN solution receives and categorizes event reports, and generates alarms?

A) WAN Edge routers
B) vSmart controllers
C) vBond controllers
D) vManage NMS

Question 43

Which alarm setting is configured to monitor serious events that affect, but do not shut down, the operation of a network function?

A) Critical
B) Medium
C) Major
D) Minor

Question 44

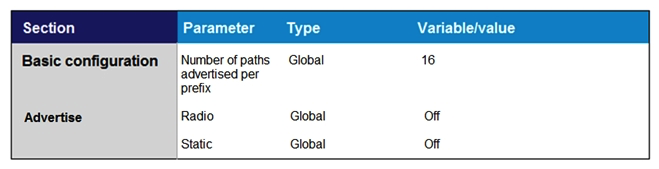

A network administrator is creating an OMP feature template from the vManage GUI to be applied to WAN edge routers. Which configuration attribute will avoid the redistribution of the routes back into the OMP from the LAN side?

A) configure "ECMP limit"
B) configure "Send Backup Paths"
C) configure "Number of Paths Advertised per Prefix"
D) configure "Overlay AS Number"

Question 45

Which logs verify when a device was upgraded?

A) ACL
B) Email
C) SNMP
D) Audit

Question 46

A network administrator is configuring an application-aware firewall between inside zones to an outside zone on a WAN edge router using vManage GUI. Which kind of inspection is performed when the "inspect" action is used?

A) Layer 7 inspection for TCP and Layer 4 inspection for UDP
B) stateful inspection for TCP and stateless inspection of UDP
C) IPS inspection for TCP and Layer 4 inspection for UDP
D) stateful inspection for TCP and UDP

Question 47

Which API call retrieves a list of all devices in the network?

A) https://vmanage_IP_address/dataservice/system/device/{{model}}
B) http://vmanage_IP_address/dataservice/system/device/{{model}}
C) http://vmanage_IP_address/api-call/system/device/{{model}}
D) https://vmanage_IP_address/api-call/system/device/{{model}}

Question 48

Which hardware component is involved in the Cisco SD-WAN authentication process for ISR platforms?

A) ZTP
B) OTPC
C) SUDI
D) TPMD

Question 49

Which two products that perform lifecycle management for virtual instances are supported by WAN Edge cloud routers? (Choose two.)

A) AWS
B) Azure
C) VMware vCenter
D) OpenStack
E) IBM Cloud

Question 50

Which combination of platforms is managed by vManage?

A) ISR4351, ASR1002HX, vEdge2000, vEdge Cloud
B) ISR4321, ASR1001, Nexus, ENCS
C) ISR4321, ASR1001, ENCS, ISRv
D) ISR4351, ASR1009, vEdge2000, CSR1000v

Question 51

Which two algorithms authenticate a user when configuring SNMPv3 monitoring on a WAN Edge router? (Choose two.)

A) AES-256
B) MD5
C) SHA-2
D) AES-128
E) SHA-1

Question 52

In an AWS cloud, which feature provisions WAN Edge routers automatically in Cisco SD-WAN?

A) Cloud OnRamp
B) Cloud app
C) vAnalytics
D) Network Designer

Question 53

Which command disables the logging of syslog messages to the local disk?

A) no system logging disk local
B) system logging server remote
C) no system logging disk enable
D) system logging disk disable

Question 54

A large retail organization decided to move some of the branch applications to the AWS cloud. How does the network architect extend the in-house Cisco SD-WAN branch to cloud network into AWS?

A) Create virtual instances of vSmart Cloud through the AWS online software store
B) Create GRE tunnels to AWS from each branch over the Internet
C) Install the AWS Cloud Router in the main data center and provide the connectivity from each branch
D) Create virtual WAN Edge devices Cloud through the AWS online software store

Question 55

Which two products are used to deploy Cisco WAN Edge Router virtual platforms? (Choose two.)

A) Sun Enterprise M4000 Server running Sun Solaris
B) Sun SPARC Node running AIX
C) Cisco UCS
D) HP ProLiant DL380 Generation 10 running HP-UX
E) Cisco ENCS 5000 Series

Question 56

Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

A) System Status
B) ACL Logs
C) Real Time
D) Events

Question 57

A bank is looking for improved customer experience for applications and reduce overhead related to compliance and security. Which key feature or features of the Cisco SD-WAN solution will help the bank to achieve their goals?

A) Integration with PaaS providers to offer the best possible application experience
B) QoS including application prioritization and meeting critical applications SLA for selecting optimal path
C) Implementation of BGP across the enterprise routing for selecting optimal path
D) Implementation of a modern age core banking system

Question 58

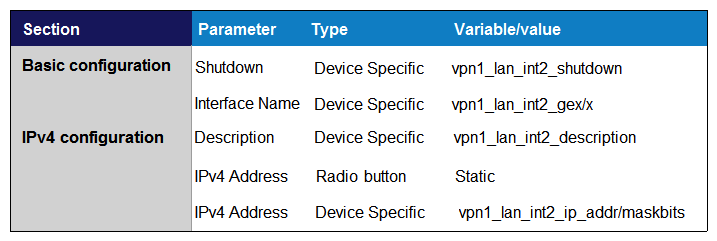

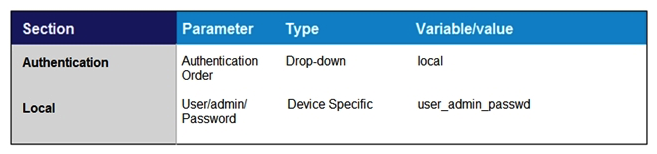

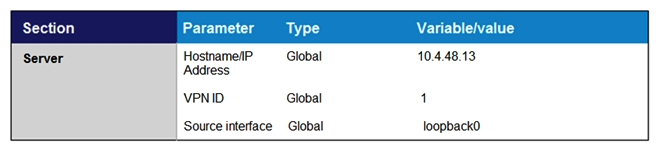

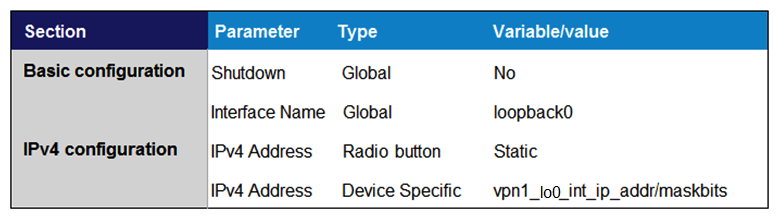

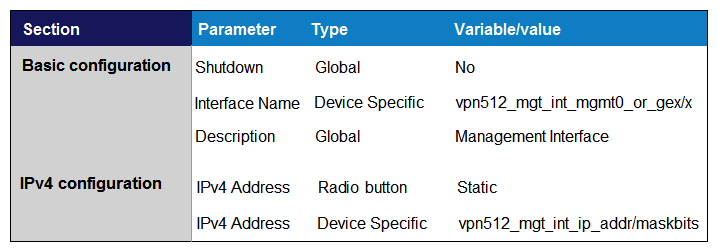

Which template configures the out-of band management VPN?

A)
B)
C)
D)

Question 59

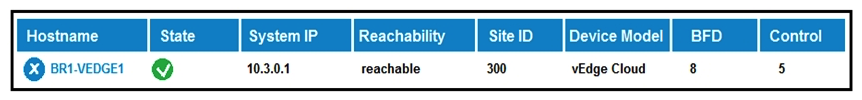

Refer to the exhibit. What does the BFD value of 8 represent?

A) dead timer of BFD session
B) poll-interval of BFD session
C) hello timer of BFD session
D) number of BFD sessions

Question 60

Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

A) System Status
B) Troubleshooting
C) Real Time
D) Events

Question 61

A network administrator is configuring QoS on a vEdge 5000 router and needs to enable it on the transport side interface. Which policy setting must be selected to accomplish this goal?

A) Cloud QoS
B) Netflow
C) Application
D) Cloud QoS Service side

Question 62

Refer to the exhibit. An engineer is configuring service chaining. Which set of configurations is required for all traffic from Site ID 1 going toward Site ID 2 to get filtered through the firewall on the hub site?

A)
B)
C)
D)

Question 63

An engineer is tasked to improve throughput for connection-oriented traffic by decreasing round-trip latency. Which configuration will achieve this goal?

A) turn off "Enable TCP Optimization"
B) turn on "Enhance ECMP Keying"
C) turn on "Enable TCP Optimization"
D) turn off "Enhance ECMP Keying"

Question 64

Which scheduling method is configured by default for the eight queues in the cloud vEdge router?

A) weighted round robin
B) priority queue
C) low latency queue
D) weighted random early detection

Question 65

An engineer is configuring a list that matches all IP prefixes with lengths from /1 to /16 in a centralized control policy. Which list accomplishes this task?

A) 0.0.0.0/0 le 16
B) 0.0.0.0/1 le 16
C) 0.0.0.0/0 ge 1
D) 0.0.0.0/16 ge 1

Question 66

Refer to the exhibit. An engineer is troubleshooting tear down of control connections even though a valid CertificateSerialNumber is entered. Which two actions resolve the issue? (Choose two.)

A) Enter a valid product ID (model) on the PNP portal
B) Match the serial number file between the controllers
C) Remove the duplicate IP in the network
D) Restore network reachability for the controller
E) Enter a valid serial number on the controllers for a given device

Question 67

At which layer does the application-aware firewall block applications on a WAN Edge?

A) 3
B) 5
C) 2
D) 7

Question 68

Refer to the exhibit. An engineer is troubleshooting a control connection issue. What does "connect" mean in this show control connections output?

A) Control connection is down
B) Control connection is up
C) Control connection attempt is in progress
D) Control connection is connected

Question 69

Refer to the exhibit. The control connection is failing. Which action resolves the issue?

A) Validate the certificates authenticity on vSmart
B) Restore the reachability to the vSmart
C) Import vSmart in vManager
D) Upload the WAN Edge list on vManage

Question 70

Refer to the exhibit. An engineer is troubleshooting an issue where vManage and vSmart have a problem establishing a connection to vBond. Which action fixes the issue?

A) Remove the encapsulation ipsec command under the tunnel interface of vBond Remove the encapsulation ipsec command under the tunnel interface of vBond
B) Reconfigure the vbond command on the vBond as vbond 150.5.1.3 local Reconfigure the vbond command on the vBond as vbond 150.5.1.3 local
C) Configure the tunnel interface on all three controllers with a color of transport
D) Configure encapsulation as IPsec under the tunnel interface of vManage and vSmart

Question 71

Which VPN connects the transport-side WAN Edge interface to the underlay/WAN network?

A) VPN 1
B) VPN 0
C) VPN 512
D) VPN 511

Question 72

An administrator must configure an ACL for traffic coming in from the service-side VPN on a specific WAN Edge device with circuit ID 123456789. Which policy must be used to configure this ACL?

A) local data policy
B) central data policy
C) app-aware policy
D) central control policy

Question 73

Which feature template configures OMP?

A)
B)
C)
D)

Question 74

In which VPN is the NAT operation on an outgoing interface configured for direct Internet access?

A) 0
B) 512
C) 10
D) 1

Question 75

Which attributes are configured to uniquely identify and represent a TLOC route?

A) system IP address, link color, and encapsulation
B) origin, originator, and preference
C) site ID, tag, and VPN
D) firewall, IPS, and application optimization

Question 76

Refer to the exhibit. The ge0/0 interface connects to a 30-MB link. A network administrator wants to always have 10 MB available for high priority traffic. When lower-priority traffic bursts exceed 20 MB, traffic should be redirected to the second WAN interface ge0/1. Which set of configurations accomplishes this task?

A)
B)
C)
D)

Question 77

Which SD-WAN component is configured to enforce a policy to redirect branch-to-branch traffic toward a network service such as a firewall or IPS?

A) vBond
B) vSmart
C) WAN Edge
D) Firewall

Question 78

Which two mechanisms are used to guarantee the integrity of data packets in the Cisco SD-WAN architecture data plane? (Choose two.)

A) certificates
B) transport locations
C) authentication headers
D) encapsulation security payload
E) TPM chip

Question 79

Which policy configures an application-aware routing policy under Configuration > Policies ?

A) Data policy
B) Centralized policy
C) Localized policy
D) Control policy

Question 80

Which TCP Optimization feature is used by WAN Edge to prevent unnecessary and large initial TCP window sizes to maximize throughput and achieve a better quality?

A) SACK
B) SEQ
C) RTT
D) SYN
