Deck 10: Designing Cisco Enterprise Networks (ENSLD)

Question 1

An engineer must design a multicast network for a financial application. Most of the multicast sources also receive multicast traffic (many-to-many deployment model). To better scale routing tables, the design must not use source trees. Which multicast protocol satisfies these requirements?

A) PIM-SSM
B) PIM-SM
C) MSDP
D) BIDIR-PIM

Answer 1

PIM-SM

Question 2

When IPsec VPNs are designed, what is a unique requirement if support for IP Multicast is required?

A) encapsulation of traffic with GRE or VTI
B) IPsec forwarding using transport mode
C) additional bandwidth for headend
D) IPsec forwarding using tunnel mode

Answer 2

encapsulation of traffic with GRE or VTI

Question 3

Which design consideration should be observed when EIGRP is configured on Data Center switches?

A) Perform manual summarization on all Layer 3 interfaces to minimize the size of the routing table.
B) Prevent unnecessary EIGRP neighborships from forming across switch virtual interfaces.
C) Lower EIGRP hello and hold timers to their minimum settings to ensure rapid route reconvergence.
D) Configure multiple EIGRP autonomous systems to segment Data Center services and applications.

Answer 3

Perform manual summarization on all Layer 3 interfaces to minimize the size of the routing table.

Question 4

Which nonproprietary mechanism can be used to automate rendezvous point distribution in a large PIM domain?

A) Embedded RP
B) BSR
C) Auto-RP
D) Static RP

Question 5

Which consideration must be taken into account when using the DHCP relay feature in a Cisco SD-Access Architecture?

A) DHCP-relay must be enabled on fabric edge nodes to provide the correct mapping of DHCP scope to the local anycast gateway.
B) A DHCP server must be enabled on the border nodes to allow subnets to span multiple fabric edges.
C) DHCP servers must support Cisco SD-Access extensions to correctly assign IPs to endpoints in an SD-Access fabric with anycast gateway.
D) DHCP Option-82 must be enabled to map the circuit IP option to the access fabric node where the DHCP discover originated.

Question 6

Which two BGP features will result in successful route exchanges between eBGP neighbors sharing the same AS number? (Choose two.)

A) advertise-best-external
B) bestpath as-path ignore
C) client-to-client reflection
D) as-override
E) allow-as-in

Question 7

Which design consideration must be made when dual vEdge routers are deployed at a branch site?

A) Use BGP AS-path prepending to influence egress traffic and use MED to influence ingress traffic from the branch.
B) HSRP priorities must match the OMP routing policy to prefer one vEdge over the other.
C) Traffic must be symmetrical as it egresses the vEdges and returns from remote sites for DPI to function properly.
D) Configure BFD between vEdge routers to detect sub-second link failures.

Question 8

What is a benefit of using VRRPv3 as compared to VRRPv2?

A) VRRPv3 supports IPv4 and IPv6
B) VRRPv3 supports authentication
C) VRRPv3 supports preemption
D) VRRPv3 supports stateful switchover

Question 9

A customer is discussing QoS requirements with a network consultant. The customer has specified that end-to-end path verification is a requirement. Which QoS solution meets this requirement?

A) IntServ model with RSVP to support the traffic flows
B) DiffServ model with PHB to support the traffic flows
C) marking traffic at the access layer with DSCP to support the traffic flows
D) marking traffic at the access layer with CoS to support the traffic flows

Question 10

Which NETCONF operation creates filtering that is specific to the session notifications?

A)
B)
C)
D)

Question 11

Which QoS feature responds to network congestion by dropping lower priority packets?

A) CBWFQ
B) tail drop
C) WRED
D) strict priority

Question 12

Which routes does the overlay management protocol advertise in an SD-WAN overlay?

A) underlay, MPLS, and overlay
B) primary, backup, and load-balanced
C) prefix, TLOC, and service
D) Internet, MPLS, and backup

Question 13

When a network is designed using IS-IS protocol, which two circuit types are supported? (Choose two.)

A) nonbroadcast multiaccess
B) multiaccess
C) point-to-multipoint
D) nonbroadcast
E) point-to-point

Question 14

What is one function of the vSmart controller in an SD-WAN deployment?

A) orchestrates vEdge and cEdge connectivity
B) responsible for the centralized control plane of the SD-WAN network
C) provides centralized network management and a GUI to monitor and operate the SD-WAN overlay
D) provides a data-plane at branch offices to pass traffic through the SD-WAN network

Question 15

What is an advantage of designing an out-of-band network management solution?

A) In the event of a production network outage, network devices can still be managed.
B) There is no separation between the production network and the management network.
C) In the event of a production network outage, it can be used as a backup network path.
D) It is less expensive than an in-band management solution.

Question 16

A network solution is being designed for a company that connects to multiple Internet service providers. Which Cisco proprietary BGP path attribute will influence outbound traffic flow?

A) Local Preference
B) MED
C) Weight
D) AS Path
E) Community

Question 17

An enterprise customer has these requirements: end-to-end QoS for the business-critical applications and VoIP services based on CoS marking. flexibility to offer services such as IPv6 and multicast without any reliance on the service provider. support for full-mesh connectivity at Layer 2. Which WAN connectivity option meets these requirements?

A) VPWS
B) MPLS VPN
C) DMVPN
D) VPLS

Question 18

Which solution allows overlay VNs to communicate with each other in an SD-WAN Architecture?

A) External fusion routers can be used to map VNs to VRFs and selectively route traffic between VRFs.
B) GRE tunneling can be configured between fabric edges to connect one VN to another.
C) SGTs can be used to permit traffic from one VN to another.
D) Route leaking can be used on the fabric border nodes to inject routes from one VN to another.

Question 19

An engineer is looking for a standards-driven YANG model to manage a multivendor network environment. Which model must the engineer choose?

A) Native
B) OpenConfig
C) IETF
D) IEEE NETCONF

Question 20

A company is running BGP on a single router, which has two connections to the same ISP. Which BGP feature ensures traffic is load balanced across the two links to the ISP?

A) Multihop
B) Multipath Load Sharing
C) Next-Hop Address Tracking
D) AS-Path Prepending

Question 21

A customer with an IPv4 only network topology wants to enable IPv6 connectivity while preserving the IPv4 topology services. The customer plans to migrate IPv4 services to the IPv6 topology, then decommission the IPv4 topology. Which topology supports these requirements?

A) dual stack
B) 6VPE
C) 6to4
D) NAT64

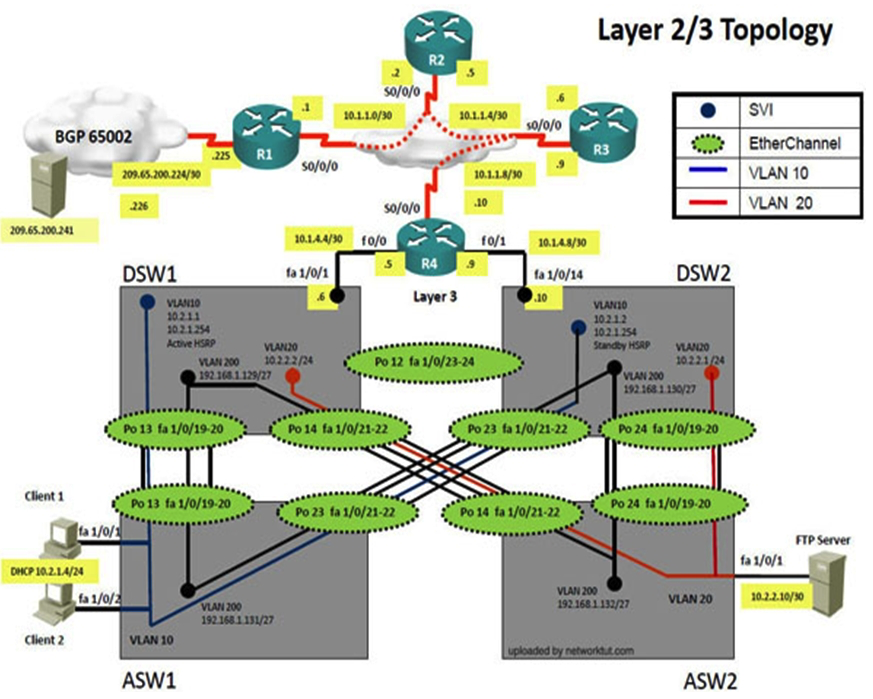

Question 22

Instructions The main screen consists of two parts; the Main scenario and the Topology tabs. The main scenario describes TSHOOT.com test bed. The Topology tabs allow you to display the appropriate and select the trouble ticket. To complete the item, you will first need to familiarize yourself with the TSHOOT.com test bed by clicking on the master scenario first and then the topologies tabs. Once you are familiar with the test bed and the topologies, you should start evaluating the trouble ticket. You will be presented with a Trouble Ticket scenario that will describe the fault condition. You will need to determine on which device the fault condition is located, to which technology the fault condition is related, and the solution to each trouble ticket. This will be done by answering three questions. Ticket Selection To begin, click on the Ticket on the Topology tabs. Please note. Some of the questions will require you to use the scroll bar to see all options. Fault Isolation Read the ticket scenario to understand the fault condition. Open the appropriate topology, based upon the ticket scenario. Open the console of the desired device by clicking on that device in the topology, based upon your troubleshooting methodology. Use the supported show, ping and trace commands to begin your fault isolation process. Move to other devices as need by clicking on those devices within the topology. Fault Identification The trouble ticket will include three questions that you will need to answer, 1. Which device contains the fault 2. Which technology the fault condition is related to 3. What is the solution to the issue To advance to the next question within the ticket click on " Next Question ". When you click " DONE ", the trouble ticket will turn RED and will no longer be accessible. You may also use the " Previous Question " button to review questions within that specific ticket. To complete a trouble ticket, answer all three questions and click " ". This will store your response to the questions. Do not click on " " unless you have answered all questions within the ticket. Item Completion Click the NEXT button on the bottom of the screen once a ticket is . This action moves you to the next item. Scenario The company has created the test bed network shown in the layer 2 and layer 3 topology exhibits. This network consists of four routers, two layer 3 switches and two layer 2 switches. In the IPv4 layer 3 topology, R1, R2, R3, and R4 are running OSPF with an OSPF process number 1. DSW1, DSW2 and R4 are running EIGRP with an AS of 10. Redistribution is enabled where necessary. R1 is running a BGP AS with a number of 65001. This AS has an eBGP connection to AS 65002 in the ISP's network. Because the company's address space is in the private range, R1 is also providing NAT translations between the inside (10.1.0.0/16 & 10.2.0.0/16) networks and the outside (209.65.200.0/24) network. ASW1 and ASW2 are layer 2 switches. NTP is enabled on all devices with 209.65.200.226 serving as the master clock source. The client workstations receive their IP address and default gateway via R4's DHCP server. The default gateway address of 10.2.1.254 is the IP address of HSRP group 10 which is running on DSW1 and DSW2. In the IPv6 layer 3 topology R1, R2, and R3 are running OSPFv3 with an OSPF process number 6. DSW1, DSW2 and R4 are running RIPng process name RIP_ZONE. The two IPv6 routing domains, OSPF 6 and RIPng are connected via GRE tunnel running over the underlying IPv4 OSPF domain. Redistribution is enabled where necessary. Recently the implementation group has been using the test bed to do a 'proof-of-concept' on several implementations. This involved changing the configuration on one or more of the devices. You will be presented with a series of trouble tickets related to issues introduced during these configurations. The implementation group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing schemes, DHCP services, NTP services, and FHRP services, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address. Use the supported commands to isolate the cause of this fault and answer the following questions. On which device is the fault condition located?

A) R1
B) R2
C) R3
D) R4
E) DSW1
F) DSW2
G) ASW1
H) ASW2

Question 23

When designing interdomain multicast, which two protocols are deployed to achieve communication between multicast sources and receivers? (Choose two.)

A) IGMPv2
B) BIDIR-PIM
C) MP-BGP
D) MSDP
E) MLD

Question 24

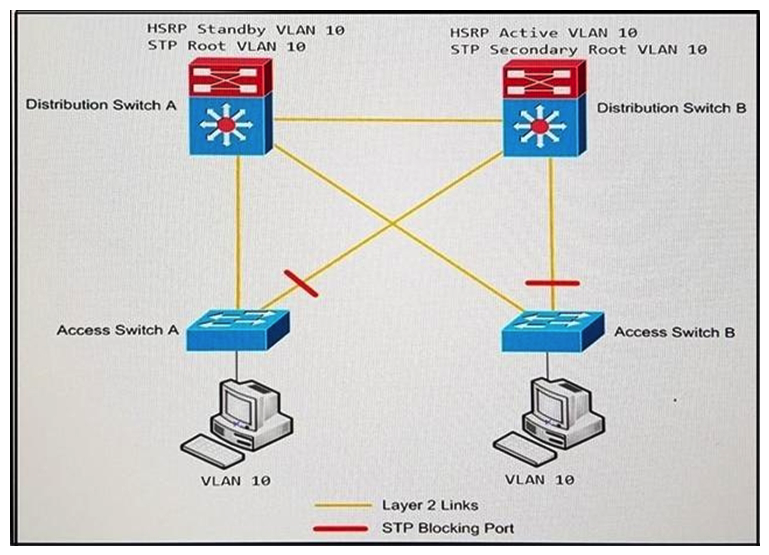

Refer to the exhibit. An engineer must optimize the traffic flow of the network. Which change provides a more efficient design between the access and the distribution layer?

A) Add a link between access switch A and access switch B
B) Reconfigure the distribution switch A to become the HSRP Active
C) Change the link between distribution switch A and distribution switch B to be a routed link
D) Create an EtherChannel link between distribution switch A and distribution switch B

Question 25

Which feature is required for graceful restart to recover from a processor failure?

A) Cisco Express Forwarding
B) Virtual Switch System
C) Stateful Switchover
D) Bidirectional Forwarding Detection

Question 26

A router running ISIS is showing high CPU and bandwidth utilization. An engineer discovers that the router is configured as L1/L2 and has L1 and L2 neighbors. Which step optimizes the design to address the issue?

A) Make this router a DIS for each of the interfaces
B) Disable the default behavior of advertising the default route on the L1/L2 router
C) Configure the router to be either L1 or L2
D) Configure each interface as either L1 or L2 circuit type

Question 27

An engineer is designing an enterprise campus network. The LAN infrastructure consists of switches from multiple vendors, and Spanning Tree must be used as a Layer 2 loop prevention mechanism. All configured VLANs must be grouped in two STP instances. Which standards-based Spanning Tree technology supports this design solution?

A) MSTP
B) RSTP
C) Rapid PVST
D) STP

Question 28

An engineer is working with NETCONF and Cisco NX-OS based devices. The engineer needs a YANG model that supports a specific feature relevant only to Cisco NX-OS. Which model must the engineer choose?

A) Native
B) IEEE
C) OpenConfig
D) IETF

Question 29

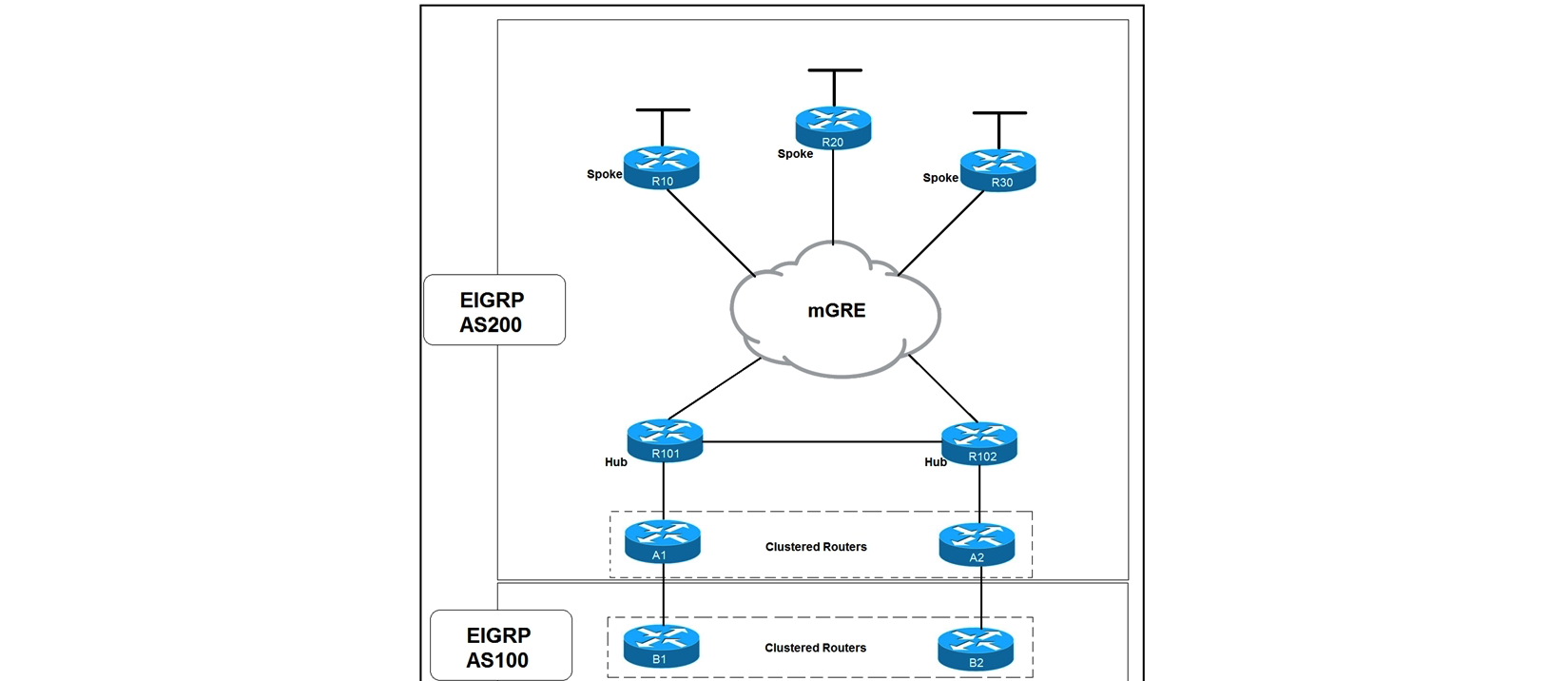

Refer to the exhibit. Which solution decreases the EIGRP convergence time?

A) Enable subsecond timers
B) Increase the hold time value
C) Increase the dead timer value
D) Enable stub routing on the spokes

Question 30

When a first hop redundancy solution is designed, which protocol ensures that load balancing occurs over multiple routers using a single virtual IP address and multiple virtual MAC addresses?

A) GLBP
B) IRDP
C) VRRP
D) HSRP

Question 31

Which control-plane technology allows the same subnet to exist across multiple network locations?

A) LISP
B) VXLAN
C) FabricPath
D) ISE mobility services

Question 32

Which two steps can be taken to improve convergence in an OSPF network? (Choose two.)

A) Use Bidirectional Forwarding Detection
B) Merge all the areas into one backbone area
C) Tune OSPF parameters
D) Make all non-backbone areas stub areas
E) Span the same IP network across multiple areas.

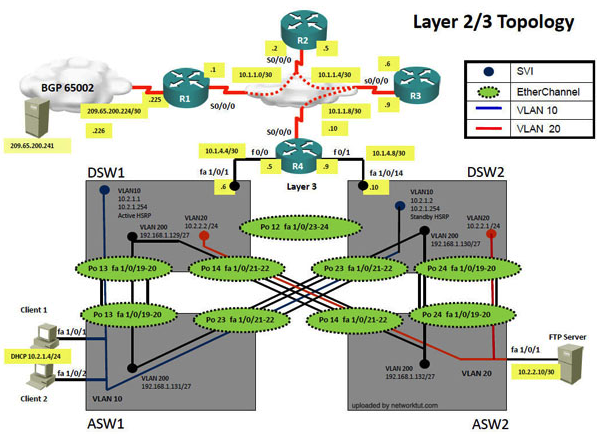

Question 33

The implementations group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address. Use the supported commands to isolated the cause of this fault and answer the following questions. What is the solution to the fault condition?

A) Enable OSPF authentication on the s0/0/0 interface using the ip ospf authentication message-digest command
B) Enable OSPF routing on the s0/0/0 interface using the network 10.1.1.0 0.0.0.255 area 12 command.
C) Enable OSPF routing on the s0/0/0 interface using the network 209.65.200.0 0.0.0.255 area 12 command.
D) Redistribute the BGP route into OSPF using the redistribute BGP 65001 subnet command.

Question 34

Instructions The main screen consists of two parts; the Main scenario and the Topology tabs. The main scenario describes TSHOOT.com test bed. The Topology tabs allow you to display the appropriate and select the trouble ticket. To complete the item, you will first need to familiarize yourself with the TSHOOT.com test bed by clicking on the master scenario first and then the topologies tabs. Once you are familiar with the test bed and the topologies, you should start evaluating the trouble ticket. You will be presented with a Trouble Ticket scenario that will describe the fault condition. You will need to determine on which device the fault condition is located, to which technology the fault condition is related, and the solution to each trouble ticket. This will be done by answering three questions. Ticket Selection To begin, click on the Ticket on the Topology tabs. Please note. Some of the questions will require you to use the scroll bar to see all options. Fault Isolation Read the ticket scenario to understand the fault condition. Open the appropriate topology, based upon the ticket scenario. Open the console of the desired device by clicking on that device in the topology, based upon your troubleshooting methodology. Use the supported show, ping and trace commands to begin your fault isolation process. Move to other devices as need by clicking on those devices within the topology. Fault Identification The trouble ticket will include three questions that you will need to answer, 1. Which device contains the fault 2. Which technology the fault condition is related to 3. What is the solution to the issue To advance to the next question within the ticket click on " Next Question ". When you click " DONE ", the trouble ticket will turn RED and will no longer be accessible. You may also use the " Previous Question " button to review questions within that specific ticket. To complete a trouble ticket, answer all three questions and click " ". This will store your response to the questions. Do not click on " " unless you have answered all questions within the ticket. Item Completion Click the NEXT button on the bottom of the screen once a ticket is . This action moves you to the next item. Scenario The company has created the test bed network shown in the layer 2 and layer 3 topology exhibits. This network consists of four routers, two layer 3 switches and two layer 2 switches. In the IPv4 layer 3 topology, R1, R2, R3, and R4 are running OSPF with an OSPF process number 1. DSW1, DSW2 and R4 are running EIGRP with an AS of 10. Redistribution is enabled where necessary. R1 is running a BGP AS with a number of 65001. This AS has an eBGP connection to AS 65002 in the ISP's network. Because the company's address space is in the private range, R1 is also providing NAT translations between the inside (10.1.0.0/16 & 10.2.0.0/16) networks and the outside (209.65.200.0/24) network. ASW1 and ASW2 are layer 2 switches. NTP is enabled on all devices with 209.65.200.226 serving as the master clock source. The client workstations receive their IP address and default gateway via R4's DHCP server. The default gateway address of 10.2.1.254 is the IP address of HSRP group 10 which is running on DSW1 and DSW2. In the IPv6 layer 3 topology R1, R2, and R3 are running OSPFv3 with an OSPF process number 6. DSW1, DSW2 and R4 are running RIPng process name RIP_ZONE. The two IPv6 routing domains, OSPF 6 and RIPng are connected via GRE tunnel running over the underlying IPv4 OSPF domain. Redistribution is enabled where necessary. Recently the implementation group has been using the test bed to do a 'proof-of-concept' on several implementations. This involved changing the configuration on one or more of the devices. You will be presented with a series of trouble tickets related to issues introduced during these configurations. The implementation group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing schemes, DHCP services, NTP services, and FHRP services, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address. Use the supported commands to isolate the cause of this fault and answer the following questions. The fault condition is related to which technology?

A) NTP
B) Switch-to-Switch Connectivity
C) Loop Prevention
D) Access Vlans
E) Port Security
F) VLAN ACL / Port ACL
G) Switch Virtual Interface

Question 35

Instructions The main screen consists of two parts the Main scenario and the Topology tabs. The main scenario describes TSHOOT.com test bed. The Topology tabs allow you to display the appropriate and select the trouble ticket. To complete the item, you will first need to familiarize yourself with the TSHOOT.com test bed by clicking on the master scenario first and then the topologies tabs. Once you are familiar with the test bed and the topologies, you should start evaluating the trouble ticket. You will be presented with a Trouble Ticket scenario that will describe the fault condition. You will need to determine on which device the fault condition is located, to which technology the fault condition is related, and the solution to each trouble ticket. This will be done by respnsing three questions. Ticket Selection To begin, click on the Ticket on the Topology tabs. Please note. Some of the questions will require you to use the scroll bar to see all options. Fault Isolation Read the ticket scenario to understand the fault condition. Open the appropriate topology, based upon the ticket scenario. Open the console of the desired device by clicking on that device in the topology, based upon your troubleshooting methodology. Use the supported show, ping and trace commands to begin your fault isolation process. Move to other devices as need by clicking on those devices within the topology. Fault Identification The trouble ticket will include three questions that you will need to answer, 1. Which device contains the fault 2. Which technology the fault condition is related to 3. What is the solution to the issue To advance to the next question within the ticket click on " Next Question ". When you click " DONE ", the trouble ticket will turn RED and will no longer be accessible. You may also use the " Previous Question " button to review questions within that specific ticket. To complete a trouble ticket, answer all three questions and click " ". This will store your response to the questions. Do not click on " " unless you have responsed all questions within the ticket. Item Completion Click the NEXT button on the bottom of the screen once a ticket is . This action moves you to the next item. Scenario The company has created the test bed network shown in the layer 2 and layer 3 topology exhibits. This network consists of four routers, two layer 3 switches and two layer 2 switches. In the IPv4 layer 3 topology, R1, R2, R3, and R4 are running OSPF with an OSPF process number 1. DSW1, DSW2 and R4 are running EIGRP with an AS of 10. Redistribution is enabled where necessary. R1 is running a BGP AS with a number of 65001. This AS has an eBGP connection to AS 65002 in the ISP's network. Because the company's address space is in the private range, R1 is also providing NAT translations between the inside (10.1.0.0/16 & 10.2.0.0/16) networks and the outside (209.65.200.0/24) network. ASW1 and ASW2 are layer 2 switches. NTP is enabled on all devices with 209.65.200.226 serving as the master clock source. The client workstations receive their IP address and default gateway via R4's DHCP server. The default gateway address of 10.2.1.254 is the IP address of HSRP group 10 which is running on DSW1 and DSW2. In the IPv6 layer 3 topology R1, R2, and R3 are running OSPFv3 with an OSPF process number 6. DSW1, DSW2 and R4 are running RIPng process name RIP_ZONE. The two IPv6 routing domains, OSPF 6 and RIPng are connected via GRE tunnel running over the underlying IPv4 OSPF domain. Redistribution is enabled where necessary. Recently the implementation group has been using the test bed to do a 'proof-of-concept' on several implementations. This involved changing the configuration on one or more of the devices. You will be presented with a series of trouble tickets related to issues introduced during these configurations. The implementation group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, and FHRP services, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address. Use the supported commands to isolate the cause of this fault and answer the following questions. What is the solution to the fault condition?

A) In configuration mode, using the interface range port-channel 23, port-channel 24 , then configure switchport trunk allowed vlan none followed by switchport trunk allowed vlan 10,20,200 commands. In configuration mode, using the interface range port-channel 23, port-channel 24 , then configure switchport trunk allowed vlan none followed by switchport trunk allowed vlan 10,20,200 commands.
B) In configuration mode, using the interface range port-channel 13, port-channel 23, then configure switchport trunk allowed vlan none followed by switchport trunk allowed vlan 10,200 commands. interface range port-channel 13, port-channel 23, then configure switchport trunk allowed vlan none switchport trunk allowed vlan 10,200
C) In configuration mode, using the interface range port-channel 23, port-channel 24, then configure switchport trunk allowed vlan none followed by switchport trunk allowed vlan 10,20, commands. interface range port-channel 23, port-channel 24, then configure switchport trunk allowed vlan 10,20,
D) In configuration mode, using the interface range port-channel 13, port-channel 23, then configure switchport trunk allowed vlan 10,200 followed by interface Fastethernet 1/0/1, then no shutdown commands. interface range port-channel 13, port-channel 23, interface Fastethernet 1/0/1, then no shutdown

Question 36

Which two statements describe source trees in a multicast environment? (Choose two.)

A) Source trees guarantee the minimum amount of network latency for forwarding multicast traffic
B) Source trees create an optimal path between the source and the receivers
C) Source trees use a single common root placed at some chosen point in the network
D) Source trees can introduce latency in packet delivery
E) Source trees can create suboptimal paths between the source and the receivers

Question 37

The implementations group has been using the test bed to do a 'proof-of-concept' that requires both Client 1 and Client 2 to access the WEB Server at 209.65.200.241. After several changes to the network addressing, routing scheme, DHCP services, NTP services, layer 2 connectivity, FHRP services, and device security, a trouble ticket has been opened indicating that Client 1 cannot ping the 209.65.200.241 address. Use the supported commands to isolated the cause of this fault and answer the following questions. The fault condition is related to which technology?

A) BGP
B) NTP
C) IP NAT
D) IPv4 OSPF Routing
E) IPv4 OSPF Redistribution
F) IPv6 OSPF Routing
G) IPv4 layer 3 security

Question 38

Which two routing protocols allow for unequal cost load balancing? (Choose two.)

A) EIGRP
B) IS-IS
C) BGP
D) OSPF
E) RIPng

Question 39

What are two valid scaling techniques when an EIGRP network is designed that consists of more than 1000 routers? (Choose two.)

A) Use structured hierarchical topology with route summarization
B) Used sub-second timers
C) Use the distribute-list command to filter routes Use the distribute-list command to filter routes
D) Modify delay parameters on the links
E) Implement multiple EIGRP autonomous systems

Question 40

When vEdge router redundancy is designed, which FHRP is supported?

A) HSRP
B) OMP
C) GLBP
D) VRRP

Question 41

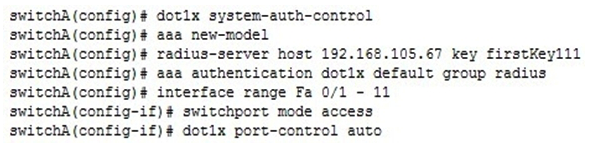

You have executed the following commands on switchA: What is the result of executing the given commands? (Choose two.)

A) Only the listed RADIUS server is used for authentication
B) 802.1X authentication is enabled on the Fa0/1 interface only
C) The key for the RADIUS server is firstKey111
D) AAA is not enabled on the switch

Question 42

Which technology provides a multichassis IP connection between VSS-enabled switches and downstream devices?

A) LACP
B) MEC
C) ICCP
D) LAG
E) BFD
F) PAgP

Question 43

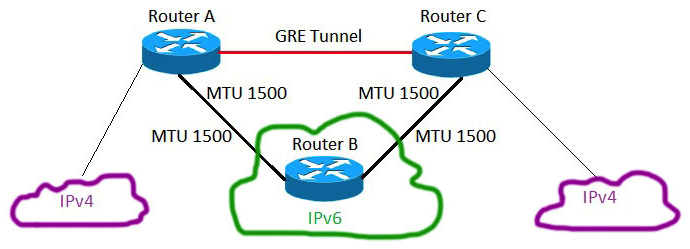

Refer to the exhibit. MTU has been configured as shown, and no MTU command has been configured on the tunnel interfaces. It has been found that fragmentation is occurring when tunneled packets are placed onto the IPv6 underlay network. Which configuration change will resolve this problem?

A) Set the MTU to 1476 on the tunnel interfaces
B) Increase the MTU on the IPv6 network
C) Set the MTU to 1500 on the tunnel interfaces
D) Increase the MTU on the IPv4 networks

Question 44

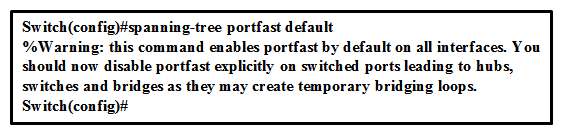

Refer to the exhibit. When troubleshooting a network problem, a network analyzer is connected to Port f0/1 of a LAN switch. Which command can prevent BPDU transmission on this port?

A) spanning-tree portfast bpduguard enable
B) spanning-tree bpduguard default
C) spanning-tree portfast bpdufilter default
D) no spanning-tree link-type shared

Question 45

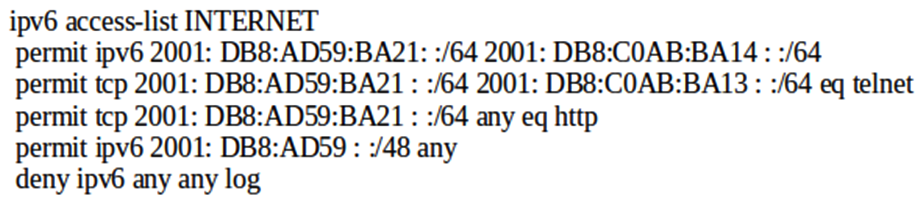

Refer to the exhibit. Which statement about the INTERNET ACL is true?

A) The denied entries will be logged because of the explicit deny ipv6 any any log line.
B) A packet with a source address of 2001:DB8:AD59:ACC0:2020:882:DB8:1125 will be denied.
C) HTTPS traffic from the 2001:DB8:AD59:BA21::/64 subnet will automatically be permitted along with HTTP traffic.
D) A packet with a source address of 2001:DB80:AD59:BA21:101:CAB:64:38 destined to port 80 will be permitted.

Question 46

Which authentication service is needed to configure 802.1x?

A) RADIUS with EAP Extension
B) TACACS+
C) RADIUS with CoA
D) RADIUS using VSA

Question 47

Which method will filter routes between EIGRP neighbors within the same autonomous system?

A) distribute-list
B) policy-based routing
C) leak-map
D) route tagging

Question 48

A company is using OSPF between its HQ location and a branch office. HQ is assigned to area 0, and the branch office is assigned to area 1. The company purchases a second branch office, but due to circuit delays to HQ, it decides to connect the new branch office to the existing branch office as a temporary measure. The new branch office is assigned to area 2. Which OSPF configuration enables all three locations to exchange routes?

A) The existing branch office must be configured as a stub area
B) A virtual link must be configured between the new branch office and HQ
C) A sham link must be configured between the new branch office and HQ
D) The new branch office must be configured as a stub area

Question 49

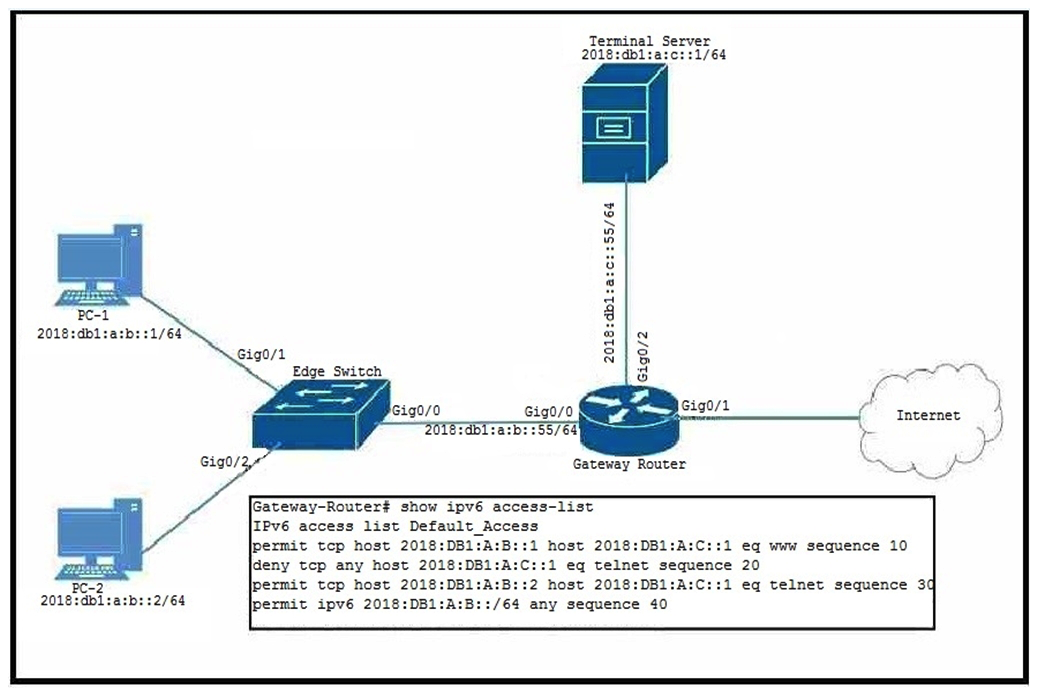

Refer to the exhibit. PC-2 failed to establish a Telnet connection to the Terminal Server. Which solution allows PC-2 to establish the Telnet connection?

A) Gateway-Router(config)# ipv6 access-list Default_Access Gateway-Router(config-ipv6-acl)# no sequence 20 Gateway-Router(config-ipv6-acl)# sequence 5 permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet Gateway-Router(config)# ipv6 access-list Default_Access Gateway-Router(config-ipv6-acl)# no sequence 20 sequence 5 permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet
B) Gateway-Router(config-ipv6-acl)# permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet
C) Gateway-Router(config-ipv6-acl)# sequence 15 permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet sequence 15 permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet
D) Gateway-Router(config-ipv6-acl)# sequence 25 permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet sequence 25 permit tcp host 2018:DB1:A:B::2 host 2018:DB1:A:C::1 eq telnet

Question 50

Which switch feature prevents traffic on a LAN from being overwhelmed by continuous multicast or broadcast traffic?

A) storm control
B) port security
C) VTP pruning
D) VLAN trunking

Question 51

Which two tasks must you perform to configure DHCP snooping on a device? (Choose two.)

A) Enable DHCP packet validation on the device
B) Enable DHCP option 82
C) Enable DHCP snooping on the VLAN
D) Enable DHCP snooping globally
E) Enable VRF support for the DHCP relay agent

Question 52

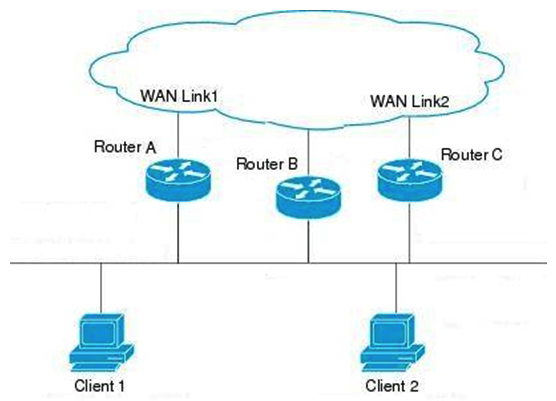

A company has the following network infrastructure. (Refer to the exhibit.) Router A is a GLBP active virtual gateway with priority level set to 250. Routers B and C are configured with the default GLPB configurations. The configuration of the active virtual gateway needs to be changed such that if the AVG fails, Router C should be elected to be used as an active virtual gateway. As the network administrator, you have been asked to make corresponding changes to the configuration. Which command would you use for this purpose on Router C, and where would the command be configured?

A) glbp 10 preempt (on Router B)
B) glbp 10 preempt (on Router C)
C) glbp 10 priority 200 (on Router B)
D) glbp 10 priority 200 (on Router C)

Question 53

Which three feature sets are used in Stackwise technology? (Choose three.)

A) LAN Base
B) IP Base
C) WAN Services
D) IP Services
E) ARP Base
F) LAN Agent

Question 54

In what mode does an LWAPP-enabled access point operate?

A) lightweight mode
B) autonomous mode
C) WGB
D) ad hoc mode

Question 55

Which statements about RSPAN are true? (Choose two.)

A) It supports MAC address learning.
B) RSPAN VLANS can carry RSPAN traffic only.
C) only one RSPAN VLAN can be configured per device.
D) RSPAN VLANs are exempt from VTP pruning.
E) MAC address learning is not supported
F) RSPAN uses are GRE tunnel to transmit captured traffic.

Question 56

Which of the following features does GLBP provide, but not HSRP and VRRP? (Choose all that apply.)

A) Support for single active router
B) Support for automatic load balancing
C) Support for multiple gateways
D) Support for interface tracking

Question 57

Which command is needed to enable DHCP snooping if a switchport is connected to a DHCP server?

A) ip dhcp snooping trust
B) ip dhcp snooping
C) ip dhcp trust
D) ip dhcp snooping information

Question 58

When provisioning bandwidth for an IP telephony network, which elements are unique to an IP telephony call? (Choose two.)

A) voice stream
B) IGMP packets
C) call-control signaling
D) routing protocol packets
E) speed of the segment to the telephone

Question 59

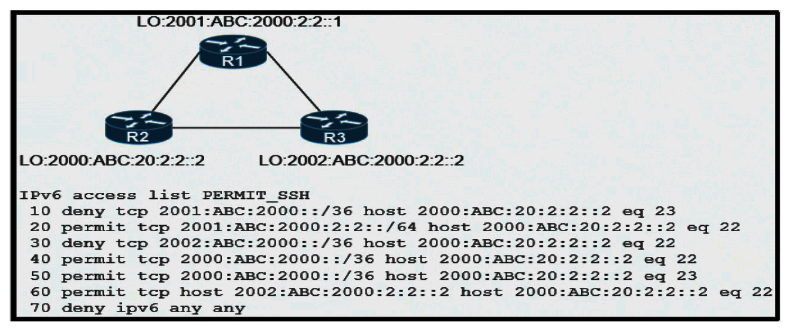

Refer to the exhibit. An IPv6 network was just deployed in the environment and the help desk has reported that R3 is not able to SSH to R2's Loopback interface. Which sequence number of the filter is preventing access?

A) 10
B) 20
C) 30
D) 70

Question 60

Which statement describes what happens if all VSL connections between the virtual switch members are lost?

A) Both virtual switch members cease to forward traffic.
B) The VSS transitions to the dual active recovery mode, and both virtual switch members continue to forward traffic independently.
C) The virtual switch members reload.
D) The VSS transitions to the dual active recovery mode, and only the new active virtual switch continues to forward traffic.

Question 61

Which OSPF area blocks LSA Type 3, 4 and 5, but allows a default summary route?

A) normal
B) stub
C) NSSA
D) totally stubby

Question 62

How is end-to-end microsegmentation enforced in a Cisco SD-Access architecture?

A) VLANs are used to segment traffic at Layer 2.
B) 5-tuples and ACLs are used to permit or deny traffic.
C) SGTs and SGTACLs are used to control access to various resources.
D) VRFs are used to segment traffic at Layer 3.

Question 63

An engineer must propose a QoS architecture model that allows an application to inform the network of its traffic profile and to request a particular type of service to support its bandwidth and delay requirements. The application requires consistent and dedicated bandwidth end to end. Which QoS architecture model meets these requirements?

A) DiffServ
B) LLQ
C) WRED
D) IntServ

Question 64

Which function are fabric intermediate nodes responsible for in an SD-Access Architecture?

A) mapping EIDs to RLOCs
B) encapsulating user traffic in a VXLAN header including the SGT
C) registering new endpoints in the HTDB
D) transporting IP packets between edge nodes and border nodes

Question 65

An engineer is designing a QoS policy that queues excess packets for later transmission. Which mechanism must be included in the design?

A) shaping
B) WRED
C) policing
D) RED

Question 66

Which two techniques improve the application experience in a Cisco SD-WAN design? (Choose two.)

A) utilizing forward error correction
B) implementing a stateful application firewall
C) implementing AMP
D) utilizing quality of service
E) implementing Cisco Umbrella

Question 67

A network engineer must segregate three interconnected campus networks using IS-IS routing. A two-layer hierarchy must be used to support large routing domains and to avoid more specific routes from each campus network being advertised to other campus network routers automatically. Which two actions does the engineer take to accomplish this segregation? (Choose two.)

A) Designate two IS-IS routers as BDR routers at the edge of each campus, and configure one BDR for all Level 1 routers and one BDR for all Level 2 routers.
B) Designate two IS-IS routers from each campus to act as Level 1/Level 2 backbone routers at the edge of each campus network.
C) Assign the same IS-IS NET value for each campus, and configure internal campus routers with Level 1/Level 2 routing.
D) Utilize different MTU values for each campus network segment. Level 2 backbone routers must utilize a larger MTU size of 9216.
E) Assign a unique IS-IS NET value for each campus, and configure internal campus routers with Level 1 routing.

Question 68

Which design element should an engineer consider when multicast is included in a Cisco SD-Access architecture?

A) PIM SSM must run in the underlay.
B) Multicast clients reside in the underlay, and the multicast source is outside the fabric or in the overlay.
C) Rendezvous points must be used in a PIM SSM deployment.
D) Multicast traffic is transported in the overlay and the EID space for wired and wireless clients.

Question 69

Which control-plane protocol is used to map an endpoint to a location in a Cisco SD-Access network?

A) FabricPath
B) IS-IS
C) LISP
D) MP-BGP

Question 70

A large chain of stores currently uses MPLS-based T1 lines to connect their stores to their data center. An architect must design a new solution to improve availability and reduce costs while keeping these considerations in mind: The company uses multicast to deliver training to the stores. The company uses dynamic routing protocols and has implemented QoS. To simplify deployments, tunnels should be created dynamically on the hub when additional stores open. Which solution should be included in this design?

A) VPLS
B) GET VPN
C) DMVPN
D) IPsec

Question 71

A company with multiple service providers wants to speed up BGP convergence time in the event a failure occurs with their primary link. Which approach achieves this goal and does not impact router CPU utilization?

A) Utilize BFD and tune the multiplier to 50
B) Lower the BGP hello interval
C) Decrease the BGP keepalive timer
D) Utilize BFD and keep the default BGP timers

Question 72

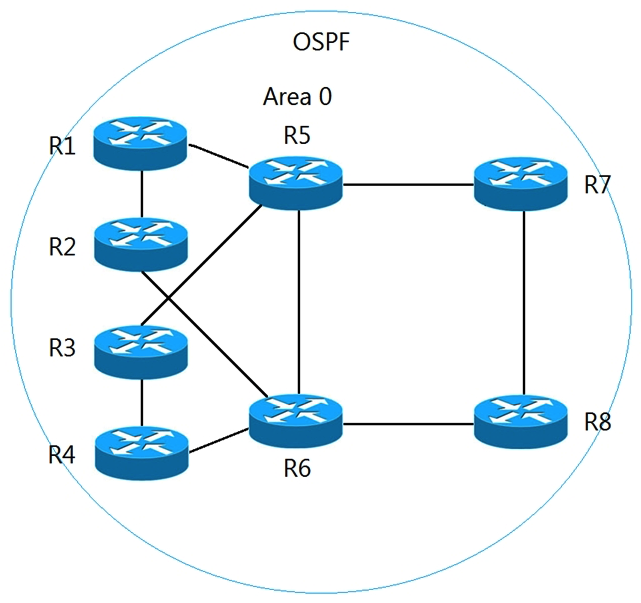

Refer to the exhibit. All routers currently reside in OSPF area 0. The network manager recently used R1 and R2 as aggregation routers for remote branch locations and R3 and R4 for aggregation routers for remote office locations. The network has since been suffering from outages, which are causing frequent SPF runs. To enhance stability and introduce areas to the OSPF network with the minimal number of ABRs possible, which two solutions should the network manager recommend? (Choose two.)

A) a new OSPF area for R1 and R2 connections, with R1 and R2 as ABRs
B) a new OSPF area for R3 and R4 connections, with R5 and R6 as ABRs
C) a new OSPF area for R3 and R4 connections, with R3 and R4 as ABRs
D) a new OSPF area for R1, R2, R3, and R4 connections, with R1, R2, R3, and R4 as ABRs
E) a new OSPF area for R1 and R2 connections, with R5 and R6 as ABRs

Question 73

Which PIM mode uses a shared tree only?

A) bidirectional
B) sparse
C) dense
D) source-specific

Question 74

An organization is designing a detailed QoS plan that limits bandwidth to specific rates. Which two parameters are supported by the traffic policing feature? (Choose two.)

A) violating
B) marking
C) shaping
D) bursting
E) conforming

Question 75

What are two benefits of designing an SD-WAN network fabric with direct Internet access implemented at every site? (Choose two.)

A) It decreases latency to applications hosted by public cloud service provider.
B) It decreases latency on Internet circuits.
C) It increases the speed of delivery of site deployments through zero-touch provisioning.
D) It increases the total available bandwidth on Internet circuits.
E) It alleviates network traffic on MPLS circuits.

Question 76

Company A recently acquired another company. Users of the newly acquired company must be able to access a server that exists on Company A's network, both companies use overlapping IP address ranges. Which action conserves IP address space and provides access to the server?

A) Use a single IP address to create overload NAT
B) Use a single IP address to create a static NAT entry
C) Build one-to-one NAT translation for every user that needs access
D) Re-IP overlapping address space in the acquired company

Question 77

An engineer is working for a large cable TV provider that requires multiple sources streaming video on different channels using multicast with no rendezvous point. Which multicast protocol meets these requirements?

A) PIM-SM
B) PIM-SSM
C) any-source multicast
D) BIDIR-PIM

Question 78

Which two functions are provided by the Cisco SD-WAN orchestration plane? (Choose two.)

A) centralized provisioning
B) primary authentication point
C) NAT traversal facilitation
D) Zero Touch Provisioning
E) troubleshooting and monitoring

Question 79

Which two best practices must be followed when designing an out-of-band management network? (Choose two.)

A) Enforce access control
B) Facilitate network integration
C) Back up data using the management network
D) Ensure that the management network is a backup to the data network
E) Ensure network isolation

Question 80

An infrastructure team is concerned about the shared memory utilization of a device, and for this reason, they need to monitor the device state. Which solution limits impact on the device and provides the required data?

A) IPFIX
B) static telemetry
C) on-change subscription
D) periodic subscription
