Deck 7: Designing HPE Hybrid IT Solutions

Question 1

Refer to the exhibit. The information shown is displayed for a Nimble array you are installing. The customer's administrator has asked you for the speed at which the Nimble ports are connecting to their SAN switches, and you have run the command shown to determine the number of gigabits per second used by this port connection. What speed does the exhibit indicate is in use?

A) 18
B) 32
C) 6
D) 8

Answer 1

8

Question 2

HPE Support asks you to generate an SSD wear gauge report for local storage on an HPE DL360 Gen10 server running VMware. Which procedure will ensure that the server will boot directly into a maintenance state so you can generate the requested report?

A) Changing the one-time boot option to Smart Storage Administrator in iLO web-based user interface
B) Use Always On functionality of Intelligent Provisioning
C) Changing the one-time boot option to Intelligent Provisioning in iLO web-based user interface
D) Click Boot to System Setup Utilities in iLO web-based user interface
E) Changing the one-time boot option to Intelligent Provisioning in HPE OneView

Answer 2

Changing the one-time boot option to Smart Storage Administrator in iLO web-based user interface

Question 3

What is a feature of the MSA 1050 that will help your Storage Customer better utilize storage resources?

A) block, file, and object access
B) Triple+ parity RAID
C) Automated Tiering
D) 99.9999% guaranteed availability

Answer 3

Automated Tiering

Question 4

What is an access port on an Ethernet switch?

A) A port that carries FCP frames inside the network
B) A port that carries multiple VLANs
C) A port that is connected to an FCF
D) A port that carries untagged frames inside the network

Question 5

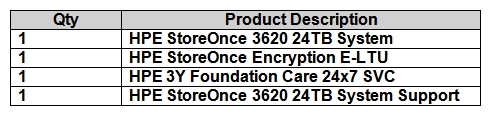

Refer to the exhibit. A customer has been using VEEAM and the HPE StoreOnce 3620 shown in the exhibit to backup their environment. The customer's legal team has asked to double their retention times for all backup sets, and they are starting to run out of space on the StoreOnce. Which options could you recommend that the customer add to their existing configuration to accommodate the new requirement? (Select two. Each option represents a separate solution.)

A) HPE StoreOnce Cloud Bank Storage
B) HPE StoreOnce 3620 24TB Capacity Upgrade Kit
C) HPE StoreOnce Gen4 16Gb Fibre Channel Network Card
D) HPE StoreOnce Gen4 10/25Gb SFP Network card
E) HPE D3710 Storage Enclosure

Question 6

A client complains about systems reliability issues caused by their staff's inability to identify the root cause of failures. The client's lead administrator wants to automatically send data from HPE OneView to additional listeners in the network. What should you configure in HPE OneView to enable the external monitoring of the managed devices?

A) Configure a scope to include the listener.
B) Configure SNMP Trap Forwarding.
C) Configure scheduled reports to export the data to the listener.
D) Configure the listener as a managed device.

Question 7

A customer needs NFS access on a Fibre Channel array. What must be included in the solution to meet this requirement?

A) StoreEver
B) Storage File Controller
C) Smart Array Controller
D) StoreOnce RMC

Question 8

When is it appropriate for a customer to implement HPE OneView Standard?

A) To manage multiple servers
B) To monitor their services
C) To enable the Advanced iLO license
D) To update firmware

Question 9

A customer needs a single, dual-processor server for an Enterprise Resource Planning solution for a single office. The customer application uses a mix of HDDs and SSDs and up to 3TB of RAM. Which HPE Solution should you propose?

A) HPE Synergy Solution
B) HPE Apollo 2000 Server
C) HPE ML350 Gen10
D) HPE ML110 Gen10

Question 10

A Network administrator connects two switches together with multiple links of the same speed, duplex, and media type. The administrator expected the links to be aggregated, but they are not. The administrator confirmed that the ports are part of the appropriate link aggregation groups and that the permitted VLANs match. Switch A has the lower LACP System Priority. Which LACP operation states describe the failure above?

A) Switch A: Active; Switch B: Active
B) Switch A: Active; Switch B: Passive
C) Switch A: Passive; Switch B: Passive
D) Switch A: Passive; Switch B: Active

Question 11

A customer has requested that you provide them with an architecture and bill-of-materials for a stack of top-of-rack switches. The customer has 34 HPE DL360 servers in the rack, each with four 1GBASE-T Ethernet ports which need to be connected to the network. The customer is upgrading 50% of the 1GBASE-T Ethernet ports on the servers to 10GBASE-T Ethernet ports and needs the switching to support the upgraded servers. They are opposed to a chassis switch, and want to keep the number of managed devices on the network to a minimum. Which architecture meets the customer requirements?

A) One VSX stack of four Aruba 8320 48-port 1/10GBASE-T switches
B) Two IRF stacks of two HPE 5710 48-port 1/10GBASE-T switches
C) One IRF stack of four HPE 5710 48-port 1/10GBASE-T switches
D) Two VSX stacks of two Aruba 8320 48-port 1/10GBASE-T switches

Question 12

An HPE customer wants to perform a simplified update of firmware and drivers among their 100 HPE Gen9 and Gen10 racked servers. Which HPE software tool should the customer use to minimize the time required to perform this activity.

A) HPE Smart Update Manager
B) HPE OneView Standard
C) HPE ProLiant Support Pack
D) HPE iLO Amplifier Pack

Question 13

A customer wants to install an HPE Proliant server that has a single dual port 10Gb NIC. Which NIC feature should you introduce to allow each 10Gb port to be seen as four individual adapters in the operating system?

A) NPAR
B) RoCE
C) FCoE
D) RDMA

Question 14

A customer has a VMware environment with HPE ProLiant servers and Nimble storage. They have been using a Windows VM to provide file services for their employees. The customer is experiencing performance issues with the solution due to memory constraints on the virtual environment. What could be added to the existing environment that will provide dedicated file services with better performance that would still utilize the existing storage and backup solutions?

A) HPE StoreEver 30750
B) HPE Storage Performance File Controller
C) HPE StoreEasy 1460 Storage
D) HPE StoreEasy 1650 Expanded Storage

Question 15

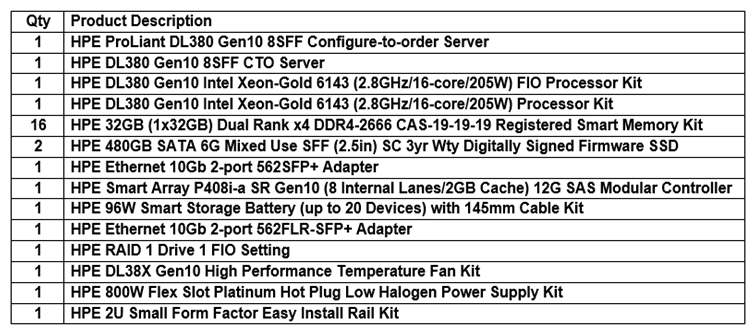

Refer to the exhibit. A customer needs a server with four 10Gb network adapters. They need it to be configured for the best possible network throughput. Given the BOM in the exhibit, what do you need to add to this server to meet the customer requirement?

A) Workload Accelerator
B) SSD Drives
C) Smart Storage Hybrid Capacitor
D) Secondary Riser Kit

Question 16

You are creating a configuration for a new Nimble HF40 array. Which tool should you use to ensure that you include adequate cache in the configuration?

A) HPE NinjaSTARS
B) HPE Storage Sizer
C) HPE OneView
D) HPE SPOCK

Question 17

Which HPE solution brings together CPU, Memory, and Disk with an unpredictable workload into a single management infrastructure?

A) dHCI
B) SimpliVity
C) Nimble
D) Primera

Question 18

Which backup targets are available from an HPE StoreOnce backup system? (Choose two.)

A) VTL
B) Catalyst
C) NVMe
D) S3
E) iSCSI

Question 19

What should you configure to limit the scope of broadcast domains in an Ethernet network?

A) Trunks
B) VSAN
C) Static ARP
D) VLAN

Question 20

You are validating a configuration prior to quoting it for the customer. You plan to propose the following configuration: Two HPE DL380 Gen10 servers with dual processors, 256GB of memory, dual 10Gb NICs, SN1100Q 16Gb dual port FC HBA, dual 800W power supplies, and high temperature fan kit HPE Nimble HF20H with 11TB storage, 960GB of cache, dual port 10GbE NIC, and 16Gb dual port FC adapter kit Two SN3000B FC Switches Which tool should you use to verify firmware compatibility between the storage and server components in this proposed solution?

A) HPE NinjaSTARS
B) HPE One Configuration Advanced
C) HPE OneView Advanced
D) HPE SPOCK

Question 21

HPE support asks you to provide the Active Health System log from HPE StoreEasy 1660 Storage to expedite a troubleshooting process. Which procedures will generate the AHS log for HPE Support? (Choose two.)

A) Download the AHS log from Server Manager dashboard
B) Download the AHS log from Federation dashboard in StoreEasy Management Console
C) Log in to the StoreEasy system with SSH and use the hpessacli command
D) Boot to Intelligent Provisioning and download the AHS log from maintenance section
E) Configure Remote Support on the iLO to send the log to HPE

Question 22

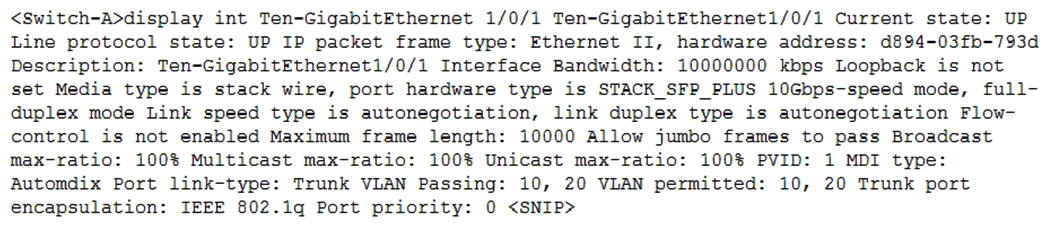

Refer to the exhibit. An administrator connected a hypervisor to interface Ten-GigabitEthernet1/0/1 in a switch. The administrator created virtual machines in VLAN 10 and 20 on the hypervisor. VLAN 10 is configured to be tagged, and VLAN 20 is configured to be untagged on the hypervisor. The administrator found that all the virtual machines in VLAN 20 can communicate with each other, but not with any virtual machines on VLAN 20 external to the hypervisor. Given the output in the exhibit, what should you do to resolve the issue?

A) Permit VLAN 1 on the interface.
B) Configure the PVID of the interface to be VLAN 20.
C) Configure the interface as an access port.
D) Configure the interface as an IRF port.

Question 23

A customer is planning to deploy a new Top of Rack solution. They plan to use a stacking technology that meets the following requirements: Support for Multi Chassis Link Aggregation in an active-active mode. The control plane must not be a single point of failure. Rapid Fail-over. Unified Management. They require a maximum of two switches per stack. Which stacking technology meets the customer's requirements?

A) HPE Intelligent Resilient Framework (IRF)
B) HPE Distributed Trunking
C) Aruba Virtual Switching Extension (VSX)
D) Aruba Virtual Switching Framework (VSF)

Question 24

A customer is purchasing a complete HPE solution that includes servers, storage, and networking. They need to leverage cloud storage for an off-site copy of their data in case of disaster. Which HPE solutions should you suggest? (Choose two.)

A) HPE MSA Storage
B) HPE StoreOnce
C) HPE Smart RAID
D) HPE StoreEver
E) HPE Nimble Storage

Question 25

You have configured a port on an HPE FlexFabric 5900 series switch that is connected to a VMware ESXi server to support multiple VLANs. Given the configuration above, what should happen to any of the untagged traffic coming from the VMware ESXi host?

A) The untagged traffic with be dropped.
B) The untagged traffic will be transmitted in vlan 2.
C) The untagged traffic will be transmitted in vlan 50.
D) The untagged traffic will be transmitted in vlan 1.

Question 26

Which protocol verifies that the ports in common between two switches have compatible settings and removes the likelihood of a misconfigured aggregated link?

A) RPVST+
B) LACP
C) GVRP
D) 802.1q

Question 27

A customer has the following requirements: two or more 10Gb SFP+ uplinks downlink ports capable of 1Gb or 10Gb operation over CAT6a or CAT7 cables 24 downlink ports Which HPE tool would you use to help choose an HPE network solution that meets the customer requirements?

A) HPE Switch Selector
B) HPE NinjaSTARS
C) HPE SAF
D) HPE SPOCK

Question 28

A customer just purchased a ProLiant 300 series Gen10 server and wants to install the latest version of Windows. Which feature of this server will assist the customer with the initial Windows installation?

A) HPE SSA Diagnostics
B) HPE SmartStart
C) Smart Storage Administrator
D) Intelligent Provisioning

Question 29

What is a primary benefit of DAS?

A) It takes advantage of Common Internet File System (CIFS).
B) It is presented as an iSCSI LUN to the attached server.
C) It can be accessed by both server and non-server devices simultaneously.
D) It is connected directly to a server.

Question 30

A customer needs to verify inbound packet statistics for interface Ten-GigabitEthernet 1/0/10 on an HPE FlexFabric 5900 series switch used by an iSCSI storage array. Which command can be used in the CLI to perform this operation?

A) show inbound counters port 1/0/10
B) display counters inbound interface Ten-GigabitEthernet 1/0/10
C) display all statistics from port 1/0/10
D) interface Ten-GigabitEthernet 1/0/10 show counters

Question 31

Which solution should you recommend to a customer for basic file and print services?

A) Superdome Flex
B) ProLiant
C) Synergy
D) Apollo

Question 32

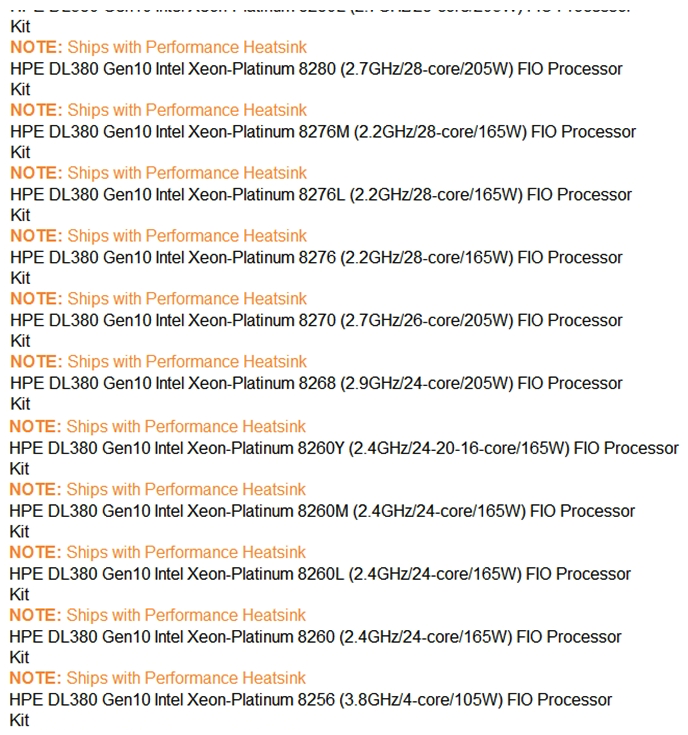

Refer to the exhibit. A customer has two HPE ProLiant DL380 Gen10 servers running as an Oracle cluster. They are trying to reduce licensing costs and want to move to the best processor available from the list to minimize licensing costs while still providing a high level of performance for the Oracle database. Which DL380 Gen10 processor would you recommend?

A) Intel Xeon-Platinum 8280M
B) Intel Xeon-Platinum 8280
C) Intel Xeon-Platinum 8256
D) Intel Xeon-Platinum 8253

Question 33

A customer has a new virtual environment. They selected HPE servers for the environment in order to achieve better performance for their applications. Which HPE feature enables the customer to achieve this server performance improvement?

A) embedded application
B) workload performance advisor
C) workload profile
D) Active Health System

Question 34

A customer needs a shared storage solution for a virtualization platform that will host a database application. The customer is considering an HPE Nimble array. Which feature would lead you to propose an HPE Nimble AF40 over an HPE 3PAR All Flash array?

A) Fibre Channel Connectivity
B) 10Gb iSCSI support
C) Supported by Infosight for predictive analytics
D) Predictable performance event with one failed controller

Question 35

A customer has two HPE ProLiant Gen10 servers. They both require firmware installation. Which HPE tool should you recommend for performing this task?

A) OneView Advanced
B) iLO Amplifier Pack
C) Smart Update Manager
D) OneView Standard

Question 36

Which hardware and software components make up a Nimble dHCI infrastructure?

A) HPE M-Series switch, HPE ProLiant DL servers, HPE Nimble, and VMware
B) Aruba Switches, HPE Synergy, HPE Nimble, and VMware
C) HPE M-Series switch, HPE ProLiant DL servers, HPE Nimble, and Hyper-V
D) Aruba Switches, HPE Synergy, HPE Nimble, and Hyper-V

Question 37

A customer environment is being managed and monitored with HPE OneView. A review of the OneView log shows that there have been several trap storm events. Which series of events must take place for OneView to insert a Trap Storm event entry into the log of system events?

A) SNMP traps from three or more identical hosts have been logged within the past 256 seconds.
B) Four or more identical SNMP traps have been logged within the past 30 seconds.
C) Three or more SNMP trap messages have been logged with increasingly critical variable string values.
D) Four or more ports on the same network switch have reported sequential SNMP trap messages

Question 38

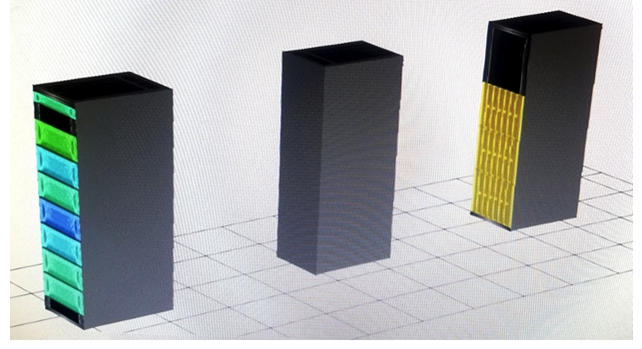

You are installing an HPE Nimble HF20 into a customer's existing rack. Prior to installation, what should you consider?

A) An HPE Nimble array has left-to-right airflow
B) HPE recommends installing the HPE Nimble array at the top of the rack
C) The HPE Nimble array will require 3-phase power
D) HPE recommends racks with a depth of 1200 mm

Question 39

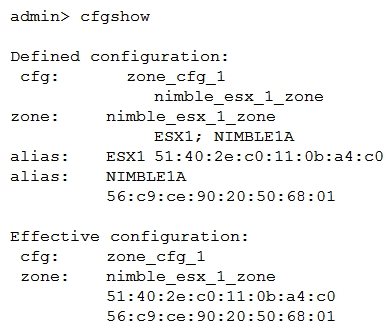

Refer to the exhibit. When performing a code upgrade on an HPE Nimble array, you noticed a connection failure on ESX1. Refer to the exhibit showing the complete zoning configuration of one of the HPE SN3000B switches. What should you do to ensure storage access is not interrupted when doing the next update?

A) Create and ISL between the two HPE SN3000B switches.
B) Create a new zone for ESX1 and the second storage controller.
C) Change the timeout values on the SN3000B switch.
D) Configure the same zone on a second HPE SN3000B.

Question 40

What does StoreOnce use to allow independent software vendors (ISV) to be aware of the HPE StoreOnce Backup system and its capabilities without emulation?

A) Recovery Manager Central
B) Catalyst Target
C) Virtual Tape Library
D) NAS Target

Question 41

A customer wants an HPE solution to expand a Big Data platform. The company is outgrowing its current setup and expects to consume 1 PB of data in a few months and up to 2 PB of data within a year. Which HPE server platform is best suited for this use case?

A) HPE Microserver
B) HPE Edgeline
C) HPE Apollo
D) HPE Proliant ML

Question 42

A security client needs a surveillance solution to support 239 Cameras. They expect to generate 2PB of data and require a 10Gb network infrastructure in a single rack. Which solution should you recommend to meet the customer requirements?

A) HPE Moonshot
B) HPE MSA
C) HPE Apollo Servers
D) HPE SimplVity 380

Question 43

Which disk technology provides the lowest latency for performing random reads?

A) NVMe SSD
B) SATA HDD
C) SAS HDD
D) SATA SSD

Question 44

A customer's backup administrator is responsible for maintaining and coordinating all nightly backups of the company's 30 servers. Which HPE product can be used as the primary interface to orchestrate all backup targets and Catalyst copy functions?

A) HPE StoreServ
B) Smart Storage Administrator
C) Intelligent Provisioning
D) StoreOnce Management Console

Question 45

A customer needs to locate an exact time when a link down event occurred at the FC port of Nimble storage Which on-premises tool can the customer use?

A) Embedded UEFI Diagnostics
B) HPE Nimble Storage web-based user interface
C) HPE StoreServ Management Console
D) HPE InfoSight

Question 46

Which protocol should be used to access an exported directory on a network-attached storage device?

A) RIP
B) NFS
C) BGP
D) SNMP

Question 47

You are reviewing a series of MSA2052 storage designs for a customer's remote locations. Their largest remote site requires the highest possible level of internal data protection with at least 20 TB of storage. Which disk drive design is adequate for this site?

A) 14 HPE MSA 2 TB drives, configured with RAID1
B) 8 HPE MSA 2 TB drives, configured with RAID5
C) 10 HPE MSA 2 TB drives, configured with RAID0
D) 12 HPE MSA 2 TB drives, configured with RAID6

Question 48

What is the most important difference between an HPE ProLiant DL380 Gen10 server and an HPE ProLiant DL385 Gen10 server?

A) Disk Drives
B) Power Supplies
C) Network Cards
D) Processors

Question 49

A customer acquires an HPE 3PAR Storeserv 8200 Solution for a data center environment with the following configuration: 2 Controllers Nodes Physical Service Processor 2-tier configuration using 16 SSD and 12 NL HDD 2 SN3000 San Switch each with 24 FC ports After installation and configuration, the storage is put in production. When tiering with the Adaptive Optimization SW is being performed, the customer encountered performance differential issue. What could be the cause of this issue?

A) Disk enclosure are insufficient.
B) File Controllers is missing.
C) All-inclusive Multi-system software is missing.
D) Solid State Drives and Nearline Drives are mixed.

Question 50

A retail company recently implemented a Video surveillance solution. They now need an MSA storage solution with 100TB capacity. They want to be able to add more disk capacity if needed. Which HPE tool can help you choose a storage solution, determine the total usable capacity, and create a BOM?

A) HPE SPOCK
B) HPE NinjaSTARS
C) HPE Storage Sizing Tool
D) HPE One Config Advanced

Question 51

A system administrator's performing the BIOS/Platform configuration of a DL380 Gen10 server. You notice the amber health LED. The health status of which solution components can be verified with embedded UEFI Diagnostics? (Choose two.)

A) UEFI shell
B) Memory
C) Fans
D) Nimble controller
E) iSCSI HBA

Question 52

What does the term composable mean when applied to HPE infrastructure?

A) pay-per-use consumption models
B) hardware-defined infrastructure
C) to provide all-flash like performance, but at a hybrid price point
D) to simplify and accelerate DevOps and business innovation

Question 53

A customer needs to move from their traditional tape-based backup infrastructure to a standalone application to disk based backup solution using HPE StoreOnce. The environment does not use a hypervisor. The customer has the following goals for their long-term backup retention: retain data for over two years at low cost data is archival and rarely accessed, if ever Which HPE StoreOnce components can help meet the customer goals in the most cost effective manner? (Choose three.)

A) HPE StoreOnce 35xx
B) HPE StoreOnce Cloud Bank Storage license
C) Catalyst Replication license
D) Azure Cloud or S3 object store
E) HPE StoreOnce VSA

Question 54

When configuring a single ProLiant Gen10 server, which embedded tool can be used to deploy a reliable and consistent configuration?

A) HPE iLO Amplifier Pack
B) HPE OneView
C) Smart Update Manager
D) Intelligent Provisioning

Question 55

Which information is contained in the Array Diagnostic Report? (Choose two.)

A) firmware version numbers
B) device status
C) file system types
D) partition types
E) operating system mount points

Question 56

Refer to the exhibit. You are asked to review a server configuration for a customer before it is quoted. The server will be used in a business-critical environment and high availability is required. The server configuration is shown in the exhibit. What should be added to the configuration to ensure availability?

A) HPE Smart Array P408i-a SR Gen10 12 G SAS Modular Controller
B) HPE DL380 Gen10 Intel Xeon-Gold 6143 (2.8 GHz/16-core/205 W) Processor Kit
C) HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit
D) HPE DL38X Gen10 12 Gb SAS Expander Card Kit

Question 57

What is the correct cable type to use when connecting a pair of switches using Long Range (LR) Transceivers?

A) Direct Attach Cable (DAC)
B) Twin-Ax
C) Single Mode Fiber
D) Multi-mode Fiber

Question 58

Which HPE remote management tool offers simplified warranty and contract case management?

A) HPE InfoSight
B) HPE Insight Online
C) HPE iLO Advanced
D) HPE Smart Update Manager

Question 59

A customer ordered a pair of HPE SN3000B 16 Gb Fibre Channel Switches to provide Fibre Channel connectivity between VMware ESXi hosts and HPE 3PAR StoreServ 8200. Which adapter is required to support Fibre Channel connectivity from the VMware ESXi hosts to the new switches?

A) HBA
B) SAS
C) CNA
D) NIC

Question 60

A customer requires a management solution that will provide email notifications if hardware errors occur on their servers. Which management solution provides this functionality?

A) UEFI System Configuration
B) iLO Advanced Edition
C) HPE SUM
D) HPE SUT

Question 61

What is the correct cable type to use when connecting a server to a switch using 10 Gbps Short Range (SR) SFP+ optical connections?

A) Direct Attach Cable (DAC)
B) Twin-Ax
C) Single Mode Fiber
D) Multi-mode Fiber

Question 62

Which storage array feature records only changes made to the base volume and keeps an earlier state of the original volume?

A) snapshot
B) clone
C) virtual volume
D) volume mirror

Question 63

A customer needs a server memory subsystem that meets the following requirements: approaches the speed of traditional DRAM ensures high capacity, high performance, and ongoing data safety in case of a power failure Which HPE memory feature meets the customer needs?

A) Load Reduced DIMMs
B) Memory Mirroring
C) Fast Fault Tolerance Memory
D) Persistent Memory

Question 64

What is an access port on an Ethernet switch?

A) A port that carries FCP frames inside the network
B) A port that carries mulitple VLANs
C) A port that is connected to an FCF
D) A port that carries untagged frames inside the network

Question 65

A customer is planning to deploy a branch office server rack. The environment will have the following requirements: Single rack with 20 HPE ProLiant DL360 Gen10 Servers. Each Server will have 6 x 10G SFP+ Ports. Each Server will have a dedicated iLO port. The customer requires that only two switches be used. The customer requires separate control planes. Which switch configuration can meet these requirements?

A) 2 × HPE 5945 Series switch with IRF
B) 2 × Aruba 8325 Series switches with VSX
C) 2 × HPE 5945 Series switches standalone
D) 2 × Aruba 8325 Series switches with backplane stacking.

Question 66

A customer needs NFS access on a fiber channel array. What must be included in the solution to meet this requirement?

A) StoreEver
B) Storage File Controller
C) Smart Array Controller
D) StoreOnce RMC

Question 67

Refer to the exhibit. You observed some high temperature alerts on a switch shown in the middle rack of the exhibit. The cooling in the data center is following best practices for the layout in the exhibit. The switch is an HPE 5945 series switch, and all the fans are operating normally. The switch is racked so that its ports face the rear of the rack. The administrator noticed the fan modules have red handles. What should the administrator do to resolve the issue?

A) Replace the fan modules with port-to-power fan modules.
B) Add additional fan modules to the switch.
C) Replace the fan modules with power-to-port fan modules.
D) Change the fan direction with the fan preferred direction command.

Question 68

A local state college is implementing a new VDI cluster to support computer and testing labs. They have the following requirements: Three VMware ESXi Hosts, each with one AMD processor, 1 TB of RAM, 16 Gbps FC Dual Port HBA. HPE Nimble AF20 with 17 TB usable capacity. Integration into an existing HPE FlexFabric 5710 and HPE SN3000B Fibre Channel SAN switches. The solution must fit in 7U of rack space. If the customer needs more capacity in the future, they will use scale-out growth. Which server model should you recommend to this client?

A) HPE DL385
B) HPE DL380
C) HPE DL360
D) HPE DL325

Question 69

A customer needs a virtual desktop infrastructure environment to quickly deploy new desktop images to more than 70 onsite contractors. They plan to use HPE ProLiant DL360 Gen10 servers running VMware ESXi connected to a shared storage device. The customer requires deduplication because they are concerned about the required storage capacity for the full clone images. Which storage device would best address their concerns?

A) HPE MSA 1040
B) HPE MSA 2052
C) HPE Nimble AF20
D) HPE Nimble HF20C

Question 70

A customer needs to move data residing in one class of disks to a more appropriate class of disks based on data access patterns without manual intervention. Which HPE MSA storage technology/feature will meet the customer requirement?

A) Wide striping
B) Automated Tiering
C) Volume Tier Affinity
D) SSD read cache

Question 71

Which feature in a block storage array eliminates redundant data through the process of using indexes that refer to the original set of data?

A) deduplication
B) compression
C) thin provisioning
D) thick provisioning

Question 72

A customer has a single HPE ProLiant Gen 10 server. Which embedded management tool should they use to monitor the server?

A) HPE OneView Standard
B) HPE Smart Update Manager
C) NPE Intelligent Provisioning
D) HPE iLO5

Question 73

Which protocol can be used to access a shared directory on a network-attached storage device?

A) SNMP
B) SMB
C) FCP
D) BGP

Question 74

A customer's environment includes virtual machines and containers. They need an on-premises platform that allows them to easily and efficiently deploy cloud-native applications at rack-scale. Which HPE solution meets the customer requirements?

A) MPE ProLiant for Microsoft Azure Stack
B) HPE Synergy with VMware vSAN
C) HPE Nimble iSCSI
D) HPE Apollo Server

Question 75

In which protocol are REST API requests transported?

A) HTTP
B) CRUD
C) SOAP
D) SSH

Question 76

A customer needs to update a server's firmware using the latest Support Pack for ProLiant (SPP). They use a bootable USB flash drive to do so, and they select Interactive Mode on boot. Once the device boots, they are unsure how to proceed and ask for your assistance. What can you tell them to do to easily update the firmware?

A) Download a new version of Smart Update Manager.
B) From Interactive mode, select the "Force Firmware" option.
C) Reboot the server with the flash drive and leave in default mode.
D) Run interactive mode from the Operating System instead.

Question 77

A customer needs a solution for a rack of servers. They need connectivity for 14 HPE DL380 servers, which each have two 10-GBASE-T Ethernet ports, and 10 HPE DL360 servers, which have two 10GBASE-X SFP+ Ethernet ports. They need switch redundancy for each server and want to connect all servers to the same switch stack. The client also needs a 400 Gb backbone connection to the data center core switch from the solution you are creating. Which architecture meets the customer requirements?

A) One VSX stack of two Aruba 8320 48-port 1/10GBASE-X SFP+ switches with the following: 14 10GBASE-T transceivers in each switch 10 SFP+ to SFP+ DACs in each switch Two QSFP+ to Quad SFP+ adapters
B) One IRF stack of wo HPE 5945 2-Slot switches each with the following: One 24-Port SFP28 + 2-Port QSFP28 module One 24-Port 1/10GBASE-T + 2-Port QSFP+ module
C) One IRF stack of two HPE 5945 48-port 1/10GBASE-X SFP+ switches with the following:
D) One VSX stack of two Aruba 8325 48-port 1/10GBASE-X SFP+ switches with the following:

Question 78

An HPE customer wants to perform is simplified update of firmware and drivers among their 100 HPE Gen9 and Gen10 racked servers. Which HPE software tool should the customer use to minimize the time required to perform this activity.

A) HPE Smart Update Manager
B) HPE OneView Standard
C) HPE ProLiant Support Pack
D) HPE iLO Amplifier Pack

Question 79

A customer needs a low cost block storage array for targeted workloads. The array needs to provide automated tiering, thin provisioning, and snapshot capabilities. Which HPE storage solution meets the customer requirements?

A) HPE MSA
B) HPE D3000
C) HPE Nimble
D) HPE StoreEasy

Question 80

Refer to the exhibit. You are designing a new Nimble AF40 for your customer. The array will be added into an existing Nimble HF60 environment connected with SN6000B switches. You have created the configuration shown in the exhibit and noticed an error What should you change in your configuration to ensure it meets the customer requirements?

A) Change the controller to an AF20.
B) Change the 10GbE Optical ports to Fibre Channel.
C) Change the 10GbE Optical ports to 10BaseT.
D) Change the controller to an HF20H.
