Deck 20: Electric Circuits

Question 1

Which one of the following quantities can be converted to kilowatt - hours (kWh)?

A)2.0 A
B)8.3 V
C)5.8 J
D)9.6 W
E)6.2 C/V

Answer 1

5.8 J

Question 2

Determine the length of a copper wire that has a resistance of 0.172 and cross-sectional area of 7.85 × 10^-⁵ m².The resistivity of copper is 1.72 × 10^-⁸ 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11 × m.

A)873 m
B)250 m
C)78.5 m
D)785 m
E)6570 m

Answer 2

785 m

Question 3

Which one of the following statements concerning superconductors is false?

A)Below its critical temperature,the resistivity of a superconductor is zero -m.
B)Critical temperatures for some superconductors exceed 100 K.
C)All materials are superconducting at temperatures near absolute zero kelvin.
D)A constant current can be maintained in a superconducting ring for several years without an emf.
E)Superconductors are perfect conductors.

Answer 3

All materials are superconducting at temperatures near absolute zero kelvin.

Question 4

Which one of the following situations results in a conventional electric current that flows northward?

A)a beam of protons moves eastward
B)an electric dipole moves southward
C)a beam of electrons moves southward
D)a beam of electrons moves northward
E)a beam of protons moves northward

Question 5

The resistivity of a silver wire with a radius of 5.04 × 10-⁴ is 1.59 × 10-⁸ W × m.If the length of the wire is 3.00 m,what is the resistance of the wire?

A)0.0598 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
B)47.0 µ11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
C)9.46 µ11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
D)0.167 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
E)1.88 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11

Question 6

A 4-A current is maintained in a simple circuit with a total resistance of 2 https://storage.examlex.com/TB6393/.How much energy is delivered in forty five seconds?

A)1440 J
B)96 J
C)360 J
D)720 J
E)240 J

Question 7

A 3.5-A current is maintained in a simple circuit with a total resistance of 1500 https://storage.examlex.com/TB6393/.What net charge passes through any point in the circuit during a thirty second interval?

A)100 C
B)180 C
C)500 C
D)600 C
E)5200 C

Question 8

The characteristics of five wires are given in the table.
The gauge is a measure of the diameter of the wire;and #18 corresponds to a diameter of 1.2 × 10^-³ m;and #22 corresponds to a diameter of 6.4 × 10^-⁴ m.The resistivity of iron is 9.7 × 10^-⁸ × m;and the value for copper is 1.72 × 10^-⁸ 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11 × m.
Which one of the wires carries the smallest current when they are connected to identical batteries?

A)wire E
B)wire D
C)wire C
D)wire B
E)wire A

Question 9

When a light bulb is connected to a 4.5 V battery,a current of 0.12 A passes through the bulb filament.What is the resistance of the filament?

A)440
B)28 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
C)9.3 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
D)1.4 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
E)38 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11

Question 10

Which one of the following combinations of units is equivalent to the ohm?

A)V/C
B)A/J
C)J/s
D)J×s/C²
E)W/A

Question 11

The potential difference across the ends of a wire is doubled in magnitude.If Ohm's law is obeyed,which one of the following statements concerning the resistance of the wire is true?

A)The resistance is one half of its original value.
B)The resistance is twice its original value.
C)The resistance is not changed.
D)The resistance increases by a factor of four.
E)The resistance decreases by a factor of four.

Question 12

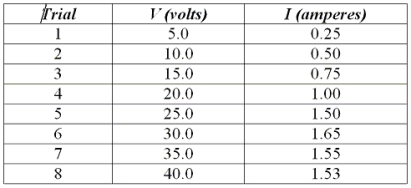

A physics student performed an experiment in which the potential difference V between the ends of a long straight wire was varied.The current I in the wire was measured at each value of the potential difference with an ammeter and the results of the experiment are shown in the table. Which one of the following statements is the best conclusion based on the data?

A)The resistance of the wire is 20 https://storage.examlex.com/TB6393/.
B)The wire does not obey Ohm's law.
C)The current in the wire is directly proportional to the applied potential difference.
D)The wire obeys Ohm's law over the range of potential differences between 5 and 30 V.
E)The wire obeys Ohm's law over the range of potential differences between 5 and 20 V.

Question 13

The characteristics of five wires are given in the table.
The gauge is a measure of the diameter of the wire;and #18 corresponds to a diameter of 1.2 × 10^-³ m;and #22 corresponds to a diameter of 6.4 × 10^-⁴ m.The resistivity of iron is 9.7 × 10^-⁸ × m;and the value for copper is 1.72 × 10^-⁸ 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11 × m.
Which one of the five wires has the largest resistance?

A)wire A
B)wire B
C)wire C
D)wire D
E)wire E

Question 14

Complete the following statement: The unit kilowatt - hour measures

A)current.
B)energy.
C)power.
D)potential drop.
E)voltage.

Question 15

How many electrons flow through a battery that delivers a current of 3.0 A for 12 s?

A)4.0 × 10²⁰
B)3.6 × 10²¹
C)4.8 × 10¹⁵
D)6.4 × 10¹⁸
E)2.2 × 10²⁰

Question 16

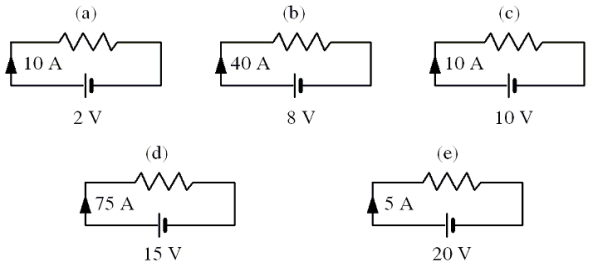

Which one of the following circuits has the largest resistance?

A)a
B)b
C)c
D)d
E)e

Question 17

The current through a certain heater wire is found to be fairly independent of its temperature.If the current through the heater wire is doubled,the amount of energy delivered by the heater in a given time interval will

A)increase by a factor of two.
B)decrease by a factor of two.
C)increase by a factor of four.
D)decrease by a factor of four.
E)increase by a factor of eight.

Question 18

The characteristics of five wires are given in the table.
The gauge is a measure of the diameter of the wire;and #18 corresponds to a diameter of 1.2 × 10^-³ m;and #22 corresponds to a diameter of 6.4 × 10^-⁴ m.The resistivity of iron is 9.7 × 10^-⁸ × m;and the value for copper is 1.72 × 10^-⁸ 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11 × m.
Of the five wires,which one has the smallest resistance?

A)wire A
B)wire B
C)wire C
D)wire D
E)wire E

Question 19

Complete the following statement: The electromotive force is

A)the maximum potential difference between the terminals of a battery.
B)the force that accelerates electrons through a wire when a battery is connected to it.
C)the force that accelerates protons through a wire when a battery is connected to it.
D)the maximum capacitance between the terminals of a battery.
E)the maximum electric potential energy stored within a battery.

Question 20

Which one of the following statements concerning resistance is true?

A)The resistance of a semiconductor increases with temperature.
B)Resistance is a property of resistors,but not conductors.
C)The resistance of a metal wire changes with temperature.
D)The resistance is the same for all samples of the same material.
E)The resistance of a wire is inversely proportional to the length of the wire.

Question 21

A 220- resistor is connected across an ac voltage source What is the average power delivered to this circuit?

A)51 W
B)110 W
C)280 W
D)320 W
E)550 W

Question 22

Three 15-and two 25-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 light bulbs and a 24 V battery are connected in a series circuit.What is the current that passes through each bulb?

A)0.18 A
B)0.25 A
C)0.51 A
D)0.74 A
E)The current will be 1.6 A in the 15-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 bulbs and 0.96 A in the 25-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 bulbs.

Question 23

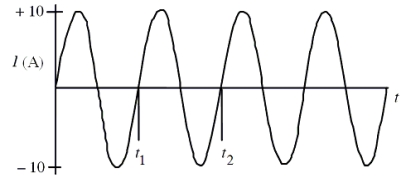

The figure shows variation of the current through the heating element with time in an iron when it is plugged into a standard 120 V,60 Hz outlet.

If t₁ = 0.050 s,what is the value of t₂? Note: The origin for the graph is not necessarily at t = 0 s.

A)0.067 s
B)0.079 s
C)0.10 s
D)0.60 s
E)61 s

Question 24

The figure shows variation of the current through the heating element with time in an iron when it is plugged into a standard 120 V,60 Hz outlet.

What is the rms value of the current in this circuit?

A)1.4 A
B)7.1 A
C)11 A
D)14 A
E)18 A

Question 25

The figure shows variation of the current through the heating element with time in an iron when it is plugged into a standard 120 V,60 Hz outlet.

What is the peak voltage?

A)10 V
B)60 V
C)120 V
D)170 V
E)240 V

Question 26

When a 1500-W hair dryer is in use,the current passing through the dryer may be represented as https://storage.examlex.com/TB6393/.What is the rms current for this circuit?

A)17.7 A
B)12.5 A
C)85.7 A
D)25.0 A

Question 27

The figure shows variation of the current through the heating element with time in an iron when it is plugged into a standard 120 V,60 Hz outlet.

What is the approximate average power dissipated in the iron?

A)450 W
B)600 W
C)850 W
D)1200 W
E)1700 W

Question 28

Three resistors,50-,120-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11,180-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11,are connected in series in a circuit.What is the equivalent resistance of this combination of resistors?

A)350 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
B)25011ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)200 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)12011ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)2911ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 29

A 4.5-V battery is connected to two resistors connected in series as shown in the drawing.Determine the total power dissipated in the resistors.

A)0.033 W
B)0.090 W
C)0.15 W
D)0.60 W
E)4.7 W

Question 30

A resistor dissipates 1.5 W when it is connected to a battery with a potential difference of 12 V.What is the resistance of the resistor?

A)0.13
B)220 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
C)18 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
D)8.0 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
E)96 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11

Question 31

A lamp uses an average power of 55 W when it is connected to an rms voltage of 120 V.Which entry in the following table is correct for this circuit?

Question 32

An ac current has an rms value of 3.54 A.Determine the peak value of the current.

A)1.25 A
B)2.50 A
C)3.75 A
D)5.00 A
E)7.08 A

Question 33

Which one of the following statements concerning resistors in series is true?

A)The voltage across each resistor is the same.
B)The current through each resistor is the same.
C)The power dissipated by each resistor is the same.
D)The rate at which charge flows through each resistor depends on its resistance.
E)The total current through the resistors is the sum of the current through each resistor.

Question 34

Some light bulbs are connected in parallel to a 120 V source as shown in the figure.Each bulb dissipates an average power of 60 W.The circuit has a fuse F that burns out when the current in the circuit exceeds 9 A.Determine the largest number of bulbs,which can be used in this circuit without burning out the fuse.

A)9
B)17
C)25
D)34
E)36

Question 35

Complete the following statement: A simple series circuit contains a resistance R and an ideal battery.If a second resistor is connected in parallel with R,

A)the voltage across R will decrease.
B)the current through R will decrease.
C)the total current through the battery will increase.
D)the rate of energy dissipation in R will increase.
E)the equivalent resistance of the circuit will increase.

Question 36

A computer monitor uses 1.5 A of current when it is plugged into a 120 V outlet.The monitor is never turned off.What is the yearly cost of operating the monitor if the cost of electricity is $0.14/kWh?

A)$ 64
B)$ 81
C)$ 110
D)$ 190
E)$ 220

Question 37

A 3.0-A current is maintained in a simple circuit that consists of a resistor between the terminals of an ideal battery.If the battery supplies energy at a rate of 25 W,how large is the resistance?

A)0.40
B)0.80 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
C)2.4 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
D)4.2 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11
E)8.8 11ec9df8_b514_280c_8d20_295ba371075e_TB6393_11

Question 38

The figure shows variation of the current through the heating element with time in an iron when it is plugged into a standard 120 V,60 Hz outlet.

What is the resistance of the iron?

A)24
B)7.1 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)17 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)12 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)1.8 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 39

A 75-W and 50-W incandescent light bulbs are designed for use with the same voltage.What is the ratio of the resistance of the 75-W bulb to the resistance of the 50-W bulb?

A)1.5
B)0.67
C)2.3
D)0.44
E)3.0

Question 40

Two wires,A and B,and a variable resistor,R,are connected in series to a battery.Which one of the following results will occur if the resistance of R is increased?

A)The current through A and B will increase.
B)The voltage across A and B will increase.
C)The voltage across the entire circuit will increase.
D)The power used by the entire circuit will increase.
E)The current through the entire circuit will decrease.

Question 41

Two resistors are arranged in a circuit that carries a total current of 15 A as shown in the figure.Which one of the entries in the following table is correct?

Question 42

Jason's circuit has a 24-resistor that is connected in series to two 12-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistors that are connected in parallel.JoAnna's circuit has three identical resistors wired in parallel.If the equivalent resistance of Jason's circuit is the same as that of JoAnna's circuit,determine the value of JoAnna's resistors.

A)90 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
B)4811ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)30 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)2411ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)12 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 43

Three resistors and two 10.0-V batteries are arranged as shown in the circuit diagram.Which one of the following entries in the table is correct?

Question 44

What is the total power dissipated in the two resistors in the circuit shown?

A)10 W
B)15 W
C)33 W
D)67 W
E)670 W

Question 45

A battery has a terminal voltage of 12 V when no current flows and an internal resistance of 2 https://storage.examlex.com/TB6393/.The battery is placed in series with a 1-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor.Which one of the entries in the following table is correct?

Question 46

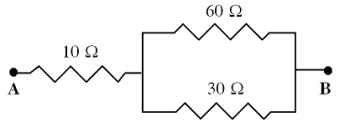

Three resistors are placed in a circuit as shown.The potential difference between points A and B is 30 V.

What is the equivalent resistance between the points A and B?

A)10
B)20 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)3011ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)50 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)100 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 47

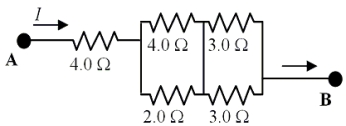

Five resistors are connected as shown.What is the equivalent resistance between points A and B?

A)6.8
B)9.2 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)3.4 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)2.111ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)16 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 48

Three resistors,4.0-,8.0-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11,16-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11,are connected in parallel in a circuit.What is the equivalent resistance of this combination of resistors?

A)30 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
B)10 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)2.3 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)2.9 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)0.34 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 49

Three resistors are connected as shown in the figure.The potential difference between points A and B is 26 V.

How much current flows through the 2- resistor?

A)2.0 A
B)4.0 A
C)6.0 A
D)8.7 A
E)10.0 A

Question 50

Three resistors are placed in a circuit as shown.The potential difference between points A and B is 30 V.

What is the potential drop across the 30- resistor?

A)10 V
B)20 V
C)30 V
D)60 V
E)100 V

Question 51

A non-ideal battery has a 6.0-V emf and an internal resistance of 0.6 https://storage.examlex.com/TB6393/.Determine the terminal voltage when the current drawn from the battery is 0.5 A.

A)5.0 V
B)6.0 V
C)5.4 V
D)6.6 V
E)5.7 V

Question 52

Four resistors and a 6-V battery are arranged as shown in the circuit diagram.

The smallest current passes through which resistor(s)?

A)the 10- resistor
B)the 20-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor
C)the 30-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor
D)the 60-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor
E)It is the same and the smallest in the 30-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 and 60-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11resistors.

Question 53

Three resistors are placed in a circuit as shown.The potential difference between points A and B is 30 V.

What is the potential drop across the 10-resistor?

A)10 V
B)20 V
C)30 V
D)60 V
E)100 V

Question 54

A battery is manufactured to have an emf of 24.0 V,but the terminal voltage is only 22.0 V when the battery is connected across a 10.0- resistor.What is the internal resistance of the battery?

A)3.9 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
B)0.46 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)1.2 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)0.91 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)0.6811ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 55

Three resistors are connected in a circuit as shown.Using Kirchhoff's rules,determine the current in one of the 16- resistors.

A)0.50 A
B)0.75 A
C)1.0 A
D)1.3 A
E)2.0 A

Question 56

Four resistors and a 6-V battery are arranged as shown in the circuit diagram.

Determine the equivalent resistance for this circuit.

A)50
B)120 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)29 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)5 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)12 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 57

Four resistors and a 6-V battery are arranged as shown in the circuit diagram.

The largest potential difference is across which resistor(s)?

A)the 10- resistor
B)the 20-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor
C)the 30-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor
D)the 60-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistor
E)It is the same and the largest for the 30-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 and 60-11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11 resistors.

Question 58

Three resistors are connected as shown in the figure.The potential difference between points A and B is 26 V.

What is the equivalent resistance between the points A and B?

A)3.8
B)4.3 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)5.1 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)6.8 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)9.0 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 59

Three resistors are connected as shown in the figure.The potential difference between points A and B is 26 V.

How much current flows through the 3- resistor?

A)2.0 A
B)4.0 A
C)6.0 A
D)8.7 A
E)10.0 A

Question 60

Three resistors are placed in a circuit as shown.The potential difference between points A and B is 30 V.

What is the current through the 30-resistor?

A)0.3 A
B)0.5 A
C)0.7 A
D)1 A
E)2 A

Question 61

What is the equivalent capacitance of the combination of capacitors shown in the circuit?

A)0.37 µF
B)3.3 µF
C)4.6 µF
D)0.67 µF
E)2.1 µF

Question 62

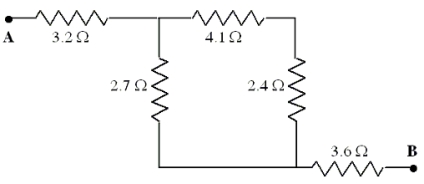

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 25 V.

What is the current through the 3.6- resistor?

A)1.3 A
B)3.3 A
C)6.9 A
D)7.5 A
E)25 A

Question 63

Three parallel plate capacitors,each having a capacitance of 1.0 µF are connected in parallel. The potential difference across the combination is 100 V.What is the charge on any one of the capacitors?

A)30
B)100 11ec9dfa_ca7c_95f1_8d20_6fc95e68b4c1_TB6393_11
C)300 11ec9dfa_ca7c_95f1_8d20_6fc95e68b4c1_TB6393_11
D)1000 11ec9dfa_ca7c_95f1_8d20_6fc95e68b4c1_TB6393_11
E)3000 11ec9dfa_ca7c_95f1_8d20_6fc95e68b4c1_TB6393_11

Question 64

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 25 V.

What is the current through the 1.8- resistor?

A)2.8 A
B)3.3 A
C)5.6 A
D)6.9 A
E)14 A

Question 65

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 15 V.

What is the current in the 2.7- resistor?

A)12 A
B)0.8 A
C)2.2 A
D)0.4 A
E)1.2 A

Question 66

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 15 V.

What is the current in the 3.6- resistor?

A)1.3 A
B)1.7 A
C)2.9 A
D)3.5 A
E)15 A

Question 67

A battery supplies a total charge of 5.0 to a circuit that consists of a series combination of two identical capacitors,each with capacitance (C). Determine the charge on either capacitor.

A)5.011ec9dfa_e98e_88e2_8d20_8ddbe672a81a_TB6393_11
B)2.5 11ec9dfa_e98e_88e2_8d20_8ddbe672a81a_TB6393_11
C)1.5 11ec9dfa_e98e_88e2_8d20_8ddbe672a81a_TB6393_11
D)1.0 11ec9dfa_e98e_88e2_8d20_8ddbe672a81a_TB6393_11
E)0.50 11ec9dfa_e98e_88e2_8d20_8ddbe672a81a_TB6393_11

Question 68

How much energy is stored in the combination of capacitors shown?

A)0.01 J
B)0.02 J
C)0.03 J
D)0.04 J
E)0.05 J

Question 69

Three resistors and two batteries are connected as shown in the circuit diagram.What is the magnitude of the current through the 12-V battery?

A)0.15 A
B)0.82 A
C)0.30 A
D)0.67 A
E)0.52 A

Question 70

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 25 V.

What is the equivalent resistance between the points A and B?

A)1.5
B)4.8 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)7.5 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)9.4 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)11 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 71

A 10.0-µF capacitor is charged so that the potential difference between its plates is 10.0 V.
A 5.0-µF capacitor is similarly charged so that the potential difference between its plates is 5.0 V.
The two charged capacitors are then connected to each other in parallel with positive plate connected to positive plate and negative plate connected to negative plate.
How much charge flows from one capacitor to the other when the capacitors are connected?

A)17
B)33 11ec9dfb_0251_cc73_8d20_21961513e684_TB6393_11
C)6711ec9dfb_0251_cc73_8d20_21961513e684_TB6393_11
D)83 11ec9dfb_0251_cc73_8d20_21961513e684_TB6393_11
E)zero coulombs

Question 72

Three parallel plate capacitors,each having a capacitance of 1.0 µF are connected in parallel. The potential difference across the combination is 100 V.What is the equivalent capacitance of this combination?

A)0.3
B)1 11ec9dfa_b7eb_03e0_8d20_d73483219cb9_TB6393_11
C)3 11ec9dfa_b7eb_03e0_8d20_d73483219cb9_TB6393_11
D)6 11ec9dfa_b7eb_03e0_8d20_d73483219cb9_TB6393_11
E)3011ec9dfa_b7eb_03e0_8d20_d73483219cb9_TB6393_11

Question 73

When two capacitors are connected in series,the equivalent capacitance of the combination is 120 µF.When the two are connected in parallel,however,the equivalent capacitance is 480 µF.What are the capacitances of the individual capacitors?

A)240 µF and 240 µF
B)125 µF and 325 µF
C)175 µF and 275 µF
D)150 µF and 300 µF
E)80 µF and 370 µF

Question 74

Determine the power dissipated by the 40- resistor in the circuit shown.

A)3.6 W
B)4.5 W
C)9.0 W
D)14 W
E)27 W

Question 75

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 15 V.

What is the equivalent resistance between the points A and B?

A)1.5
B)4.8 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
C)8.7 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
D)10.4 11ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11
E)11.111ec9df9_9993_078f_8d20_65f11cb5b53c_TB6393_11

Question 76

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 15 V.

What amount of energy is dissipated in the 2.7- resistor in 9.0 seconds?

A)15 J
B)24 J
C)29 J
D)36 J
E)52 J

Question 77

A 3.0-µF capacitor is connected in series with a 4.0-µF capacitor and a 48-V battery.What quantity of charge is supplied by the battery to charge the capacitors?

A)3.4 × 10-⁴ C
B)7.3 × 10-⁴ C
C)3.0 × 10-⁵ C
D)8.2 × 10-⁵ C
E)1.8 × 10-⁶ C

Question 78

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 25 V.

How much energy is dissipated in the 1.8- resistor in 4.0 seconds?

A)18 J
B)28 J
C)55 J
D)64 J
E)93 J

Question 79

Five resistors are connected as shown in the diagram.The potential difference between points A and B is 25 V.

What is the potential drop across the 3.5- resistor?

A)2.0 V
B)5.0 V
C)8.0 V
D)17 V
E)25 V

Question 80

Which one of the following statements concerning capacitors of unequal capacitance connected in series is true?

A)Each capacitor holds a different amount of charge.
B)The equivalent capacitance of the circuit is the sum of the individual capacitances.
C)The total voltage supplied by the battery is the sum of the voltages across each capacitor.
D)The total positive charge in the circuit is the sum of the positive charges on each capacitor.
E)The total voltage supplied by the battery is equal to the average voltage across all the capacitors.
