Deck 5: Selecting the Ventilator and the Mode

Question 1

A 68-year-old female admitted for congestive heart failure is in respiratory distress and is being seen by the hospital's medical emergency team in her regular room.The patient is in obvious respiratory distress and is immediately placed on a nonrebreathing mask.Physical assessment reveals: pulse 138 and thready;respiratory rate 30,shallow and labored;temperature 37° C;blood pressure 110/68.Breath sounds are bilaterally decreased with coarse crackles on inspiration.EKG shows normal sinus rhythm with widened cardiac output (QT)interval and an occasional irregular beat.No coughing is noted.The arterial blood gas on the nonrebreathing mask is: pH 7.34;PCO₂ 46 mm Hg;partial pressure of oxygen in the arteries (PO₂)is 52 mm Hg;oxygen saturation is 86%;bicarbonate (HCO₃^-)is 24 mEq/L.The patient is diaphoretic.The most appropriate ventilator mode to manage this patient initially is which of the following?

A) Noninvasive Positive Pressure Ventilation (NPPV)
B) Airway Pressure Release Ventilation (APRV)
C) Volume Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV)
D) Pressure Controlled Synchronized Intermittent Mandatory Ventilation (PC-SIMV)

Answer 1

Noninvasive Positive Pressure Ventilation (NPPV)

Question 2

A breath that is triggered,limited,and cycled by the mechanical ventilator is which of the following?

A) Assisted breath
B) Mandatory breath
C) Spontaneous breath
D) Synchronized breath

Answer 2

Mandatory breath

Question 3

During volume control ventilation a patient's airway resistance increases.This change will cause which of the following to occur?

A) Increase in delivered volume
B) Increase in peak airway pressure
C) Decrease in plateau pressure
D) Decrease in peak airway pressure

Answer 3

Increase in peak airway pressure

Question 4

A breath that is patient triggered,pressure targeted,and time cycled is which of the following?

A) Assisted breath
B) Mandatory breath
C) Spontaneous breath
D) Synchronized breath

Question 5

Which of the following is the minimum ventilator rate that is considered full ventilatory support?

A) 4 breaths/minute
B) 6 breaths/minute
C) 8 breaths/minute
D) 10 breaths/minute

Question 6

An assisted breath in the pressure-controlled continuous mandatory ventilation (PC-CMV)mode can be described by which of the following?

A) Time triggered,pressure limited,time cycled
B) Patient triggered,pressure limited,time cycled
C) Time triggered,pressure limited,pressure cycled
D) Patient triggered,volume limited,volume cycled

Question 7

A patient has recently been diagnosed with obstructive sleep apnea.The most appropriate treatment includes which of the following?

A) Pressure Support Ventilation (PSV)
B) Noninvasive Positive Pressure Ventilation (NPPV)
C) Continuous Positive Airway Pressure (CPAP)
D) Pressure Controlled Continuous Mandatory Ventilation (PC-CMV)

Question 8

Full ventilatory support is provided by which of the following modes?

A) Pressure Support Ventilation (PSV)with Continuous Positive Airway Pressure (CPAP)
B) Volume Support Ventilation (VSV)with Continuous Positive Airway Pressure (CPAP)
C) Volume-Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV)rate 6 with pressure support (PS)
D) Pressure-Controlled Synchronized Intermittent Mandatory Ventilation (PC-SIMV)rate 12 with pressure support (PS)

Question 9

The ventilator mode that would be most appropriate to iatrogenically induce hyperventilation to manage a closed head injury patient with severely elevated intracranial pressure (ICP)is which of the following?

A) Volume Support Ventilation (VSV)
B) Airway Pressure Release Ventilation (APRV)
C) Pressure-Controlled Continuous Mandatory Ventilation (PC-CMV)
D) Volume-Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV)

Question 10

A hemodynamically unstable patient being ventilated in the volume-controlled continuous mandatory ventilation (VC-CMV)mode is triggering inspiration at a rate of 25 breaths/minute and has the following arterial blood gas results: pH 7.50,partial pressure of carbon dioxide (P_aCO₂)30 mm Hg,partial pressure of oxygen (P_aO₂)98 mm Hg,arterial oxygen saturation (S_aO₂)100%,bicarbonate (HCO₃^-)24 mEq/L.The respiratory therapist should peform which of the following?

A) Extubate and administer Noninvasive Positive Pressure Ventilation (NPPV).
B) Change the mode to Pressure-Controlled Continuous Mandatory Ventilation (PC-CMV).
C) Change the mode to Volume-Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV).
D) Sedate and paralyze the patient.

Question 11

Partial ventilatory support can be provided by which of the following ventilator modes?
1)Pressure Controlled Continuous Mandatory Ventilation (PC-CMV)set rate 8 breaths/minute
2)Volume Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV)set rate 4 breaths/minute
3)Pressure Controlled Synchronized Intermittent Mandatory Ventilation (PC-SIMV)set rate 10 breaths/minute
4)VC- MMV set V_e8 L/minute

A) 1 and 2 only
B) 2 and 3 only
C) 2 and 4 only
D) 3 and 4 only

Question 12

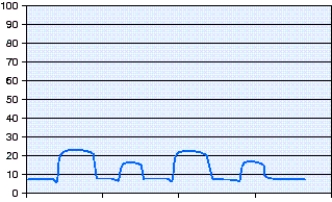

The pressure-time scalar shown in the figure represents which of the following?

A) Airway Pressure Release Ventilation (APRV)
B) Volume-Controlled Synchronized Intermittent Ventilation (VC-SIMV)with Positive-End-Expiratory Pressure (PEEP)
C) Pressure-Controlled Synchronized Intermittent Mandatory Ventilation (PC-SIMV)with Positive-End-Expiratory Pressure (PEEP)
D) Bilevel positive airway pressure

Question 13

The ventilator mode that allows the patient to breathe spontaneously between operator selected time-triggered volume or pressure-targeted breaths is which of the following?

A) Pressure Support Ventilation (PSV)
B) Continuous Mandatory Ventilation (CMV)
C) Synchronized Intermittent Mandatory Ventilation (SIMV)
D) Airway Pressure Release Ventilation (APRV)

Question 14

What type of breath occurs when the ventilator controls the timing,tidal volume,or inspiratory pressure?

A) Assisted
B) Mandatory
C) Spontaneous
D) Controlled

Question 15

When a patient does not breathe spontaneously while in the airway pressure release ventilation (APRV)mode,the pressure-time scalar looks like that of which of the following?

A) Pressure Support Ventilation (PSV)
B) Continuous Positive Airway Pressure (CPAP)
C) Pressure-Controlled Inverse Ratio Ventilation (PCIRV)
D) Volume-Controlled Continuous Mandatory Ventilation (VC-CMV)

Question 16

A home care patient diagnosed with central sleep apnea would benefit from which of the following modes of ventilation?

A) Pressure Support Ventilation (PSV)
B) Noninvasive Positive Pressure Ventilation (NPPV)
C) Continuous Positive Airway Pressure (CPAP)
D) Pressure Controlled Intermittent Mandatory Ventilation (PC-IMV)

Question 17

A 28-year-old male has arrived in the emergency department following a motor vehicle accident.He has a Glasgow Coma Score of 14.Chest x-ray reveals 5 ribs broken anteriorly in 2 areas each.Physical assessment reveals paradoxical movement of the chest.Breath sounds are diminished and the trachea is midline.Arterial blood gas on nonrebreathing mask is: pH 7.53,partial pressure of carbon dioxide (P_aCO₂)is 25 mm Hg,partial pressure of oxygen (P_aO₂)is 59 mm Hg,arterial oxygen saturation (S_aO₂)93%,bicarbonate (HCO₃^-)23 mEq/L.The respiratory therapist should recommend which of the following for this patient?

A) Noninvasive Positive Pressure Ventilation (NPPV)with supplemental oxygen
B) Intubation with Volume Controlled Continuous Mandatory Ventilation (VC-CMV)with Positive-end-expiratory pressure (PEEP)
C) Mask Continuous Positive Airway Pressure (CPAP)with supplemental oxygen
D) Intubation with CPAP and pressure support

Question 18

If flow or sensitivity is set incorrectly,which of the following is most likely to occur during the continuous mandatory ventilation (CMV)mode?

A) Muscle atrophy
B) Respiratory alkalosis
C) Ventilator dysynchrony
D) Increase in mean airway pressure

Question 19

Of the following breath descriptions,which one is considered spontaneous?

A) Flow triggered,pressure limited,flow cycled
B) Time triggered,volume limited,volume cycled
C) Pressure triggered,pressure limited,time cycled
D) Patient triggered,patient cycled,baseline pressure +5 cm H₂O

Question 20

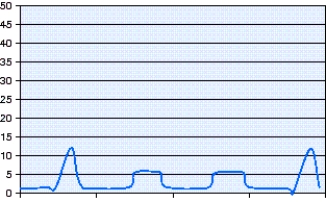

Which mode of ventilation is shown in the pressure-time scalar in the figure?

A) Pressure-Controlled Continuous Mandatory Ventilation (PC-CMV)
B) Volume-Controlled Continuous Mandatory Ventilation (VC-CMV)
C) Pressure-Controlled Synchronized Intermittent Mandatory Ventilation (PC-SIMV)
D) Volume-Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV)

Question 21

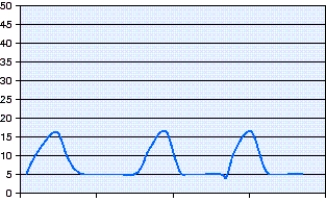

Which mode of ventilation is shown in the pressure-time scalar in the figure?

A) Pressure-Controlled Synchronized Intermittent Mandatory Ventilation (PC-SIMV)with pressure support (PS)
B) Volume-Controlled Synchronized Intermittent Mandatory Ventilation (VC-SIMV)with pressure support (PS)
C) Pressure-Controlled Continuous Mandatory Ventilation (PC-CMV)
D) Airway Pressure Release Ventilation (APRV)

Question 22

A patient,who is nasally intubated,due to facial surgery,has been successful on her spontaneous breathing trial.She currently has moderate hypoxemia,despite a fractional inspired oxygen (FIO₂)of 40% and positive-end-expiratory pressure (PEEP)of 5 cm H₂O while on volume-controlled continuous mandatory ventilation (VC-CMV).The most appropriate ventilator mode for this patient is which of the following?

A) Airway Pressure Release Ventilation (APRV)
B) Continuous Positive Airway Pressure (CPAP)
C) Pressure Support Ventilation (PSV)with Positive-End-Expiratory Pressure (PEEP)
D) Synchronized Intermittent Mandatory Ventilation (SIMV)with Pressure Support Ventilation (PSV)and Positive-End-Expiratory Pressure (PEEP)

Question 23

A patient with Acute Respiratory Distress Syndrome (ARDS)has developed a pneumothorax from elevating peak and plateau pressures.The patient is currently being ventilated in the volume-controlled continuous mandatory ventilation (VC-CMV)mode with a set rate of 12 bpm.However,the patient is triggering the ventilator at a rate of 25 bpm.The arterial blood gas reveals ventilator induced hyperventilation with corrected hypoxemia.The most appropriate recommendation to manage this patient on the ventilator is which of the following?

A) Sedate the patient.
B) Decrease the set ventilator rate.
C) Switch the mode to pressure-controlled synchronized mandatory ventilation (PC-SIMV).
D) Switch the mode to pressure-controlled continuous mandatory ventilation (PC-CMV).

Question 24

A leak around a patient's ET tube cuff during pressure support ventilation (PSV)will cause which of the following to occur?

A) Volume cycle
B) Time cycle
C) Pressure cycle
D) Flow cycle

Question 25

A dual control mode provides pressure-limited ventilation with volume delivery targeted for every breath.If the desired volume is not met the ventilator will volume cycle.This describes which of the following ventilator modes?

A) Airway Pressure Release Ventilation (APRV)
B) Pressure Augmentation (Paug)
C) MMV
D) Pressure Regulated Volume Control (PRVC)

Question 26

The ventilator mode where every breath is patient triggered,pressure targeted,flow cycled with a volume target is which of the following?

A) Volume Support Ventilation (VSV)
B) Pressure Regulated Volume Control (PRVC)
C) Airway Pressure Release Ventilation (APRV)
D) Pressure Augmentation (Paug)

Question 27

When a patient is to be switched from continuous mandatory ventilation (CMV)to synchronized intermittent mandatory ventilation (SIMV)to facilitate weaning from mechanical ventilation,which of the following could be used in addition to SIMV to assist this process?

A) Continuous Positive Airway Pressure (CPAP)
B) Positive-End-Expiratory Pressure (PEEP)
C) Pressure Support (PS)
D) Pressure Control (PC)

Question 28

The ventilator mode that delivers pressure breaths that are patient- or time-triggered,volume targeted,time cycled,and where the pressure is automatically adjusted to maintain delivery of the targeted volume is which of the following?

A) Volume Support Ventilation (VSV)
B) Pressure Augmentation (Paug)
C) MMV
D) Pressure Regulated Volume Control (PRVC)

Question 29

A patient arrives in the emergency department following a motor vehicle accident in which the patient sustained a deceleration chest injury.The patient was intubated in the field for airway protection.Physical assessment reveals that the patient is spontaneously breathing at a rate of 16 breaths per minute and breath sounds reveal bibasilar fine crackles at end inspiration.A second arterial blood gas was drawn while the patient was receiving 100% oxygen from an air entrainment large volume nebulizer. The most appropriate recommendation for this patient is which of the following?

A) Continuous Positive Airway Pressure (CPAP)with supplemental oxygen
B) Pressure-Controlled Inverse Ratio Ventilation (PCIRV)with Positive-End-Expiratory Pressure (PEEP)and sedation
C) Volume-Controlled Continuous Mandatory Ventilation (VC-CMV)
D) Airway Pressure Release Ventilation (APRV)

Question 30

Every breath from the ventilator is time or patient triggered,pressure limited,and time cycled.This describes which of the following ventilator modes?

A) Pressure Support Ventilation (PSV)
B) Continuous Positive Airway Pressure (CPAP)
C) Pressure-Controlled Continuous Mandatory Ventilation (PC-CMV)
D) Volume-Controlled Synchronized Mandatory Ventilation (VC-SIMV)

Question 31

If lung compliance decreases while a patient is receiving mechanical ventilation with pressure-controlled continuous mandatory ventilation (PC-CMV)which of the following would occur?

A) Peak pressure increases
B) Peak pressure decreases
C) Tidal volume increases
D) Tidal volume decreases

Question 32

A patient triggered,pressure limited,flow cycled breath describes which of the following?

A) Spontaneous breath
B) Pressure-support breath
C) Volume-control breath
D) Pressure-control breath
