Deck 22: Magnetism
Full screen (f)
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
FIGURE 22-4

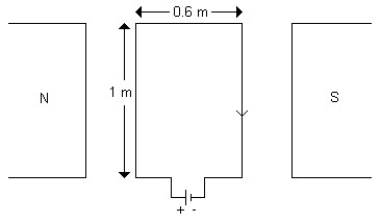

When the switch is closed in the circuit shown in the sketch in Figure 22-4, the wire between the poles of the horseshoe magnet deflects upward. From this you can conclude that the left end of the magnet is
A) not contributing to the wire's deflection.
B) a north magnetic pole.
C) a south magnetic pole.
D) a magnetic monopole.
E) a magnetic dipole.
When the switch is closed in the circuit shown in the sketch in Figure 22-4, the wire between the poles of the horseshoe magnet deflects upward. From this you can conclude that the left end of the magnet is
A) not contributing to the wire's deflection.
B) a north magnetic pole.
C) a south magnetic pole.
D) a magnetic monopole.
E) a magnetic dipole.
Question
FIGURE 22-1
Three particles travel through a region of space where the magnetic field is out of the page, as shown in Figure 22-1. The electric charge of each of the three particles is, respectively,
A) 1 is neutral, 2 is negative, and 3 is positive.
B) 1 is neutral, 2 is positive, and 3 is negative.
C) 1 is positive, 2 is neutral, and 3 is negative.
D) 1 is positive, 2 is negative, and 3 is neutral.
E) 1 is negative, 2 is neutral, and 3 is positive.
Three particles travel through a region of space where the magnetic field is out of the page, as shown in Figure 22-1. The electric charge of each of the three particles is, respectively,
A) 1 is neutral, 2 is negative, and 3 is positive.
B) 1 is neutral, 2 is positive, and 3 is negative.
C) 1 is positive, 2 is neutral, and 3 is negative.
D) 1 is positive, 2 is negative, and 3 is neutral.
E) 1 is negative, 2 is neutral, and 3 is positive.
Question
Question
Question
FIGURE 22-5
A metal bar of mass m and length L is suspended from two conducting wires, as shown in the sketch in Figure 22-5. A uniform magnetic field
points vertically downward. Choose the expression that best describes the condition satisfied by the angle θ that the suspending wires make with the vertical when the bar carries a current I.
A)
B)
C)
D)
E)
A metal bar of mass m and length L is suspended from two conducting wires, as shown in the sketch in Figure 22-5. A uniform magnetic field
points vertically downward. Choose the expression that best describes the condition satisfied by the angle θ that the suspending wires make with the vertical when the bar carries a current I.A)
B)
C)
D)
E)
Question
Question
FIGURE 22-3

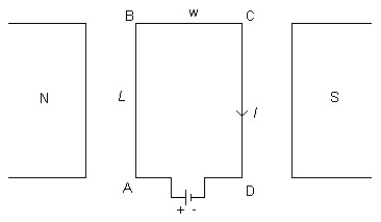

A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the force acting on section AB of this coil?
A) ILB sinθ
B) ILB cos θ
C) ILB
D) 0 N
E) ILB/2
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the force acting on section AB of this coil?
A) ILB sinθ
B) ILB cos θ
C) ILB
D) 0 N
E) ILB/2
Question
FIGURE 22-3
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the force acting on section BC of this coil?
A) ILB/2
B) 0 N
C) ILB sinθ
D) ILB cos θ
E) ILB
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the force acting on section BC of this coil?
A) ILB/2
B) 0 N
C) ILB sinθ
D) ILB cos θ
E) ILB
Question
FIGURE 22-3
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the direction of the force acting on section CD of this coil?
A) perpendicular to and into the page
B) perpendicular to and out of the page
C) in the direction of the magnetic field
D) in the opposite direction of the magnetic field
E) none
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the direction of the force acting on section CD of this coil?
A) perpendicular to and into the page
B) perpendicular to and out of the page
C) in the direction of the magnetic field
D) in the opposite direction of the magnetic field
E) none
Question
FIGURE 22-6
A single current-carrying circular loop of radius R is placed next to a long, straight wire, as shown in the sketch in Figure 22-6. The current in the wire points to the right and is of magnitude I. In which direction must current flow in the loop to produce zero magnetic field at its center?
A) counterclockwise
B) clockwise
C) It is indifferent if clockwise or counterclockwise.
D) The current in the loop should be zero A.
A single current-carrying circular loop of radius R is placed next to a long, straight wire, as shown in the sketch in Figure 22-6. The current in the wire points to the right and is of magnitude I. In which direction must current flow in the loop to produce zero magnetic field at its center?
A) counterclockwise
B) clockwise
C) It is indifferent if clockwise or counterclockwise.
D) The current in the loop should be zero A.
Question
FIGURE 22-2
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-2. If there is no current flowing through the coil, what is the force acting on section AB of the coil?
A) ILB sinθ
B) ILB cos θ
C) ILB
D) 0 N
E) None of the other answers is correct.
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-2. If there is no current flowing through the coil, what is the force acting on section AB of the coil?
A) ILB sinθ
B) ILB cos θ
C) ILB
D) 0 N
E) None of the other answers is correct.
Question
Question
Question
Question
Question
Question
Question
Question
FIGURE 22-3
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the direction of the force acting on section AB of this coil?
A) perpendicular to and into the page
B) perpendicular to and out of the page
C) in the direction of the magnetic field
D) in the opposite direction of the magnetic field
E) none
A rectangular coil, with corners labeled ABCD, of length L and width w is placed in a magnetic field B as shown in Figure 22-3. If there is a current I flowing through this coil, what is the direction of the force acting on section AB of this coil?
A) perpendicular to and into the page
B) perpendicular to and out of the page
C) in the direction of the magnetic field
D) in the opposite direction of the magnetic field
E) none
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
Question
FIGURE 22-7

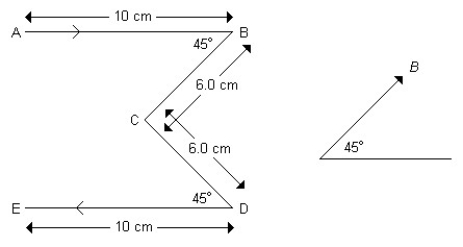

A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.55 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on section CD of this wire?
A) 0.070 N perpendicular into the page
B) 0.40 N perpendicular out of the page
C) 0.070 N perpendicular out of the page
D) 0.40 N perpendicular into the page
E) 0.20 N perpendicular out of the page
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.55 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on section CD of this wire?
A) 0.070 N perpendicular into the page
B) 0.40 N perpendicular out of the page
C) 0.070 N perpendicular out of the page
D) 0.40 N perpendicular into the page
E) 0.20 N perpendicular out of the page
Question
FIGURE 22-8
A rectangular loop of wire carrying a 4.0-A current and with certain dimensions is placed in a magnetic field of 0.60 T. The magnitude of the torque acting on this wire when it makes a 60° angle with the field is 1.1 Nm. What is the area of this wire?
A) 0.20 m2
B) 0.40 m2
C) 0.26 m2
D) 0.80 m2
E) 0.53 m2
A rectangular loop of wire carrying a 4.0-A current and with certain dimensions is placed in a magnetic field of 0.60 T. The magnitude of the torque acting on this wire when it makes a 60° angle with the field is 1.1 Nm. What is the area of this wire?
A) 0.20 m2
B) 0.40 m2
C) 0.26 m2
D) 0.80 m2
E) 0.53 m2
Question
Question
Question
FIGURE 22-7
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.85 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on the wire?
A) 0.40 N perpendicular out of the page
B) 0.10 N perpendicular into the page
C) 0.40 N perpendicular into the page
D) 0.10 N perpendicular out of the page
E) 0.20 N perpendicular out of the page
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.85 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on the wire?
A) 0.40 N perpendicular out of the page
B) 0.10 N perpendicular into the page
C) 0.40 N perpendicular into the page
D) 0.10 N perpendicular out of the page
E) 0.20 N perpendicular out of the page
Question
FIGURE 22-7
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.65 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on section BC of this wire?
A) 0 N
B) 0.090 N perpendicular out of the page
C) 0.090 N perpendicular into the page
D) 0.060 N perpendicular out of the page
E) none of the above
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.65 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on section BC of this wire?
A) 0 N
B) 0.090 N perpendicular out of the page
C) 0.090 N perpendicular into the page
D) 0.060 N perpendicular out of the page
E) none of the above
Question
Question
Question
Question
FIGURE 22-8
A rectangular loop of wire, with dimensions shown in Figure 22-8, carries a current of 2 A and is placed in a magnetic field of 0.8 T. The wire rotates in the magnetic field and at one point it is perpendicular to the magnetic field. What is the magnitude of the torque acting on the wire?
A) 0 Nm
B) 1 Nm
C) 2 Nm
D) 3 Nm
E) 4 Nm
A rectangular loop of wire, with dimensions shown in Figure 22-8, carries a current of 2 A and is placed in a magnetic field of 0.8 T. The wire rotates in the magnetic field and at one point it is perpendicular to the magnetic field. What is the magnitude of the torque acting on the wire?
A) 0 Nm
B) 1 Nm
C) 2 Nm
D) 3 Nm
E) 4 Nm
Question
FIGURE 22-7
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.75 T in the same plane, directed as shown on the right side of Figure 22-7. The figure indicates the dimensions of the wire. What is the magnitude and direction of the force acting on section AB of this wire?
A) 0.20 N perpendicular out of the page
B) 0.40 N perpendicular out of the page
C) 0.11 N perpendicular out of the page
D) 0.20 N perpendicular into the page
E) 0.11 N perpendicular into the page
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.75 T in the same plane, directed as shown on the right side of Figure 22-7. The figure indicates the dimensions of the wire. What is the magnitude and direction of the force acting on section AB of this wire?
A) 0.20 N perpendicular out of the page
B) 0.40 N perpendicular out of the page
C) 0.11 N perpendicular out of the page
D) 0.20 N perpendicular into the page
E) 0.11 N perpendicular into the page
Question
Question
Question
Question
FIGURE 22-7
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.85 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on section DE of this wire?
A) 0.30 N perpendicular out of the page
B) 0.12 N perpendicular into the page
C) 0.30 N perpendicular into the page
D) 0.12 N perpendicular out of the page
E) 0.20 N perpendicular out of the page
A wire in the shape of an "M" lies in the plane of the paper. It carries a current of 2.0 A, flowing from A to E. It is placed in a uniform magnetic field of 0.85 T in the same plane, directed as shown in Figure 22-7. What is the magnitude and direction of the force acting on section DE of this wire?
A) 0.30 N perpendicular out of the page
B) 0.12 N perpendicular into the page
C) 0.30 N perpendicular into the page
D) 0.12 N perpendicular out of the page
E) 0.20 N perpendicular out of the page
Question
FIGURE 22-8
A circular loop of wire of radius 0.50 m is in a uniform magnetic field of 0.30 T. The current in the loop is 2.0 A. What is the magnetic torque when the plane of the loop is perpendicular to the magnetic field?
A) zero
B) 0.41 m ∙ N
C) 0.47 m ∙ N
D) 0.52 m ∙ N
E) 0.58 m ∙ N
A circular loop of wire of radius 0.50 m is in a uniform magnetic field of 0.30 T. The current in the loop is 2.0 A. What is the magnetic torque when the plane of the loop is perpendicular to the magnetic field?
A) zero
B) 0.41 m ∙ N
C) 0.47 m ∙ N
D) 0.52 m ∙ N
E) 0.58 m ∙ N
Question
Question
Question
FIGURE 22-8
A rectangular loop of wire, with dimensions as shown in Figure 22-8, carrying a 2-A current is placed in a magnetic field of 0.8 T. The loop rotates in the magnetic field and at one point makes a 30° angle with the magnetic field. What is the magnitude of the torque acting on the wire?
A) 0.3 Nm
B) 0.4 Nm
C) 0.5 Nm
D) 0.6 Nm
E) 0.7 Nm
A rectangular loop of wire, with dimensions as shown in Figure 22-8, carrying a 2-A current is placed in a magnetic field of 0.8 T. The loop rotates in the magnetic field and at one point makes a 30° angle with the magnetic field. What is the magnitude of the torque acting on the wire?
A) 0.3 Nm
B) 0.4 Nm
C) 0.5 Nm
D) 0.6 Nm
E) 0.7 Nm
