Deck 18: Ray Optics

Question 1

A beam of light traveling in air strikes a glass slab at an angle of incidence less than 90°. After entering the glass slab, what does the beam of light do? (There could be more than one correct choice.)

A) I follows the same path as before it struck the glass.
B) It follows the normal to the glass slab.
C) It bends away from the normal at the point of contact.
D) It bends closer to the normal at the point of contact.
E) It slows down.

Answer 1

D, E

Question 2

Light enters air from water. The angle of refraction will be

A) greater than the angle of incidence.
B) equal to the angle of incidence.
C) less than the angle of incidence.

Answer 2

A

Question 3

A lighted candle is placed a short distance from a plane mirror, as shown in the figure. At which location will the image of the flame appear to be located?

A) at A
B) at B
C) at C
D) at M (at the mirror)

Answer 3

C

Question 4

The image formed in a plane mirror is

A) at the same distance in front of the mirror as the object is in front of the mirror.
B) a real image behind the mirror.
C) at the same distance behind the mirror as the object is in front of the mirror.
D) at a shorter distance behind the mirror than the distance the object is in front of the mirror.
E) at a larger distance behind the mirror than the distance the object is in front of the mirror.

Question 5

You may have seen ambulances on the street with the letters of the word AMBULANCE written on the front of them, in such a way as to appear correctly when viewed in your car's rear-view mirror. (See the figure.) How do the letters appear when you look directly at the ambulance (not through the mirror)?

A) a
B) b
C) c
D) d
E) e

Question 6

The focal length of a convex mirror is has a magnitude of 20 cm. What is its radius of curvature?

A) -10 cm
B) 40 cm
C) -40 cm
D) -20 cm
E) 20 cm

Question 7

Suppose you place an object in front of a concave mirror. Which of the following statements must be true? (There could be more than one correct choice.)

A) The image of the object will always be smaller than the object.
B) No matter where you place the object, a real image of the object will be formed.
C) The image of the object will always be inverted.
D) If you position the object between the mirror and the focal point of the mirror, its image must be upright and virtual.
E) No matter where you place the object, the image of the object will always be virtual and upright.

Question 8

Which of the following statements about spherical mirrors is correct? (There could be more than one correct choice.)

A) A concave mirror always produces a real image.
B) A convex mirror always produces a virtual image.
C) A concave mirror always produces a virtual image.
D) A convex mirror always produces a real image.
E) A convex mirror always produces an upright image.

Question 9

Light enters glass from air. The angle of refraction will be

A) greater than the angle of incidence.
B) equal to the angle of incidence.
C) less than the angle of incidence.

Question 10

Light goes from material having a refractive index of n₁ into a material with refractive index n₂. If the refracted light is bent away from the normal, what can you conclude about the indices of refraction?

A) n₁ > n₂
B) n₁ ≥ n₂
C) n₁ < n₂
D) n₁ ≤ n₂
E) n₁ = n₂

Question 11

If a spherical concave mirror has a radius of curvature R, its focal length is

A) R/4.
B) R/2.
C) R.
D) 2R.
E) 4R.

Question 12

Which one of the following sets of characteristics describes the image formed by a plane mirror?

A) real and inverted
B) real and upright
C) virtual and upright
D) virtual and inverted
E) virtual and larger than the object

Question 13

A negative magnification for a mirror means that

A) the image is inverted, and the mirror could be either concave or convex.
B) the image is upright, and the mirror is convex.
C) the image is inverted, and the mirror is convex.
D) the image is inverted, and the mirror is concave.
E) the image is upright, and the mirror could be either concave or convex.

Question 14

The focal length of a concave mirror has a magnitude of 20 cm. What is its radius of curvature?

A) 10 cm
B) 40 cm
C) -40 cm
D) 20 cm
E) -20 cm

Question 15

As you walk away from a plane mirror on a wall, the height of your image

A) gets smaller.
B) may or may not get smaller, depending on where the observer is positioned.
C) is always a real image, no matter how far you are from the mirror.
D) changes from being a virtual image to a real image as you pass the focal point.
E) is always the same size.

Question 16

The critical angle for a beam of light passing from water into air is 48.8°. This means that all light rays with an angle of incidence in the water that is greater than 48.8° will be

A) totally absorbed by the water.
B) totally reflected.
C) partially reflected and partially transmitted.
D) totally transmitted.

Question 17

Which one of the following numbers is the correct magnification produced by a plane mirror?

A) 1/2
B) 1/4
C) 2
D) 1
E) 3/2

Question 18

The index of refraction of a type of glass is 1.50, and the index of refraction of water is 1.33. If light enters water from this glass, the angle of refraction will be

A) greater than the angle of incidence.
B) equal to the angle of incidence.
C) less than the angle of incidence.

Question 19

Which statements about images are correct? (There could be more than one correct choice.)

A) A virtual image cannot be formed on a screen.
B) A virtual image cannot be viewed by the unaided eye.
C) A virtual image cannot be photographed.
D) A real image must be erect.
E) Mirrors always produce real images because they reflect light.

Question 20

If a spherical convex mirror has a radius of curvature R, the magnitude of its focal length is

A) R/2.
B) R/4.
C) R.
D) 2R.
E) 4R.

Question 21

A beam of light that is parallel to the principal axis strikes a convex mirror. What happens to the reflected beam of light?

A) It also is parallel to the principal axis.
B) It is perpendicular to the principal axis.
C) It appears to be coming from the focal point on the other side of the mirror.
D) It appears to be coming from the center of curvature of the mirror.
E) It appears to be coming from a point between the focal point and the center of curvature of the mirror.

Question 22

An object is placed in front of a convex mirror at a distance larger than twice the magnitude of the focal length of the mirror. The image will appear

A) in front of the mirror.
B) inverted and reduced.
C) inverted and enlarged.
D) upright and reduced.
E) upright and enlarged.

Question 23

A beam of light that is parallel to the principal axis strikes a concave mirror. What happens to the reflected beam of light?

A) It also is parallel to the principal axis.
B) It is perpendicular to the principal axis.
C) It passes through the center of curvature of the mirror.
D) It passes through the focal point of the mirror.
E) It passes between the focal point and the center of curvature of the mirror.

Question 24

Single convex spherical mirrors produce images that

A) are always smaller than the actual object.
B) are always larger than the actual object.
C) are always the same size as the actual object.
D) could be larger than, smaller than, or the same size as the actual object, depending on the placement of the object.
E) are sometimes real.

Question 25

If you stand in front of a convex mirror, at the same distance from it as its focal length,

A) you won't see your image because there is none.
B) you won't see your image because it is focused at infinity.
C) you will see your image and you will appear smaller than you.
D) you will see your image and you will appear larger than you.
E) you will see your image and it will be the same size as you except upside down.

Question 26

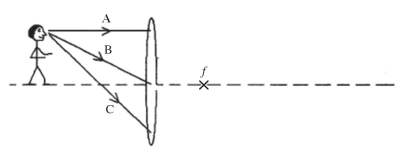

A thin lens projects an image of a man as shown in the figure. Rays marked A, B, and C travel to the lens from the man's ear. Draw the paths of these three rays after they have passed through the lens. Note that A is parallel to the principal axis, B goes through the center of the lens, C goes through the focal point on the left, and the point marked f is the focal point on the right of the lens.

Question 27

A convex lens has focal length f. If an object is placed at a distance of 2f from the lens on the principal axis, the image is located at a distance from the lens

A) of 2f.
B) between f and 2f.
C) of f.
D) between the lens and f.
E) of infinity.

Question 28

A convex lens has focal length f. If an object is placed at a distance beyond 2f from the lens on the principal axis, the image is located at a distance from the lens

A) of 2f.
B) between f and 2f.
C) of f.
D) between the lens and f.
E) of infinity.

Question 29

A convex lens has focal length f. If an object is located at "infinity" (very far away), the image formed is located at a distance from the lens

A) of 2f.
B) between f and 2f.
C) of f.
D) between the lens and f.
E) of infinity.

Question 30

Which of the following terms describe lenses that are thicker at the center than at the edges? (There could be more than one correct choice.)

A) converging lenses
B) diverging lenses
C) concave lenses
D) convex lenses

Question 31

Which of the following terms describe lenses that are thinner at the center than at the edges? (There could be more than one correct choice.)

A) converging lenses
B) diverging lenses
C) concave lenses
D) convex lenses

Question 32

A convex lens has focal length f. If an object is placed at a distance between f and 2f from the lens on the principal axis, the image is located at a distance from the lens

A) of 2f.
B) between f and 2f.
C) of f.
D) that is greater than 2f.
E) of infinity.

Question 33

If you stand in front of a convex mirror, at the same distance from it as its radius of curvature,

A) you won't see your image because there is none.
B) you won't see your image because it is focused at infinity.
C) you will see your image and you will appear smaller than you.
D) you will see your image and you will appear larger than you.
E) you will see your image and it will be the same size as you except upside down.

Question 34

Sometimes when you look into a curved mirror you see a magnified image (a great big you) and sometimes you see a diminished image (a little you). If you look at the bottom (convex) side of a shiny spoon, what will you see?

A) You won't see an image of yourself because no image will be formed.
B) You will see a little you, upside down.
C) You will see a little you, right side up.
D) You will see a little you, but whether you are right side up or upside down depends on how near you are to the spoon.
E) You will either see a little you or a great big you, depending on how near you are to the spoon.

Question 35

If an object is placed at the center of curvature of concave mirror, the image formed by the mirror is located

A) out beyond the center of curvature.
B) at the center of curvature.
C) between the center of curvature and the focal point.
D) at the focal point.
E) at infinity.

Question 36

Suppose you wanted to start a fire using a mirror to focus sunlight. Which of the following statements is most accurate?

A) It would be best to use a plane mirror.
B) It would be best to use a convex mirror.
C) It would be best to use a concave mirror, with the object to be ignited positioned at the center of curvature of the mirror.
D) It would be best to use a concave mirror, with the object to be ignited positioned halfway between the mirror and its center of curvature.
E) One cannot start a fire using a mirror, since mirrors form only virtual images.

Question 37

An upright object is 50 cm from a concave mirror of radius 60 cm. The character of the image is

A) real and upright
B) real and inverted
C) virtual and upright
D) virtual and inverted

Question 38

A convex mirror has a focal length of magnitude f. An object is placed in front of this mirror at a point f from the face of the mirror. The image will appear

A) behind the mirror.
B) upright and reduced.
C) upright and enlarged.
D) inverted and reduced.
E) inverted and enlarged.

Question 39

An object is placed to the left of a spherical mirror in front of the mirror. If the image of the object is formed on the right side of the mirror, which of the following statements must be true? (There could be more than one correct choice.)

A) The image is upright and the mirror must be convex.
B) The image is inverted and real, and the mirror must be convex.
C) The image is upright and the mirror must be concave.
D) The image is upright and virtual.
E) The mirror could be either concave or convex.

Question 40

Single concave spherical mirrors produce images that

A) are always smaller than the actual object.
B) are always larger than the actual object.
C) are always the same size as the actual object.
D) could be smaller than, larger than, or the same size as the actual object, depending on the placement of the object.
E) are always real.

Question 41

A narrow light beam in vacuum contains light of two wavelengths, 480 nm and 700 nm. It strikes a flat piece of glass at an angle of incidence of 60.000°. The index of refraction of the glass is 1.4830 at 480 nm and 1.4760 at 700 nm. Determine the angle between the two wavelengths as the light travels in the glass.

Question 42

Which of following statements about the image formed by a single converging lens are true? (There could be more than one correct choice.)

A) The image is always real.
B) The image is always virtual.
C) The image is always inverted.
D) The image is always upright.
E) None of the above choices are correct.

Question 43

An object is placed on the left side of a thin lens, and the image of this object is formed on the left side of the lens. Which of the following statements must be true? (There could be more than one correct choice.)

A) The lens must be a diverging lens, and the image is upright.
B) The lens must be a converging lens, and the image is upright.
C) The image is upright and virtual.
D) The lens could be either a converging or a diverging lens, and the image is upright.
E) The image is inverted and real.

Question 44

If a object is placed between a convex lens and its focal point, the image formed is

A) virtual and upright.
B) virtual and inverted.
C) real and upright.
D) real and inverted.

Question 45

If the magnification of a mirror or lens is negative, it means that

A) the image is smaller than the object.
B) the image is inverted and smaller than the object.
C) the image is inverted.
D) the object is farther from the mirror (or lens) than the image.
E) the image is farther from the mirror (or lens) than the object.

Question 46

An oil layer that is 5.0 cm thick is spread smoothly and evenly over the surface of water on a windless day. A light ray from the air above enters the oil at 45° with the normal and then goes into the water. What is the angle of refraction of this ray in the water? The index of refraction for the oil is 1.15, and for water it is 1.33.

A) 27°
B) 32°
C) 36°
D) 39°

Question 47

Starting from very far away, an object is moved closer and closer to a diverging lens, eventually reaching the lens. What happens to its image formed by that lens? (There could be more than one correct choice.)

A) The image gets closer and closer to the lens.
B) The image gets farther and farther from the lens.
C) The image always remains virtual.
D) The image eventually changes from real to virtual.
E) The image keeps getting larger and larger.

Question 48

The image formed by a single concave lens

A) is always real.
B) is always virtual.
C) could be real or virtual, depending on whether the object distance is smaller or greater than the focal length.
D) could be real or virtual, but is always real when the object is placed at the focal point.
E) is always inverted.

Question 49

Is it possible to see a virtual image?

A) No, since the rays that seem to emanate from a virtual image do not in fact emanate from the image.
B) No, since virtual images do not really exist.
C) Yes because the rays that appear to come from a virtual image can be focused by the eye just like those from an object.
D) Yes, but only by using an additional lens to form a real image before the light reaches the eye.

Question 50

Which of following statements about the image formed by a single diverging lens are true? (There could be more than one correct choice.)

A) The image is always real.
B) The image is always virtual.
C) The image is always inverted.
D) The image is always upright.
E) The image is always smaller than the object.

Question 51

The index of refraction for a certain material is 1.399 for red light and 1.432 for blue light. Light containing both of these colors is traveling in vacuum and strikes a flat sheet of this material. Find the angle separating the two colors in the refracted light in the sheet if the angle of incidence is 60.00°.

Question 52

An object is placed in front of a thin lens. Which statements are correct in describing the image formed by the lens? (There could be more than one correct choice.)

A) If the lens is convex, the image will never be virtual.
B) If the image is real, then it is also inverted.
C) If the image is real, then it is also upright.
D) If the lens is concave, the image must be virtual.
E) If the lens is convex, the image must be real.

Question 53

A ray of light (ray a) in air strikes a flat piece of glass at an angle of φ₀ = 84° with respect to the normal, as shown in the figure. The index of refraction of the glass is 1.5. What is the angle θ between the reflected ray (ray b) and refracted ray (ray c) rays?

Question 54

A light beam having a wavelength of 470 nm in air is directed into glycerine at an angle of 75.0° with the normal in air. Glycerine has a refractive index of 1.47. (c = 3.0 × 10⁸ m/s)
(a) What are the frequency and wavelength of the light in the glycerine?
(b) What angle does the light beam make with the normal in the glycerine?

Question 55

A thin beam of light enters a thick plastic sheet from air at an angle of 32.0° with the normal and continues in the sheet at an angle of 23.0° with the normal. What is the index of refraction of the plastic?

A) 0.74
B) 1.11
C) 1.28
D) 1.36

Question 56

Which statement about a single thin lens is correct?

A) A converging lens always produces a real inverted image.
B) A diverging lens always produces a virtual inverted image.
C) A converging lens sometimes produces a real upright image.
D) A diverging lens always produces a virtual upright image.
E) A diverging lens produces a virtual upright image only if the object is located between the lens and its focal point.

Question 57

A thin laser beam traveling in air strikes the surface of a glass plate at 41.2° with the normal. In the plate, this beam makes an angle of 22.4° with the normal. What is the speed of light in this glass?(c = 3.0 × 10⁸ m/s)

Question 58

A plastic cube is immersed in water having an index of refraction of 1.33. A laser beam in the plastic strikes the interface at an angle of 14.5° with the normal in the plastic. In the water, this beam makes an angle of 21.8° with the normal. What is the speed of light in the plastic cube? (c = 3.0 × 10⁸ m/s)

Question 59

Starting from very far away, an object is moved closer and closer to a converging lens, eventually reaching the lens. What happens to its image formed by that lens? (There could be more than one correct choice.)

A) The image gets closer and closer to the lens.
B) The image gets farther and farther from the lens.
C) The image eventually changes from virtual to real.
D) The image eventually changes from real to virtual.
E) The image keeps getting larger and larger.

Question 60

If a single lens forms a virtual image of an object, then

A) the lens must be a diverging lens.
B) the lens must be a converging lens.
C) the lens could be either a diverging or a converging lens.
D) the image must be inverted.
E) the object must be between the lens and its focal point.

Question 61

A thick slab of plastic lies at the bottom of a tank filled with water having an index of refraction of 1.33. A narrow laser beam is shone directly downward through the water on the plastic. You then gradually rotate the laser, thereby increasing the angle with respect to the normal that it strikes the plastic. You carefully note that at the instant the beam makes an angle of 66.5° with the normal in the water, no light enters the plastic, but it did enter for angles smaller than that. What is the speed of light in the plastic slab? (c = 3.00 × 10⁸ m/s)

Question 62

A glass plate with an index of refraction is 1.57 is immersed in an oil having a refractive index of 1.40. The surface of the glass is inclined at an angle of 54° with the vertical. A horizontal light ray in the glass strikes the interface. What is the angle that the refracted ray, in the oil, makes with the horizontal?

A) 11°
B) 5.6°
C) 8.3°
D) 14°
E) 17°

Question 63

Light enters a substance from air at 30.0° to the normal. It continues within the substance at 23.0° to the normal. What is the critical angle for this substance when it is surrounded by air?

A) 53°
B) 51.4°
C) 36.7°
D) 12.6°

Question 64

As shown in the figure, a laser positioned on a ship is used to communicate with a small research submarine resting on the bottom of a lake. The laser is positioned 12 m above the surface of the water, and it strikes the water 20 m from the side of the ship. The water is 58 m deep and has an index of refraction of 1.33. How far horizontally is the submarine from the side of the ship? (Assume all numbers are accurate to three significant figures.)

A) 69 m
B) 49 m
C) 89 m
D) 59 m
E) 79 m

Question 65

A ray of light traveling in air makes a 63.0° angle with respect to the normal of the surface of a liquid. It travels in the liquid at a 39.2° angle with respect to the normal. Find the critical angle for total internal reflection for this interface.

Question 66

The critical angle for a substance in air is measured at 53.7°. If light enters this substance from air at 45.0° with the normal, at what angle with the normal will it continue to travel?

A) 34.7°
B) 45.0°
C) 53.7°
D) It will not continue, but will be totally reflected.

Question 67

A beam of light, traveling in air, strikes a plate of transparent material at an angle of incidence of 56.0°. It is observed that the reflected and refracted beams form an angle of 90.0°. What is the index of refraction of this material?

A) 1.40
B) 1.43
C) 1.44
D) 1.48

Question 68

A point source of light is positioned 20.0 m below the surface of a lake. What is the diameter of the largest circle on the surface of the water through which light can emerge into the air? The index of refraction of water is 1.33.

Question 69

A light ray enters a glass enclosed fish tank. From air it enters the glass at 20° with respect to the plane of the surface and then emerges into the water. The index for the glass is 1.50 and for water 1.33.
(a) What is the angle of refraction in the glass?
(b) What is the angle of refraction in the water?
(c) Is there any incident angle in air for which the ray will not enter the water due to total internal reflection? If so, find it.

Question 70

A thin flashlight beam traveling in air strikes a glass plate at an angle of 52° with the plane of the surface of the plate. If the index of refraction of the glass is 1.4, what angle will the beam make with the normal in the glass?

A) 34°
B) 64°
C) 26°
D) 56°
E) 38°

Question 71

A flashlight beam makes an angle of 60° with the plane of the surface of a calm lake before it enters the water. In the water what angle does the beam make with the plane of the surface? The index of refraction of water is 1.33.

A) 0°
B) 30°
C) 60°
D) 22°
E) 68°

Question 72

A beam of light in water (of refractive index of 1.33) enters a glass slab (of refractive index 1.50) at an angle of incidence of 60.0°. What is the angle of refraction in the glass?

A) 27.5°
B) 39.8°
C) 60.0°
D) 90.0°
E) 50.2°

Question 73

Light travels from crown glass, with a refractive index of 1.52, into water, having a refractive index of 1.33? The critical angle for this interface is closest to which one of the following angles?

A) 42°
B) 48°
C) 53°
D) 57°
E) 61°

Question 74

Light in a transparent material that has an index of refraction of 1.333 strikes the boundary with another transparent material for which the index of refraction is 1.010. What is the critical angle for total internal reflection between these two materials?

Question 75

A light ray in air strikes a glass plate whose index of refraction is 1.42. Some of the light reflects off the surface of the plate, but most of it enters the glass. If the angle of refraction is one-half the angle of reflection, the angle of refraction is closest to which one of the following angles?

A) 45°
B) 43°
C) 41°
D) 39°
E) 37°

Question 76

A light ray in glass arrives at the glass-water interface an an angle of θ = 48° with the normal. The refracted ray in water makes an angle φ = 72° angle with the normal, as shown in the figure.The index of refraction of water is 1.33. The angle of incidence is now changed to θ = 37°. What is the new angle of refraction φ in the water?

A) 50°
B) 48°
C) 46°
D) 52°
E) 54°

Question 77

A light beam with wavelength 440 nm in a certain material then enters air and its wavelength becomes 577 nm.
(a) What is the index of refraction for the material?
(b) At what angle with the plane of the surface will the light be totally reflected back into the material?

Question 78

A light ray in glass arrives at the glass-water interface at an angle of θ = 48° with the normal. The refracted ray in water makes an angle θ = 61° with the normal, as shown in the figure. The index of refraction of water is 1.33. The angle of incidence is now changed to θ = 25°. What is the new angle of refraction φ in the water?

A) 30°
B) 56°
C) 54°
D) 60°
E) 62°

Question 79

A beam of light in air enters a glass slab with an index of refraction of 1.40 at an angle of incidence of 30.0°. What is the angle of refraction?

A) 20.9°
B) 47.5°
C) 51.8°
D) 30.0°
E) 14.9°

Question 80

A beam of light traveling in air strikes a slab of transparent material. The incident beam makes an angle of 40° with the normal, and the refracted beam make an angle of 26° with the normal. What is the speed of light in the transparent material? (c = 3.0 × 10⁸ m/s)

A) 1.0 × 10⁸ m/s
B) 2.0 × 10⁸ m/s
C) 2.3 × 10⁸ m/s
D) 3.0 × 10⁸ m/s
E) 0.50 × 10⁸ m/s
