Deck 14: Periodic Motion

Question 1

A mass M is attached to an ideal massless spring.When this system is set in motion,it has a period T.What is the period if the mass is doubled to 2M?

A) 2T
B) T/2
C) T
D) 4T
E) T

Answer 1

T

Question 2

If we double only the mass of a vibrating ideal mass-and-spring system,the mechanical energy of the system

A) increases by a factor of .
B) increases by a factor of 2.
C) increases by a factor of 3.
D) increases by a factor of 4.
E) does not change.

Answer 2

does not change.

Question 3

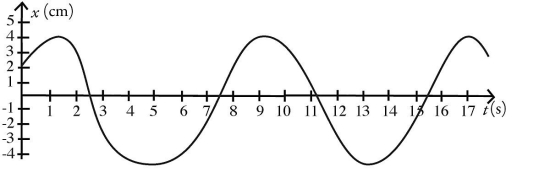

The simple harmonic motion of an object is described by the graph shown in the figure.What is the equation for the position x(t)of the object as a function of time t?

A) x(t) = (4.0 m)sin[(2π/8.0 s)t + π/3.0]
B) x(t) = (4.0 m)cos[(2π/8.0 s)t + 2π/3.0]
C) x(t) = (4.0 m)cos[(2π/8.0 s)t + π/3.0]
D) x(t) = (4.0 m)cos[(2π/8.0 s)t - π/3.0]
E) x(t) = (8.0 m)cos[(2π/8.0 s)t + π/3.0]

Answer 3

x(t) = (4.0 m)cos[(2π/8.0 s)t - π/3.0]

Question 4

A certain frictionless simple pendulum having a length L and mass M swings with period T.If both L and M are doubled,what is the new period?

A) 4T
B) 2T
C) T
D) T
E) T/4

Question 5

An object is attached to a vertical ideal massless spring and bobs up and down between the two extreme points A and B.When the kinetic energy of the object is a minimum,the object is located

A) at either A or B.
B) midway between A and B.
C) 1/3 of the distance from A to B.
D) 1/4 of the distance from A to B.
E) 1/ times the distance from A to B.

Question 6

A frictionless pendulum clock on the surface of the earth has a period of 1.00 s.On a distant planet,the length of the pendulum must be shortened slightly to have a period of 1.00 s.What is true about the acceleration due to gravity on the distant planet?

A) The gravitational acceleration on the planet is slightly greater than g.
B) The gravitational acceleration on the planet is slightly less than g.
C) The gravitational acceleration on the planet is equal to g.
D) We cannot tell because we do not know the mass of the pendulum.

Question 7

A mass M is attached to an ideal massless spring.When this system is set in motion with amplitude A,it has a period T.What is the period if the amplitude of the motion is increased to 2A?

A) 2T
B) T/2
C) T
D) 4T
E) T

Question 8

A restoring force of magnitude F acts on a system with a displacement of magnitude x.In which of the following cases will the system undergo simple harmonic motion?

A) F
B) F sin x
C) F x²
D) F x
E) F 1/x

Question 9

If we double only the amplitude of a vibrating ideal mass-and-spring system,the mechanical energy of the system

A) increases by a factor of .
B) increases by a factor of 2.
C) increases by a factor of 3.
D) increases by a factor of 4.
E) does not change.

Question 10

A sewing machine needle moves up and down in simple harmonic motion with an amplitude of 1.27 cm and a frequency of 2.55 Hz.
(a)What is the maximum speed of the needle?
(b)What is the maximum acceleration of the needle?

Question 11

A simple harmonic oscillator has an amplitude of 3.50 cm and a maximum speed of 26.0 cm/s.What is its speed when the displacement is 1.75 cm?

A) 12.0 cm/s
B) 22.5 cm/s
C) 14.2 cm/s
D) 15.0 cm/s
E) 17.0 cm/s

Question 12

The position x of an object varies with time t.For which of the following equations relating x and t is the motion of the object simple harmonic motion? (There may be more than one correct choice.)

A) x = 5 sin²3t
B) x = 8 cos 3t
C) x = 4 tan 2t
D) x = 5 sin 3t
E) x = 2 cos(3t - 1)

Question 13

If we double only the spring constant of a vibrating ideal mass-and-spring system,the mechanical energy of the system

A) increases by a factor of .
B) increases by a factor of 2.
C) increases by a factor of 3.
D) increases by a factor of 4.
E) does not change.

Question 14

In simple harmonic motion,the speed is greatest at that point in the cycle when

A) the magnitude of the acceleration is a maximum.
B) the displacement is a maximum.
C) the magnitude of the acceleration is a minimum.
D) the potential energy is a maximum.
E) the kinetic energy is a minimum.

Question 15

An object is executing simple harmonic motion.What is true about the acceleration of this object? (There may be more than one correct choice.)

A) The acceleration is a maximum when the displacement of the object is a maximum.
B) The acceleration is a maximum when the speed of the object is a maximum.
C) The acceleration is a maximum when the displacement of the object is zero.
D) The acceleration is zero when the speed of the object is a maximum.
E) The acceleration is a maximum when the object is instantaneously at rest.

Question 16

A frictionless pendulum released from 65 degrees with the vertical will vibrate with the same frequency as if it were released from 5 degrees with the vertical because the period is independent of the amplitude and mass.

Question 17

An object is undergoing simple harmonic motion with frequency f = 9.7 Hz and an amplitude of 0.12 m.At t = 0.00 s the object is at x = 0.00 m.How long does it take the object to go from .00 m to

Question 18

The position of an object that is oscillating on an ideal spring is given by the equation .At time ,
(a)how fast is the object moving?
(b)what is the magnitude of the acceleration of the object?

Question 19

In designing buildings to be erected in an area prone to earthquakes,what relationship should the designer try to achieve between the natural frequency of the building and the typical earthquake frequencies?

A) The natural frequency of the building should be exactly the same as typical earthquake frequencies.
B) The natural frequency of the building should be very different from typical earthquake frequencies.
C) The natural frequency of the building should be almost the same as typical earthquake frequencies but slightly higher.
D) The natural frequency of the building should be almost the same as typical earthquake frequencies but slightly lower.

Question 20

Which of following graphs describes simple periodic motion with amplitude 2.00 cm and angular frequency 2.00 rad/s?

A)
B)
C)
D)
E)

Question 21

A 2.25-kg object is attached to a horizontal an ideal massless spring on a frictionless table.What should be the spring constant of this spring so that the maximum acceleration of the object will be g when it oscillates with amplitude of 4.50 cm?

Question 22

A 1.5-kg mass attached to an ideal massless spring with a spring constant of oscillates on a horizontal,frictionless track.At time ,the mass is released from rest at .(That is,the spring is stretched by 10.0 cm.)
(a)Find the frequency of the oscillations.
(b)Determine the maximum speed of the mass.At what point in the motion does the maximum speed occur?
(c)What is the maximum acceleration of the mass? At what point in the motion does the maximum acceleration occur?
(d)Determine the total energy of the oscillating system.
(e)Express the displacement x as a function of time t.

Question 23

An object weighing 44.1 N hangs from a vertical massless ideal spring.When set in vertical motion,the object obeys the equation .
(a)Find the time for this object to vibrate one complete cycle.
(b)What are the maximum speed and maximum acceleration of the object.
(c)What is the TOTAL distance the object moves through in one cycle.
(d)Find the maximum kinetic energy of the object.
(e)What is the spring constant of the spring.

Question 24

In the figure,a 0.24-kg ball is suspended from a very light string 9.79 m long and is pulled slightly to the left.As the ball swings without friction through the lowest part of its motion it encounters an ideal massless spring attached to the wall.The spring pushes against the ball and eventually the ball is returned to its original starting position.Find the time for one complete cycle of this motion if the spring constant of the spring is 21 N/m.(Assume that once the pendulum ball hits the spring there is no effect due to the vertical movement of the ball.)

Question 25

A 0.25 kg ideal harmonic oscillator has a total mechanical energy of If the oscillation amplitude is what is the oscillation frequency?

A) 4.5 Hz
B) 1.4 Hz
C) 2.3 Hz
D) 3.2 Hz

Question 26

An object that weighs 2.450 N is attached to an ideal massless spring and undergoes simple harmonic oscillations with a period of 0.640 s.What is the spring constant of the spring?

A) 2.45 N/m
B) 12.1 N/m
C) 24.1 N/m
D) 0.102 N/m
E) 0.610 N/m

Question 27

A frictionless simple pendulum on Earth has a period of 1.75 s.On Planet X its period is .What is the acceleration due to gravity on Planet X?

Question 28

A machine part is vibrating along the x-axis in simple harmonic motion with a period of and a range (from the maximum in one direction to the maximum in the other)of .At time t = 0 it is at its central position and moving in the +x direction.What is its position when ?

A) x = -0.43 cm
B) x = -0.51 cm
C) x = +0.51 cm
D) x = -1.3 cm
E) x = -1.4 cm

Question 29

In the figure,two masses,M = 16 kg and m = 12.8.0 kg,are connected to a very light rigid bar and are attached to an ideal massless spring of spring constant 100 N/m.The system is set into oscillation with an amplitude of 78 cm.At the instant when the acceleration is at its maximum,the 16-kg mass separates from the 12.8.0-kg mass,which then remains attached to the spring and continues to oscillate.What will be the amplitude of oscillation of the 12.8.0-kg mass?

A) 78 cm
B) 62 cm
C) 35 cm
D) 98 cm
E) 180 cm

Question 30

An object of mass 8.0 kg is attached to an ideal massless spring and allowed to hang in the Earth's gravitational field.The spring stretches 3.6 cm before it reaches its equilibrium position.If this system is allowed to oscillate,what will be its frequency?

A) 2.6 Hz
B) 0.0045 Hz
C) 0.67 Hz
D) 2.1 Hz

Question 31

A 0.28-kg block on a horizontal frictionless surface is attached to an ideal massless spring whose spring constant is The block is pulled from its equilibrium position at to a displacement x = +0.080 m and is released from rest.The block then executes simple harmonic motion along the horizontal x-axis.When the displacement is find the acceleration of the block.

A) 92
B) 46
C) 69
D) 230
E) 280

Question 32

An object of mass 6.8 kg is attached to an ideal massless spring of spring constant 1690 N/m.The object is Calculate the maximum speed the object reaches during its motion.

Question 33

A 1.6-kg block on a horizontal frictionless surface is attached to an ideal massless spring whose spring constant is 190 N/m.The block is pulled from its equilibrium position at to a displacement x = +0.080 m and is released from rest.The block then executes simple harmonic motion along the horizontal x-axis.What is the velocity of the block at time ?

A) 0.82 m/s
B) -0.82 m/s
C) 0.30 m/s
D) -0.30 m/s
E) 0.00 m/s

Question 34

A 12.0-N object is oscillating in simple harmonic motion at the end of an ideal vertical spring.Its vertical position y as a function of time t is given by .
(a)What is the spring constant of the spring?
(b)What is the maximum acceleration of the object?
(c)What is the maximum speed that the object reaches?
(d)How long does it take the object to go from its highest point to its lowest point?

Question 35

A 56 kg bungee jumper jumps off a bridge and undergoes simple harmonic motion.If the period of oscillation is 11.2 s,what is the spring constant of the bungee cord,assuming it has negligible mass compared to that of the jumper?

A) 17.6 N/m
B) 21.1 N/m
C) 28.2 N/m

Question 36

The x component of the velocity of an object vibrating along the x-axis obeys the equation .
(a)What is the amplitude of the motion of this object?
(b)What is the maximum acceleration of the vibrating object?

Question 37

A 0.50-kg object is attached to an ideal massless spring of spring constant 20 N/m along a horizontal,frictionless surface.The object oscillates in simple harmonic motion and has a speed of 1.5 m/s at the equilibrium position.
(a)What is the amplitude of vibration?
(b)At what location are the kinetic energy and the potential energy of the system the same?

Question 38

A 0.025-kg block on a horizontal frictionless surface is attached to an ideal massless spring whose spring constant is The block is pulled from its equilibrium position at x = 0.00 m to a displacement x = +0.080 m and is released from rest.The block then executes simple harmonic motion along the horizontal x-axis.When the displacement is what is the kinetic energy of the block?

A) 0.44 J
B) 0.41 J
C) 0.46 J
D) 0.49 J
E) 0.52 J

Question 39

A 2.00-kg object is attached to an ideal massless horizontal spring of spring constant 100.0 N/m and is at rest on a frictionless horizontal table.The spring is aligned along the x-axis and is fixed to a peg in the table.Suddenly this mass is struck by another 2.00-kg object traveling along the x-axis at 3.00 m/s,and the two masses stick together.What are the amplitude and period of the oscillations that result from this collision?

A) 0.300 m, 1.26 s
B) 0.300 m, 0.889 s
C) 0.424 m, 0.889 s
D) 0.424 m, 1.26 s
E) 0.424 m, 5.00 s

Question 40

A 2.0 kg block on a frictionless table is connected to two ideal massless springs with spring constants k₁ and k₂ whose opposite ends are fixed to walls,as shown in the figure.What is angular frequency of the oscillation if and

A) 2.5 rad/s
B) 3.5 rad/s
C) 0.40 rad/s
D) 0.56 rad/s

Question 41

An ideal massless spring with a spring constant of 2.00 N/m is attached to an object of .The system has a small amount of damping.If the amplitude of the oscillations decreases from to in ,what is the magnitude of the damping constant b?

A) 0.00693 kg/s
B) 0.0462 kg/s
C) 0.00762 kg/s
D) 0.0100 kg/s
E) 0.00857 kg/s

Question 42

The amplitude of a lightly damped harmonic oscillator decreases from 60.0 cm to 40.0 cm in 10.0 s.What will be the amplitude of the harmonic oscillator after another 10.0 s passes?

A) 20.0 cm
B) 167 cm
C) 30.0 cm
D) 0.00 cm
E) 26.7 cm

Question 43

A uniform meter stick is freely pivoted about the 0.20-m mark.If it is allowed to swing in a vertical plane with a small amplitude and friction,what is the frequency of its oscillations?

A) 0.55 Hz
B) 0.66 Hz
C) 0.92 Hz
D) 1.1 Hz
E) 1.3 Hz

Question 44

A lightly damped harmonic oscillator,with a damping force proportional to its speed,is oscillating with an amplitude of 0.500 cm at time .When ,the amplitude has died down to .At what value of t will the oscillations have an amplitude of 0.250 cm?

A) 18.5 s
B) 20.5 s
C) 16.5 s
D) 25.5 s
E) 5.13 s

Question 45

A 25 kg object is undergoing lightly damped harmonic oscillations.If the maximum displacement of the object from its equilibrium point drops to 1/3 its original value in 1.8 s,what is the value of the damping constant b?

A) 31 kg/s
B) 34 kg/s
C) 37 kg/s
D) 40 kg/s

Question 46

A large stick is pivoted about one end and allowed to swing back and forth with no friction as a physical pendulum.The mass of the stick is and its center of gravity (found by finding its balance point)is from the pivot.If the period of the swinging stick is what is the moment of inertia of the stick about an axis through the pivot?

Question 47

A 2.15 kg lightly damped harmonic oscillator has an angular oscillation frequency of .If the maximum displacement of occurs when t = 0.00 s,and the damping constant b is 0.74 kg/s what is the object's displacement when t = 4.01 s?

A) 0.50 m
B) 0.43 m
C) 0.58 m
D) 0.65 m

Question 48

A long thin uniform rod of length 1.50 m is to be suspended from a frictionless pivot located at some point along the rod so that its pendulum motion takes 3.00 s.How far from the center of the rod should the pivot be located?

A) 7.98 cm
B) 7.52 cm
C) 8.73 cm
D) 8.40 cm
E) 23.4 cm

Question 49

A 5.0-kg block is attached to an ideal massless spring whose spring constant is 125 N/m.The block is pulled from its equilibrium position at x = 0.00 m to a position at x = +0.687 m and is released from rest.The block then executes lightly damped oscillation along the x-axis,and the damping force is proportional to the velocity.When the block first returns to x = 0.00 m,its x component of velocity is -2.0 m/s and its x component of acceleration is +5.6 m/s².
(a)What is the magnitude of the acceleration of the block upon release at x = +0.687 m.
(b)Find the damping constant b.

Question 50

An object of mass of 2.0 kg hangs from an ideal massless spring with a spring constant of 50 N/m.An oscillating force F = (4.8 N)cos[(3.0 rad/s)t] is applied to the object.What is the amplitude of the resulting oscillations? You can neglect damping.

A) 0.15 m
B) 0.30 m
C) 1.6 m
D) 2.4 m
E) 0.80 m
