Deck 21: Electric Charge and Electric Field

Question 1

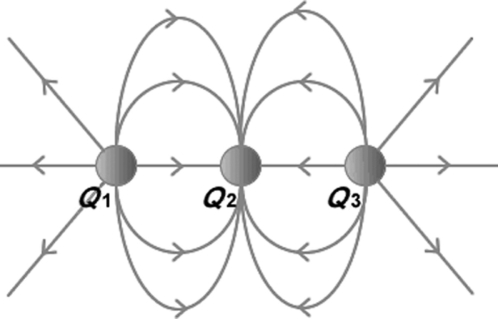

The figure shows three electric charges labeled Q₁,Q₂,Q₃,and some electric field lines in the region surrounding the charges.What are the signs of the three charges?

A) Q₁ is positive, Q₂ is negative, Q₃ is positive.
B) Q₁ is negative, Q₂ is positive, Q₃ is negative.
C) Q₁ is positive, Q₂ is positive, Q₃ is negative.
D) All three charges are negative.
E) All three charges are positive.

Answer 1

Q₁ is positive, Q₂ is negative, Q₃ is positive.

Question 2

Charge Q₁ = 6.0 nC is at (0.30 m,0),charge Q₂ = -1.0 nC is at (0,0.10 m),and charge .What are the magnitude and direction of the net electrostatic force on the 5.0-nC charge due to the other charges? (k = 1/4πε₀ =

Answer 2

5.4 × 10^-6 N,56° above -x-axis

Question 3

One very small uniformly charged plastic ball is located directly above another such charge in a test tube as shown in the figure.The balls are in equilibrium a distance d apart.If the charge on each ball is doubled,the distance between the balls in the test tube would become

A) d.
B) 2d.
C) 4d.
D) 8d.

Answer 3

2d.

Question 4

X and Y are two uncharged metal spheres on insulating stands,and are in contact with each other.A positively charged rod R is brought close to X as shown in Figure (a). Sphere Y is now moved away from X,as in Figure (b). What are the final charge states of X and Y?

A) Both X and Y are neutral.
B) X is positive and Y is neutral.
C) X is neutral and Y is positive.
D) X is negative and Y is positive.
E) Both X and Y are negative.

Question 5

Two very large parallel sheets a distance d apart have their centers directly opposite each other.The sheets carry equal but opposite uniform surface charge densities.A point charge that is placed near the middle of the sheets a distance d/2 from each of them feels an electrical force F due to the sheets.If this charge is now moved closer to one of the sheets so that it is a distance d/4 from that sheet,what force will feel?

A) 4F
B) 2F
C) F
D) F/2
E) F/4

Question 6

A positive point charge Q is fixed on a very large horizontal frictionless tabletop.A second positive point charge q is released from rest near the stationary charge and is free to move.Which statement best describes the motion of q after it is released?

A) Its speed will be greatest just after it is released.
B) Its acceleration is zero just after it is released.
C) As it moves farther and farther from Q, its acceleration will keep increasing.
D) As it moves farther and farther from Q, its speed will decrease.
E) As it moves farther and farther from Q, its speed will keep increasing.

Question 7

The figure shows two unequal point charges,q and Q,of opposite sign.Charge Q has greater magnitude than charge q.In which of the regions X,Y,Z will there be a point at which the net electric field due to these two charges is zero?

A) only regions X and Z
B) only region X
C) only region Y
D) only region Z
E) all three regions

Question 8

A point charge Q is located a short distance from a point charge 3Q,and no other charges are present.If the electrical force on Q is F,what is the electrical force on 3Q?

A) F/3
B) F/
C) F
D) F
E) 3F

Question 9

A piece of plastic has a net charge of +2.00 μC.How many more protons than electrons does this piece of plastic have? (e = 1.60 × 10^-19 C)

A) 1.25 × 10¹³
B) 1.25 × 10¹⁹
C) 2.50 × 10¹³
D) 2.50 × 10¹⁹

Question 10

Two identical small charged spheres are a certain distance apart,and each one initially experiences an electrostatic force of magnitude F due to the other.With time,charge gradually leaks off of both spheres.When each of the spheres has lost half its initial charge,the magnitude of the electrostatic force will be

A) 1/16 F.
B) 1/8 F.
C) 1/4 F.
D) 1/2 F.

Question 11

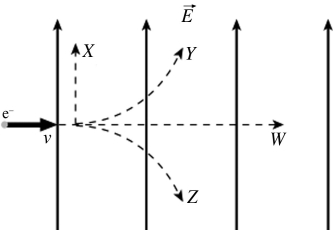

An electron is initially moving to the right when it enters a uniform electric field directed upwards.Which trajectory shown below will the electron follow?

A) trajectory W
B) trajectory X
C) trajectory Y
D) trajectory Z

Question 12

Three point charges are placed on the x-axis.A charge of +2.0 μC is placed at the origin,-2.0 μC to the right at x = 50 cm,and +4.0 μC at the 100 cm mark.What are the magnitude and direction of the electrostatic force that acts on the charge at the origin? (k = 1/4πε₀ =

Question 13

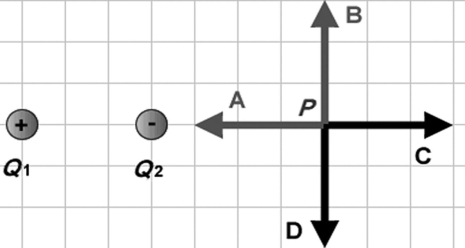

Two point charges Q₁ and Q₂ of equal magnitudes and opposite signs are positioned as shown in the figure.Which of the arrows best represents the net electric field at point P due to these two charges?

A) A
B) B
C) C
D) D
E) The field is equal to zero at point P.

Question 14

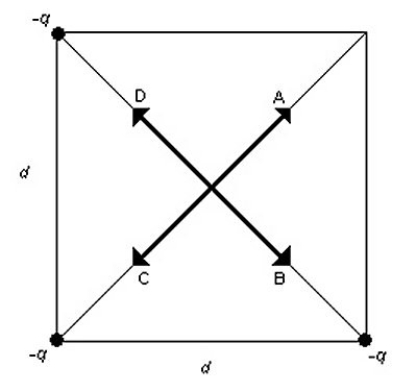

Three equal negative point charges are placed at three of the corners of a square of side d as shown in the figure.Which of the arrows represents the direction of the net electric field at the center of the square?

A) A
B) B
C) C
D) D
E) The field is equal to zero at point P.

Question 15

When two point charges are a distance d part,the electric force that each one feels from the other has magnitude F.In order to make this force twice as strong,the distance would have to be changed to

A) 2d.
B) d.
C) d/ .
D) d/2.
E) d/4.

Question 16

Four equal negative point charges are located at the corners of a square,their positions in the xy-plane being (1,1),(-1,1),(-1,-1),(1,-1).The electric field on the x-axis at (1,0)points in the same direction as

A) .
B) .
C) - .
D) .
E) - .

Question 17

Two large,flat,horizontally oriented plates are parallel to each other,a distance d apart.Half way between the two plates the electric field has magnitude E.If the separation of the plates is reduced to d/2 what is the magnitude of the electric field half way between the plates?

A) 4E
B) 2E
C) E
D) 0
E) E/2

Question 18

Two identical small conducting spheres are separated by 0.60 m.The spheres carry different amounts of charge and each sphere experiences an attractive electric force of 10.8N.The total charge on the two spheres is -24 μC.The two spheres are now connected by a slender conducting wire,which is then removed.The electric force on each sphere is closest to

A) zero.
B) 3.6 N, attractive.
C) 5.4 N, attractive.
D) 3.6 N, repulsive.
E) 5.4 N, repulsive.

Question 19

When two point charges are 2.0 cm apart,each one experiences a 1.0-N electric force due to the other charge.If they are moved to a new separation of 8.0 cm,the electric force on each of them is closest to

A) 1.0 N.
B) 4.0 N.
C) 16 N.
D) 0.25 N.
E) 0.063 N.

Question 20

A 1.0-C point charge is 15 m from a second point charge,and the electric force on one of them due to the other is 1.0 N.What is the magnitude of the second charge?

A) 25 C
B) 1.0 C
C) 10 nC
D) 0.025 C
E) 25 nC

Question 21

A small sphere with a mass of 441 g is moving upward along the vertical +y-axis when it encounters an electric field of 5.00 N/C .If,due to this field,the sphere suddenly acquires a horizontal acceleration of 13.0 m/s² ,what is the charge that it carries?

A) 1.15 C
B) -1.15 C
C) 1150 C
D) -1150 C

Question 22

A small glass bead has been charged to 8.0 nC.What is the magnitude of the electric field from the center of the bead? (k = 1/4πε₀ = 8.99 × 10⁹ N • m²/C²)

A) 1.8 × 10⁵ N/C
B) 3.6 × 10³ N/C
C) 1.4 × 10^-3 N/C
D) 3.6 × 10^-6 N/C

Question 23

A metal sphere of radius 10 cm carries a charge of +2.0 μC uniformly distributed over its surface.What is the magnitude of the electric field due to this sphere at a point 5.0 cm outside the sphere's surface?

A) 4.0 × 10⁵ N/C
B) 8.0 × 10⁵ N/C
C) 4.2 × 10⁶ N/C
D) 4.0 × 10⁷ N/C
E) 8.0 × 10⁷ N/C

Question 24

The figure shows two tiny 5.0-g spheres suspended from two very thin 1.0-m-long threads.The spheres repel each other after being charged to and hang at rest as shown.What is the angle θ? (k = 1/4πε₀ =

A) 4.1°
B) 8.2°
C) 12°
D) 16°

Question 25

Two point charges,Q₁ = -1.0 μC and Q₂ = + 4.0 μC,are placed as shown in the figure. The y component of the electric field,at the origin O,is closest to

A) 6.0 × 10^-3 N/C.
B) -6.0 × 10^-3 N/C.
C) 3.8 × 10^-3 N/C.
D) -3.8 × 10^-3 N/C.
E) 7.1 × 10^-3 N/C.

Question 26

A proton is placed in an electric field of intensity 700 N/C.What are the magnitude and direction of the acceleration of this proton due to this field? (m_proton = 1.67 × 10^-27 kg,

A) 6.71 × m/ opposite to the electric field
B) 6.71 × m/ opposite to the electric field
C) 6.71 × m/ in the direction of the electric field
D) 67.1 × m/ opposite to the electric field
E) 67.1 × m/ in the direction of the electric field

Question 27

In the figure,charge = 3.1 × C is placed at the origin and charge is placed on the x-axis,at x = -0.20 m.Where along the x-axis can a third charge be placed such that the resultant force on this third charge is zero?

Question 28

Two small insulating spheres are attached to silk threads and aligned vertically as shown in the figure.These spheres have equal masses of 40 g,and carry charges q₁ and q₂ of equal magnitude 2.0 μC but opposite sign. The spheres are brought into the positions shown in the figure,with a vertical separation of 15 cm between them.Note that you cannot neglect gravity.(k = 1/4πε₀ = The tension in the lower thread is closest to

A) 1.2 N.
B) 1.4 N.
C) 1.6 N.
D) 1.8 N.
E) 2.0 N.

Question 29

In the figure Q = 5.8 nC and all other quantities are accurate to 2 significant figures.What is the magnitude of the force on the charge Q? (k = 1/4πε₀ =

A) 1.8 × 10^-3 N
B) 1.0 × 10^-3 N
C) 9.0 × 10^-4 N
D) 1.2 × 10^-3 N

Question 30

Two point charges of +20.0 μC and -8.00 μC are separated by a distance of 20.0 cm.What is the magnitude of electric field due to these charges at a point midway between them?

A) 25.2 × N/C directed toward the negative charge
B) 25.2 × N/C directed toward the positive charge
C) 25.2 × N/C directed toward the negative charge
D) 25.2 × N/C directed toward the positive charge
E) 25.2 × N/C directed toward the negative charge

Question 31

Three +3.0-μC point charges are at the three corners of a square of side 0.50 m.The last corner is occupied by a -3.0-μC charge.Find the magnitude of the electric field at the center of the square.

Question 32

The electric field 1.5 cm from a very small charged object points toward the object with a magnitude of 180,000 N/C.What is the charge on the object?

A) -4.5 nC
B) +4.5 nC
C) -5.0 nC
D) +5.0 nC

Question 33

The point charge at the bottom of the figure is ,and the curve is a circular arc.What is the magnitude of the force on the charge Q due to the other point charges shown?

A) 1.9 × 10^-4 N
B) 1.2 × 10^-4 N
C) 1.6 × 10^-4 N
D) 2.3 × 10^-4 N

Question 34

A point charge Q of mass 8.50 g hangs from the horizontal ceiling by a light 25.0-cm thread.When a horizontal electric field of magnitude 1750 N/C is turned on,the charge hangs away from the vertical as shown in the figure.The magnitude of Q is closest to

A) 27.5 µC.
B) 47.6 µC.
C) 55.0 µC.
D) 3.0 µC.
E) 3.5 µC.

Question 35

In the figure,a small spherical insulator of mass 6.00 × 10^-2 kg and charge +0.400 μC is hung by a thin wire of negligible mass.A charge of -0.220 μC is held 0.290 m away from the sphere and directly to the right of it,so the wire makes an angle θ with the vertical,as shown.What is the angle θ?

A) 0.917°
B) 1.10°
C) 1.30°
D) 1.50°
E) 1.70°

Question 36

In the figure,all the charges are point charges and the charge in the middle is For what charge q₁ will charge q₂ be in static equilibrium?

A) 12 nC
B) 6.2 nC
C) 3.1 nC
D) 25 nC

Question 37

An atomic nucleus has a charge of +40e.What is the magnitude of the electric field at a distance of 1.0 m from the center of the nucleus? (k = 1/4πε₀ = ,

A) 5.4 × 10^-8 N/C
B) 5.6 × 10^-8 N/C
C) 5.8 × 10^-8 N/C
D) 6.0 × 10^-8 N/C
E) 6.2 × 10^-8 N/C

Question 38

A point charge Q = -500 nC and two unknown point charges,q₁ and q₂,are placed as shown in the figure.The electric field at the origin O,due to charges Q,q₁ and q₂,is equal to zero.The charge q₁ is closest to

A) 130 nC.
B) 76 nC.
C) 150 nC.
D) -76 nC.
E) -130 nC.

Question 39

A +7.00 μC point charge and -9.00 μC point charge are placed along the x-axis at x = 0.000 cm and x = 40.0 cm,respectively.Where must a third charge,q,be placed along the x-axis so that it does not experience any net electric force due to the other two charges?

A) -0.200 m
B) 2.99 m
C) -0.187 m
D) -2.99 m
E) 0.187 m

Question 40

What is the minimum magnitude of an electric field that balances the weight of a plastic sphere of mass that has been charged to

A) 2.1 × 10⁷ N/C
B) 2.4 × 10⁶ N/C
C) 4.5 × 10⁶ N/C
D) 6.4 × 10⁶ N/C

Question 41

Two very large,flat plates are parallel to each other.Plate A,located at y = 1.0 cm,is along the xz-plane and carries a uniform surface charge density -1.00 μC/ .Plate B is located at y = -1.0 cm and carries a uniform surface charge density +2.00 μC/ .What is the electric field vector at the point having x,y,z coordinates (-0.50 cm,0.00 cm,0.00 cm)?

A) (+1.13 × N/C)
B) (-2.83 × N/C)
C) (+1.19 × N/C)
D) (+1.69 × N/C)
E) (-1.19 × N/C)

Question 42

An initially-stationary electric dipole of dipole moment = (5.00 × 10^-10 C • m) placed in an electric field = (2.00 × 10⁶ N/C) + (2.00 × 10⁶ N/C) .What is the magnitude of the maximum torque that the electric field exerts on the dipole?

A) 2.00 × 10^-3 N • m
B) 1.40 × 10^-3 N • m
C) 2.80 × 10^-3 N • m
D) 0.00 N ∙ m
E) 1.00 × 10^-3 N • m

Question 43

At a distance of 4.3 cm from the center of a very long uniformly charged wire,the electric field has magnitude 2000 N/C and is directed toward the wire.What is the charge on a 1.0 cm length of wire near the center?

A) -0.048 nC
B) -0.052 nC
C) -0.044 nC
D) -0.056 nC

Question 44

A pair of charged conducting plates produces a uniform field of 12,000 N/C,directed to the right,between the plates.The separation of the plates is 40 mm.An electron is projected from plate A,directly toward plate B,with an initial velocity of ,as shown in the figure. , , The distance of closest approach of the electron to plate B is nearest to

A) 16 mm.
B) 18 mm.
C) 20 mm.
D) 22 mm.
E) 24 mm.

Question 45

A long,thin rod parallel to the y-axis is located at x = -1.0 cm and carries a uniform linear charge density of +1.0 nC/m.A second long,thin rod parallel to the z-axis is located at and carries a uniform linear charge density of -1.0 nC/m.What is the net electric field due to these rods at the origin?

A) (-3.6 × 10³ N/C)
B) (1.8 × 10³ N/C)
C) (-1.8 × 10³ N/C)
D) (3.6 × 10³ N/C)
E) zero

Question 46

A dipole with a positive charge of and a negative charge of is centered at the origin and oriented along the x-axis with the positive charge located to the right of the origin.The charge separation is 0.0010 m.Find the electric field due to this dipole at the point

A) 0.56 N/C
B) -0.56 N/C
C) 0.28 N/C
D) -0.28 N/C

Question 47

In the figure,a proton is projected horizontally midway between two parallel plates that are separated by The electrical field due to the plates has magnitude between the plates away from the edges.If the plates are long,find the minimum speed of the proton if it just misses the lower plate as it emerges from the field. , ,

Question 48

An electric dipole is made of two charges of equal magnitudes and opposite signs.The positive charge,q = 1.0 μC,is located at the point (x,y,z)= (0.00 cm,1.0 cm,0.00 cm),while the negative charge is located at the point (x,y,z)= (0.00 cm,-1.0 cm,0.00 cm).How much work will be done by an electric field = (3.0 × 10⁶ N/C) to bring the dipole to its stable equilibrium position?

A) 0.060 J
B) 0.030 J
C) 0.00 J
D) 0.020 J
E) 0.12 J

Question 49

A 5.0-μC point charge is placed at the 0.00 cm mark of a meter stick and a -4.0-μC point charge is placed at the 50 cm mark.At what point on a line joining the two charges is the electric field due to these charges equal to zero?

Question 50

An electric field is set up between two parallel plates,each of area 2.0 m²,by putting 1.0 μC of charge on one plate and -1.0 μC of charge on the other.The plates are separated by 4.0 mm with their centers opposite each other,and the charges are distributed uniformly over the surface of the plates.What is the magnitude of the electric field between the plates at a distance of 1.0 mm from the positive plate,but not near the edges of the plates?

A) 4.2 × 10⁴ N/C
B) 1.4 × 10⁴ N/C
C) 3.1 × 10⁴ N/C
D) 0.00 N/C
E) 5.6 × 10⁴ N/C

Question 51

The electric field strength in the space between two closely spaced parallel disks is .This field is the result of transferring 3.9 × 10⁹ electrons from one disk to the other.What is the diameter of the disks? (e = 1.60 × 10^-19 C,

A) 3.0 cm
B) 1.5 cm
C) 4.5 cm
D) 6.0 cm

Question 52

A 3.0-μC positive point charge is located at the origin and a positive point charge is located at Find the coordinates of the point where the net electric field strength due to these charges is zero.

A) x = 0.00 m, y = 0.55 m
B) x = 0.00 m, y = 0.67 m
C) x = 0.00 m, y = 1.5 m
D) x = 0.00 m, y = 0.60 m

Question 53

In the figure,a ring 0.71 m in radius carries a charge of + 580 nC uniformly distributed over it.A point charge Q is placed at the center of the ring.The electric field is equal to zero at field point P,which is on the axis of the ring,and 0.73 m from its center. The point charge Q is closest to

A) -210.
B) -300.
C) -420.
D) 210.
E) 300.

Question 54

A pair of charged conducting plates produces a uniform field of 12,000 N/C,directed to the right,between the plates.The separation of the plates is 40 mm.An electron is projected from plate A,directly toward plate B,with an initial velocity of ,as shown in the figure. ,ε₀ = , The velocity of the electron as it strikes plate B is closest to

A) 1.2 × 10⁷ m/s.
B) 1.5 × 10⁷ m/s.
C) 1.8 × 10⁷ m/s.
D) 2.1 × 10⁷ m/s.
E) 2.4 × 10⁷ m/s.

Question 55

A thin,circular disk of radius 30.0 cm is oriented in the yz-plane with its center at the origin.The disk carries a total charge of +3.00 μC distributed uniformly over its surface.Calculate the magnitude of the electric field due to the disk at the point along the x-axis.

A) 9.95 × 10⁵ N/C
B) 4.98 × 10⁵ N/C
C) 3.31 × 10⁵ N/C
D) 2.49 × 10⁵ N/C
E) 1.99 × 10⁵ N/C

Question 56

A very long wire carries a uniform linear charge density of What is the electric field strength from the center of the wire at a point on the wire's perpendicular bisector?

A) 7.9 N/C
B) 3.9 N/C
C) 0.49 N/C
D) 0.031 N/C

Question 57

An electric dipole consists of charges ±5.00 µC separated by 1.20 mm.It is placed in a vertical electric field of magnitude 525 N/C oriented as shown in the figure.The magnitude of the net torque this field exerts on the dipole is closest to

A) 2.02 × 10^-6 N • m.
B) 3.15 × 10^-6 N • m.
C) 2.41 × 10^-6 N • m.
D) 1.01 × 10^-6 N • m.
E) 1.21 × 10^-6 N • m.

Question 58

Three equal negative point charges are placed at three of the corners of a square of side d.What is the magnitude of the net electric field at the center of the square?

Question 59

Two flat 4.0 cm × 4.0 cm electrodes carrying equal but opposite charges are spaced 2.0 mm apart with their midpoints opposite each other.Between the electrodes but not near their edges,the electric field strength is 2.5 × 10⁶ N/C.What is the magnitude of the charge on each electrode?

A) 35 nC
B) 18 nC
C) 16 nC
D) 30 nC

Question 60

Two thin 80.0-cm rods are oriented at right angles to each other.Each rod has one end at the origin of the coordinates,and one of them extends along the +x-axis while the other extends along the +y-axis.The rod along the +x-axis carries a charge of -15.0 µC distributed uniformly along its length,and the other rod carries +15.0 µC uniformly over its length.Find the magnitude and direction of the net electrical force that these two rods exert on an electron located at the point (40.0 cm,40.0 cm). ,
