Deck 37: Systems of Measurement

Question 1

An object is accelerating if it moves

A)with constant velocity
B)in a circular path
C)in a straight-line path
Because it is undergoing a change in its
D)speed.
E)direction.
F)net force.

Answer 1

in a circular path
direction.

Question 2

-A block is pulled across a floor as shown in the vector diagram. The force vector F has the greater component in the

A)horizontal direction,
B)vertical direction,And this component is
C)larger than the vector F.
D)smaller than the vector F.
E)equal to the vector F.

Answer 2

horizontal direction,
smaller than the vector F.

Question 3

An object is dropped from a position of rest. At the end of the first second of free fall it will have traveled about

A)0 m
B)5 m
C)10 m
And its velocity will be about
D)0 m/s.
E)5 m/s.
F)10 m/s.

Answer 3

5 m
10 m/s.

Question 4

Figure V-8

Which of the sailboats shown sails fastest in its forward direction?

A)1
B)2
C)3
D)None sails forward.
It is interesting to note that the force of the wind impact is
E)nonexistent on each sail.
F)greatest on 1.
G)greatest on 2.
H)greatest on 3.

Question 5

Figure V-6


-The boat that will sail fastest in the intended direction is

A)1,
B)2,
C)3,
D)4,
And the boat that responds least to the wind is
E)1.
F)2.
G)3.
H)4.

Question 6

The airspeed of an airplane is 100 km/h. When it is caught in a 100-km/h right-angled crosswind, its speed across the ground below is about

A)0 km/h.
B)100 km/h.
C)140 km/h.
D)200 km/h.
E)more than 200 km/h.
If the airplane changes direction and flies at 60 degrees to the wind, its ground speed will
F)decrease.
G)remain the same.
H)increase.

Question 7

The property of objects to resist a change in motion is called

A)friction,
B)velocity,
C)inertia,
D)acceleration,
E)gravity,
And it is measured by its
F)speed.
G)velocity.
H)mass.
I)all of these.

Question 8

A car increases its speed from 60 to 65 miles per hour in the same time that a bicycle increases its speed from rest to 5 miles per hour. Acceleration is

A)greater for the car,
B)greater for the bicycle,
C)the same for each,
Principally because
D)the car undergoes the greater change in velocity.
E)the bicycle has considerably less mass.
F)both undergo equal increases in velocity during the same interval of time.

Question 9

The force required to maintain a body at constant velocity in free space is equal to

A)the mass of the body.
B)zero.
C)the weight of the body.
D)the force required to stop it.
E)none of these.
This is in accordance with the law of
F)inertia.
G)action/reaction.
H)gravitation.
I)energy conservation.

Question 10

To say that an object is being accelerated, means that

A)it is at rest,
B)it is moving,
C)it is either at a state of rest or a state of constant velocity,
D)its state of motion is changing,
And we define acceleration to be
E)a change in speed.
F)a change in velocity.
G)the rate at which speed changes.
H)the rate at which velocity changes.

Question 11

Figure V-4

Which of the sailboats shown sails the fastest in its forward direction?

A)1
B)2
C)3
D)4
It is interesting to note that
E)this is the only boat that sails forward.
F)only two of the boats sail forward.
G)three out of the four boats sail forward.
H)all sail forward, but at different speeds.

Question 12

An object drops in free fall. At one instant it is moving at a speed of 50 meters per second. Exactly one second later its speed is about

A)10 m/s.
B)50 m/s.
C)60 m/s.
D)100 m/s.
This is because
E)no net force acts on the object while in its state of free fall.
F)it gains a speed of about 10 m/s for each second of fall.
G)its velocity nearly doubles each second.

Question 13

Figure V-3

The weight of the barrel on the slope is shown by the vector which has components (not shown)parallel to the surface of the incline and perpendicular to the surface of the incline. Judging from the slope of incline, the greater of these two components is

A)parallel to the slope.
B)perpendicular to the slope.
C)both the same.
D)need more information
If the slope of the incline were steeper, this component vector would
E)decrease.
F)remain the same.
G)increase.
H)again, can't really say.

Question 14

Figure V-7


-The boat to make the fastest progress in its forward direction is boat

A)1.
B)2.
C)3.
D)4.
Boat 3 is not propelled in a forward direction because
E)the wind does not make impact with the sail.
F)there is no component of force parallel to the keel.
G)of air resistance on the front of the sail.
H)But it is propelled in a forward direction!

Question 15

Figure V-2


-A block is pulled across a floor as shown in the vector diagram. The greater component of F is in the

A)horizontal direction,
B)vertical direction,Although both horizontal and vertical components would be of equal magnitude if vector F were
C)horizontal.
D)vertical.
E)at an angle of 45°.

Question 16

The speedometer of a car indicates a constant speed of 30 miles per hour. From this we can say that the acceleration of the car is

A)zero.
B)nonzero.
C)can't really say.
This is because
D)no net force is acting on the car.
E)any reading (other than zero)on the speedometer indicates acceleration.
F)the car may be changing its direction.

Question 17

Neglecting friction, a ball rolling along a horizontal plane will

A)accelerate indefinitely.
B)roll until the force used to roll it was used up.
C)roll indefinitely at a constant speed.
This illustrates
D)the basic principle that a body requires a push or pull to keep it moving.
E)inertia.
F)the law of net force.

Question 18

To say that an object is moving at constant velocity means that it is

A)at rest,
B)moving at an unchanging speed,
C)moving at an unchanging speed in a straight-line path,
And that its acceleration is
D)zero.
E)constantly increasing (or decreasing).
F)uniform.

Question 19

If an object is thrown downward from a tall cliff, its acceleration while falling (in the absence of air resistance)will be

A)less than 10 m/s².
B)10 m/s².
C)greater than 10 m/s².
This is evident from the fact that
D)gravitational force depends upon the state of motion of an object.
E)each successive second the speed of the object increases by an additional 10 m/s.
F)the object was not simply dropped but thrown, therefore having an initial acceleration of fall greater than zero.

Question 20

Figure V-5

A small railroad car is pulled by a rope as shown in the sketch (top view). The force F that the rope exerts on the car has a component along the track and another component perpendicular to the track. Judging from the diagram, the larger of these two components would be

A)along the track.
B)perpendicular to the track.
These components will be equal if
C)the rope makes an angle of 45° with the track.
D)the rope is pulled in a direction along the track, rather than at an angle to it.
E)they form an action-reaction pair on the car.
F)but they can never really be equal.

Question 21

Figure N-6

Two 50-N weights pull on the scale as shown. The reading on the scale is

A)0 N.
B)25 N.
C)50 N.
D)100 N.
This is clearer to understand if we think of the situation this way:
E)Since no acceleration is taking place, the forces cancel one another.
F)One of the weights "holds" the scale while the other weight stretches the spring.
G)The two hanging weights provide forces that constitute an action/reaction pair.

Question 22

Figure N-1

When the spool is pulled to the left, it accelerates toward the

A)right,
B)left,
Which illustrates the fact that
C)for every force there is an equal and opposite reaction force.
D)net force and acceleration act in the same direction.

Question 23

If an apple falls a distance of 2 meters in its first second of fall, then 2 meters in its next second of fall, and again 2 meters during its third second of fall, the acceleration of the apple is

A)0 m/s².
B)2 m/s².
C)4 m/s².
D)10 m/s².
E)actually, more than 10 m/s².
This is because
F)no change in velocity occurs during fall.
G)the apple increases in distance by 2 meters for each successive second.
H)the average velocity is 1 m/s for each successive second.
I)its weight is counterbalanced by its inertia.

Question 24

A person is attracted toward the center of Earth by a gravitational force of 500 N. The force with which Earth is attracted toward the person is

A)500 N
B)infinitesimally small
C)billions and billions of tons
Principally because
D)the forces in question make an action/reaction pair.
E)the mass of the person is negligible compared to the mass of Earth.
F)Earth itself weighs billions and billions of tons.
G)of inertia.

Question 25

Figure N-2

A 100-N little physics tyke hangs on the ends of a rope suspended over a pulley as shown. The tension in the rope is

A)0 N.
B)50 N.
C)100 N.
D)200 N.
It is interesting to note that
E)the tension in the rope at its midpoint (uppermost part)is 100 N.
F)this is a modified tug-o'-war example (simply draped over a pulley).
G)the net force acting on the rope is in this case identical to the child's weight.

Question 26

In the absence of air resistance, a boulder and a pebble dropped from rest will fall with equal

A)forces of gravity.
B)accelerations.
C)energies.
D)all these.
The reason that this quantity is not greater for the boulder than the pebble is that
E)both the boulder and the pebble fall at the same speed.
F)the initial potential energies of each is the same.
G)gravitational force acting on each is the same.
H)the greater gravitational force on the boulder acts on a correspondingly greater mass.

Question 27

A rifle is fired straight downward from a high-altitude balloon. If the bullet leaves the barrel at 100 m/s, then its speed one second later (neglecting air resistance)will be about

A)10 m/s
B)100 m/s
C)105 m/s
D)110 m/s
And its distance below will be about
E)5 m.
F)100 m.
G)105 m.
H)110 m.
I)120 m.

Question 28

An elephant and a feather fall through the air. The force of air resistance is

A)greater on the feather
B)greater on the elephant
C)the same on each
Because
D)the feather weighs less.
E)the elephant encounters more air because of his greater size and speed.
F)each is under the influence of gravitational force alone.

Question 29

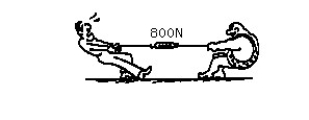

Figure N-5

The two men compete in a tug of war. Both pull equally and the scale reads 800 newtons. Each man must pull with a force of

A)400 N.
B)800 N.
C)0 N.
Consider action and reaction forces in this case: If action is the man on the left pulling on the rope, then the reaction force is
D)the rope pulling on the man on the left.
E)the rope pulling on the man on the right.
F)the man on the right pulling on the rope.

Question 30

Figure E/M-4

Refer to the figure above. Assume the switch in the primary has been closed for a few minutes. Then there is a current in the

A)primary, but not the secondary.
B)secondary, but not the primary.
C)primary and secondary.
D)neither the primary nor the secondary.
When the switch is opened suddenly, current in the primary
E)decreases, while current builds up in the secondary.
F)increases, while current decreases in the secondary.

Question 31

If an object has twice as much mass as another, then it also has twice as much

A)acceleration.
B)weight.
C)center of gravity.
D)area.
This is because
E)of inertia.
F)mass and weight are directly proportional to each other.
G)the gravitational force acting on all objects in the same locality is the same.

Question 32

A 100-newton sack of potatoes falls from an airplane. As velocity of fall increases, air resistance also increases, and when air resistance equals 100 N, the acceleration of the sack is

A)zero
B)5 m/s²
C)10 m/s²
D)100 m/s²
And the velocity of the sack will be
E)0 m/s.
F)5 m/s.
G)10 m/s.
H)100 m/s.
I)constant.

Question 33

-Refer to the figure above. When the switch is closed in the primary circuit,

A)voltage is established in the primary coil
B)a current is established in the primary coil
C)a magnetic field builds up around the primary coil
D)all of the above
And a voltage is induced in the secondary circuit principally because
E)of the voltage in the primary.
F)of the change of current in the primary.
G)the expanding magnetic field about the primary is sensed by the secondary.

Question 34

You can exert more force on the pedals of a bicycle if you pull up on the handlebars because

A)your center of gravity can be shifted to a position directly above the pedals,
B)the handlebars, in turn, pull down on you and this force is transmitted to the pedals,
C)rotational inertia is lessened,
D)rotational inertia is increased,
All of which illustrates
E)that equilibrium is center-of-gravity dependent.
F)the law of action and reaction.
G)inertia may be both linear and rotational.

Question 35

Figure N-4

Each group in a tug-of-war pulls with 1000 N on each side of the rope. The net force on the rope is

A)0 N
B)500 N
C)1000 N
D)2000 N
And the tension within the rope is
E)0 N.
F)500 N.
G)1000 N.
H)2000 N.

Question 36

Which of the following has the greater weight?

A)1 kilogram of gold
B)1 kilogram of feathers
C)both weigh the same in the same locality
This follows from the fact that
D)gold is more compact than feathers.
E)weight and mass are directly proportional to each other.

Question 37

In referring to how much matter a body contains, we use the term

A)volume
B)mass
C)weight
And the force of gravitational attraction upon a body is
D)weight.
E)volume.
F)mass.

Question 38

A baseball is thrown straight upward. At the very top of its trajectory its instantaneous velocity is zero and its acceleration is

A)zero.
B)10 m/s².
C)between zero and 10 m/s².
D)none of these.
We can better understand this by noting that when it is at its highest point
E)there momentarily is no motion.
F)its rate of change of motion is still 10 m/s².
G)although its velocity is not changing, its direction is.

Question 39

Figure N-3

If an 800-N man hangs motionless from four vertical strands of rope, then the tension in each strand of rope is

A)0 N
B)200 N
C)400 N
D)800 N
Which results in a net force on the man of
E)0 N.
F)200 N.
G)400 N.
H)800 N.

Question 40

Neglecting all types of friction, if two identical sleds, one empty and the other with four heavy passengers, start sliding down a hill together, the heavier sled will get to the bottom

A)before the empty car,
B)after the empty car,
C)at the same time as the empty car,
While in the presence of air resistance, the heavier car will get to the bottom
D)before the empty car.
E)after the empty car.
F)at the same time as the empty car.

Question 41

A 200-N weight hangs motionless from a string that is attached to the ceiling. The net force acting on the weight is

A)zero,
B)100 N,
C)200 N,
And if the string breaks, the net force acting on the weight will be
D)zero.
E)100 N.
F)200 N.

Question 42

If in the absence of external forces, a rotating ball of hot gas cools and contracts, its rate of rotation

A)decreases
B)remains essentially the same
C)increases
And its angular momentum
D)decreases.
E)remains essentially the same.
F)increases.

Question 43

We can apply the equation Ft = change in (mv)to the case of a baseball player striking a pitched ball. To impart the maximum change in momentum, mv, to the ball, the batter hits the ball with the greatest force he can muster and he also

A)extends the time of contact as much as possible by "following through."
B)makes the time of contact as short as possible, thereby increasing the force.
C)none of the above!
In the impulse-momentum equation applied to hitting the ball, the "v" represents
D)the velocity of the bat.
E)the velocity of the ball.
F)a vector quantity.

Question 44

Figure N-10

As the ball rolls from A to B its velocity increases and its acceleration

A)increases;
B)decreases;
C)remains constant;
And when it rolls from B to C its acceleration along the path
D)increases.
E)decreases.
F)remains constant.

Question 45

A stone is thrown downward from a tall cliff and hits the ground below. If it were instead thrown straight upward with the same initial speed, it would end up striking the ground below (neglect air resistance)with

A)the same speed.
B)less speed.
C)greater speed.
If air resistance IS a factor, then when the stone is moving downward it will undergo
D)an increase in acceleration as velocity increases.
E)a decrease in acceleration as velocity increases.
F)a constant acceleration.

Question 46

The net force that acts on a 100-N freely falling body is

A)zero,
B)9.8 N,
C)100 N,
And its acceleration is
D)zero.
E)9.8 m/s².
F)100 m/s².

Question 47

Figure N-9

While a ship moves toward the right at constant velocity, a seaman atop the mast drops a stone which freely falls to position

A)A)
B)B)
C)C)
This is better understood by realizing that
D)the ship moved to the right a distance equal to that between A and B while the stone fell vertically.
E)the stone was moving to the right just as fast as the ship during the fall.
F)the net force acting on the stone is equal to its weight.
G)because of inertia, the stone experiences a horizontal motion unlike that of the ship.
H)the stone underwent an acceleration while the ship did not.

Question 48

When the momentum of a punch is stopped by the fighter's jaw, he "rides with the punch" so as to

A)decrease the velocity of the blow,
B)increase the time of contact of the blow,
And thereby reduce the
C)force.
D)impulse.
E)momentum.
F)energy.

Question 49

If a constant net force is applied to a body, the body is

A)accelerating.
B)moving at constant speed.
C)at rest or moving at constant velocity.
If a body is moving at constant velocity, it must have
D)a constant net force acting upon it.
E)constant non-zero acceleration.
F)constant speed.
G)none of the above.

Question 50

If the polar ice caps melted and flowed toward the equator, the rotation of Earth would tend to

A)decrease in angular speed,
B)be unchanged,
C)increase in angular speed,
With the result that the day would be
D)slightly longer.
E)slightly shorter.
F)unaffected.

Question 51

Figure N-11

As the ball rolls from the straight path from A to B its velocity increases and its acceleration

A)increases,
B)decreases,
C)remains constant,
And as it rolls from B to C its acceleration along the path
D)increases.
E)decreases.
F)remains constant.

Question 52

If you push with 200 N of force against your 1500-N refrigerator and it slides across your kitchen floor at constant velocity, friction of the floor against the refrigerator must be

A)zero,
B)200 N,
C)1300 N,
D)1500 N,
E)greater than 1500 N,
And the force with which you push must be
F)equal and oppositely directed to the friction force.
G)the action force, and the friction the reaction force.
H)both of these.
I)none of these.

Question 53

A sports car and a moving van move at the same speed when they crash into a cement wall and stop equally quickly. The vehicle to have the greater force of impact will be

A)the sports car,
B)the van,
C)neither, for they experience equal forces of impact
Because
D)they are traveling at the same speed.
E)the van's momentum is much greater.
F)the sport car has a greater change in velocity upon impact.
G)they both have equal momentum.

Question 54

A skydiver jumps through the air from a high-flying plane. As her velocity of fall increases, the net force acting on her

A)increases also,
B)decreases,
C)remains unchanged,
And her acceleration
D)increases.
E)decreases.
F)remains unchanged.

Question 55

When the momentum of a punch is stopped by the fighter's jaw while he moves into the oncoming punch, the result is

A)an increase in the relative velocity of the blow,
B)a decrease in the time of contact of the blow,
Which thereby most greatly increases the
C)force.
D)impulse.
E)momentum.
F)inertia.
G)energy.

Question 56

A ball is thrown against a wall, bounces off, and is caught. The number of impulses acting on the ball is

A)one.
B)two.
C)three.
D)none.
The greatest impulse occurs when the ball
E)is thrown.
F)bounces against the wall.
G)is caught.
H)is zero for each.
I)is nonzero, but the same for each case.

Question 57

A horizontal 100-N force exerted against a 1000-N block causes the block to slide on a level surface with constant velocity. The friction force on the block must be

A)zero.
B)100 N.
C)1000 N.
D)greater than 1000 N.
In this case the pushing force and the friction force are
E)equal but oppositely directed.
F)an action-reaction pair.
G)both of these.
H)none of these.

Question 58

A freight car rolls along a horizontal track at 12 m/s and hooks onto an identical freight car at rest. The coupled cars will

A)come to a quick stop,
B)roll at 3 m/s,
C)roll at 6 mph,
D)roll at 12 ms,
Which makes sense because
E)in the absence of external forces, trains in motion continue in motion.
F)the acceleration of the car at rest equals the force of impact divided by the two masses.
G)since twice the mass is moving, the speed will be half for the same momentum.
H)energies before and after the collision remain the same.

Question 59

An open freight car rolls friction free along a horizontal track in a pouring rain that falls vertically. As water accumulates in the car, the car's speed

A)increases.
B)decreases.
C)remains the same.
This is best explained by the principle of
D)inertia.
E)momentum conservation.
F)energy conservation.
G)Newton's 2nd law.

Question 60

According to the equation Ft = change in (mv), a foam rubber dashboard is safer than a metal one, for the force of impact, F, of an occupant against the dash is lessened in an accident. In this case, the "m" in this equation represents the

A)mass of the car,
B)mass of the person,
C)momentum of the car,
D)momentum of the person,
And the "v" represents the
E)velocity of the car.
F)speed at which the person hits the dashboard.
G)relative velocity between cars in a collision.
H)change in velocity, which is 10 m/s².

Question 61

All things being practically equal, if the energy content in gasoline were doubled, then the distance a car should travel per liter of gasoline should

A)be no different.
B)double.
C)quadruple.
If the low-energy and high-energy fuels are burned in the same time, then compared to the POWER produced by combustion of the low-energy gasoline, the power produced by the combustion of the higher-energy gasoline should
D)be no different
E)double
F)quadruple

Question 62

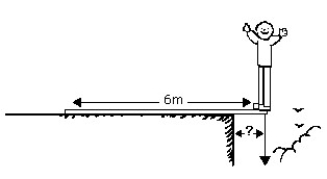

Figure T-3


-The 50-kg stuntman places a 50-kg uniform 6-meter plank on top of a skyscraper and stands on the tip of it that overhangs the building as shown. What is the approximate distance that the overhang can be extended without disaster?

A)0.5 m
B)1 m
C)1.5 m
If the 6-meter board has a mass of only 25 kilograms, then the maximum overhang distance would be about
D)0.5 m.
E)1 m.
F)1.5 m.
G)2 m.

Question 63

Figure E-4

The center of gravity for each truck is marked X. Which truck(s)will tip over?

A)Truck 1
B)Truck 2
C)Truck 3
D)All will tip.
This is because
E)its center of gravity is highest.
F)its center of gravity is lowest.
G)its center of gravity lies beyond a point of support.
H)all the centers of gravity lie above the wheelbases.

Question 64

Figure G-1

Pretend an object is set sliding on a huge frictionless plane in contact with the surface of Earth as shown. Once the object is set in motion it will

A)theoretically slide to the right forever
B)slide back and forth
C)slow down and stop
Because
D)of its inertia.
E)gravitational force decreases with increasing distance.
F)the object is sliding "uphill" and then "downhill" relative to the round Earth.

Question 65

Figure E-2


-A pendulum bob swings to and fro as shown in the sketch. The kinetic energy of the bob

A)is maximum at position A,
B)is maximum at position B,
C)is the same at all positions,
And the potential energy is maximum at position
D)A.
E)B.
F)is the same at all positions.

Question 66

A golf ball moving forward with 1 unit of momentum strikes a heavy bowling ball that is initially at rest. After the golf ball bounces backward, the bowling ball is in motion with a momentum that must be

A)1 unit.
B)more than 1 unit.
C)less than 1 unit.
The magnitude of the golf ball's momentum after collision must be somewhat less than 1 unit, for otherwise a violation would occur in the conservation of
D)energy.
E)momentum.
F)both.
G)neither.

Question 67

A very massive body A and a less massive body B move toward each other under the influence of gravity. Compared to the force on A, the force on B is

A)greater.
B)the same.
C)less.
As A and B get closer and closer, each experiences an increase in
D)velocity.
E)acceleration.
F)force.
G)all of these.
H)none of these.

Question 68

Figure T-2

The heavy boy and light girl are balanced on the seesaw. If they both move inward so that each is exactly half the original distance from the pivot, then the

A)boy's end will move downward.
B)girl's end will move downward.
C)seesaw will remain in balance.
If the fulcrum of the seesaw is repositioned so each can sit at an END of the board and be in balance, then if each moves inward half way the
D)boy's end will move downward
E)girl's end will move downward
F)seesaw will remain balanced

Question 69

Jocko the clown at the top of a tall flagpole has considerable potential energy relative to the circus net below. After stepping off the pole and neglecting air resistance, his potential energy when he is half way to the net is

A)the same as at the top,
B)one quarter the amount at the top,
C)one half the amount at the top,
D)more than one-half the amount at the top,
And compared to his kinetic energy when meeting the net, his kinetic energy at the half-way point is
E)one half.
F)the same as his potential energy at the half-way point.
G)both of these
H)neither of these

Question 70

A woman standing on the surface of Earth has a mass of 70 kg and a weight of 700 N. If instead she is floating freely inside a non-rotating space habitat far from Earth, her mass would be

A)less than 70 kg
B)70 kg
C)more than 70 kg
And her weight would be
D)less than 700 N.
E)700 N.
F)more than 700 N.

Question 71

If the mass of Earth somehow increased with no change in radius, your weight would

A)increase also.
B)decrease.
C)remain the same.
If instead, both Earth's mass and its radius doubled, your weight at Earth's surface would be
D)half before the changes.
E)the same as before the changes.
F)twice.
G)four times greater.

Question 72

Figure E-1

A marble rolls back and forth along the path shown. When it is at position B, its kinetic energy is

A)maximum,
B)minimum,
C)midway between maximum and minimum,
Its momentum is
D)maximum..
E)minimum..
F)midway between..maximum and minimum,
And its potential energy is
G)maximum.
H)minimum.
I)midway between.
maximum and minimum

Question 73

As a spaceship nears the Moon, its mass

A)varies slightly with distance,
B)increases,
C)decreases,
D)remains unchanged,
While the Moon's gravitation force on the ship
E)increases.
F)decreases.
G)remains unchanged.

Question 74

Earth and the Moon are attracted to each other by gravitational force. The more-massive Earth attracts the less-massive Moon with a force

A)less than the force that Moon exerts on Earth.
B)greater than that of the force that Moon exerts on Earth.
C)the same as that of the force that Moon exerts on Earth.
This is in accord with
D)the law of inertia.
E)Kepler's Laws.
F)the conservation of energy.
G)the fact that both Moon and Earth orbit about a common point, the center of mass.
H)the law of action and reaction.

Question 75

Figure E-6

In the hydraulic device shown, when the small piston is pushed down 10 cm with a force of 10 N, the large piston is raised 1 cm. This means that the large piston is capable of lifting

A)10 N,
B)100 N,
C)1000 N,
D)any amount of weight,
Which illustrates
E)that impulse is equal to a change in momentum.
F)(F × d)input = (F × d)output.
G)Newton's second law.
H)that the stored energy that a body possesses may be transformed into other forms of energy.

Question 76

Figure E-5


-A small bead slides without friction along the wire shown. It begins at A and slides by gravity past B, which doesn't touch the rest of the wire. The potential energy of the bead is greatest at point

A)A,
B)B,
C)C,
D)D,
E)E,
And the bead has its maximum momentum at point
F)A.
G)B.
H)C.
I)D.
10)E.

Question 77

High tides are predominately produced by the

A)strong gravitational pull of the Sun,
B)centrifugal force created by Earth-Moon orbit,
C)differences in gravitational pulls of the Moon on opposite sides of Earth,
Which is due to
D)rotation of Earth and Moon about the Sun.
E)Moon pulling with significantly more force on the closer side of Earth than on the farther side.
F)the Sun's pull on Earth being 200 times stronger than Moon's gravitational pull.

Question 78

A 400-N person stands on the surface of Earth. If he were somehow able to stand on a ladder so that he was twice as far from the center of Earth, he would weigh

A)0 N.
B)100 N.
C)200 N.
D)400 N.
This would be because
E)he would be above the atmosphere.
F)his mass would be the same wherever he was.
G)the force due to gravity obeys the inverse square law.

Question 79

Figure E-3

To lift the 5000-N block, the man finds that he must pull 10 m of rope through his hands for every 1 m the block rises. Neglecting the weights of the pulleys and friction, how hard must the man pull on the rope to raise the block?

A)5 N
B)50 N
C)500 N
D)5000 N
Which is in accord with
E)Newton's second law.
F)that impulse equals change in momentum.
G)(F × d)input = (F × d)output.
H)mechanical energy can be stored as potential energy.

Question 80

Figure T-1

The boy plays "solitary seesaw" as shown. We can understand this by imagining that he has an invisible partner who is actually at the

A)fulcrum.
B)right end of the board.
C)rotational inertia of the seesaw as a whole.
D)seesaw's center of gravity.
Since the seesaw is not rotating, we can say that
E)the net torque on the seesaw is zero.
F)potential energy and kinetic energy are equal to each other.
G)the boy's and the seesaw's centers of gravity must be equal distances from the fulcrum.
H)the boy and the seesaw must have the same weight.
