Deck 35: Interference

Question 1

Interference of light is evidence that:

A) the speed of light is very large
B) light is a transverse wave
C) light is electromagnetic in character
D) light is a wave phenomenon
E) light does not obey conservation of energy

Answer 1

light is a wave phenomenon

Question 2

Waves from two slits are in phase at the slits and travel to a distant screen to produce the second minimum of the interference pattern. The difference in the distance traveled by the wave is:

A) half a wavelength
B) a wavelength
C) three halves of a wavelength
D) two wavelengths
E) three wavelengths

Answer 2

three halves of a wavelength

Question 3

The phase difference between the two waves which give rise to a dark spot in a Young's double-slit experiment is (where m = integer):

A) zero
B) 2 $\pi$ m + $\pi$ /8
C) 2 $\pi$ m + $\pi$ /4
D) 2 $\pi$ m + $\pi$ /2
E) 2 $\pi$ m + $\pi$

Answer 3

2 $\pi$ m + $\pi$

Question 4

In an experiment to measure the wavelength of light using a double slit, it is found that the fringes are too close together to easily count them. To spread out the fringe pattern, one could:

A) halve the slit separation
B) double the slit separation
C) double the width of each slit
D) halve the width of each slit
E) none of these

Question 5

In a Young's double-slit experiment, light of wavelength 500 nm illuminates two slits which are separated by 1 mm. The separation between adjacent bright fringes on a screen 5 m from the slits is:

A) 0.10 cm
B) 0.25 cm
C) 0.50 cm
D) 1.0 cm
E) none of the above

Question 6

Consider (I) the law of reflection and (II) the law of refraction. Huygens' principle can be used to derive:

A) only I
B) only II
C) both I and II
D) neither I nor II
E) the question is meaningless because Huygen's principle is for wave fronts whereas both I and II concern rays

Question 7

A monochromatic light source illuminates a double slit and the resulting interference pattern is observed on a distant screen. Let d = center-to-center slit spacing, a = individual slit width, D = screen-to-slit distance, adjacent dark line spacing in the interference pattern. The wavelength of the light is then:

A)
B) Ld/a
C) da/D
D)
E)

Question 8

In a Young's double-slit experiment, the separation between slits is d and the screen is a distance D from the slits. D is much greater than d and $\lambda$ is the wavelength of the light. The number of bright fringes per unit length on the screen is:

A) Dd/ $\lambda$
B) D $\lambda$ /d
C) D/d $\lambda$
D) $\lambda$ /Dd
E) d/D $\lambda$

Question 9

Light from a point source X contains only blue and red components. After passing through a mysterious box, the light falls on a screen. Red and blue hands are observed as shown. The box must contain:

A) a lens
B) a mirror
C) a prism
D) a double slit
E) a blue and red filter

Question 10

Huygens' construction can be used only:

A) for light
B) for an electromagnetic wave
C) if one of the media is vacuum (or air)
D) for transverse waves
E) for all of these and other situations

Question 11

The light waves represented by the three rays shown in the diagram all have the same frequency. 4.7 wavelengths fit into layer 1, 3.2 wavelengths fit into layer 2, and 5.3 wavelengths fit into layer 3. Rank the layers according to the speeds of the waves, least to greatest.

A) 1, 2, 3
B) 2, 1, 3
C) 3, 1, 2
D) 3, 2, 1
E) 1, 3, 2

Question 12

In a Young's double-slit experiment the center of a bright fringe occurs wherever waves from the slits differ in phase by a multiple of:

A) $\pi$ /4
B) $\pi$ /2
C) $\pi$
D) 3 $\pi$ /4
E) 2 $\pi$

Question 13

Waves from two slits are in phase at the slits and travel to a distant screen to produce the third side maximum of the interference pattern. The difference in the distance traveled by the waves is:

A) half a wavelength
B) a wavelength
C) three halves of a wavelength
D) two wavelengths
E) five halves of a wavelength

Question 14

Units of "optical path length" are:

A) m^-1
B) m
C) m/s
D) Hz/m
E) m/Hz

Question 15

In a Young's double-slit experiment, the slit separation is doubled. To maintain the same fringe spacing on the screen, the screen-to-slit distance D must be changed to:

A) D/2
B)
C)
D) 2D
E) 4D

Question 16

In a Young's double-slit experiment, the slit separation is doubled. This results in:

A) an increase in fringe intensity
B) a decrease in fringe intensity
C) a halving of the wavelength
D) a halving of the fringe spacing
E) a doubling of the fringe spacing

Question 17

In a Young's double-slit experiment the center of a bright fringe occurs wherever waves from the slits differ in the distance they travel by a multiple of:

A) a fourth of a wavelength
B) a half a wavelength
C) a wavelength
D) three-fourths of a wavelength
E) none of the above

Question 18

A "wave front" is a surface of constant:

A) phase
B) frequency
C) wavelength
D) amplitude
E) speed

Question 19

The reason there are two slits, rather than one, in a Young's experiment is:

A) to increase the intensity
B) one slit is for frequency, the other for wavelength
C) to create a path length difference
D) one slit is for fields, the other is for fields
E) two slits in parallel offer less resistance

Question 20

Light from a small region of an ordinary incandescent bulb is passed through a yellow filter and then serves as the source for a Young's double-slit experiment. Which of the following changes would cause the interference pattern to be more closely spaced?

A) Use slits that are closer together
B) Use a light source of lower intensity
C) Use a light source of higher intensity
D) Use a blue filter instead of a yellow filter
E) Move the light source further away from the slits

Question 21

A soap film is illuminated by white light normal to its surface. The index of refraction of the film is 1.50. Wavelengths of 480 nm and 800 nm and no wavelengths between are be intensefied in the reflected beam. The thickness of the film is:

A) 1.5 * 10^-5 cm
B) 2.4 * 10^-5 cm
C) 3.6 * 10^-5 cm
D) 4.0 * 10^-5 cm
E) 6.0 *10^-5 cm

Question 22

In a Young's experiment, it is essential that the two beams:

A) have exactly equal intensity
B) be exactly parallel
C) travel equal distances
D) come originally from the same source
E) be composed of a broad band of frequencies

Question 23

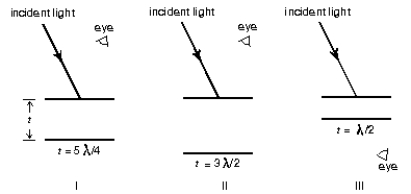

Three experiments involving a thin film (in air) are shown. If t denotes the film thickness and $\lambda$ denotes the wavelength of the light in the film, which experiments will produce constructive interference as seen by the observer?

A) I only
B) II only
C) III only
D) I and III only
E) II and III only

Question 24

A liquid of refractive index n = 4/3 replaces the air between a fixed wedge formed from two glass plates as shown. As a result, the spacing between adjacent dark bands in the interference pattern:

A) increases by a factor of 4/3
B) increases by a factor of 3
C) remains the same
D) decreases to 3/4 of its original value
E) decreases to 1/3 of its original value

Question 25

Binoculars and microscopes are frequently made with coated optics by adding a thin layer of transparent material to the lens surface as shown. One wants:

A) constructive interference between waves 1 and 2
B) destructive interference between waves 3 and 4
C) constructive interference between 3 and 4
D) the coating to be more transparent than the lens
E) the speed of light in the coating to be less than that in the lens

Question 26

To obtain an observable double-slit fringe pattern:

A) the light must be incident normally on the slits
B) the light must be monochromatic
C) the light must consist of plane waves
D) the light must be coherent
E) the screen must be far away from the slits

Question 27

If two light waves are coherent:

A) their amplitudes are the same
B) their frequencies are the same
C) their wavelengths are the same
D) their phase difference is constant
E) the difference in their frequencies is constant

Question 28

An air wedge is formed using two glass plates that are in contact along their left edge. When viewed by highly monochromatic light, there are exactly 4001 dark bands in the reflected light. The air is now evacuated (with the glass plates remaining rigidly fixed) and the number of dark bands decreases to exactly 4000. The index of refraction of the air is:

A) 0.00025
B) 0.00050
C) 1.00025
D) 1.00050
E) 1.00000, by definition

Question 29

Monochromatic light, at normal incidence, strikes a thin film in air. If $\lambda$ denotes the wavelength in the film, what is the thinnest film in which the reflected light will be a maximum?

A) much less than $\lambda$
B) $\lambda$ /4
C) $\lambda$ /2
D) 3 $\lambda$ /4
E) $\lambda$

Question 30

A glass (n = 1.6) lens is coated with a thin film (n = 1.3) to reduce reflection of certain incident light. If $\lambda$ is the wavelength of the light in the film, the least film thickness is:

A) less than $\lambda$ /4
B) $\lambda$ /4
C) $\lambda$ /2
D) $\lambda$
E) more than $\lambda$

Question 31

In a thin film experiment, a wedge of air is used between two glass plates. If the wavelength of the incident light in air is 480 nm, how much thicker is the air wedge at the 16th dark fringe than it is at the 6th?

A) 2400 nm
B) 4800 nm
C) 240 nm
D) 480 nm
E) none of these

Question 32

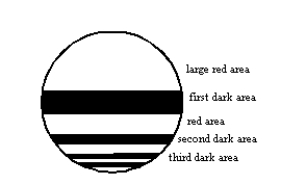

Red light is viewed through a thin vertical soap film. At the third dark area shown, the thickness of the film, in terms of the wavelength within the film, is:

A) $\lambda$
B) 3 $\lambda$ /4
C) $\lambda$ /2
D) $\lambda$ /4
E) 5 $\lambda$ /4

Question 33

A light wave with an electric field amplitude of 2E₀ and a phase constant of zero is to be combined with one of the following waves. Which of these combinations produces the least intensity?

A) wave A has an amplitude of E₀ and a phase constant of zero
B) wave B has an amplitude of E₀ and a phase constant of $\pi$
C) wave C has an amplitude of 2E₀ and a phase constant of zero
D) wave D has an amplitude of 2E₀ and a phase constant of $\pi$
E) wave E has an amplitude of 3E₀ and a phase constant of $\pi$

Question 34

Two point sources, vibrating in phase, produce an interference pattern in a ripple tank. If the frequency is increased by 20%, the number of nodal lines:

A) is increased by 20%
B) is increased by 40%
C) remains the same
D) is decreased by 20%
E) is decreased by 40%

Question 35

One of the two slits in a Young's experiment is painted over so that it transmits only one-half the intensity of the other slit. As a result:

A) the fringe system disappears
B) the bright fringes get brighter and the dark ones get darker
C) the fringes just get dimmer
D) the dark fringes just get brighter
E) the dark fringes get brighter and the bright ones get darker

Question 36

A lens with a refractive index of 1.5 is coated with a material of refractive index 1.2 in order to minimize reflection. If $\lambda$ denotes the wavelength of the incident light in air, what is the thinnest possible such coating?

A) 0.5 $\lambda$
B) 0.416 $\lambda$
C) 0.3 $\lambda$
D) 0.208 $\lambda$
E) 0.25 $\lambda$

Question 37

Yellow light is viewed by reflection from a thin vertical soap film. Let $\lambda$ be the wavelength of the light within the film. Why is there a large dark space at the top of the film?

A) no light is transmitted through this part of the film
B) the film thickness there is $\lambda$ /4
C) the light reflected from exactly one of the two surfaces undergoes a 180 $\degree$ phase change
D) the film is too thick in this region for thin film formulas to apply
E) the reflected light is in the infrared

Question 38

An air wedge is formed from two glass plates which are in contact at their left edges. There are ten dark bands when viewed by reflection using monochromatic light. The left edge of the top plate is now slowly lifted until the plates are parallel. During this process:

A) the dark bands crowd toward the right edge
B) the dark bands remain stationary
C) the dark bands crowd toward the left edge
D) the dark bands spread out, disappearing off the right edge
E) the dark bands spread out, disappearing off the left edge

Question 39

A light wave with an electric field amplitude of E₀ and a phase constant of zero is to be combined with one of the following waves. Which of these combinations produces the greatest intensity?

A) wave A has an amplitude of E₀ and a phase constant of zero
B) wave B has an amplitude of E₀ and a phase constant of $\pi$
C) wave C has an amplitde of 2E₀ and a phase constant of zero
D) wave D has an amplitude of 2E₀ and a phase constant of $\pi$
E) wave E has an amplitude of 3E₀ and a phase constant of $\pi$

Question 40

In a Young's double-slit experiment, a thin sheet of mica is placed over one of the two slits. As a result, the center of the fringe pattern (on the screen) shifts by an amount corresponding to 30 dark bands. The wavelength of the light in this experiment is 480 nm and the index of the mica is 1.60. The mica thickness is:

A) 0.090 mm
B) 0.012 mm
C) 0.014 mm
D) 0.024 mm
E) 0.062 mm
