Deck 8: Introduction to Switch Configuration

Question 1

What are the issues to consider for media selection

A)Desired data speed
B)The network topology
C)Class of network
D)Distance for connections
E)Budget

Answer 1

A,D,E

Question 2

What are the two types of networking devices defined by power over Ethernet

A)Powered sinking equipment
B)Powered device
C)Powered sourcing equipment
D)Powered end users

Answer 2

B,C

Question 3

What is the correct command to name a VLAN "sales"?

A)name sales
B)vlan name sales
C)vlan id sales
D)vlan sales

Answer 3

A

Question 4

In what configuration mode will you be when you create a VLAN?

A)(config)
B)#
C)(config-vlan)
D)(config-vlan-db)

Question 5

What are end-point and mid-point PSEs examples of?

A)Power sinking equipment
B)Powered devices
C)Powered end users
D)Power sourcing equipment

Question 6

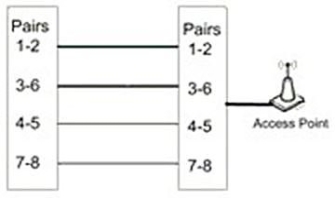

In the following figure,what is the voltage on pairs 1-2 and 3-6 for power over Ethernet?

A)+48V/+48V
B)+48V/-48V
C)+48V/gnd
D)gnd/-48V
E)None of these answers are correct.
