Deck 26: Layout

Question 1

K.2 Use the following to answer the questions below.

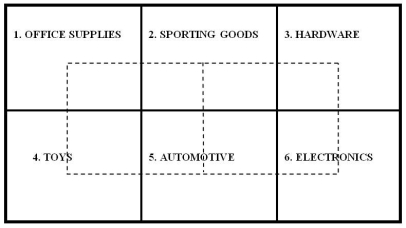

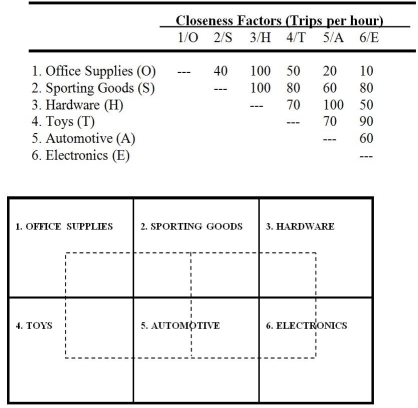

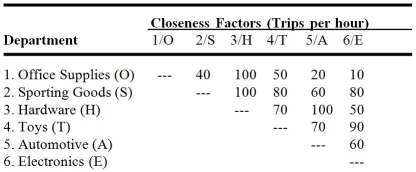

A department store chain is designing a layout for a new store.The store manager wants to provide as much convenience as possible for her customers.Based on historical data,the number of trips between departments per hour is given in the following closeness matrix.A block plan showing a preliminary layout is also shown. Customer travel between departments is restricted to the aisles shown in the block plan as dotted lines.
Refer to the instruction above.A suggestion has been made to switch Hardware and Automotive.What would the total weighted-distance (wd)score for the entire store if these two departments were switched?

A)less than or equal to 1,000
B)greater than 1,000 but less than or equal to 1,500
C)greater than 1,500 but less than or equal to 2,000
D)greater than 2,000

Answer 1

C

Question 2

Euclidean distance calculations are usually more realistic than rectilinear distance calculations when determining the walking distance between operations in a building.

Answer 2

False

Question 3

A(n)________ gives the relative importance of each pair of operations or departments being located close together.

Answer 3

closeness matrix

Question 4

Describe the appearance and use of a closeness matrix.

Question 5

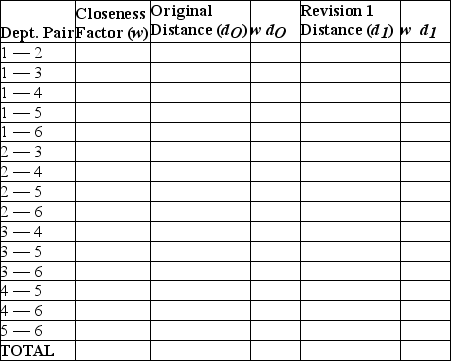

Considering the current facility situation and the two suggested revisions,if Acme wishes to minimize the total weighted-distance score,which option should be selected?

A)current situation-stay with Figure 1
B)Revision 1
C)Revision 2
D)either Revision 1 or Revision 2-they have the same what is the total weighted-distance (wd)score

Question 6

K.2 Use the following to answer the questions below.
A department store chain is designing a layout for a new store.The store manager wants to provide as much convenience as possible for her customers.Based on historical data,the number of trips between departments per hour is given in the following closeness matrix.A block plan showing a preliminary layout is also shown. Customer travel between departments is restricted to the aisles shown in the block plan as dotted lines.
Refer to the instruction above.What is the total weighted-distance (wd)score between Hardware and Toys?

A)less than or equal to 50
B)greater than 50 but less than or equal to 150
C)greater than 150 but less than or equal to 250
D)greater than 250

Question 7

K.2 Use the following to answer the questions below.
A department store chain is designing a layout for a new store.The store manager wants to provide as much convenience as possible for her customers.Based on historical data,the number of trips between departments per hour is given in the following closeness matrix.A block plan showing a preliminary layout is also shown. Customer travel between departments is restricted to the aisles shown in the block plan as dotted lines.
Refer to the instruction above.What is the total weighted-distance (wd)score between Office Supplies and Hardware?

A)less than or equal to 50
B)greater than 50 but less than or equal to 150
C)greater than 150 but less than or equal to 250
D)greater than 250

Question 8

K.1 Use the following to answer the questions below.

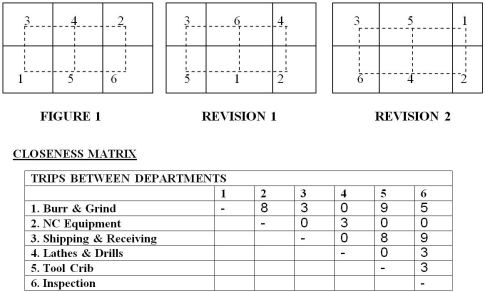

Acme Machine is a job shop that makes specialty parts for the airline industry.Figure #1 below shows the block plan for key manufacturing operations in its current facility.Acme believes there may be a way to reduce the total distance traveled between departments.Consider the two revisions that have been suggested,based on the closeness matrix shown below the block plans.The aisles are shown by the dotted lines in Figure 1.
If travel between departments is restricted to the aisles shown in Figure 1,what is the total weighted-distance (wd)score for the block plan shown in Figure 1?

A)less than or equal to 30
B)greater than 30 but less than or equal to 60
C)greater than 60 but less than or equal to 90
D)greater than 90

Question 9

K.2 Use the following to answer the questions below.
A department store chain is designing a layout for a new store.The store manager wants to provide as much convenience as possible for her customers.Based on historical data,the number of trips between departments per hour is given in the following closeness matrix.A block plan showing a preliminary layout is also shown. Customer travel between departments is restricted to the aisles shown in the block plan as dotted lines.
Refer to the instruction above.Based on your calculations,would you recommend that Hardware and Toys be switched?

A)Yes,and this is an improvement of 100 - 300 in the weighted-distance (wd)score.
B)No,the travel distances are the same.
C)Yes,and this is a difference of over 300 feet in the weighted-distance (wd)score.
D)We don't have enough information to determine this.

Question 10

A layout is the physical arrangement of human and capital resources used by processes clustered together into operations.

Question 11

A block plan is a table that gives a measure of the relative importance of each pair of centers being located close together.

Question 12

A closeness matrix can reflect the qualitative judgments of managers and employees,or can be the number of trips between each pair of departments.

Question 13

Figure K.1

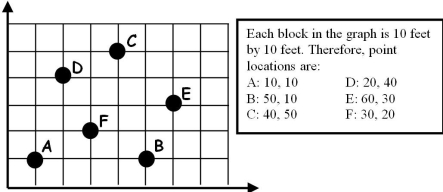

The information systems and operations management department of a small college is now designing its layout for newly built office space.An overhead view of the available office space reveals the following (note: assume all locations are measured from center point to center point):
Use the information in Figure K.1.What is the rectilinear distance between offices A and C?

A)less than or equal to 25 feet
B)greater than 25 but less than or equal to 45 feet
C)greater than 45 but less than or equal to 65 feet
D)greater than 65 feet

Question 14

Figure K.1
The information systems and operations management department of a small college is now designing its layout for newly built office space.An overhead view of the available office space reveals the following (note: assume all locations are measured from center point to center point):
Use the information in Figure K.1.What is the rectilinear distance between offices B and D?

A)greater than 65 feet
B)greater than 45 but less than or equal to 65 feet
C)greater than 25 but less than or equal to 45 feet
D)less than or equal to 25 feet

Question 15

A block plan allocates space and indicates the placement of each department within the framework of a new or existing facility.

Question 16

Figure K.1
The information systems and operations management department of a small college is now designing its layout for newly built office space.An overhead view of the available office space reveals the following (note: assume all locations are measured from center point to center point):
Use the information in Figure K.1.What is the Euclidean distance between offices A and C?

A)less than or equal to 25 feet
B)greater than 25 but less than or equal to 45 feet
C)greater than 45 but less than or equal to 65 feet
D)greater than 65 feet

Question 17

K.1 Use the following to answer the questions below.
Acme Machine is a job shop that makes specialty parts for the airline industry.Figure #1 below shows the block plan for key manufacturing operations in its current facility.Acme believes there may be a way to reduce the total distance traveled between departments.Consider the two revisions that have been suggested,based on the closeness matrix shown below the block plans.The aisles are shown by the dotted lines in Figure 1.
If travel between departments is restricted to the aisles shown in Figure 1,what is the total weighted-distance (wd)score for the block plan shown in Revision 1?

A)less than or equal to 30
B)greater than 30 but less than or equal to 60
C)greater than 60 but less than or equal to 90
D)greater than 90

Question 18

K.2 Use the following to answer the questions below.
A department store chain is designing a layout for a new store.The store manager wants to provide as much convenience as possible for her customers.Based on historical data,the number of trips between departments per hour is given in the following closeness matrix.A block plan showing a preliminary layout is also shown. Customer travel between departments is restricted to the aisles shown in the block plan as dotted lines.
Refer to the instruction above.What is the total weighted-distance (wd)score for the entire store?

A)less than or equal to 1,500
B)greater than 1,500 but less than or equal to 2,000
C)greater than 2,000 but less than or equal to 2,500
D)greater than 2,500

Question 19

K.1 Use the following to answer the questions below.
Acme Machine is a job shop that makes specialty parts for the airline industry.Figure #1 below shows the block plan for key manufacturing operations in its current facility.Acme believes there may be a way to reduce the total distance traveled between departments.Consider the two revisions that have been suggested,based on the closeness matrix shown below the block plans.The aisles are shown by the dotted lines in Figure 1.
If travel between departments is restricted to the aisles shown in Figure 1,what is the total weighted-distance (wd)score for the block plan shown in Revision 2?

A)less than or equal to 30
B)greater than 30 but less than or equal to 60
C)greater than 60 but less than or equal to 90
D)greater than 90

Question 20

By picking Revision 1,how much would the total wd score be reduced if the revision that minimizes the total wd score were chosen?

A)None-the current situation in Figure 1 provides the lowest total weighted-distance (wd)score.
B)less than or equal to 30
C)greater than 30 but less than or equal to 60
D)greater than 60 but less than or equal to 90

Question 21

Figure K.2

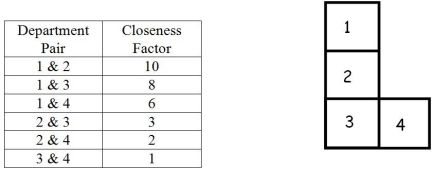

A company of four departments has the following closeness factors and current locations of all departments.Assume rectilinear distance.
Use the information in Figure K.2.What is the overall weighted-distance score for the arrangement?

A)52
B)48
C)63
D)58

Question 22

Figure K.3
A company of four departments has the following closeness factors and current locations of all departments:
Use the information from Figure K.3.What is the total weighted distance for the current layout?

A)69
B)73
C)77
D)81

Question 23

The ________ method measures distance between two points with a series of 90-degree turns.

Question 24

Figure K.1
The information systems and operations management department of a small college is now designing its layout for newly built office space.An overhead view of the available office space reveals the following (note: assume all locations are measured from center point to center point):
Use the information in Figure K.1.What pair of locations has Euclidean and rectilinear distances that are identical?

A)C and D
B)F and E
C)D and E
D)B and A

Question 25

Figure K.1
The information systems and operations management department of a small college is now designing its layout for newly built office space.An overhead view of the available office space reveals the following (note: assume all locations are measured from center point to center point):
Use the information in Figure K.1.What is the Euclidean distance between offices B and D?

A)greater than 65 feet
B)greater than 45 but less than or equal to 65 feet
C)greater than 25 but less than or equal to 45 feet
D)less than or equal to 25 feet

Question 26

Figure K.2
A company of four departments has the following closeness factors and current locations of all departments.Assume rectilinear distance.
Use the information in Figure K.2.Which pair of departments has the greatest weighted-distance score?

A)1 & 2
B)1 & 3
C)1 & 4
D)2 & 3

Question 27

Figure K.3

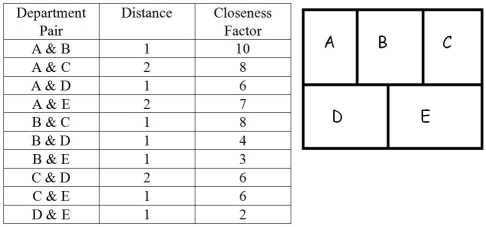

A company of four departments has the following closeness factors and current locations of all departments:
Use the information from Figure K.3.The departmental pair that has the greatest weighted distance between them is:

A)A & B.
B)A & C.
C)A & D.
D)A & E.

Question 28

Figure K.4
The Deans' Suite
The College of Business allocates some leftover funds for a complete remodel of the deans' suite.The project,titled "Use It or Lose It" has a number of objectives,one of which is to place departments or areas which have the greatest demand closest to each other as to minimize the total travel.
Maintenance completely guts the top floor of the college and identifies 9 natural room locations within this space.These room locations are flexible,meaning that any one of them could be turned into an office,lounge,or other use.The room at the upper left of the grid has windows on two walls and has been claimed by the dean.
The occupants of the deans' suite and their frequency of interaction is shown in the table.
The layout of this new great space is shown in the graph.Each square represents 15' × 15' and thus their midpoints could be considered to be 15' apart if adjacent in a row or column.Adjacent diagonal rooms can be calculated as 21' apart.

Using Figure K.4,what is the best location for the restroom?

A)area 1
B)area 2
C)area 4
D)area 5

Question 29

Figure K.4
The Deans' Suite
The College of Business allocates some leftover funds for a complete remodel of the deans' suite.The project,titled "Use It or Lose It" has a number of objectives,one of which is to place departments or areas which have the greatest demand closest to each other as to minimize the total travel.
Maintenance completely guts the top floor of the college and identifies 9 natural room locations within this space.These room locations are flexible,meaning that any one of them could be turned into an office,lounge,or other use.The room at the upper left of the grid has windows on two walls and has been claimed by the dean.

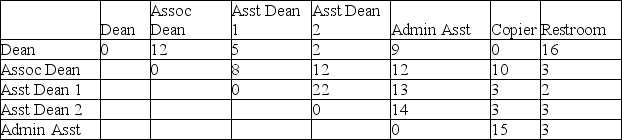

The occupants of the deans' suite and their frequency of interaction is shown in the table.
The layout of this new great space is shown in the graph.Each square represents 15' × 15' and thus their midpoints could be considered to be 15' apart if adjacent in a row or column.Adjacent diagonal rooms can be calculated as 21' apart.

Using Figure K.4,what is the rectilinear distance between the dean's office and the opposite corner of this great space,area 8?

A)60'
B)42'
C)30'
D)15'

Question 30

A firm of six departments has the following trip matrix and current block plan of all departments: a.What is the weighted-distance score for the current layout? (Assume rectilinear distance and that the distance between departments A and B is one unit of distance. )
b.What would be the weighted-distance score for the following layout?

Question 31

Figure K.4
The Deans' Suite
The College of Business allocates some leftover funds for a complete remodel of the deans' suite.The project,titled "Use It or Lose It" has a number of objectives,one of which is to place departments or areas which have the greatest demand closest to each other as to minimize the total travel.
Maintenance completely guts the top floor of the college and identifies 9 natural room locations within this space.These room locations are flexible,meaning that any one of them could be turned into an office,lounge,or other use.The room at the upper left of the grid has windows on two walls and has been claimed by the dean.
The occupants of the deans' suite and their frequency of interaction is shown in the table.
The layout of this new great space is shown in the graph.Each square represents 15' × 15' and thus their midpoints could be considered to be 15' apart if adjacent in a row or column.Adjacent diagonal rooms can be calculated as 21' apart.

Using Figure K.4,what is the best area for the associate dean?

A)area 1
B)area 2
C)area 3
D)area 4

Question 32

A(n)________ allocates space and indicates placement of each department.

Question 33

The ________ method is a mathematical model used to evaluate layouts based on proximity factors.

Question 34

A department store chain is designing a layout for a new store.The store manager wants to provide as much convenience as possible for her customers.Based on historical data,the number of trips between departments per hour is given in the following closeness matrix.A block plan showing a preliminary layout is also shown. Customer travel between departments is restricted to the aisles shown in the block plan as dotted lines.

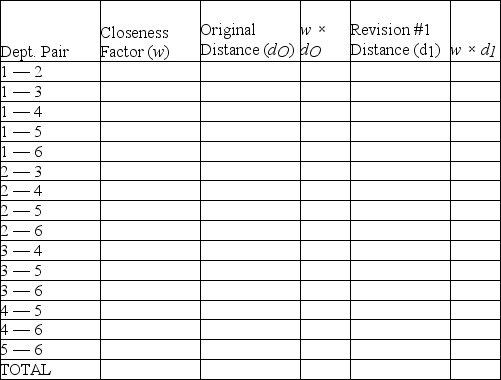

CALCULATIONS TABLE
a.What is the total expected weighted-distance score between Office Supplies and Hardware?
b.What is the total weighted-distance score between Hardware and Toys?
c.What is the total weighted-distance score for the entire store?
d.A suggestion has been made to switch Hardware and Automotive.What would the total weighted-distance score for the entire store be if these two departments were switched?
e.Based on your calculations,would you recommend that Hardware and Toys be switched?

Question 35

Figure K.2
A company of four departments has the following closeness factors and current locations of all departments.Assume rectilinear distance.
Using the information in Figure K.2,which of these arrangements has the best weighted-distance score?

A)

B)

C)

D)

Question 36

A firm of four departments has the following trip matrix and current block plan of all departments: a.What is the weighted-distance score for the current layout? (Assume rectilinear distance and that the distance between departments A and B is one unit of distance. )
b.What would be the weighted-distance score for the following layout?
