Edition 1ISBN: 978-0073373805 Exercise 5

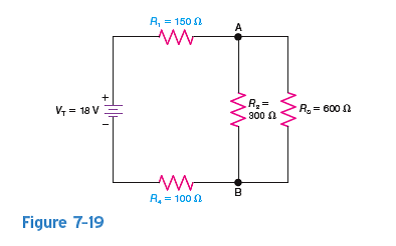

In Fig. 7-19,
a. how much is the total resistance of just R 1 and R 4
b. what is the equivalent resistance of R 2 and R 3 across points A and B
c. how much is the total resistance, R T , of the entire circuit
d. how much is the total current, I T , in the circuit
e. how much current flows into point B and away from point A
a. how much is the total resistance of just R 1 and R 4
b. what is the equivalent resistance of R 2 and R 3 across points A and B
c. how much is the total resistance, R T , of the entire circuit
d. how much is the total current, I T , in the circuit
e. how much current flows into point B and away from point A
Explanation
Verified
Verified
Refer to circuit diagram in Figure 7-19 ...
