Edition 1ISBN: 978-0073373805 Exercise 9

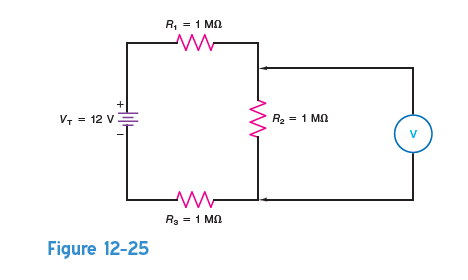

Refer to Fig. 12-25. (a) Calculate the dc voltage that should exist across R 2 without the voltmeter present.(b) Calculate the dc voltage that would be measured across R 2 using a 100 k /V analog voltmeter set to the 10-V range. (c) Calculate the dc voltage that would be measured across R 2 using a DMM having an R V of 10 M on all dc voltage ranges.
Explanation
Verified
Verified
Refer to Figure 12-25 in the text book.
...
