Essentials of Genetics 9th Edition by Michael Palladino William Klug, Michael Cummings, Charlotte Spencer

Exercise 22

Assume a hypothetical organism in which DNA replication is conservative. Design an experiment similar to that of Taylor, Woods, and Hughes that will unequivocally establish this fact. Using the format established in Figure, draw sister chromatids and illustrate the expected results depicting this mode of replication.

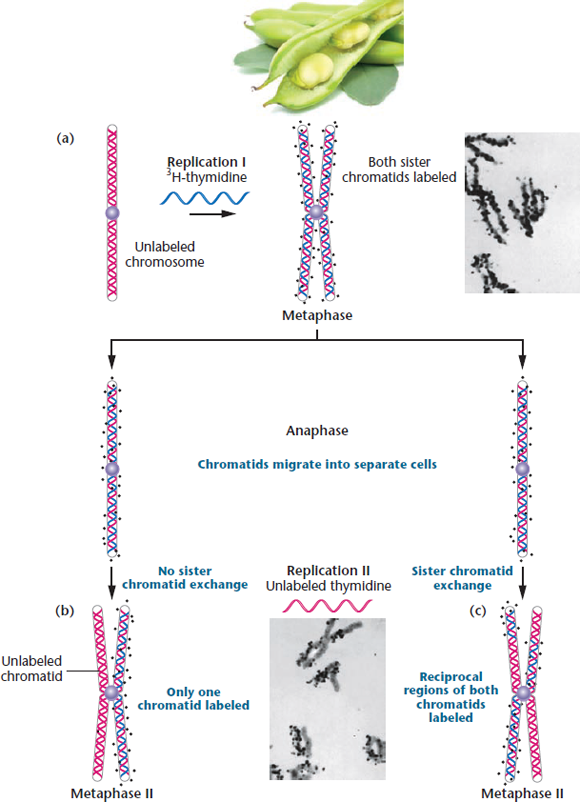

FIGURE The Taylor-Woods-Hughes experiment, demonstrating the semiconservative mode of replication of DNA in the root tips of Vicia faba. A portion of the plant is shown in the top photograph. (a) An unlabeled chromosome proceeds through the cell cycle in the presence of 3 H-thymidine. As it enters mitosis, both sister chromatids of the chromosome are labeled, as shown, by autoradiography. After a second round of replication (b), this time in the absence of 3 H-thymidine, only one chromatid of each chromosome is expected to be surrounded by grains. Except where a reciprocal exchange has occurred between sister chromatids (c), the expectation was upheld. The micrographs are of the actual autoradiograms obtained in the experiment.
