Field and Wave Electromagnetics 2nd Edition by David Cheng
Edition 2ISBN: 978-0201128192Field and Wave Electromagnetics 2nd Edition by David Cheng
Edition 2ISBN: 978-0201128192 Exercise 58

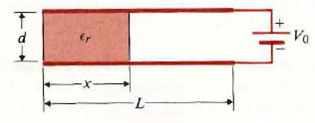

A parallel-plate capacitor of width w, length L, and separation d is partially filled with a dielectric medium of dielectric constant r , as shown in Fig. A battery of V 0 volts is connected between the plates.
a) Find D , E , and s in each region.
b) Find distance x such that the electrostatic energy stored in each region is the same.
Figure: A parallel-plate capacitor
a) Find D , E , and s in each region.
b) Find distance x such that the electrostatic energy stored in each region is the same.
Figure: A parallel-plate capacitor
Explanation
Verified
Verified
Refer to Figure 3-43 in the textbook for...
