Exercise 17

Does Thyroid Hormone Level Affect Oxygen Consumption in Cells Some animals, such as mammals and birds, maintain a relatively constant body temperature, above that of their environment, using heat produced as a by-product of metabolism. When the core temperature of these animals drops below an internal set point, their cells are triggered to reduce the efficiency of ATP produced by the electron transport chains in mitochondria. At lower efficiency, extra fuel must be consumed to produce the same number of ATPs, generating additional heat. Because this response is moderated by the endocrine system, researchers hypothesized that thyroid hormone might trigger this cellular response. In this exercise, you will use a bar graph to visualize data from an experiment that compared the metabolic rate (by measuring oxygen consumption) in mitochondria of cells from animals with different levels of thyroid hormone.

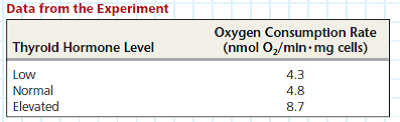

How the Experiment Was Done Liver cells were isolated from sibling rats that had low, normal, or elevated thyroid hormone levels. The oxygen consumption rate due to activity of the mitochondrial electron transport chains of each type of cell was measured under controlled conditions.
Graph the data for each sample. Match each x -value with its y -value and place a mark on the graph at that coordinate, then draw a bar from the x -axis up to the correct height for each sample. Why is a bar graph more appropriate than a scatter plot or line graph (For additional information about graphs, see the Scientific Skills Review in Appendix F and in the Study Area in MasteringBiology.)
