Question 1

Which of the following is the least detailed of the data flow diagrams?

Accepted Answer

A) logical data flow diagram
B) systems flowchart
C) context diagram
D) physical data flow diagram
A) logical data flow diagram
B) systems flowchart
C) context diagram
D) physical data flow diagram

Question 2

Which data flow diagram symbol is usually portrayed with an arrow?

Accepted Answer

A) data flow
B) data store
C) external entity
D) process bubble
A) data flow
B) data store
C) external entity
D) process bubble

Question 3

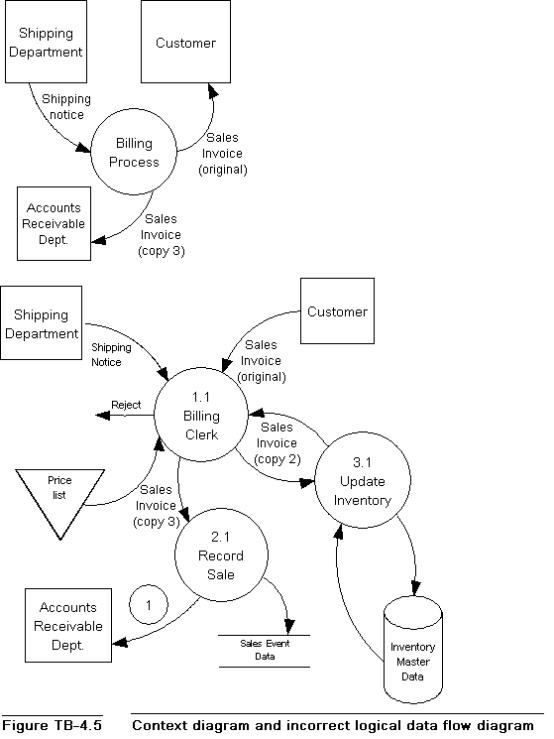

Figure TB-4.5 shows a level 0 logical data flow diagram for a billing system.The logical data flow diagram intentionally violates several of the guidelines and other techniques presented in the text for drawing data flow diagram.Required:
Identify as many of the errors in the logical data flow diagram construction as you can.In the logical data flow diagram, place consecutive numbers (each in a circle) next to the points at which the errors exist.On your solution sheet, list the numbers and write a one- to two-sentence description of each error and what the correct procedure should be.If an error occurs in more than one place, mark each occurrence of the error.Error 1 is provided as an example of how to construct the solution.

Accepted Answer

INSTRUCTOR NOTE: You may wish to modify

Question 4

Internal entities are those persons, places, or things outside our system that send data to, or receive data from, our system.

Accepted Answer

A) True
 B)False

Question 5

When the context diagram and the level 0 diagram have equivalent external data flows, the DFDs are said to be balanced.

Accepted Answer

A) True
 B)False

Question 6

Those entities which perform no information processing activities for the system are called:

Accepted Answer

A) external entities
B) internal entities
C) boundary entities
D) environmental entities
A) external entities
B) internal entities
C) boundary entities
D) environmental entities

Question 7

The following is a jumbled list of the activities suggested in this text for drafting data flow diagrams for an existing system:   The best sequence for undertaking these activities is:

Accepted Answer

A) I, II, V, III, IV
B) I, V, III, II, IV
C) II, I, III, V, IV
D) II, IV, III, I, V
A) I, II, V, III, IV
B) I, V, III, II, IV
C) II, I, III, V, IV
D) II, IV, III, I, V

Question 8

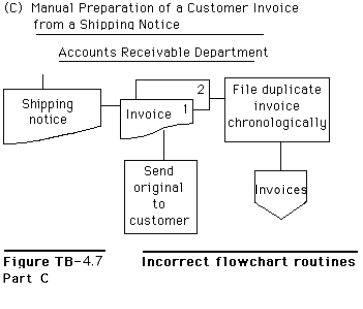

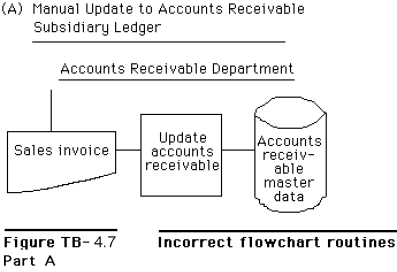

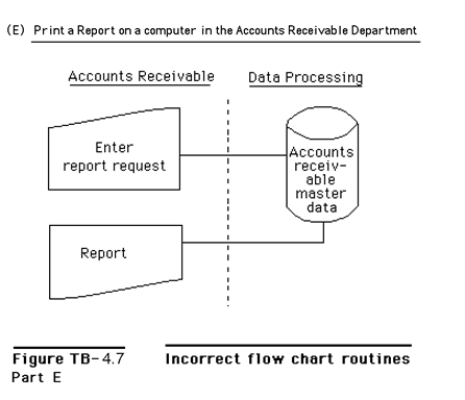

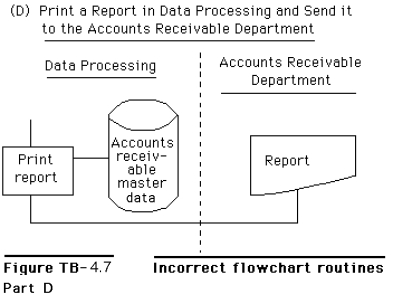

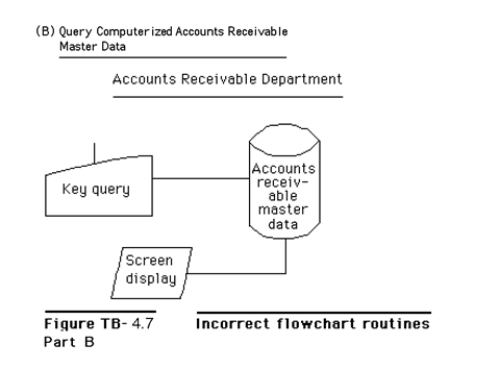

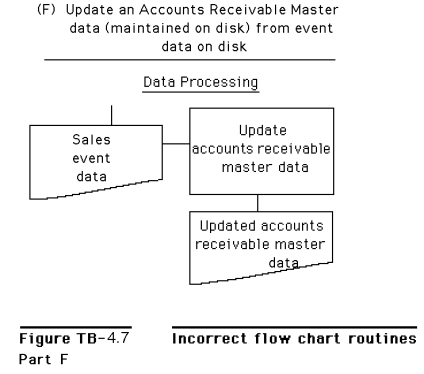

Figure TB-4.7 shows several systems flowchart routines that intentionally violate good flowchart construction procedures.Required:
Redraw each of the routines so that they conform to the guidelines and other techniques presented in the text for drawing systems flowcharts.HINT: Be alert to the description of each routine; the descriptions should govern your solution.

Accepted Answer

INSTRUCTOR NOTE: You may wish to modify

Question 9

A(n) ____________________ data flow diagram depicts what activities the system performs rather than how, where, or by whom they are performed.

Accepted Answer

The answer of A(n) ____________________ data flow diagram depicts what...

Question 10

The data flows in a logical flow diagram show:

Accepted Answer

A) how the data are transmitted
B) where the data are transmitted
C) the nature of the data being transmitted
D) who receives the transmitted data
A) how the data are transmitted
B) where the data are transmitted
C) the nature of the data being transmitted
D) who receives the transmitted data

Question 11

In data flow diagrams describing the accounting information system of a medical practice, a patient is most likely represented as a(n):

Accepted Answer

A) data flow
B) data store
C) external entity
D) process bubble
A) data flow
B) data store
C) external entity
D) process bubble

Question 12

In a data flow diagram, a(n) ____________________ symbol represents a pathway for data.

Accepted Answer

The answer of In a data flow diagram, a(n) ____________________...

Question 13

In which of the following data flow diagrams does the bubble symbol represent a process and not the entire system?

Accepted Answer

A) context diagram
B) physical data flow diagram
C) logical data flow diagram
D) systems flowchart
A) context diagram
B) physical data flow diagram
C) logical data flow diagram
D) systems flowchart

Question 14

The flow of processes on a system flowchart is from:

Accepted Answer

A) left to right
B) right to left
C) bottom to top
D) either a.or b.
A) left to right
B) right to left
C) bottom to top
D) either a.or b.

Question 15

A(n) ________________________________________ shows what activities the system is doing without specifying how, where or by whom the activities are accomplished.

Accepted Answer

logical da

Question 16

A(n) ___________________________________ is a graphical representation of both the physical and logical features of an information system.

Accepted Answer

The answer of A(n) ___________________________________ is a graphical representation of...

Question 17

In drawing a context diagram, we should include:

Accepted Answer

A) only exception routines
B) only error routines
C) only normal processing routines
D) only normal processing and exception routines
A) only exception routines
B) only error routines
C) only normal processing routines
D) only normal processing and exception routines

Question 18

An external entity is a person, place, or thing within the system that transforms data.

Accepted Answer

A) True
 B)False

Question 19

In a data flow diagram, two parallel lines represent the data store symbol.

Accepted Answer

A) True
 B)False

Question 20

In data flow diagrams describing the accounting information system of a consulting firm, a customer is most likely represented as a(n):

Accepted Answer

A) data flow
B) data store
C) external entity
D) process bubble
A) data flow
B) data store
C) external entity
D) process bubble

Which of the following is the least detailed of the data flow diagrams?

Which data flow diagram symbol is usually portrayed with an arrow?

Internal entities are those persons, places, or things outside our system that send data to, or receive data from, our system.

When the context diagram and the level 0 diagram have equivalent external data flows, the DFDs are said to be balanced.

Those entities which perform no information processing activities for the system are called:

The following is a jumbled list of the activities suggested in this text for drafting data flow diagrams for an existing system: The best sequence for undertaking these activities is:

A(n) ____________________ data flow diagram depicts what activities the system performs rather than how, where, or by whom they are performed.

The data flows in a logical flow diagram show:

In data flow diagrams describing the accounting information system of a medical practice, a patient is most likely represented as a(n):

In a data flow diagram, a(n) ____________________ symbol represents a pathway for data.

In which of the following data flow diagrams does the bubble symbol represent a process and not the entire system?

The flow of processes on a system flowchart is from:

A(n) ________________________________________ shows what activities the system is doing without specifying how, where or by whom the activities are accomplished.

A(n) ___________________________________ is a graphical representation of both the physical and logical features of an information system.

In drawing a context diagram, we should include:

An external entity is a person, place, or thing within the system that transforms data.

In a data flow diagram, two parallel lines represent the data store symbol.

In data flow diagrams describing the accounting information system of a consulting firm, a customer is most likely represented as a(n):
