Deck 6: Dynamics I: Motion Along a Line

Question 1

Two objects have masses m and 5m, respectively. They both are placed side by side on a frictionless inclined plane and allowed to slide down from rest.

A) It takes the lighter object 5 times longer to reach the bottom of the incline than the heavier object.
B) It takes the lighter object 10 times longer to reach the bottom of the incline than the heavier object.
C) It takes the heavier object 5 times longer to reach the bottom of the incline than the lighter object.
D) It takes the heavier object 10 times longer to reach the bottom of the incline than the lighter object.
E) The two objects reach the bottom of the incline at the same time.

Answer 1

The two objects reach the bottom of the incline at the same time.

Question 2

A box slides down a frictionless plane inclined at an angle θ above the horizontal. The gravitational force on the box is directed

A) parallel to the plane in the same direction as the movement of the box.
B) parallel to the plane in the opposite direction as the movement of the box.
C) perpendicular to the plane.
D) vertically.
E) at an angle θ below the inclined plane.

Answer 2

vertically.

Question 3

A fish weighing 16 N is weighed using two spring scales, each of negligible weight, as shown in the figure. What will be the readings of the scales?

A) The bottom scale will read 16 N, and the top scale will read zero.
B) Each scale will read 16 N.
C) The top scale will read 16 N, and the bottom scale will read zero.
D) The scales will have different readings, but the sum of the two readings will be 16 N.
E) Each scale will read 8 N.

Answer 3

Each scale will read 16 N.

Question 4

A block is on a frictionless horizontal table, on earth. This block accelerates at 1.9 m/ when a horizontal force is applied to it. The block and table are then set up on the moon where the acceleration due to gravity is 1.62 m/s². What is the weight of the block on the moon?

A) 77 N
B) 67 N
C) 58 N
D) 48 N
E) 39 N

Question 5

A 10,000-kg rocket blasts off from earth with a uniform upward acceleration of 2.00 m/s² and feels no air resistance. The upward thrust force its engines must provide during this acceleration is closest to

A) 20,000 N.
B) 980,000 N.
C) 118,000 N.
D) 78,000 N.

Question 6

15) Bumpers on cars are not of much use in a collision. To see why, calculate the average force a bumper would have to exert if it brought a 1200-kg car (a so-called compact model) to a rest in 15 cm when the car had an initial speed of 2.0 m/s (about 4.5 mph). (Bumpers are built with springs that compress to provide a stopping force without, hopefully, denting the metal.)

A) 1.8 × 10⁴ N
B) 1.6 × 10⁴ N
C) 5.4 × 10⁴ N
D) 6.5 × 10⁵ N
E) 3.2 × 10⁴ N

Question 7

A construction worker pulls a box of tools on a smooth horizontal floor with a force of 100 N in a direction of 37.0° above the horizontal. The mass of the box and the tools is 40.0 kg.
(a) Draw a free-body diagram for the box.
(b) Calculate the acceleration of the box.
(c) How hard does the floor push up on the box?

Question 8

A block is on a frictionless horizontal table, on earth. This block accelerates at 3.6 m/ when a horizontal force is applied to it. The block and table are then set up on the moon where the acceleration due to gravity is 1.62 m/ . A horizontal force of 45 N is applied to the block when it is on the moon. What acceleration does this force impart to the block?

A) 1.8 m/
B) 1.6 m/
C) 2.0 m/
D) 2.2 m/
E) 2.3 m/

Question 9

A 1000-kg car is driving toward the north along a straight horizontal road at a speed of 20.0 m/s. The driver applies the brakes and the car comes to a rest uniformly in a distance of 200 m. What are the magnitude and direction of the net force applied to the car to bring it to rest?

A) 1.00 N north
B) 10.0 × N south
C) 1.00 × N south
D) 1.00 N south
E) 100 N south

Question 10

Two objects, each of weight W, hang vertically by spring scales as shown in the figure. The pulleys and the strings attached to the objects have negligible weight, and there is no appreciable friction in the pulleys. The reading in each scale is

A) W.
B) more than W, but not quite twice as much.
C) less than W.
D) 2W.
E) more than 2W.

Question 11

The following four forces act on a 4.00 kg object: ₁ = 300 N east ₂ = 700 N north ₃ = 500 N west ₄ = 600 N south What is the acceleration of the object?

A) 224 N in a direction 63.4° north of west
B) 300 N in a direction 63.4° north of west
C) 300 N in a direction 26.6° north of west
D) 224 N in a direction 26.6° north of west
E) 2100 N in a direction 26.6° north of west

Question 12

A 60.0-kg person rides in an elevator while standing on a scale. The scale reads 400 N. The acceleration of the elevator is closest to

A) 3.13 m/s² downward.
B) 6.67 m/s² downward.
C) zero.
D) 9.80 m/s² downward.
E) 6.67 m/s² upward.

Question 13

A 60.0-kg person rides in elevator while standing on a scale. The elevator is traveling downward but slowing down at a rate of 2.00 m/s². The reading on the scale is closest to

A) 589 N.
B) 708 N.
C) 469 N.
D) 120 N.
E) 349 N.

Question 14

A block lies on a horizontal frictionless surface. A horizontal force of 100 N is applied to the block giving rise to an acceleration of 3.0 m/s².
(a) Determine the mass of the block.
(b) Calculate the distance the block will travel if the force is applied for 10 s.
(c) Calculate the speed of the block after the force has been applied for 10 s.

Question 15

A block is given a very brief push up a 20.0° frictionless incline to give it an initial speed of 12.0 m/s.
(a) How far along the surface of the plane does the block slide before coming to rest?
(b) How much time does it take to return to its starting position?

Question 16

A box of mass 50 kg is at rest on a horizontal frictionless surface. A constant horizontal force F then acts on the box and accelerates it to the right. It is observed that it takes the box 6.9 seconds to travel 28 meters. What is the magnitude of the force?

Question 17

A brick is resting on a rough incline as shown in the figure. The friction force acting on the brick, along the incline, is

A) zero.
B) equal to the weight of the brick.
C) greater than the weight of the brick.
D) less than the weight of the brick.

Question 18

When a parachutist jumps from an airplane, he eventually reaches a constant speed, called the terminal speed. Once he has reached terminal speed

A) his acceleration is equal to g.
B) the force of air drag on him is equal to zero.
C) the force of air drag on him is equal to g.
D) his speed is equal to g.
E) the force of air drag on him is equal to his weight.

Question 19

A box of mass m is pulled with a constant acceleration a along a horizontal frictionless floor by a wire that makes an angle of 15° above the horizontal. If T is the tension in this wire, then

A) T = ma.
B) T > ma.
C) T < ma.

Question 20

A 50.0-N box is sliding on a rough horizontal floor, and the only horizontal force acting on it is friction. You observe that at one instant the box is sliding to the right at 1.75 m/s and that it stops in 2.25 s with uniform acceleration. What magnitude force does friction exert on this box?

A) 3.97 N
B) 8.93 N
C) 38.9 N
D) 50.0 N
E) 490 N

Question 21

Jason takes off from rest across level water on his jet-powered skis. The combined mass of Jason and his skis is 75 kg (the mass of the fuel is negligible). The skis have a thrust of 200 N and a coefficient of kinetic friction on water of 0.10. Unfortunately, the skis run out of fuel after only 67 s. How far has Jason traveled when he finally coasts to a stop?

A) 10,000 m
B) 7600 m
C) 5400 m
D) 3800 m

Question 22

In a shuffleboard game, the puck slides a total of before coming to rest. If the coefficient of kinetic friction between the puck and the horizontal board is 0.28, what was the initial speed of the puck?

A) 8.1 m/s
B) 29.0 m/s
C) 6.5 m/s
D) 7.3 m/s

Question 23

A 50.0-kg box rests on a horizontal surface. The coefficient of static friction between the box and the surface is 0.300 and the coefficient of kinetic friction is 0.200. What is the friction force on the box if
(a) a horizontal 140-N push is applied to it?
(b) a horizontal 175-N push is applied to it?

Question 24

A 200 g hockey puck is launched up a metal ramp that is inclined at a 30° angle. The coefficients of static and kinetic friction between the hockey puck and the metal ramp are μ_s = 0.40 and μ_k = 0.30, respectively. The puck's initial speed is 4.9 m/s. What speed does it have when it slides back down to its starting point?

A) 2.8 m/s
B) 3.5 m/s
C) 4.2 m/s
D) 4.9 m/s

Question 25

A driver in a car traveling at slams on the brakes and skids to a stop. If the coefficient of friction between the tires and the horizontal road is 0.80, how long will the skid marks be?

A) 26 m
B) 21 m
C) 33 m
D) 24 m

Question 26

A person is dragging a packing crate of mass 100 kg across a rough horizontal floor where the coefficient of kinetic friction is 0.400. He exerts a force F sufficient to accelerate the crate forward. At what angle above horizontal should his pulling force be directed in order to achieve the maximum acceleration?

A) 21.8°
B) 27.7°
C) 30°
D) 34.5°
E) 45°

Question 27

A 250-kg crate is on a rough ramp, inclined at 30° above the horizontal. The coefficient of kinetic friction between the crate and ramp is 0.22. A horizontal force of 5000 N is applied to the crate, pushing it up the ramp. What is the acceleration of the crate?

A) 8.4 m/s²
B) 10 m/s²
C) 12 m/s²
D) 13 m/s²
E) 3.4 m/s²

Question 28

A box is sliding down an incline tilted at a 12.0° angle above horizontal. The box is initially sliding down the incline at a speed of 1.50 m/s. The coefficient of kinetic friction between the box and the incline is 0.340. How far does the box slide down the incline before coming to rest?

A) 0.920 m
B) 2.33 m
C) 1.78 m
D) 0.720 m
E) The box does not stop. It accelerates down the plane.

Question 29

A 6.0 kg box slides down an inclined plane that makes an angle of 39° with the horizontal. If the coefficient of kinetic friction is 0.19, at what rate does the box accelerate down the slope?

A) 4.7 m/s²
B) 5.2 m/s²
C) 5.5 m/s²
D) 6.2 m/s²

Question 30

You push downward on a box at an angle 25° below the horizontal with a force of 750 N. If the box is on a flat horizontal surface for which the coefficient of static friction with the box is 0.76, what is the mass of the heaviest box you will be able to move?

A) 59 kg
B) 68 kg
C) 54 kg
D) 82 kg

Question 31

In the figure, a block of mass M hangs at rest. The rope that is fastened to the wall is horizontal and has a tension off 52 N. The rope that is fastened to the ceiling has a tension of and makes an angle θ with the ceiling. What is the angle θ?

A) 55°
B) 35°
C) 30°
D) 63°
E) 45°

Question 32

Kieran takes off from rest down a 50 m high, 10° slope on his jet-powered skis. The skis have a thrust of 280 N parallel to the surface of the slope. The combined mass of skis and Kieran is 50 kg (the fuel mass is negligible). Kieran's speed at the bottom is 40 m/s. What is the coefficient of kinetic friction of his skis on snow?

A) 0.47
B) 0.58
C) 0.23
D) 0.29

Question 33

A 50.0-kg block is being pulled up a 16.0° slope by a force of 250 N which is parallel to the slope. The coefficient of kinetic friction between the block and the slope is 0.200. What is the magnitude of the acceleration of the block?

A) 0.528 m/
B) 0.158 m/
C) 0.412 m/
D) 0.983 m/
E) 0.260 m/

Question 34

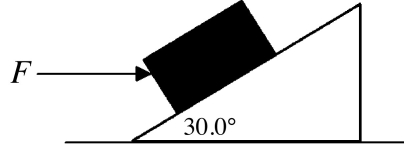

A 4.00-kg block rests on a 30.0° incline as shown in the figure. If the coefficient of static friction between the block and the incline is 0.700, what magnitude horizontal force F must act on the block to start it moving up the incline?

A) 34.0 N
B) 51.1 N
C) 54.7 N
D) 84.0 N
E) 76.4 N

Question 35

In the figure, a T-bar ski tow pulls a skier up a hill inclined at 10° above horizontal. The skier starts from rest and is pulled by a cable that exerts a tension T at an angle of 30° above the surface of the hill. The mass of the skier is 60 kg and the effective coefficient of kinetic friction between the skis and the snow is 0.100. What is the maximum tension in the cable if the starting acceleration is not to exceed 0.400 g?

A) 246 N
B) 366 N
C) 431 N
D) 187 N
E) 535 N

Question 36

Jason takes off from rest across level water on his jet-powered skis. The combined mass of Jason and his skis is 75 kg (the mass of the fuel is negligible). The skis have a thrust of 200 N and a coefficient of kinetic friction on water of 0.10. Unfortunately, the skis run out of fuel after only 48 s. What is Jason's top speed?

A) 81 m/s
B) 130 m/s
C) 13 m/s
D) 48 m/s

Question 37

A traffic light weighing 100 N is supported by two ropes as shown in the figure. The tensions in the ropes are closest to

A) 50 N.
B) 56 N.
C) 63 N.
D) 66 N.
E) 83 N.

Question 38

A factory robot drops a 10 kg computer onto a conveyor belt running at 3.1 m/s. The materials are such that μ_s = 0.50 and μ_k = 0.30 between the belt and the computer. How far is the computer dragged before it is riding smoothly on the belt?

A) 1.6 m
B) 0.98 m
C) 2.3 m
D) 3.0 m

Question 39

A packing crate rests on a horizontal surface. It is acted on by three horizontal forces: 600 N to the left, 200 N to the right, and friction. The weight of the crate is 400 N. If the 600-N force is removed, the resultant force acting on the crate is

A) zero.
B) 200 N to the right.
C) 200 N to the left.
D) 400 N to the left.
E) impossible to determine from the information given.

Question 40

A 200 g hockey puck is launched up a metal ramp that is inclined at a 30° angle. The coefficients of static and kinetic friction between the hockey puck and the metal ramp are μ_s = 0.40 and μ_k = 0.30, respectively. The puck's initial speed is 63 m/s. What vertical height does the puck reach above its starting point?

A) 130 m
B) 270 m
C) 200 m
D) 66 m

Question 41

A ship is being pulled through a harbor at constant velocity by two tugboats as shown in the figure. The lines attached to the two tugboats have the same tension of 200,000 N. Each line makes an angle of 28.0° with the direction the ship is being towed. What is the magnitude of the drag force due to the water on the ship?

A) 177 × 10⁵ N
B) 1.88 × 10⁵ N
C) 93.9 × 10⁴ N
D) zero
E) 3.53 × 10⁵ N

Question 42

A 30.0-kg object experiences a drag force due to air resistance with a magnitude proportional to the square of its speed. The object falls with an acceleration of 4.00 m/s² downward when it is falling downward at 70.0 m/s. What is its terminal speed?

A) 110 m/s
B) 157 m/s
C) 91.0 m/s
D) 172 m/s
E) 108 m/s

Question 43

An object weighing 4.00 N falls from rest subject to a frictional drag force given by F_drag = bv², where v is the speed of the object and What terminal speed will this object approach?

A) 1.78 m/s
B) 3.42 m/s
C) 1.15 m/s
D) 2.25 m/s
E) 0.75 m/s

Question 44

A 1.20-kg ball is hanging from the end of a rope. The rope hangs at an angle 25.0° from the vertical when a 15.0 m/s horizontal wind is blowing. If the wind's force on the rope is negligible, what drag force does the wind exert on the ball?

A) 32.3 N
B) 24.1 N
C) 3.68 N
D) 5.48 N
E) 11.8 N

Question 45

An 80.0-kg object is falling and experiences a drag force due to air resistance. The magnitude of this drag force depends on its speed, v, and obeys the equation What is the terminal speed of this object?

A) 6.45 m/s
B) 72.2 m/s
C) 34.2 m/s
D) 12.6 m/s
E) 47.3 m/s

Question 46

The magnitude of the drag force of air resistance on a certain 20.0-kg object is proportional to its speed. If the object has a terminal speed 80.0 m/s, what is the magnitude of the drag force on the object when it is falling with a speed 30.0 m/s?

A) 196 N
B) 7.50 N
C) 15.0 N
D) 73.5 N
E) 42.7 N
