Deck 9: Phasors and Impedances

Question 1

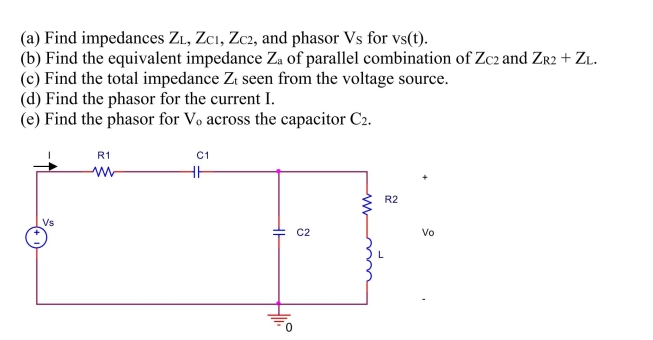

the circuit shown below, let

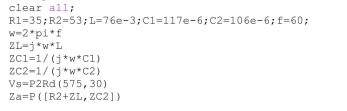

Answer 1

Question 2

Find V in polar notation.

Answer 2

clear all;
V1-P2Rd (11, 110)
V1p=R2P (V1)
V2=P2Rd (17, -75 )
V2p=R2P (V2)
V=V1+V2
Vp-R2P (V)

Question 3

phasors to express the following equation as a single cosine.

Answer 3

clear all;
V1=P2Rd (45, -120-90+180 )
V1p-R2P (V1)
V2=P2Rd (65, 150-90)
V2p=R2P (V2)
V=V1+V2
Vp=R2P (V)

Question 4

Find the phasor I for

Question 5

Represent V in polar notation, and find the time domain expression v(t) for the voltage when
the frequency is f = 60 Hz.

Question 6

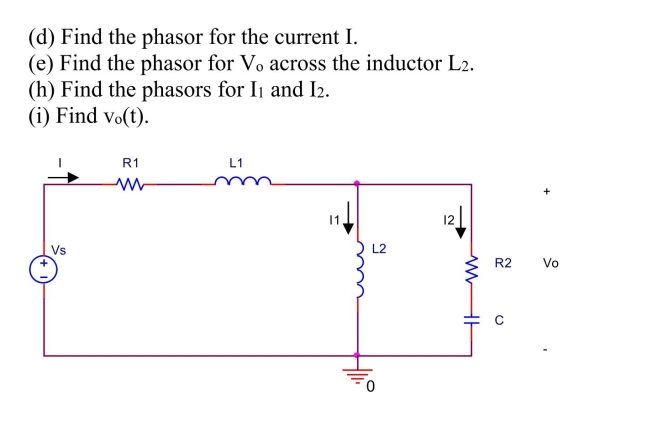

the circuit shown below, let

Question 7

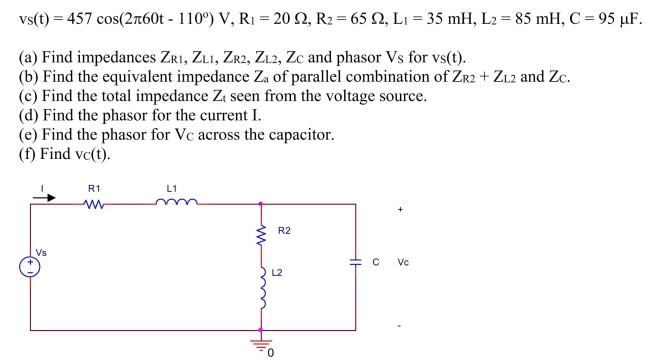

the circuit shown below, let

Question 8

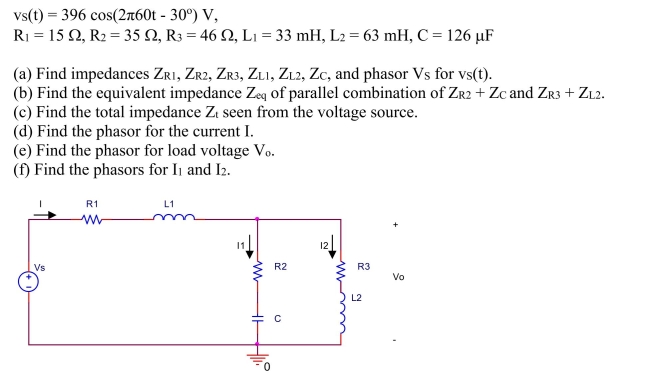

the circuit shown below, let
