Deck 15: Circuits Analysis in the S-Domain

Question 1

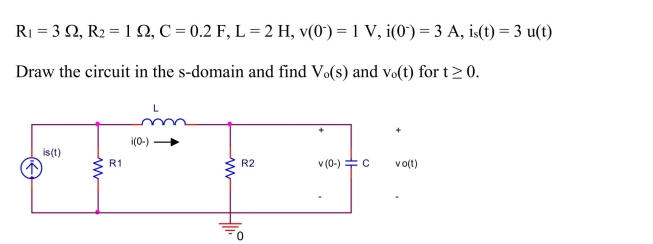

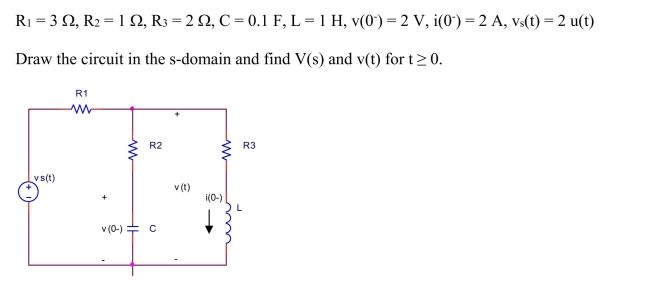

In the circuit shown below, let

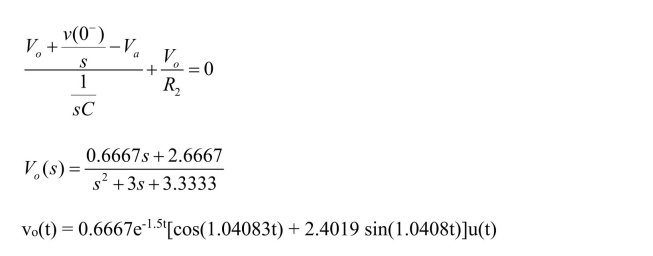

Answer 1

Question 2

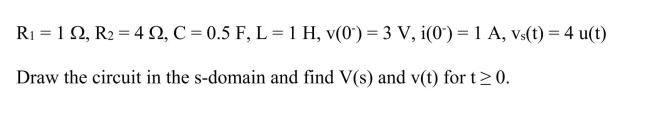

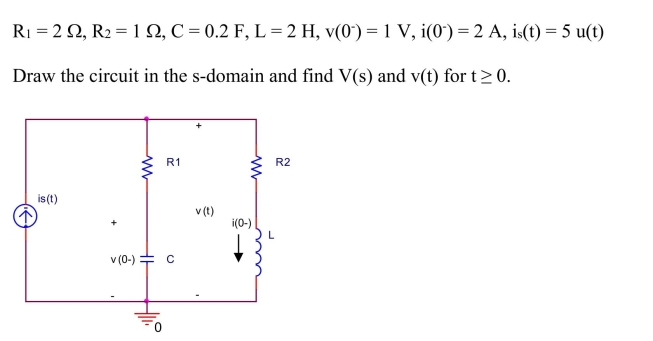

In the circuit shown below, let

Answer 2

Question 3

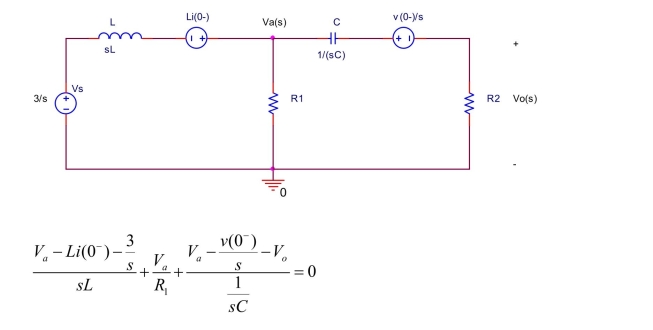

Assume in the circuit shown below. Find the transfer function

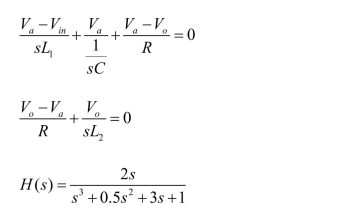

Answer 3

Question 4

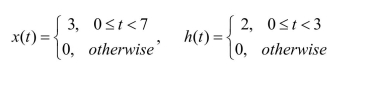

Find the convolution y(t) of x(t) and h(t); that is, find y(t) = h(t)*x(t).

Question 5

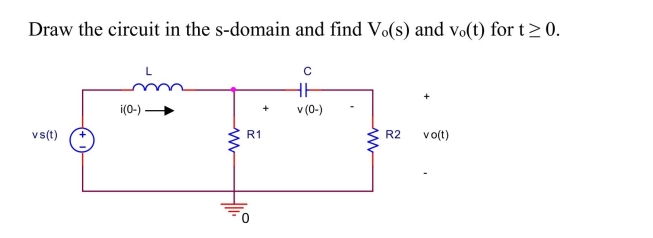

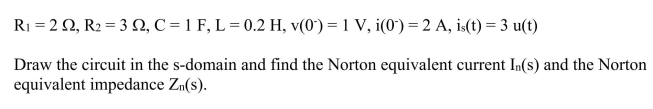

In the circuit shown below, let

Question 6

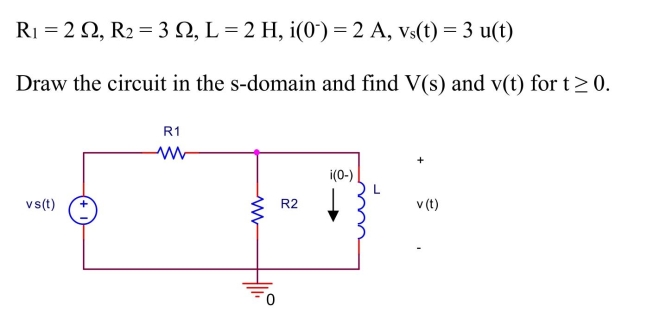

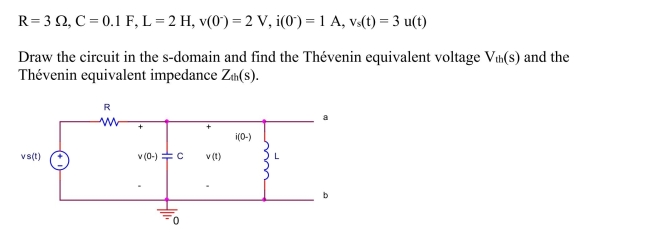

In the circuit shown below, let

Question 7

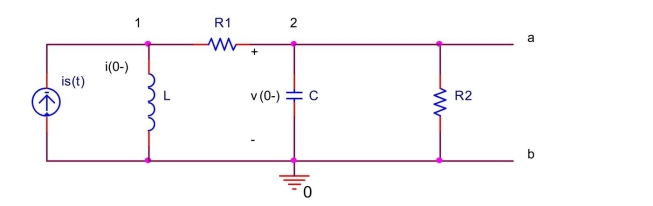

In the circuit shown below, let

Question 8

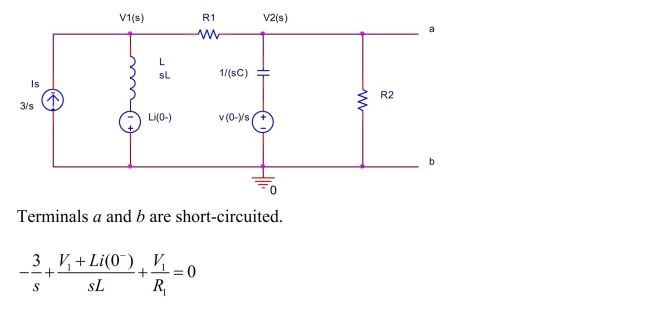

In the circuit shown below, let

Question 9

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 10

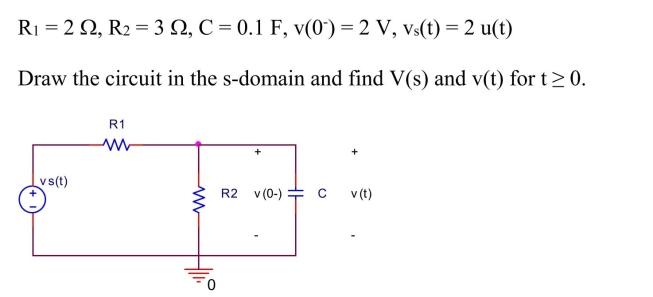

In the circuit shown below, let

Question 11

Find the convolution y(t) of x(t) and h(t); that is, find

Question 12

In the circuit shown below, let

Question 13

Find the convolution y(t) of x(t) and h(t); that is,

Question 14

Assume in the circuit shown below. Find the transfer function H(s) = Vo(s)/Vin(s).

Question 15

Find the convolution y(t) of x(t) and h(t); that is,

Question 16

In the circuit shown below, let

Question 17

Find the convolution y(t) of x(t) and h(t); that is, find y(t) = h(t)*x(t).

Question 18

Find the convolution y(t) of x(t) and h(t); that is, find y(t) = h(t)*x(t).

Question 19

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 20

Find the convolution y(t) of x(t) and h(t); that is, find

Question 21

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 22

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 23

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 24

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 25

Plot the magnitude and phase Bode diagrams of the transfer function given by

Question 26

Plot the magnitude and phase Bode diagrams of the transfer function given by
