Resistors in Combination: Four Resistors Are Connected Across an 8-V

Multiple Choice

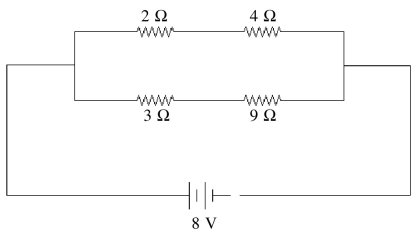

Resistors in combination: Four resistors are connected across an 8-V DC battery as shown in the figure. The current through the 9-Ω resistor is closest to

A) 1 A.
B) 0.7 A.
C) 0.5 A.
D) 0.9 A.
E) 2 A.
