Multiple Choice

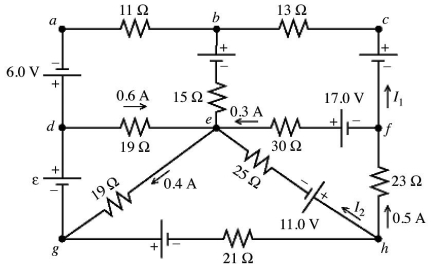

Kirchhoff's rules: A multiloop circuit is shown in the figure. Some circuit quantities are not labeled. It is not necessary to solve the entire circuit. The emf ε is closest to
A) +3 V.
B) +19 V.
C) -3 V.
D) -10 V.
E) -1 V.
Correct Answer:
Verified
Correct Answer:
Verified
