Five Series RL Circuits Are Identical Except for the Values t=0t = 0

Question 46

Multiple Choice

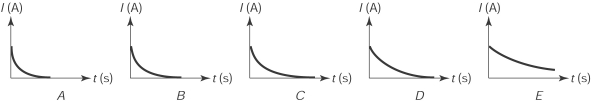

Five series RL circuits are identical except for the values of their inductance. They are all connected to the same emf V. The switch had been connected to the closed position long enough for the currents in the circuit to reach its maximum value. The switch is opened at t=0t = 0 s. The graph that most likely shows the current in the circuit with the larger inductance value is
 Five series RL circuits are identical except for the values of their inductance. They are all connected to the same emf V. The switch had been connected to the closed position long enough for the currents in the circuit to reach its maximum value. The switch is opened at  t = 0  s. The graph that most likely shows the current in the circuit with the larger inductance value is   A)  A B)  B C)  C D)  D E)  E


A) A
B) B
C) C
D) D
E) E

Correct Answer:

verifed

Verified
