In the Figure Here, the Difference in Potential VC -

Question 19

Multiple Choice

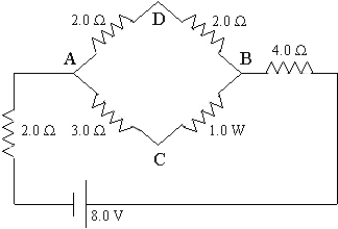

In the figure here, the difference in potential VC - VD is
In the figure here, the difference in potential V<sub>C</sub> - V<sub>D</sub> is A) 4.0 V. B) 2.0 V. C) 1.0 V. D) 0.50 V. E) 0 V.


A) 4.0 V.
B) 2.0 V.
C) 1.0 V.
D) 0.50 V.
E) 0 V.
