A Series Circuit Has a 50 Hz AC Source,a 30

Question 19

Multiple Choice

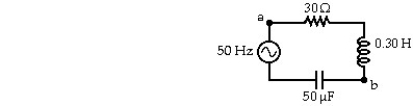

A series circuit has a 50 Hz AC source,a 30 Ω resistor,a 0.30 H inductor,and a 50 μF capacitor,as shown.The rms current in the circuit is 1.6 A.In the figure,the voltage amplitude of the source is closest to: A) 97 V B) 83 V C) 69 V D) 56 V E) 48 V A series circuit has a 50 Hz AC source,a 30 Ω resistor,a 0.30 H inductor,and a 50 μF capacitor,as shown.The rms current in the circuit is 1.6 A.In the figure,the voltage amplitude of the source is closest to:


A) 97 V
B) 83 V
C) 69 V
D) 56 V
E) 48 V

Correct Answer:

verifed

Verified

Unlock this answer now
Get Access to more Verified Answers free of charge
