The Diagram That Correctly Represents the Phase Relationship Between the Voltage

Question 16

Multiple Choice

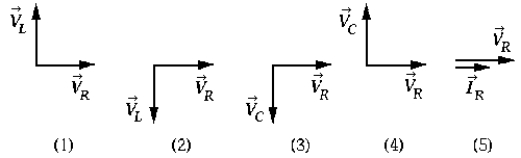

The diagram that correctly represents the phase relationship between the voltage across the resistor and the voltage across the capacitor in a circuit containing an inductor L, a capacitor C, and a resistor R all connected in series is A) 1 B) 2 C) 3 D) 4 E) 5 The diagram that correctly represents the phase relationship between the voltage across the resistor and the voltage across the capacitor in a circuit containing an inductor L, a capacitor C, and a resistor R all connected in series is


A) 1
B) 2
C) 3
D) 4
E) 5

Correct Answer:

verifed

Verified
