Which Graph Correctly Gives the Magnitude of the Magnetic Field

Question 12

Multiple Choice

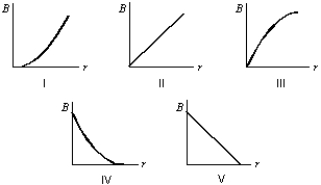

Which graph correctly gives the magnitude of the magnetic field outside an infinitely long straight current-carrying wire as a function of the distance r from the wire? Which graph correctly gives the magnitude of the magnetic field outside an infinitely long straight current-carrying wire as a function of the distance r from the wire? A) I B) II C) III D) IV E) V


A) I
B) II
C) III
D) IV
E) V

Correct Answer:

verifed

Verified
