A Sinusoidal Potential Difference Vin = Vmsin( T)is Applied

Question 47

Multiple Choice

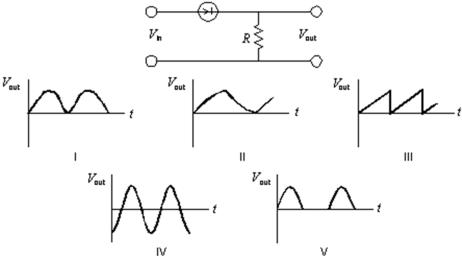

A sinusoidal potential difference Vin = Vmsin( A sinusoidal potential difference V<sub>in</sub> = V<sub>m</sub>sin( t) is applied to the p-n junction as shown.Which graph correctly shows V<sub>out</sub> as a function of time? A) I B) II C) III D) IV E) V t) is applied to the p-n junction as shown.Which graph correctly shows Vout as a function of time? A sinusoidal potential difference V<sub>in</sub> = V<sub>m</sub>sin( t) is applied to the p-n junction as shown.Which graph correctly shows V<sub>out</sub> as a function of time? A) I B) II C) III D) IV E) V


A) I
B) II
C) III
D) IV
E) V
