A Light Bulb Is Connected in the Circuit Shown in the Figure

Question 1

Multiple Choice

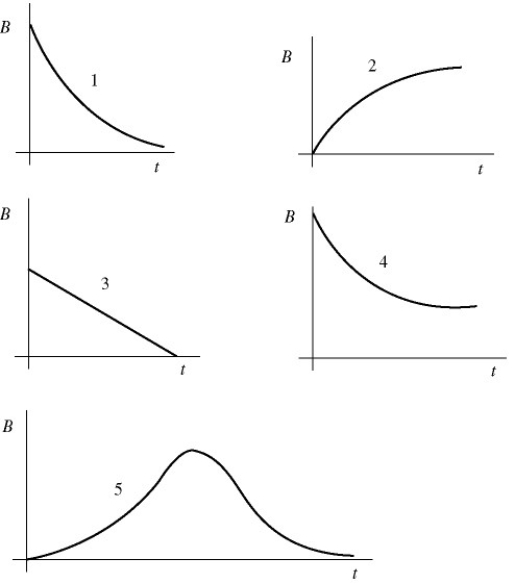

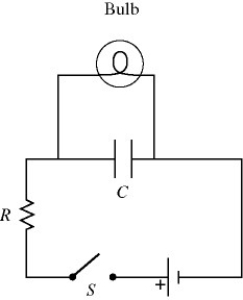

A light bulb is connected in the circuit shown in the figure with the switch S open and the capacitor uncharged.The battery has no appreciable internal resistance.Which one of the following graphs best describes the brightness B of the bulb as a function of time t after closing the switch? A light bulb is connected in the circuit shown in the figure with the switch S open and the capacitor uncharged.The battery has no appreciable internal resistance.Which one of the following graphs best describes the brightness B of the bulb as a function of time t after closing the switch? A) 1 B) 2 C) 3 D) 4 E) 5 A light bulb is connected in the circuit shown in the figure with the switch S open and the capacitor uncharged.The battery has no appreciable internal resistance.Which one of the following graphs best describes the brightness B of the bulb as a function of time t after closing the switch? A) 1 B) 2 C) 3 D) 4 E) 5


A) 1
B) 2
C) 3
D) 4
E) 5

Correct Answer:

verifed

Verified
