L-Shaped Beam Is Loaded as Shown in the Figure

Question 1

Multiple Choice

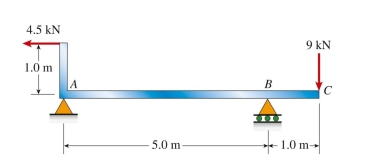

L-shaped beam is loaded as shown in the figure. The bending moment at the midpoint of span AB is approximately: L-shaped beam is loaded as shown in the figure. The bending moment at the midpoint of span AB is approximately: A) 6.8 kN ∙ m B) 10.1 kN ∙ m C) 12.3 kN ∙ m D) 15.5 kN ∙ m


A) 6.8 kN ∙ m
B) 10.1 kN ∙ m
C) 12.3 kN ∙ m
D) 15.5 kN ∙ m

Correct Answer:

verifed

Verified
