Multiple Choice

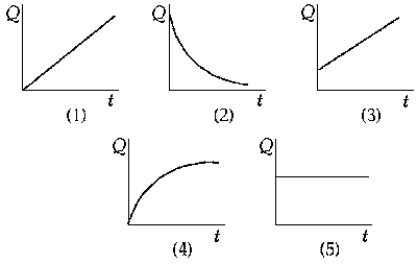

The curve that best represents the charge on the capacitor in a charging RC circuit as a function of time is
A) 1
B) 2
C) 3
D) 4
E) 5
Correct Answer:
Verified
Correct Answer:
Verified
