Exam 1: A: Foundations

The weight of a car of mass 1.20 × 10³ kg is supported equally by the four tires,which are inflated to the same gauge pressure.What gauge pressure in the tires is required so the area of contact of each tire with the road is 1.00 × 10² cm²? (1 atm = 1.01 × 10⁵ Pa.)

A 20-ton truck collides with a 1500-lb car and causes a lot of damage to the car.During the collision

A rock is dropped from the top of a vertical cliff and takes 3.00 s to reach the ground below the cliff. A second rock is thrown vertically from the cliff,and it takes this rock 2.00 s to reach the ground below the cliff from the time it is released. With what velocity was the second rock thrown,assuming no air resistance?

While an object is in projectile motion (with upward being positive)with no air resistance

A certain astronomical telescope has a diameter of 5.60 m.Considering only the limitation due to diffraction,what is the minimum angle of resolution for this telescope at a wavelength of 620 nm?

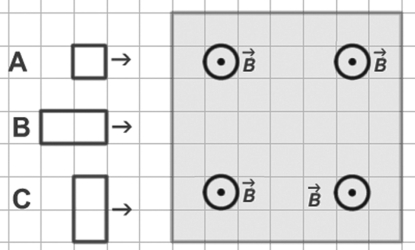

The figure shows three metal coils labeled A,B,and C heading towards a region where a uniform static magnetic field exists.The coils move with the same constant velocity and all have the same resistance.Their relative sizes are indicated by the background grid.As they enter the magnetic field the coils will have an induced electric current in them.For which coil will the current be the greatest?

In the two-slit experiment,monochromatic light of frequency 5.00 × 10¹⁴ Hz passes through a pair of slits separated by 2.20 × 10^-5 m.(c = 3.00 × 10⁸ m/s) (a)At what angle away from the central bright spot does the third bright fringe past the central bright spot occur? (b)At what angle does the second dark fringe occur?

What is 34 + (3)× (1.2465)written with the correct number of significant figures?

Find the orbital speed of an ice cube in the rings of Saturn.The mass of Saturn is 5.68 × 10²⁶ kg and the rings have an average radius of 100,000 km.(G = 6.67 × 10^-11 N • m²/kg²)

In an INELASTIC collision between two objects

The energy per unit volume in an electromagnetic wave is

Vector = -1.00 + -2.00 And vector = 3)00 + 4)00 ) What are the magnitude and direction of vector = 3)00 + 2)00 ?

A planet has two small satellites in circular orbits around the planet. The first satellite has a period 18.0 hours and an orbital radius 2.00 × 10⁷ m. The second planet has an orbital radius 3.00 × 10⁷ m. What is the period of the second satellite?

A Carnot cycle engine operates between a low temperature reservoir at 20°C and a high temperature reservoir at 800°C. If the engine is required to output 20.0 kJ of work per cycle,how much heat must the high temperature reservoir transfer to the engine during each cycle?

What is the energy density in the magnetic field 25 cm from a long straight wire carrying a current of 12 A? (μ₀ = 4π × 10^-7 T • m/A)

An air-filled parallel-plate capacitor is connected to a battery and allowed to charge up.Now a slab of dielectric material is placed between the plates of the capacitor while the capacitor is still connected to the battery.After this is done,we find that

The angular velocity of a 755-g wheel 15.0 cm in diameter is given by the equation ω(t)= (2.00 rad/s²)t + (1.00 rad/s⁴)t³. (a)Through how many radians does the wheel turn during the first 2.00 s of its motion? (b)What is the angular acceleration (in rad/s²)of the wheel at the end of the first 2.00 s of its motion?

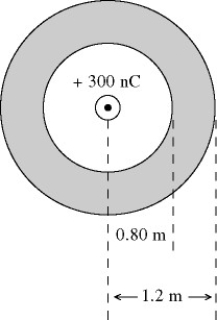

A hollow conducting spherical shell has radii of 0.80 m and 1.20 m,as shown in the figure.The sphere carries an excess charge of -500 nC.A point charge of +300 nC is present at the center.The surface charge density on the inner spherical surface is closest to

If the mass of the earth and all objects on it were suddenly doubled,but the size remained the same,the acceleration due to gravity at the surface would become

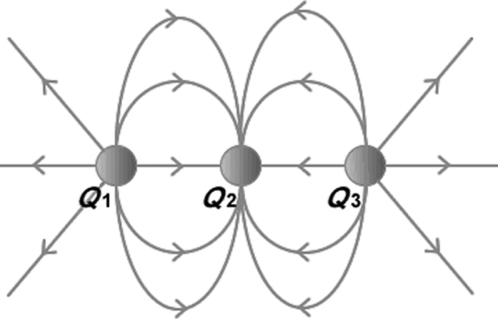

The figure shows three electric charges labeled Q₁,Q₂,Q₃,and some electric field lines in the region surrounding the charges.What are the signs of the three charges?
