Question 1

Consider an ideal transformer with $N_{1}=3000$ and $N_{2}=500$ turns. Let winding 1 be connected to a source whose voltage is $e_{1}(t)=100(1-|t|)$ volts for $-1 \leq t \leq 1$ and $e_{1}(t)=0$ for $|t|>1$ second. A 3 -farad capacitor is connected across winding 2 . Sketch $e_{1}(t), e_{2}(t), i_{1}(t)$, and $i_{2}(t)$ versus time $t$.

Accepted Answer

The answer of Consider an ideal transformer with $N_{1}=3000$ and...

Question 2

Choosing system bases to be 360/24 kV and 100 MVA, redraw the per-unit equivalent circuit for Test Bank Problem 3.9

Accepted Answer

$\quad X_{\text {pu new }}=(0.09)\left(\frac{345}{360}\right)^{2}\left(\frac{100}{300}\right)=0.02755$ per unit

 Positive Sequence

Question 3

For the power system in Test Bank Problem 3.11, the synchronous motor absorbs 1200 MW at 0.8 power factor leading with the bus 3 voltage at $18 \mathrm{kV}$. Determine the bus 1 and bus 2 voltages in $\mathrm{kV}$. Assume that generators 1 and 2 deliver equal real powers and equal reactive powers. Also assume a balanced three-phase system with positive-sequence sources.

Accepted Answer

$\begin{aligned}
\bar{V}_{3 p u} & =\frac{18}{20} \angle 0^{\circ}=0.9 \angle 0^{\circ} \text { per unit } \
\bar{I}_{3} & =\frac{1200}{(\sqrt{3})(18)(0.8)} \angle \cos ^{-1}(.8)=48.11 \angle 36.87^{\circ} \mathrm{kA} \
I_{\text {base } X} & =\frac{100}{\sqrt{3}(20)}=2.887 \mathrm{kA} \
\bar{I}_{3 p u} & =\frac{48.11 \angle 36.87^{\circ}}{2.887}=16.67 \angle 36.87^{\circ} \text { per unit } \
\bar{V}_{1 p u} & =\bar{V}_{2 p u}=\bar{V}_{3 p u}+\bar{I}_{3 p u}\left(j \times_{T 5 p u}\right)+\frac{1}{2} \bar{I}_{3 p u}\left(j X_{\text {Line } 25 p u}+j X_{T 3 p u}\right) \
\bar{V}_{1 p u} & =\bar{V}_{2 p u}=0.9 \angle 0^{\circ}+16.67 \angle 36.87^{\circ}(j)\left(.006666+\frac{.01+.01333}{2}\right) \
& =.9+0.30555+\angle 126.87^{\circ} \
& =0.7167+j 0.2444=0.7572 \angle 18.83^{\circ} \mathrm{pu} \
V_{1} & =V_{2}=(0.7572)(20)=15.14 \mathrm{kV}
\end{aligned}$

Question 4

A single-phase $15-\mathrm{kVA}, 2400 / 240$-volt, $60-\mathrm{Hz}$ two-winding distribution transformer is connected as an autotransformer to step up the voltage from 2400 to 2640 volts. (a) Draw a schematic diagram of this arrangement, showing all voltages and currents when delivering full load at rated voltage. (b) Find the permissible kVA rating of the autotransformer if the winding currents and voltages are not to exceed the rated values as a two-winding transformer. How much of this kVA rating is transformed by magnetic induction? (c) The following data are obtained from tests carried out on the transformer when it is connected as a two-winding transformer:
Open-circuit test with the low-voltage terminals excited:
Applied voltage $=240 \mathrm{~V}$, Input current $=0.68 \mathrm{~A}$, Input power $=105 \mathrm{~W}$.
Short-circuit test with the high-voltage terminals excited:
Applied voltage $=120 \mathrm{~V}$, Input current $=6.25 \mathrm{~A}$, Input power $=330 \mathrm{~W}$.
Based on the data, compute the efficiency of the autotransformer corresponding to full load, rated voltage, and 0.8 power factor lagging. Comment on why the efficiency is higher as an autotransformer than as a two-winding transformer.

Accepted Answer

The answer of A single-phase $15-\mathrm{kVA}, 2400 / 240$-volt, $60-\mathrm{Hz}$...

Question 5

A single-phase $100-\mathrm{kVA}, 2400 / 240-\mathrm{volt}, 60-\mathrm{Hz}$ distribution transformer is used as a step-down transformer. The load, which is connected to the 240 -volt secondary winding, absorbs $80 \mathrm{kVA}$ at 0.8 power factor lagging and is at 230 volts. Assuming an ideal transformer, calculate the following: (a) primary voltage, (b) load impedance, (c) load impedance referred to the primary, and (d) the real and reactive power supplied to the primary winding.

Accepted Answer

The answer of A single-phase $100-\mathrm{kVA}, 2400 / 240-\mathrm{volt}, 60-\mathrm{Hz}$...

Question 6

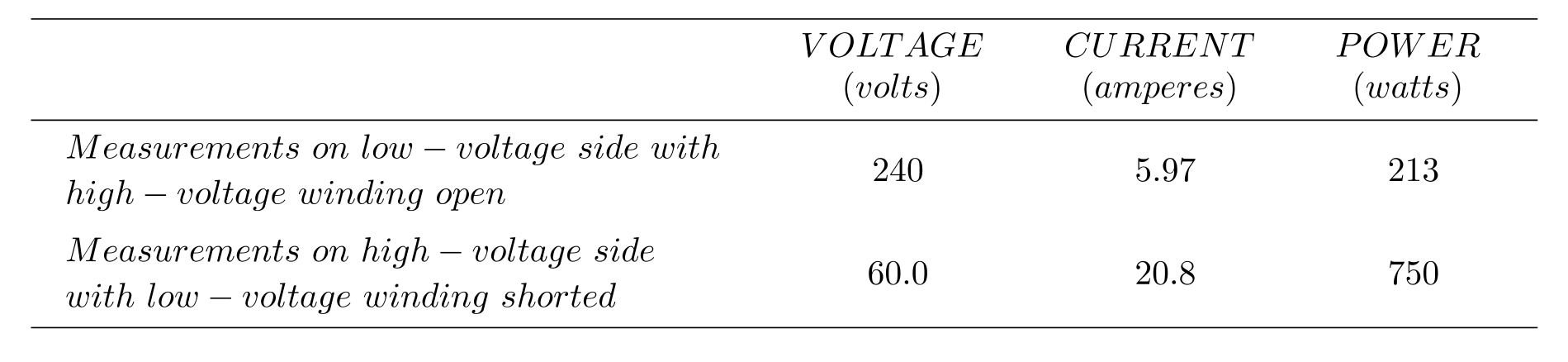

The following data are obtained when open-circuit and short-circuit tests are performed on a single-phase, $50-\mathrm{kVA}, 2400 / 240-\mathrm{volt}$, $60-\mathrm{Hz}$ distribution transformer.

(a) Neglecting the series impedance, determine the exciting admittance referred to the high-voltage side. (b) Neglecting the exciting admittance, determine the equivalent series impedance referred to the high-voltage side. (c) Assuming equal series impedances for the primary and referred secondary, obtain an equivalent T-circuit referred to the high-voltage side.

Accepted Answer

The answer of The following data are obtained when open-circuit...

Question 7

The ratings of a three-phase three-winding transformer are:
Primary (1): $\quad$ Y connected, $66 \mathrm{kV}, 20$ MVA
Secondary (2): $\quad$ Y connected, $13.2 \mathrm{kV}, 15$ MVA
Tertiary (3): $\quad \Delta$ connected, $2.3 \mathrm{kV}, 5$ MVA
Neglecting winding resistances and exciting current, the per-unit leakage reactances are:
$\begin{aligned}
& \mathrm{X}_{12}=0.08 \text { on a } 20-\mathrm{MVA}, 66-\mathrm{kV} \text { base } \
& \mathrm{X}_{13}=0.10 \text { on a } 20-\mathrm{MVA}, 66-\mathrm{kV} \text { base } \
& \mathrm{X}_{23}=0.09 \text { on a } 15-\mathrm{MVA}, 13.2-\mathrm{kV} \text { base }
\end{aligned}$
(a) Determine the per-unit reactances $\mathrm{X}_{1}, \mathrm{X}_{2}, \mathrm{X}_{3}$ of the equivalent circuit on a 20-MVA, $66-\mathrm{kV}$ base at the primary terminals. (b) Purely resistive loads of $12 \mathrm{MW}$ at $13.2 \mathrm{kV}$ and $5 \mathrm{MW}$ at $2.3 \mathrm{kV}$ are connected to the secondary and tertiary sides of the transformer, respectively. Draw the per-unit impedance diagram, showing the per-unit impedances on a $20-\mathrm{MVA}, 66-\mathrm{kV}$ base at the primary terminals.

Accepted Answer

The answer of The ratings of a three-phase three-winding transformer...

Question 8

A single-phase three-winding transformer has the following parameters: $Z_{1}=Z_{2}=$ $Z_{3}=0+j 0.06, \mathrm{G}_{c}=0$, and $\mathrm{B}_{m}=0.2$ per unit. Three identical transformers, as described, are connected with their primaries in $\mathrm{Y}$ (solidly grounded neutral) and with their secondaries and tertiaries in $\Delta$. Draw the per-unit sequence networks of this transformer bank.

Accepted Answer

The answer of A single-phase three-winding transformer has the following...

Question 9

Consider a bank of three single-phase two-winding transformers whose high-voltage terminals are connected to a three-phase, $13.8-\mathrm{kV}$ feeder. The low-voltage terminals are connected to a three-phase substation load rated 2.4 MVA and $2.3 \mathrm{kV}$. Determine the required voltage, current, and MVA ratings of both windings of each transformer, when the high-voltage/low-voltage windings are connected (a) $\mathrm{Y}-\Delta$, (b) $\Delta-\mathrm{Y}$, (c) $\mathrm{Y}-\mathrm{Y}$, and (d) $\Delta-\Delta$.

Accepted Answer

The answer of Consider a bank of three single-phase two-winding...

Question 10

A single-phase $100-\mathrm{kVA}, 2400 / 240-\mathrm{volt}, 60-\mathrm{Hz}$ distribution transformer has a $2-\mathrm{ohm}$ equivalent leakage reactance and a 6000 -ohm magnetizing reactance referred to the high-voltage side. If rated voltage is applied to the high-voltage winding, calculate the open-circuit secondary voltage. Neglect $\mathrm{I}^{2} \mathrm{R}$ and $\mathrm{G}_{c}^{2} \mathrm{~V}$ losses. Assume equal series leakage reactances for the primary and referred secondary.

Accepted Answer

The answer of A single-phase $100-\mathrm{kVA}, 2400 / 240-\mathrm{volt}, 60-\mathrm{Hz}$...

Question 11

For a conceptual single-phase, phase-shifting transformer, the primary voltage leads the secondary voltage by $30^{\circ}$. A load connected to the secondary winding absorbs $50 \mathrm{kVA}$ at 0.9 power factor leading and at a voltage $E_{2}=277 \angle 0^{\circ}$ volts. Determine (a) the primary voltage, (b) primary and secondary currents, (c) load impedance referred to the primary winding, and (d) complex power supplied to the primary winding.

Accepted Answer

The answer of For a conceptual single-phase, phase-shifting transformer, the...

Question 12

Consider the single-line diagram of the power system shown in Figure P3.11. Equipment rating are:}
$\begin{array}{ll}
\text { generator 1: } & 750 \mathrm{MVA}, 18 \mathrm{kV}, \mathrm{X}^{\prime \prime}=0.2 \text { per unit } \
\text { generator 2: } & 750 \mathrm{MVA}, 18 \mathrm{kV}, \mathrm{X}^{\prime \prime}=0.2 \
\text { synchronous motor 3: } & 1500 \mathrm{MVA}, 20 \mathrm{kV}, \mathrm{X}^{\prime \prime}=0.2 \
\begin{array}{l}
\text { 3-phase } \Delta-\mathrm{Y} \text { transformers } \
\mathrm{T}_{1}, \mathrm{~T}_{2}, \mathrm{~T}_{3}, \mathrm{~T}_{4}:
\end{array} & 750 \mathrm{MVA}, 500 \mathrm{kV} \mathrm{Y} / 20 \mathrm{kV} \Delta, \mathrm{X}=0.1 \
\text { 3-phase Y-Y transformer } \mathrm{T}_{5}: & 1500 \mathrm{MVA}, 500 \mathrm{kV} \mathrm{Y} / 20 \mathrm{kV} \mathrm{Y}, \mathrm{X}=0.1
\end{array}$
Neglecting resistance, transformer phase shift, and magnetizing reactance, draw the equivalent reactance diagram. Use a base of $100 \mathrm{MVA}$ and $500 \mathrm{kV}$ for the 40 -ohm line. Determine the per-unit reactances.

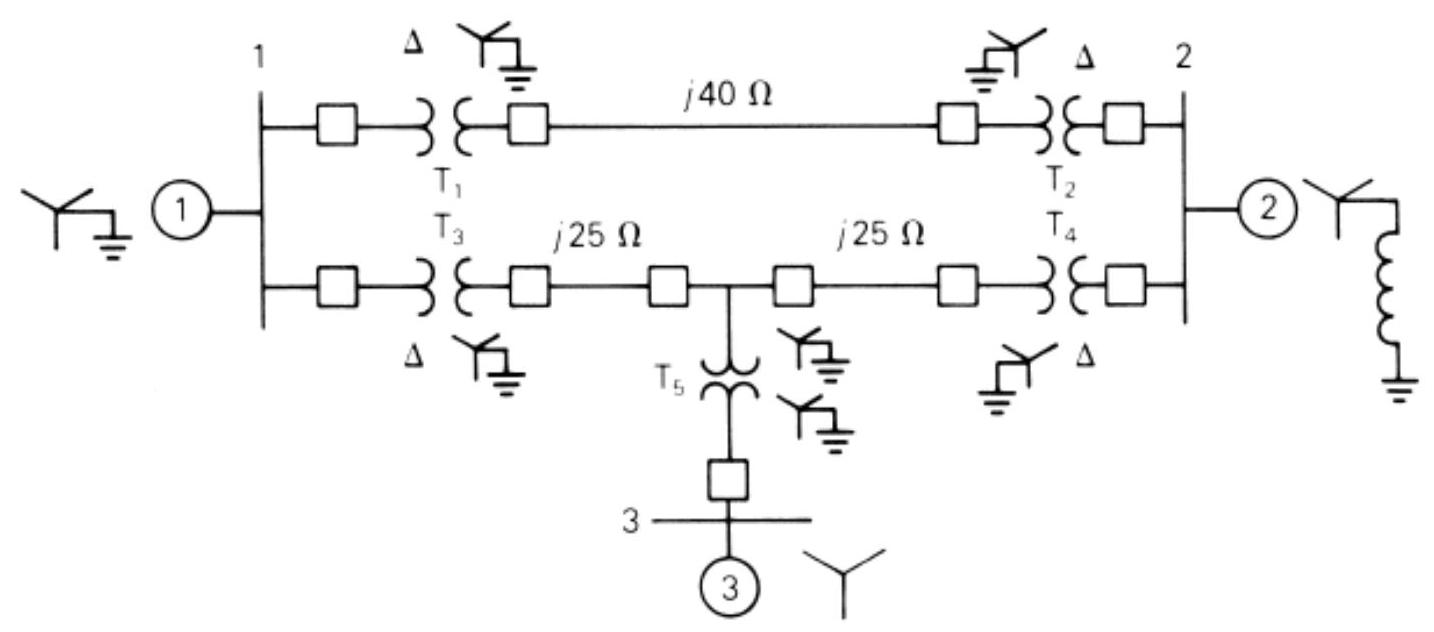

FIGURE P3.11

Accepted Answer

The answer of Consider the single-line diagram of the power...

Question 13

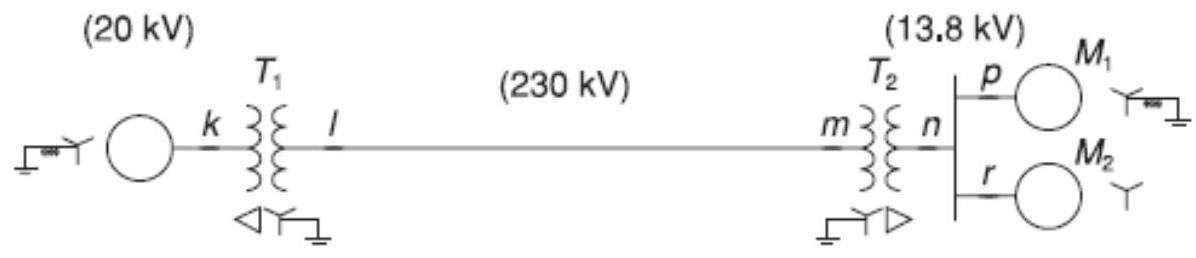

Figure P3.15 shows a one-line diagram of a system in which the three-phase generator is rated 300 MVA, $20 \mathrm{kV}$ with a subtransient reactance of 0.2 per unit and with its neutral grounded through a $0.4-\Omega$ reactor. The transmission line is $64 \mathrm{~km}$ long with a series reactance of $0.5 \Omega / \mathrm{km}$. The three-phase transformer $T_{1}$ is rated $350 \mathrm{MVA}, 230 /$ $20 \mathrm{kV}$ with a leakage reactance of 0.1 per unit. Transformer $T_{2}$ is composed of three single-phase transformers, each rated $100 \mathrm{MVA}, 127 / 13.2 \mathrm{kV}$ with a leakage reactance of 0.1 per unit. Two $13.2-\mathrm{kV}$ motors $M_{1}$ and $M_{2}$ with a subtransient reactance of 0.2 per unit for each motor represent the load. $M_{1}$ has a rated input of 200 MVA with its neutral grounded through a $0.4-\Omega$ current-limiting reactor. $M_{2}$ has a rated input of 100 MVA with its neutral not connected to ground. Neglect phase shifts associated with the transformers. Choose the generator rating as base in the generator circuit and draw the positive-sequence reactance diagram showing all reactances in per unit.

Figure P3.15

Accepted Answer

The answer of Figure P3.15 shows a one-line diagram of...

Question 14

Three single-phase transformers, each rated $10 \mathrm{MVA}, 66.4 / 12.5 \mathrm{kV}, 60 \mathrm{~Hz}$, with an equivalent series reactance of 0.12 per unit divided equally between primary and secondary, are connected in a three-phase bank. The high-voltage windings are Y connected and their terminals are directly connected to a $115-\mathrm{kV}$ three-phase bus. The secondary terminals are all shorted together. Find the currents entering the high-voltage terminals and leaving the low-voltage terminals if the low-voltage windings are (a) $\mathrm{Y}$ connected, (b) $\Delta$ connected.

Accepted Answer

The answer of Three single-phase transformers, each rated \(10 \mathrm{MVA},...

Question 15

A 100-MVA, 13.2-kV three-phase generator, which has a positive-sequence reactance of 1.2 per unit on the generator base, is connected to a 110 -MVA, $13.2 \Delta / 115 \mathrm{Y}-\mathrm{kV}$ step-up transformer with a series impedance of $(0.005+j 0.1)$ per unit on its own base. (a) Calculate the per-unit generator reactance on the transformer base. (b) The load at the transformer terminals is $80 \mathrm{MW}$ at unity power factor and at $115 \mathrm{kV}$. Choosing the transformer high-side voltage as the reference phasor, draw a phasor diagram for this condition. (c) For the condition of part (b), find the transformer low-side voltage and the generator internal voltage behind its reactance. Also compute the generator output power and power factor.

Accepted Answer

The answer of A 100-MVA, 13.2-kV three-phase generator, which has...

Question 16

A balanced Y-connected voltage source with $E_{a g}=277 \angle 0^{\circ}$ volts is applied to a balanced- $Y$ load in parallel with a balanced- $\Delta$ load, where $Z_{Y}=30+j 10$ and $Z_{\Delta}=$ $45-j 25$ ohms. The $\mathrm{Y}$ load is solidly grounded. Using base values of $\mathrm{S}_{\text {basel } \phi}=5 \mathrm{kVA}$ and $\mathrm{V}_{\text {baseLN }}=277$ volts, calculate the source current $I_{a}$ in per-unit and in amperes.

Accepted Answer

The answer of A balanced Y-connected voltage source with \(E_{a...

Question 17

Using the transformer ratings as base quantities, work Test Bank Problem 3.5 in per unit.

Accepted Answer

The answer of Using the transformer ratings as base quantities,...

Question 18

The leakage reactance of a three-phase, 500 -MVA, $345 \mathrm{Y} / 23 \Delta$-kV transformer is 0.09 per unit based on its own ratings. The $\mathrm{Y}$ winding has a solidly grounded neutral. Draw the per-unit equivalent circuit. Neglect the exciting admittance and assume American standard phase shift.

Accepted Answer

The answer of The leakage reactance of a three-phase, 500...
