Multiple Choice

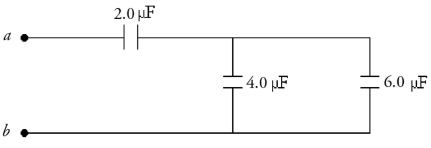

Three capacitors are connected as shown in the figure. What is the equivalent capacitance between points a and b?
A) 1.7 µF
B) 4.0 µF
C) 7.1 µF
D) 12 µF
E) 8.0 µF
Correct Answer:
Verified
Correct Answer:
Verified
