Question 1

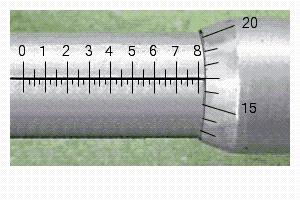

Read the measurement shown on the metric micrometer.   __________ mm

Accepted Answer

The answer of Read the measurement shown on the metric...

Question 2

The measurement is $8.000 \mathrm { in }$ .
Find the precision of the measurement.
__________ $\text { in }$ .
Find the greatest possible error of the measurement.
__________ $\text { in }$ .

Accepted Answer

The answer of The measurement is \(8.000 \mathrm { in...

Question 3

Read the English dial (the arrow near the zero indicates the initial deflection of the needle).

Accepted Answer

A)  -3.06 in.
B)  0.394 in.
C)  3.06 in.
D)  -0.306 in.
E)  0.306 in.
A)  -3.06 in.
B)  0.394 in.
C)  3.06 in.
D)  -0.306 in.
E)  0.306 in.

Question 4

Read the measurement shown on the U.S. micrometer.   __________ in.

Accepted Answer

The answer of Read the measurement shown on the U.S....

Question 5

We are given the measurement of $18.01$ cm. The tolerance is $\pm 0.11$ cm. Find the upper limit, the lower limit, and the tolerance interval.

Accepted Answer

A)  $18.12,35.8,0.33$
B)  $36.24,8.95,0.22$
C)  $18.12,35.8,0.22$
D)  $18.12,17.9,0.22$
E)  $18.12,17.9,0.11$
A)  $18.12,35.8,0.33$
B)  $36.24,8.95,0.22$
C)  $18.12,35.8,0.22$
D)  $18.12,17.9,0.22$
E)  $18.12,17.9,0.11$

Question 6

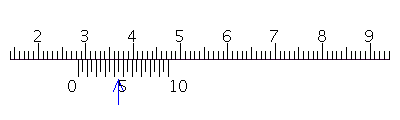

Read the measurement shown on each vernier caliper.   __________ mm

Accepted Answer

The answer of Read the measurement shown on each vernier...

Question 7

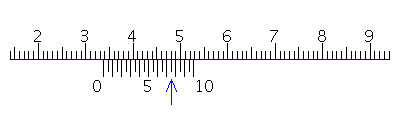

Read the measurement shown on each vernier caliper.   __________ mm

Accepted Answer

The answer of Read the measurement shown on each vernier...

Question 8

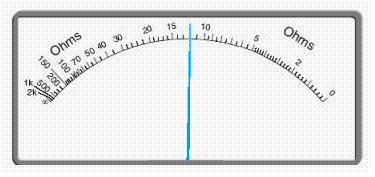

Read the scale.   __________Ω

Accepted Answer

The answer of Read the scale.   __________Ω...

Question 9

Consider the following measurement. $24 \mathrm { lb } _ { 3 }$ Find the precision, the greatest possible error, the relative error and the percent of error (to the nearest hundredth of a percent).

Accepted Answer

A)  $1 \text { oz; } 0.5 \text { oz;0.00129; } 0.13 \%$
B)  $1 \mathrm { lb } ; 0.5 \mathrm { lb } ; 0.00129 ; 0.13 \%$
C)  $1 \text { oz; } 0.5 \mathrm { oz } ; 0.00517 ; 0.26 \%$
D)  $1 \text { oz; } 0.5 \mathrm { oz } ; 0.00388 ; 0.39 \%$
E)  $2 \text { oz; } 1 \text { oz; } 0.00258 ; 0.13 \%$
A)  $1 \text { oz; } 0.5 \text { oz;0.00129; } 0.13 \%$
B)  $1 \mathrm { lb } ; 0.5 \mathrm { lb } ; 0.00129 ; 0.13 \%$
C)  $1 \text { oz; } 0.5 \mathrm { oz } ; 0.00517 ; 0.26 \%$
D)  $1 \text { oz; } 0.5 \mathrm { oz } ; 0.00388 ; 0.39 \%$
E)  $2 \text { oz; } 1 \text { oz; } 0.00258 ; 0.13 \%$

Question 10

Read the measurement shown on the metric micrometer.

Accepted Answer

A)  18.2 mm
B)  33.2 mm
C)  30.32 mm
D)  15.32 mm
E)  15.032 mm
A)  18.2 mm
B)  33.2 mm
C)  30.32 mm
D)  15.32 mm
E)  15.032 mm

Question 11

Determine the accuracy of the measurement; that is, give the number of significant digits for the measurement. $4,8 \overline { 0 } 0$ m

Accepted Answer

The answer of Determine the accuracy of the measurement; that...

Question 12

Use the rules for addition of measurements to find the sum of the set of measurements.
14,000 W; 18,200 W; 1,720 W; 64,300 W
__________ W

Accepted Answer

The answer of Use the rules for addition of measurements...

Question 13

An architect estimates a bid of $ $182,800$ . The maximum rate above the estimate is $10$ %. Find the maximum acceptable bid.

Accepted Answer

A)  $ $212,480$
B)  $ $201,080$
C)  $ $204,523$
D)  $ $210,080$
E)  $ $201,306$
A)  $ $212,480$
B)  $ $201,080$
C)  $ $204,523$
D)  $ $210,080$
E)  $ $201,306$

Question 14

Determine the accuracy of the measurement; that is, give the number of significant digits for the measurement. $7,100$ g

Accepted Answer

The answer of Determine the accuracy of the measurement; that...

Question 15

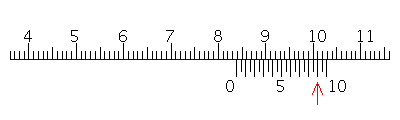

Read the measurement shown on the vernier caliper in millimeters.

Accepted Answer

A)  8.39 mm
B)  8.69 mm
C)  83.9 mm
D)  86.9 mm
E)  92.9 mm
A)  8.39 mm
B)  8.69 mm
C)  83.9 mm
D)  86.9 mm
E)  92.9 mm

Question 16

Determine the accuracy of the measurement; that is, give the number of significant digits for the measurement. $3,511 , \overline { 0 } 00$ V

Accepted Answer

A)  4
B)  3
C)  7
D)  5
E)  none of these
A)  4
B)  3
C)  7
D)  5
E)  none of these

Question 17

Read the measurement shown on the U.S. micrometer.

Accepted Answer

A)  0.564 in.
B)  0.614 in.
C)  0.69 in.
D)  0.5514 in.
E)  0.74 in.
A)  0.564 in.
B)  0.614 in.
C)  0.69 in.
D)  0.5514 in.
E)  0.74 in.

Question 18

For the resistor shown below, find the tolerance interval in ohms, Ω.

Accepted Answer

A)  23 Ω
B)  12 Ω
C)  24 Ω
D)  5 Ω
E)  17 Ω
A)  23 Ω
B)  12 Ω
C)  24 Ω
D)  5 Ω
E)  17 Ω

Question 19

Read the measurement shown on the U.S. micrometer.

Accepted Answer

A)  0.1773 in.
B)  1.98 in.
C)  0.198 in.
D)  0.48 in.
E)  0.273 in.
A)  0.1773 in.
B)  1.98 in.
C)  0.198 in.
D)  0.48 in.
E)  0.273 in.

Question 20

Read the measurement shown on the U.S. micrometer.   __________ in.

Accepted Answer

The answer of Read the measurement shown on the U.S....

Read the measurement shown on the metric micrometer. __________ mm

The measurement is $8.000 \mathrm { in }$ . Find the precision of the measurement. $\text { in }$ . Find the greatest possible error of the measurement. $\text { in }$ .

Read the English dial (the arrow near the zero indicates the initial deflection of the needle).

Read the measurement shown on the U.S. micrometer. __________ in.

We are given the measurement of $18.01$ cm. The tolerance is $\pm 0.11$ cm. Find the upper limit, the lower limit, and the tolerance interval.

Read the measurement shown on each vernier caliper. __________ mm

Read the measurement shown on each vernier caliper. __________ mm

Read the scale. __________Ω

Consider the following measurement. $24 \mathrm { lb } _ { 3 }$ Find the precision, the greatest possible error, the relative error and the percent of error (to the nearest hundredth of a percent).

Read the measurement shown on the metric micrometer.

Determine the accuracy of the measurement; that is, give the number of significant digits for the measurement. $4,8 \overline { 0 } 0$ m

Use the rules for addition of measurements to find the sum of the set of measurements. 14,000 W; 18,200 W; 1,720 W; 64,300 W __________ W

An architect estimates a bid of $ $182,800$ . The maximum rate above the estimate is $10$ %. Find the maximum acceptable bid.

Determine the accuracy of the measurement; that is, give the number of significant digits for the measurement. $7,100$ g

Read the measurement shown on the vernier caliper in millimeters.

Determine the accuracy of the measurement; that is, give the number of significant digits for the measurement. $3,511 , \overline { 0 } 00$ V

Read the measurement shown on the U.S. micrometer.

For the resistor shown below, find the tolerance interval in ohms, Ω.

Read the measurement shown on the U.S. micrometer.

Read the measurement shown on the U.S. micrometer. __________ in.
