Question 1

On a systems flowchart a rectangle represents a(n) ________________.

Accepted Answer

The answer of On a systems flowchart a rectangle represents...

Question 2

In a systems flowchart, two parallel lines represent the data store symbol.

Accepted Answer

A) True
 B)False

Question 3

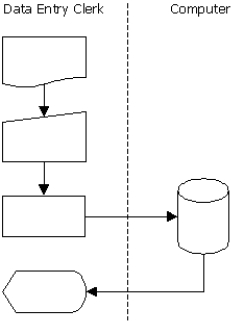

The following systems flowchart segment depicts a data entry clerk keying data from a source document into a business event data store. Which statement is correct?

Accepted Answer

A)  The systems flowchart was created properly.
B)  The arrow between the computer process and the data store should be bi-directional.
C)  The computer process should be shown in the computer column.
D)  The second symbol in the data entry clerk column should be a square.
A)  The systems flowchart was created properly.
B)  The arrow between the computer process and the data store should be bi-directional.
C)  The computer process should be shown in the computer column.
D)  The second symbol in the data entry clerk column should be a square.

Question 4

Which of the following segments violates guidelines for creating systems flowcharts? a.
b.
c.
d.

Accepted Answer

A)  Segment a.
B)  Segment b.
C)  Segment c.
D)  Segment d.
A)  Segment a.
B)  Segment b.
C)  Segment c.
D)  Segment d.

Question 5

Adams, Inc. customers mail their orders to the Adams customer service center where clerks open the orders and review them for accuracy. The clerks then key orders into the computer. As the clerk is entering data the computer populates the order input screen with data from the applicable customer and inventory master data. The computer displays the completed order and the clerk reviews the order (assume there are no discrepancies) and then accepts the order (selects the "save" icon on the input screen). The computer then creates a sales order master record, updates the inventory master data to allocate inventory to the sales order, prints a picking ticket in the warehouse, and displays the sales order number to the customer service center clerk. The clerk then reads this number to the customer.
Required:
a. Prepare an annotated table of entities and activities. Indicate on this table the groupings-bubble numbers and bubble titles-to be used in preparing the level 0 logical data flow diagram.
b. Prepare a logical data flow diagram (level 0 only). The context diagram of this billing system shows two external entities: customers and the shipping department.
c. Prepare a systems flowchart.

Accepted Answer

INSTRUCTOR NOTE: This problem requires s

Question 6

Which of the following data flow diagram (DFD) symbols is represented by two parallel lines?

Accepted Answer

A)  data flow symbol
B)  external entity symbol
C)  internal entity symbol
D)  data store symbol
A)  data flow symbol
B)  external entity symbol
C)  internal entity symbol
D)  data store symbol

Question 7

A data flow diagram (DFD) is a graphical representation of a system, which depicts the system's components, data flows and the sources, destinations and storage of data.

Accepted Answer

A) True
 B)False

Question 8

The following symbol represents a disk data store

Accepted Answer

A) True
 B)False

Question 9

In a data flow diagram, a square represents a source or destination of data outside the system.

Accepted Answer

A) True
 B)False

Question 10

A symbol used in data flow diagrams (DFDs) to depict an entity or process within which incoming data flows are transformed into outgoing data flows is a(n):

Accepted Answer

A)  data flow symbol
B)  external entity symbol
C)  bubble symbol
D)  data store symbol
A)  data flow symbol
B)  external entity symbol
C)  bubble symbol
D)  data store symbol

Question 11

A person, place, or thing within a system that transforms data is called:

Accepted Answer

A)  external entity
B)  data store
C)  internal entity
D)  Boundary
A)  external entity
B)  data store
C)  internal entity
D)  Boundary

Question 12

The successive subdividing, or exploding, of logical data flow diagrams (DFDs) is called ______________________________.

Accepted Answer

top-down p

Question 13

Internal entities do not perform any information processing activities.

Accepted Answer

A) True
 B)False

Question 14

Systems documentation is used to understand, explain, evaluate, and improve complex business processes, information systems, and internal controls.

Accepted Answer

A) True
 B)False

Question 15

In drawing a context diagram, we should include:

Accepted Answer

A)  only exception routines
B)  only error routines
C)  only normal processing routines
D)  only normal processing and exception routines
A)  only exception routines
B)  only error routines
C)  only normal processing routines
D)  only normal processing and exception routines

Question 16

Data leaving for outside a system is depicted on a data flow diagram (DFD) as going to a(n) ______________________________ entity.

Accepted Answer

The answer of Data leaving for outside a system is...

Question 17

The advantage of a physical data flow diagram (DFD) versus a logical data flow diagram (DFD) is that we can concentrate on what activities a system is performing without having to specify how, where or by whom.

Accepted Answer

A) True
 B)False

Question 18

A(n) ______________________________ is a person, place, or thing within the system that transforms data.

Accepted Answer

The answer of A(n) ______________________________ is a person, place, or...

Question 19

Which data flow diagram (DFD) symbol is usually portrayed with a square?

Accepted Answer

A)  data flow
B)  data store
C)  external entity
D)  process or internal entity
A)  data flow
B)  data store
C)  external entity
D)  process or internal entity

Question 20

In a logical data flow diagram (DFD) for a cash receipts system, each of the following labels might appear in a bubble except:

Accepted Answer

A)  cashier
B)  capture cash receipt
C)  prepare deposit
D)  record customer payment
A)  cashier
B)  capture cash receipt
C)  prepare deposit
D)  record customer payment

On a systems flowchart a rectangle represents a(n) ________________.

In a systems flowchart, two parallel lines represent the data store symbol.

The following systems flowchart segment depicts a data entry clerk keying data from a source document into a business event data store. Which statement is correct?

Which of the following segments violates guidelines for creating systems flowcharts? a. b. c. d.

Which of the following data flow diagram (DFD) symbols is represented by two parallel lines?

A data flow diagram (DFD) is a graphical representation of a system, which depicts the system's components, data flows and the sources, destinations and storage of data.

The following symbol represents a disk data store

In a data flow diagram, a square represents a source or destination of data outside the system.

A symbol used in data flow diagrams (DFDs) to depict an entity or process within which incoming data flows are transformed into outgoing data flows is a(n):

A person, place, or thing within a system that transforms data is called:

The successive subdividing, or exploding, of logical data flow diagrams (DFDs) is called ______________________________.

Internal entities do not perform any information processing activities.

Systems documentation is used to understand, explain, evaluate, and improve complex business processes, information systems, and internal controls.

In drawing a context diagram, we should include:

Data leaving for outside a system is depicted on a data flow diagram (DFD) as going to a(n) ______________________________ entity.

The advantage of a physical data flow diagram (DFD) versus a logical data flow diagram (DFD) is that we can concentrate on what activities a system is performing without having to specify how, where or by whom.

A(n) ______________________________ is a person, place, or thing within the system that transforms data.

Which data flow diagram (DFD) symbol is usually portrayed with a square?

In a logical data flow diagram (DFD) for a cash receipts system, each of the following labels might appear in a bubble except:
