Exam 3: Systems Documentation Techniques

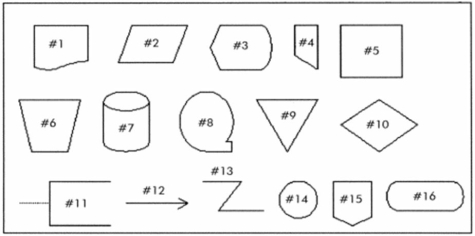

Use the chart below to answer the following questions regarding flow chart symbols. -Which symbol would be used in a flowchart to indicate a wireless connection between a laptop and the mainframe?

Chas Mulligan has been hired by Yardley Security as an assistant to the internal auditor.He has been asked to document the existing accounting information system,and focus on the activities and flow of data between activities.He decides to begin with a summary description of the sources and uses of data in the organization and how they are processed by the system.The documentation tool that he should employ for this purpose is a

In a program flowchart,branching to alternative paths is represented by

Describe the different levels of DFDs.

What is the value of using a context diagram when working with DFDs?

Discuss the ways in which information professionals interact with documentation tools and the various levels of understanding necessary.

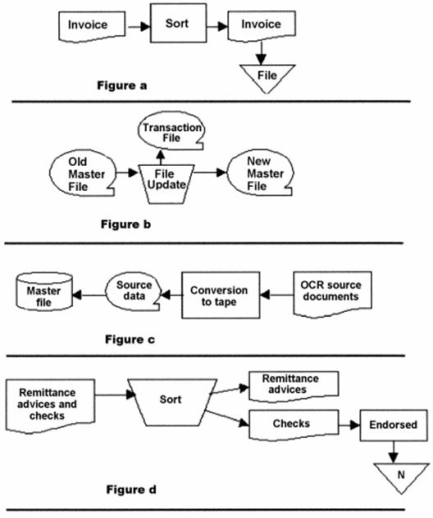

Identify the mistake(s)in each flowchart segment.

Use the chart below to answer the following questions regarding flow chart symbols. -Which symbol would be used in a flowchart to represent a decision?

Use the chart below to answer the following questions regarding flow chart symbols. -Which symbol would be used in a flowchart to represent employee time cards sent by department managers to the payroll department?

In a data flow diagram of the customer payment process,"Customer payment" will appear above or in

Most processes on a DFD can be identified by

Use the chart below to answer the following questions regarding flow chart symbols. -Which symbol would be used in a flowchart to represent a general ledger master file kept on magnetic disk?

Which is the correct label for the blank transformation process circle in the data flow diagram below?

Which is a true statement regarding the use of the manual processing symbol in a flowchart?

The passage of the Sarbanes Oxley Act

Nishant Kumar has been hired by American Manufacturing as a staff accountant in the internal audit department.He has been asked to thoroughly document the existing accounting information system in preparation for making recommendations for improvements.He decides to begin by meeting with the information technology staff in order to develop an understanding of the computer programs used by the system.The documentation tool that he should employ for this purpose is a

Use the chart below to answer the following questions regarding flow chart symbols. -Which symbol would be used in a flowchart to represent a connection to another part of the flowchart on a different page?

A report is generated from data stored on a hard drive.Which one of the following diagrams represents this activity?

In preparing a DFD,when data are transformed through a process,the symbol used should be

Use the chart below to answer the following questions regarding flow chart symbols. -Which symbol would be used in a flowchart to note that every sales order contains the customer name,address,product number,quantity ordered,item cost,and credit terms?
